vtkImageIdealHighPass Class Reference

Simple frequency domain band pass. More...

#include <vtkImageIdealHighPass.h>

Inheritance diagram for vtkImageIdealHighPass:

Inheritance graph
[legend]

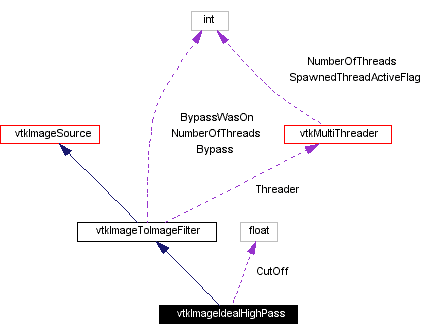

Collaboration diagram for vtkImageIdealHighPass:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetCutOff (float, float, float)
virtual void SetCutOff (float[3])
void SetCutOff (float v)
void SetXCutOff (float v)
void SetYCutOff (float v)
void SetZCutOff (float v)
virtual float * GetCutOff ()
virtual void GetCutOff (float &, float &, float &)
virtual void GetCutOff (float[3])
float GetXCutOff ()
float GetYCutOff ()
float GetZCutOff ()

Static Public Methods

vtkImageIdealHighPass * New ()
int IsTypeOf (const char *type)
vtkImageIdealHighPass * SafeDownCast (vtkObject *o)

Protected Methods

 vtkImageIdealHighPass ()
 ~vtkImageIdealHighPass ()
void ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int outExt[6], int id)

Protected Attributes

float CutOff [3]

Detailed Description

Simple frequency domain band pass.

Date:
2001/12/07 14:03:51
Revision:
1.19
Thanks:
Thanks to C. Charles Law who developed this class.
This filter only works on an image after it has been converted to frequency domain by a vtkImageFFT filter. A vtkImageRFFT filter can be used to convert the output back into the spatial domain. vtkImageIdealHighPass just sets a portion of the image to zero. The sharp cutoff in the frequence domain produces ringing in the spatial domain. Input and Output must be floats. Dimensionality is set when the axes are set. Defaults to 2D on X and Y axes.

See also:
vtkImageButterworthHighPass vtkImageIdealLowPass vtkImageFFT vtkImageRFFT
Tests:
vtkImageIdealHighPass (Tests)

Definition at line 68 of file vtkImageIdealHighPass.h.


Constructor & Destructor Documentation

vtkImageIdealHighPass::vtkImageIdealHighPass   [protected]


vtkImageIdealHighPass::~vtkImageIdealHighPass   [inline, protected]


Definition at line 92 of file vtkImageIdealHighPass.h.


Member Function Documentation

vtkImageIdealHighPass* vtkImageIdealHighPass::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkImageToImageFilter.

virtual const char* vtkImageIdealHighPass::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

int vtkImageIdealHighPass::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

virtual int vtkImageIdealHighPass::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

vtkImageIdealHighPass* vtkImageIdealHighPass::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

void vtkImageIdealHighPass::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageToImageFilter.

virtual void vtkImageIdealHighPass::SetCutOff float   ,
float   ,
float
[virtual]


Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual void vtkImageIdealHighPass::SetCutOff float   [3] [virtual]


Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

void vtkImageIdealHighPass::SetCutOff float    v [inline]


Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

Definition at line 80 of file vtkImageIdealHighPass.h.

void vtkImageIdealHighPass::SetXCutOff float    v


Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

void vtkImageIdealHighPass::SetYCutOff float    v


Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

void vtkImageIdealHighPass::SetZCutOff float    v


Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual float* vtkImageIdealHighPass::GetCutOff   [virtual]


Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual void vtkImageIdealHighPass::GetCutOff float &   ,
float &   ,
float &
[virtual]


Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

virtual void vtkImageIdealHighPass::GetCutOff float   [3] [virtual]


Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

float vtkImageIdealHighPass::GetXCutOff   [inline]


Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

Definition at line 85 of file vtkImageIdealHighPass.h.

float vtkImageIdealHighPass::GetYCutOff   [inline]


Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

Definition at line 86 of file vtkImageIdealHighPass.h.

float vtkImageIdealHighPass::GetZCutOff   [inline]


Set/Get the cutoff frequency for each axis. The values are specified in the order X, Y, Z, Time. Units: Cycles per world unit (as defined by the data spacing).

Definition at line 87 of file vtkImageIdealHighPass.h.

void vtkImageIdealHighPass::ThreadedExecute vtkImageData   inData,
vtkImageData   outData,
int    outExt[6],
int    id
[protected, virtual]


If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkImageToImageFilter.


Member Data Documentation

float vtkImageIdealHighPass::CutOff[3] [protected]


Definition at line 94 of file vtkImageIdealHighPass.h.


The documentation for this class was generated from the following file:
