vtkImageMagnitude Class Reference

Colapses components with magnitude function.. More...

#include <vtkImageMagnitude.h>

Inheritance diagram for vtkImageMagnitude:

Inheritance graph
[legend]

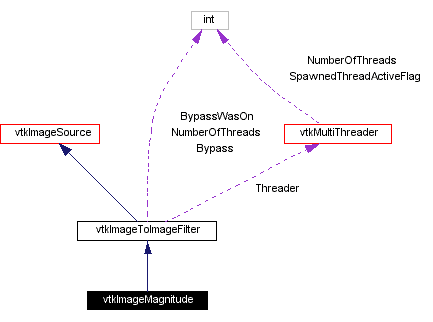

Collaboration diagram for vtkImageMagnitude:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)

Static Public Methods

vtkImageMagnitude * New ()
int IsTypeOf (const char *type)
vtkImageMagnitude * SafeDownCast (vtkObject *o)

Protected Methods

 vtkImageMagnitude ()
 ~vtkImageMagnitude ()
void ExecuteInformation (vtkImageData *inData, vtkImageData *outData)
void ExecuteInformation ()
void ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int extent[6], int id)

Detailed Description

Colapses components with magnitude function..

Date:
2001/11/13 14:32:38
Revision:
1.22
Thanks:
Thanks to C. Charles Law who developed this class.
vtkImageMagnitude takes the magnitude of the components.
Tests:
vtkImageMagnitude (Tests)

Definition at line 59 of file vtkImageMagnitude.h.


Constructor & Destructor Documentation

vtkImageMagnitude::vtkImageMagnitude   [inline, protected]


Definition at line 66 of file vtkImageMagnitude.h.

vtkImageMagnitude::~vtkImageMagnitude   [inline, protected]


Definition at line 67 of file vtkImageMagnitude.h.


Member Function Documentation

vtkImageMagnitude* vtkImageMagnitude::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkImageToImageFilter.

virtual const char* vtkImageMagnitude::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

int vtkImageMagnitude::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

virtual int vtkImageMagnitude::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

vtkImageMagnitude* vtkImageMagnitude::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

void vtkImageMagnitude::ExecuteInformation vtkImageData   inData,
vtkImageData   outData
[protected, virtual]


Reimplemented from vtkImageToImageFilter.

void vtkImageMagnitude::ExecuteInformation   [inline, protected, virtual]


Reimplemented from vtkImageToImageFilter.

Definition at line 70 of file vtkImageMagnitude.h.

void vtkImageMagnitude::ThreadedExecute vtkImageData   inData,
vtkImageData   outData,
int    extent[6],
int    id
[protected, virtual]


If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkImageToImageFilter.


The documentation for this class was generated from the following file:
