vtkImageMaskBits Class Reference

applies a bit-mask pattern to each component. More...

#include <vtkImageMaskBits.h>

Inheritance diagram for vtkImageMaskBits:

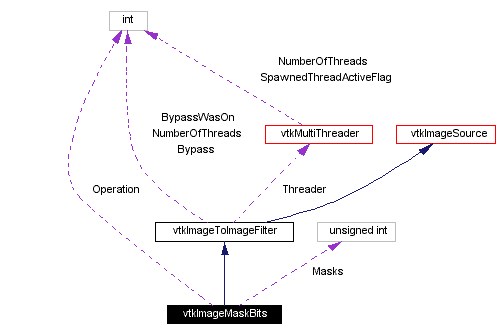

[legend]Collaboration diagram for vtkImageMaskBits:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &, vtkIndent)
virtual void	SetMasks (unsigned int, unsigned int, unsigned int, unsigned int)
virtual void	SetMasks (unsigned int[4])
void	SetMask (unsigned int mask)
void	SetMasks (unsigned int mask1, unsigned int mask2)
void	SetMasks (unsigned int mask1, unsigned int mask2, unsigned int mask3)
virtual unsigned int *	GetMasks ()
virtual void	GetMasks (unsigned int &, unsigned int &, unsigned int &, unsigned int &)
virtual void	GetMasks (unsigned int[4])
virtual void	SetOperation (int)
virtual int	GetOperation ()
void	SetOperationToAnd ()
void	SetOperationToOr ()
void	SetOperationToXor ()
void	SetOperationToNand ()
void	SetOperationToNor ()
Static Public Methods
vtkImageMaskBits *	New ()
int	IsTypeOf (const char *type)
vtkImageMaskBits *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkImageMaskBits ()
	~vtkImageMaskBits ()
void	ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int ext[6], int id)
Protected Attributes
unsigned int	Masks [4]
int	Operation

---

Detailed Description

applies a bit-mask pattern to each component.

Date:

2001/11/13 14:32:38

Revision:

1.15

vtkImageMaskBits applies a bit-mask pattern to each component. The bit-mask can be applied using a variety of boolean bitwise operators.

Tests:

vtkImageMaskBits (Tests)

Definition at line 60 of file vtkImageMaskBits.h.

---

Constructor & Destructor Documentation

vtkImageMaskBits::vtkImageMaskBits (    )  [protected]

vtkImageMaskBits::~vtkImageMaskBits (    )  [inline, protected]

Definition at line 93 of file vtkImageMaskBits.h.

---

Member Function Documentation

vtkImageMaskBits* vtkImageMaskBits::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageToImageFilter.

virtual const char* vtkImageMaskBits::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

int vtkImageMaskBits::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

virtual int vtkImageMaskBits::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

vtkImageMaskBits* vtkImageMaskBits::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

void vtkImageMaskBits::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageToImageFilter.

virtual void vtkImageMaskBits::SetMasks (  unsigned    int, unsigned    int, unsigned    int, unsigned    int )  [virtual]

Set/Get the bit-masks. Default is 0xffffffff.

virtual void vtkImageMaskBits::SetMasks (  unsigned    int[4] )  [virtual]

Set/Get the bit-masks. Default is 0xffffffff.

void vtkImageMaskBits::SetMask (  unsigned int    mask )  [inline]

Set/Get the bit-masks. Default is 0xffffffff. Definition at line 70 of file vtkImageMaskBits.h.

void vtkImageMaskBits::SetMasks (  unsigned int    mask1, unsigned int    mask2 )  [inline]

Set/Get the bit-masks. Default is 0xffffffff. Definition at line 72 of file vtkImageMaskBits.h.

void vtkImageMaskBits::SetMasks (  unsigned int    mask1, unsigned int    mask2, unsigned int    mask3 )  [inline]

Set/Get the bit-masks. Default is 0xffffffff. Definition at line 74 of file vtkImageMaskBits.h.

virtual unsigned int* vtkImageMaskBits::GetMasks (    )  [virtual]

Set/Get the bit-masks. Default is 0xffffffff.

virtual void vtkImageMaskBits::GetMasks (  unsigned int &   , unsigned int &   , unsigned int &   , unsigned int &    )  [virtual]

Set/Get the bit-masks. Default is 0xffffffff.

virtual void vtkImageMaskBits::GetMasks (  unsigned    int[4] )  [virtual]

Set/Get the bit-masks. Default is 0xffffffff.

virtual void vtkImageMaskBits::SetOperation (  int    )  [virtual]

Set/Get the boolean operator. Default is AND.

virtual int vtkImageMaskBits::GetOperation (    )  [virtual]

Set/Get the boolean operator. Default is AND.

void vtkImageMaskBits::SetOperationToAnd (    )  [inline]

Set/Get the boolean operator. Default is AND. Definition at line 83 of file vtkImageMaskBits.h.

void vtkImageMaskBits::SetOperationToOr (    )  [inline]

Set/Get the boolean operator. Default is AND. Definition at line 84 of file vtkImageMaskBits.h.

void vtkImageMaskBits::SetOperationToXor (    )  [inline]

Set/Get the boolean operator. Default is AND. Definition at line 85 of file vtkImageMaskBits.h.

void vtkImageMaskBits::SetOperationToNand (    )  [inline]

Set/Get the boolean operator. Default is AND. Definition at line 86 of file vtkImageMaskBits.h.

void vtkImageMaskBits::SetOperationToNor (    )  [inline]

Set/Get the boolean operator. Default is AND. Definition at line 87 of file vtkImageMaskBits.h.

void vtkImageMaskBits::ThreadedExecute (  vtkImageData *    inData, vtkImageData *    outData, int    ext[6], int    id )  [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method. Reimplemented from vtkImageToImageFilter.

---

Member Data Documentation

unsigned int vtkImageMaskBits::Masks[4] [protected]

Definition at line 98 of file vtkImageMaskBits.h.

int vtkImageMaskBits::Operation [protected]

Definition at line 99 of file vtkImageMaskBits.h.

---

The documentation for this class was generated from the following file:

• Imaging/vtkImageMaskBits.h

---
