vtkImageNormalize Class Reference

Normalizes that scalar components for each point. More...

#include <vtkImageNormalize.h>

Inheritance diagram for vtkImageNormalize:

Inheritance graph
[legend]

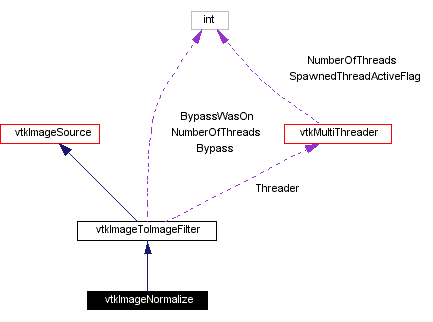

Collaboration diagram for vtkImageNormalize:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)

Static Public Methods

vtkImageNormalize * New ()
int IsTypeOf (const char *type)
vtkImageNormalize * SafeDownCast (vtkObject *o)

Protected Methods

 vtkImageNormalize ()
 ~vtkImageNormalize ()
void ExecuteInformation (vtkImageData *inData, vtkImageData *outData)
void ExecuteInformation ()
void ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int extent[6], int id)

Detailed Description

Normalizes that scalar components for each point.

Date:
2001/11/13 14:32:39
Revision:
1.13
Thanks:
Thanks to C. Charles Law who developed this class.
For each point, vtkImageNormalize normalizes the vector defined by the scalar components. If the magnitude of this vector is zero, the output vector is zero also.
Tests:
vtkImageNormalize (Tests)

Definition at line 61 of file vtkImageNormalize.h.


Constructor & Destructor Documentation

vtkImageNormalize::vtkImageNormalize   [inline, protected]


Definition at line 68 of file vtkImageNormalize.h.

vtkImageNormalize::~vtkImageNormalize   [inline, protected]


Definition at line 69 of file vtkImageNormalize.h.


Member Function Documentation

vtkImageNormalize* vtkImageNormalize::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkImageToImageFilter.

virtual const char* vtkImageNormalize::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

int vtkImageNormalize::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

virtual int vtkImageNormalize::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

vtkImageNormalize* vtkImageNormalize::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

void vtkImageNormalize::ExecuteInformation vtkImageData   inData,
vtkImageData   outData
[protected, virtual]


Reimplemented from vtkImageToImageFilter.

void vtkImageNormalize::ExecuteInformation   [inline, protected, virtual]


Reimplemented from vtkImageToImageFilter.

Definition at line 72 of file vtkImageNormalize.h.

void vtkImageNormalize::ThreadedExecute vtkImageData   inData,
vtkImageData   outData,
int    extent[6],
int    id
[protected, virtual]


If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkImageToImageFilter.


The documentation for this class was generated from the following file:
