vtkImagePadFilter Class Reference

Super class for filters that fill in extra pixels. More...

#include <vtkImagePadFilter.h>

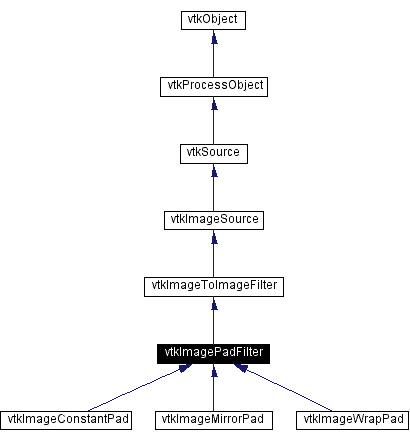

Inheritance diagram for vtkImagePadFilter:

Inheritance graph
[legend]

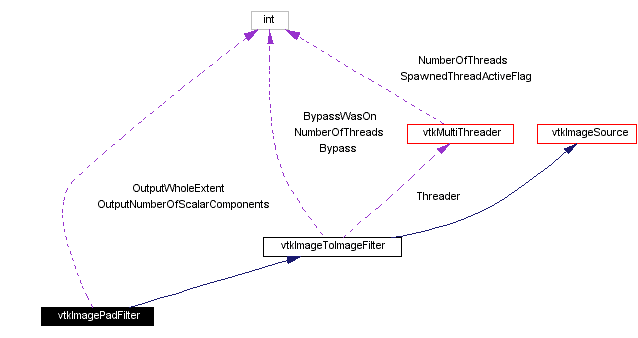

Collaboration diagram for vtkImagePadFilter:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetOutputWholeExtent (int extent[6])
void SetOutputWholeExtent (int minX, int maxX, int minY, int maxY, int minZ, int maxZ)
void GetOutputWholeExtent (int extent[6])
int * GetOutputWholeExtent ()
virtual void SetOutputNumberOfScalarComponents (int)
virtual int GetOutputNumberOfScalarComponents ()

Static Public Methods

vtkImagePadFilter * New ()
int IsTypeOf (const char *type)
vtkImagePadFilter * SafeDownCast (vtkObject *o)

Protected Methods

 vtkImagePadFilter ()
 ~vtkImagePadFilter ()
void ExecuteInformation (vtkImageData *inData, vtkImageData *outData)
void ComputeInputUpdateExtent (int inExt[6], int outExt[6])
void ExecuteInformation ()

Protected Attributes

int OutputWholeExtent [6]
int OutputNumberOfScalarComponents

Detailed Description

Super class for filters that fill in extra pixels.

Date:
2001/11/13 14:32:39
Revision:
1.31
Thanks:
Thanks to C. Charles Law who developed this class.
vtkImagePadFilter Changes the image extent of an image. If the image extent is larger than the input image extent, the extra pixels are filled by an algorithm determined by the subclass. The image extent of the output has to be specified.

Definition at line 58 of file vtkImagePadFilter.h.


Constructor & Destructor Documentation

vtkImagePadFilter::vtkImagePadFilter   [protected]


vtkImagePadFilter::~vtkImagePadFilter   [inline, protected]


Definition at line 82 of file vtkImagePadFilter.h.


Member Function Documentation

vtkImagePadFilter* vtkImagePadFilter::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkImageToImageFilter.

Reimplemented in vtkImageConstantPad, vtkImageMirrorPad, and vtkImageWrapPad.

virtual const char* vtkImagePadFilter::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

Reimplemented in vtkImageConstantPad, vtkImageMirrorPad, and vtkImageWrapPad.

int vtkImagePadFilter::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

Reimplemented in vtkImageConstantPad, vtkImageMirrorPad, and vtkImageWrapPad.

virtual int vtkImagePadFilter::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

Reimplemented in vtkImageConstantPad, vtkImageMirrorPad, and vtkImageWrapPad.

vtkImagePadFilter* vtkImagePadFilter::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

Reimplemented in vtkImageConstantPad, vtkImageMirrorPad, and vtkImageWrapPad.

void vtkImagePadFilter::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageToImageFilter.

Reimplemented in vtkImageConstantPad.

void vtkImagePadFilter::SetOutputWholeExtent int    extent[6]


The image extent of the output has to be set explicitly.

void vtkImagePadFilter::SetOutputWholeExtent int    minX,
int    maxX,
int    minY,
int    maxY,
int    minZ,
int    maxZ


The image extent of the output has to be set explicitly.

void vtkImagePadFilter::GetOutputWholeExtent int    extent[6]


The image extent of the output has to be set explicitly.

int* vtkImagePadFilter::GetOutputWholeExtent   [inline]


The image extent of the output has to be set explicitly.

Definition at line 71 of file vtkImagePadFilter.h.

virtual void vtkImagePadFilter::SetOutputNumberOfScalarComponents int    [virtual]


Set/Get the number of output scalar components.

virtual int vtkImagePadFilter::GetOutputNumberOfScalarComponents   [virtual]


Set/Get the number of output scalar components.

void vtkImagePadFilter::ExecuteInformation vtkImageData   inData,
vtkImageData   outData
[protected, virtual]


Reimplemented from vtkImageToImageFilter.

void vtkImagePadFilter::ComputeInputUpdateExtent int    inExt[6],
int    outExt[6]
[protected, virtual]


Reimplemented from vtkImageToImageFilter.

Reimplemented in vtkImageMirrorPad, and vtkImageWrapPad.

void vtkImagePadFilter::ExecuteInformation   [inline, protected, virtual]


Reimplemented from vtkImageToImageFilter.

Definition at line 89 of file vtkImagePadFilter.h.


Member Data Documentation

int vtkImagePadFilter::OutputWholeExtent[6] [protected]


Definition at line 84 of file vtkImagePadFilter.h.

int vtkImagePadFilter::OutputNumberOfScalarComponents [protected]


Definition at line 85 of file vtkImagePadFilter.h.


The documentation for this class was generated from the following file:
