vtkImagePermute Class Reference

Permutes axes of input. More...

#include <vtkImagePermute.h>

Inheritance diagram for vtkImagePermute:

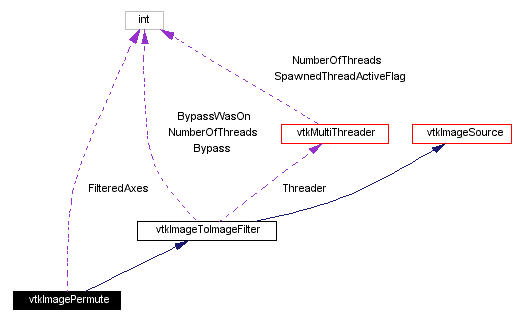

[legend]Collaboration diagram for vtkImagePermute:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetFilteredAxes (int, int, int)
virtual void	SetFilteredAxes (int[3])
virtual int *	GetFilteredAxes ()
virtual void	GetFilteredAxes (int &, int &, int &)
virtual void	GetFilteredAxes (int[3])
Static Public Methods
vtkImagePermute *	New ()
int	IsTypeOf (const char *type)
vtkImagePermute *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkImagePermute ()
	~vtkImagePermute ()
void	ExecuteInformation (vtkImageData *inData, vtkImageData *outData)
void	ComputeInputUpdateExtent (int inExt[6], int outExt[6])
void	ExecuteInformation ()
void	ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int ext[6], int id)
Protected Attributes
int	FilteredAxes [3]

---

Detailed Description

Permutes axes of input.

Date:

2001/11/13 14:32:40

Revision:

1.26

Thanks:

Thanks to C. Charles Law who developed this class.

vtkImagePermute reorders the axes of the input. Filtered axes specify the input axes which become X, Y, Z. The input has to have the same scalar type of the output. The filter does copy the data when it executes.

Tests:

vtkImagePermute (Tests)

Definition at line 62 of file vtkImagePermute.h.

---

Constructor & Destructor Documentation

vtkImagePermute::vtkImagePermute (    )  [protected]

vtkImagePermute::~vtkImagePermute (    )  [inline, protected]

Definition at line 77 of file vtkImagePermute.h.

---

Member Function Documentation

vtkImagePermute* vtkImagePermute::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkImageToImageFilter.

virtual const char* vtkImagePermute::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

int vtkImagePermute::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

virtual int vtkImagePermute::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

vtkImagePermute* vtkImagePermute::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImageToImageFilter.

void vtkImagePermute::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageToImageFilter.

virtual void vtkImagePermute::SetFilteredAxes (  int   , int   , int    )  [virtual]

The filtered axes are the input axes that get relabeled to X,Y,Z.

virtual void vtkImagePermute::SetFilteredAxes (  int   [3] )  [virtual]

The filtered axes are the input axes that get relabeled to X,Y,Z.

virtual int* vtkImagePermute::GetFilteredAxes (    )  [virtual]

The filtered axes are the input axes that get relabeled to X,Y,Z.

virtual void vtkImagePermute::GetFilteredAxes (  int &   , int &   , int &    )  [virtual]

The filtered axes are the input axes that get relabeled to X,Y,Z.

virtual void vtkImagePermute::GetFilteredAxes (  int   [3] )  [virtual]

The filtered axes are the input axes that get relabeled to X,Y,Z.

void vtkImagePermute::ExecuteInformation (  vtkImageData *    inData, vtkImageData *    outData )  [protected, virtual]

Reimplemented from vtkImageToImageFilter.

void vtkImagePermute::ComputeInputUpdateExtent (  int    inExt[6], int    outExt[6] )  [protected, virtual]

Reimplemented from vtkImageToImageFilter.

void vtkImagePermute::ExecuteInformation (    )  [inline, protected, virtual]

Reimplemented from vtkImageToImageFilter. Definition at line 82 of file vtkImagePermute.h.

void vtkImagePermute::ThreadedExecute (  vtkImageData *    inData, vtkImageData *    outData, int    ext[6], int    id )  [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method. Reimplemented from vtkImageToImageFilter.

---

Member Data Documentation

int vtkImagePermute::FilteredAxes[3] [protected]

Definition at line 79 of file vtkImagePermute.h.

---

The documentation for this class was generated from the following file:

• Imaging/vtkImagePermute.h

---
