vtkImageResample Class Reference

Resamples an image to be larger or smaller. More...

#include <vtkImageResample.h>

Inheritance diagram for vtkImageResample:

Inheritance graph
[legend]

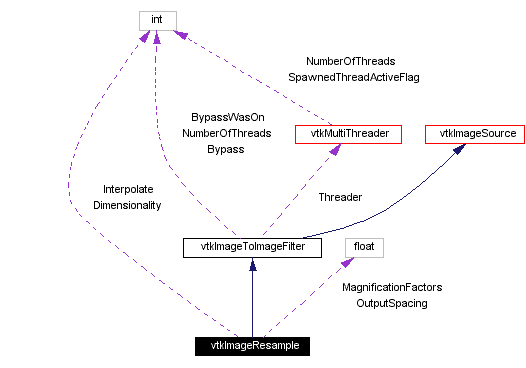

Collaboration diagram for vtkImageResample:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetAxisOutputSpacing (int axis, float spacing)
void SetAxisMagnificationFactor (int axis, float factor)
float GetAxisMagnificationFactor (int axis)
virtual void SetInterpolate (int)
virtual int GetInterpolate ()
virtual void InterpolateOn ()
virtual void InterpolateOff ()
virtual void SetDimensionality (int)
virtual int GetDimensionality ()

Static Public Methods

vtkImageResample * New ()
int IsTypeOf (const char *type)
vtkImageResample * SafeDownCast (vtkObject *o)

Protected Methods

 vtkImageResample ()
 ~vtkImageResample ()
void ComputeInputUpdateExtent (int inExt[6], int outExt[6])
void ExecuteInformation (vtkImageData *inData, vtkImageData *outData)
void ExecuteInformation ()
void ThreadedExecute (vtkImageData *inData, vtkImageData *outData, int extent[6], int id)

Protected Attributes

float MagnificationFactors [3]
float OutputSpacing [3]
int Interpolate
int Dimensionality

Detailed Description

Resamples an image to be larger or smaller.

Date:
2001/11/13 14:32:40
Revision:
1.30
Thanks:
Thanks to C. Charles Law who developed this class.
This filter produces an output with different spacing (and extent) than the input. Linear interpolation can be used to resample the data. The Output spacing can be set explicitly or relative to input spacing with the SetAxisMagnificationFactor method.
Tests:
vtkImageResample (Tests)

Definition at line 62 of file vtkImageResample.h.


Constructor & Destructor Documentation

vtkImageResample::vtkImageResample   [protected]


vtkImageResample::~vtkImageResample   [inline, protected]


Definition at line 98 of file vtkImageResample.h.


Member Function Documentation

vtkImageResample* vtkImageResample::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkImageToImageFilter.

virtual const char* vtkImageResample::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

int vtkImageResample::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

virtual int vtkImageResample::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

vtkImageResample* vtkImageResample::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageToImageFilter.

void vtkImageResample::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageToImageFilter.

void vtkImageResample::SetAxisOutputSpacing int    axis,
float    spacing


Set desired spacing. Zero is a reserved value indicating spacing has not been set.

void vtkImageResample::SetAxisMagnificationFactor int    axis,
float    factor


Set/Get Magnification factors. Zero is a reserved value indicating values have not been computed.

float vtkImageResample::GetAxisMagnificationFactor int    axis


Set/Get Magnification factors. Zero is a reserved value indicating values have not been computed.

virtual void vtkImageResample::SetInterpolate int    [virtual]


Turn interpolation on and off (pixel replication is used when off).

virtual int vtkImageResample::GetInterpolate   [virtual]


Turn interpolation on and off (pixel replication is used when off).

virtual void vtkImageResample::InterpolateOn   [virtual]


Turn interpolation on and off (pixel replication is used when off).

virtual void vtkImageResample::InterpolateOff   [virtual]


Turn interpolation on and off (pixel replication is used when off).

virtual void vtkImageResample::SetDimensionality int    [virtual]


Dimensionality is the number of axes which are considered during execution. To process images dimensionality would be set to 2. This has the same effect as setting the output spacing of the third axis to 1.0

virtual int vtkImageResample::GetDimensionality   [virtual]


Dimensionality is the number of axes which are considered during execution. To process images dimensionality would be set to 2. This has the same effect as setting the output spacing of the third axis to 1.0

void vtkImageResample::ComputeInputUpdateExtent int    inExt[6],
int    outExt[6]
[protected, virtual]


Reimplemented from vtkImageToImageFilter.

void vtkImageResample::ExecuteInformation vtkImageData   inData,
vtkImageData   outData
[protected, virtual]


Reimplemented from vtkImageToImageFilter.

void vtkImageResample::ExecuteInformation   [inline, protected, virtual]


Reimplemented from vtkImageToImageFilter.

Definition at line 107 of file vtkImageResample.h.

void vtkImageResample::ThreadedExecute vtkImageData   inData,
vtkImageData   outData,
int    extent[6],
int    id
[protected, virtual]


If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkImageToImageFilter.


Member Data Documentation

float vtkImageResample::MagnificationFactors[3] [protected]


Definition at line 100 of file vtkImageResample.h.

float vtkImageResample::OutputSpacing[3] [protected]


Definition at line 101 of file vtkImageResample.h.

int vtkImageResample::Interpolate [protected]


Definition at line 102 of file vtkImageResample.h.

int vtkImageResample::Dimensionality [protected]


Definition at line 103 of file vtkImageResample.h.


The documentation for this class was generated from the following file:
