vtkImageShrink3D Class Reference

Subsamples an image. More...

#include <vtkImageShrink3D.h>

Inheritance diagram for vtkImageShrink3D:

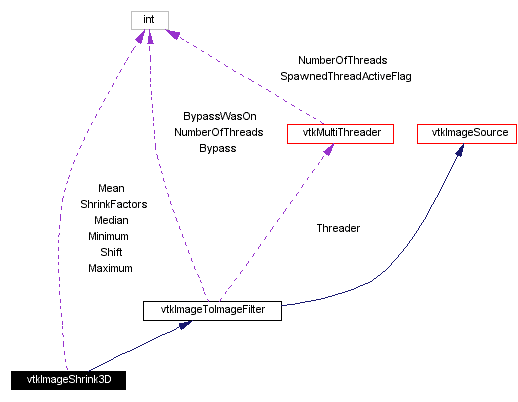

[legend]Collaboration diagram for vtkImageShrink3D:

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetMean (int)
virtual int	GetMean ()
virtual void	MeanOn ()
virtual void	MeanOff ()
void	SetMinimum (int)
virtual int	GetMinimum ()
virtual void	MinimumOn ()
virtual void	MinimumOff ()
void	SetMaximum (int)
virtual int	GetMaximum ()
virtual void	MaximumOn ()
virtual void	MaximumOff ()
void	SetMedian (int)
virtual int	GetMedian ()
virtual void	MedianOn ()
virtual void	MedianOff ()

virtual void	SetShrinkFactors (int, int, int)
virtual void	SetShrinkFactors (int[3])
virtual int *	GetShrinkFactors ()
virtual void	GetShrinkFactors (int &, int &, int &)
virtual void	GetShrinkFactors (int[3])

virtual void	SetShift (int, int, int)
virtual void	SetShift (int[3])
virtual int *	GetShift ()
virtual void	GetShift (int &, int &, int &)
virtual void	GetShift (int[3])

void	SetAveraging (int)
int	GetAveraging ()
virtual void	AveragingOn ()
virtual void	AveragingOff ()
Static Public Methods
vtkImageShrink3D *	New ()
int	IsTypeOf (const char *type)
vtkImageShrink3D *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkImageShrink3D ()
	~vtkImageShrink3D ()
void	ExecuteInformation (vtkImageData inData, vtkImageData outData)
void	ComputeInputUpdateExtent (int inExt[6], int outExt[6])
void	ExecuteInformation ()
void	ThreadedExecute (vtkImageData inData, vtkImageData outData, int ext[6], int id)
Protected Attributes
int	ShrinkFactors [3]
int	Shift [3]
int	Mean
int	Minimum
int	Maximum
int	Median

Detailed Description

Subsamples an image.

Date:: 2001/11/13 14:32:41

Revision:: 1.36

Thanks:: Thanks to C. Charles Law who developed this class.

vtkImageShrink3D shrinks an image by sub sampling on a uniform grid (integer multiples).

Examples:: vtkImageShrink3D (Examples)

Tests:: vtkImageShrink3D (Tests)

Definition at line 63 of file vtkImageShrink3D.h.

Constructor & Destructor Documentation

vtkImageShrink3D::vtkImageShrink3D ( ) [protected]

vtkImageShrink3D::~vtkImageShrink3D ( ) [inline, protected]

Definition at line 112 of file vtkImageShrink3D.h.

Member Function Documentation

vtkImageShrink3D* vtkImageShrink3D::New ( ) [static]

Instantiate object with no start, end, or progress methods.
Reimplemented from vtkImageToImageFilter.

virtual const char* vtkImageShrink3D::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkImageToImageFilter.

int vtkImageShrink3D::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkImageToImageFilter.

virtual int vtkImageShrink3D::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkImageToImageFilter.

vtkImageShrink3D* vtkImageShrink3D::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkImageToImageFilter.

void vtkImageShrink3D::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkImageToImageFilter.

virtual void vtkImageShrink3D::SetShrinkFactors ( int ,

int ,

int

) [virtual]

Set/Get the shrink factors

virtual void vtkImageShrink3D::SetShrinkFactors ( int [3] ) [virtual]

Set/Get the shrink factors

virtual int* vtkImageShrink3D::GetShrinkFactors ( ) [virtual]

Set/Get the shrink factors

virtual void vtkImageShrink3D::GetShrinkFactors ( int & ,

int & ,

int &

) [virtual]

Set/Get the shrink factors

virtual void vtkImageShrink3D::GetShrinkFactors ( int [3] ) [virtual]

Set/Get the shrink factors

virtual void vtkImageShrink3D::SetShift ( int ,

int ,

int

) [virtual]

Set/Get the pixel to use as origin.

virtual void vtkImageShrink3D::SetShift ( int [3] ) [virtual]

Set/Get the pixel to use as origin.

virtual int* vtkImageShrink3D::GetShift ( ) [virtual]

Set/Get the pixel to use as origin.

virtual void vtkImageShrink3D::GetShift ( int & ,

int & ,

int &

) [virtual]

Set/Get the pixel to use as origin.

virtual void vtkImageShrink3D::GetShift ( int [3] ) [virtual]

Set/Get the pixel to use as origin.

void vtkImageShrink3D::SetAveraging ( int )

Choose Mean, Minimum, Maximum, Median or sub sampling. The neighborhood operations are not centered on the sampled pixel. This may cause a half pixel shift in your output image. You can changed "Shift" to get around this. vtkImageGaussianSmooth or vtkImageMean with strides.

int vtkImageShrink3D::GetAveraging ( ) [inline]

Choose Mean, Minimum, Maximum, Median or sub sampling. The neighborhood operations are not centered on the sampled pixel. This may cause a half pixel shift in your output image. You can changed "Shift" to get around this. vtkImageGaussianSmooth or vtkImageMean with strides.
Definition at line 89 of file vtkImageShrink3D.h.

virtual void vtkImageShrink3D::AveragingOn ( ) [virtual]

Choose Mean, Minimum, Maximum, Median or sub sampling. The neighborhood operations are not centered on the sampled pixel. This may cause a half pixel shift in your output image. You can changed "Shift" to get around this. vtkImageGaussianSmooth or vtkImageMean with strides.

virtual void vtkImageShrink3D::AveragingOff ( ) [virtual]

Choose Mean, Minimum, Maximum, Median or sub sampling. The neighborhood operations are not centered on the sampled pixel. This may cause a half pixel shift in your output image. You can changed "Shift" to get around this. vtkImageGaussianSmooth or vtkImageMean with strides.

void vtkImageShrink3D::SetMean ( int )

virtual int vtkImageShrink3D::GetMean ( ) [virtual]

virtual void vtkImageShrink3D::MeanOn ( ) [virtual]

virtual void vtkImageShrink3D::MeanOff ( ) [virtual]

void vtkImageShrink3D::SetMinimum ( int )

virtual int vtkImageShrink3D::GetMinimum ( ) [virtual]

virtual void vtkImageShrink3D::MinimumOn ( ) [virtual]

virtual void vtkImageShrink3D::MinimumOff ( ) [virtual]

void vtkImageShrink3D::SetMaximum ( int )

virtual int vtkImageShrink3D::GetMaximum ( ) [virtual]

virtual void vtkImageShrink3D::MaximumOn ( ) [virtual]

virtual void vtkImageShrink3D::MaximumOff ( ) [virtual]

void vtkImageShrink3D::SetMedian ( int )

virtual int vtkImageShrink3D::GetMedian ( ) [virtual]

virtual void vtkImageShrink3D::MedianOn ( ) [virtual]

virtual void vtkImageShrink3D::MedianOff ( ) [virtual]

void vtkImageShrink3D::ExecuteInformation ( vtkImageData * inData,

vtkImageData * outData

) [protected, virtual]

Reimplemented from vtkImageToImageFilter.

void vtkImageShrink3D::ComputeInputUpdateExtent ( int inExt[6],

int outExt[6]

) [protected, virtual]

Reimplemented from vtkImageToImageFilter.

void vtkImageShrink3D::ExecuteInformation ( ) [inline, protected, virtual]

Reimplemented from vtkImageToImageFilter.
Definition at line 123 of file vtkImageShrink3D.h.

void vtkImageShrink3D::ThreadedExecute ( vtkImageData * inData,

vtkImageData * outData,

int ext[6],

int id

) [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.
Reimplemented from vtkImageToImageFilter.

Member Data Documentation

int vtkImageShrink3D::ShrinkFactors[3] [protected]

Definition at line 114 of file vtkImageShrink3D.h.

int vtkImageShrink3D::Shift[3] [protected]

Definition at line 115 of file vtkImageShrink3D.h.

int vtkImageShrink3D::Mean [protected]

Definition at line 116 of file vtkImageShrink3D.h.

int vtkImageShrink3D::Minimum [protected]

Definition at line 117 of file vtkImageShrink3D.h.

int vtkImageShrink3D::Maximum [protected]

Definition at line 118 of file vtkImageShrink3D.h.

int vtkImageShrink3D::Median [protected]

Definition at line 119 of file vtkImageShrink3D.h.

The documentation for this class was generated from the following file:

Imaging/vtkImageShrink3D.h
