vtkLinkEdgels Class Reference

links edgels together to form digital curves. More...

#include <vtkLinkEdgels.h>

Inheritance diagram for vtkLinkEdgels:

[legend]Collaboration diagram for vtkLinkEdgels:

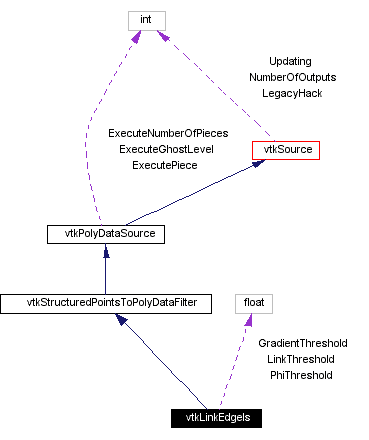

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetLinkThreshold (float)
virtual float	GetLinkThreshold ()
virtual void	SetPhiThreshold (float)
virtual float	GetPhiThreshold ()
virtual void	SetGradientThreshold (float)
virtual float	GetGradientThreshold ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkLinkEdgels *	SafeDownCast (vtkObject *o)
vtkLinkEdgels *	New ()
Protected Methods
	vtkLinkEdgels ()
	~vtkLinkEdgels ()
void	Execute ()
void	LinkEdgels (int xdim, int ydim, float *image, vtkDataArray *inVectors, vtkCellArray *newLines, vtkPoints *newPts, vtkFloatArray *outScalars, vtkFloatArray *outVectors, int z)
Protected Attributes
float	GradientThreshold
float	PhiThreshold
float	LinkThreshold

---

Detailed Description

links edgels together to form digital curves.

Date:

2001/11/13 14:13:49

Revision:

1.25

vtkLinkEdgels links edgels into digital curves which are then stored as polylines. The algorithm works one pixel at a time only looking at its immediate neighbors. There is a GradientThreshold that can be set that eliminates any pixels with a smaller gradient value. This can be used as the lower threshold of a two value edgel thresholding.

For the remaining edgels, links are first tried for the four connected neighbors. A successful neighbor will satisfy three tests. First both edgels must be above the gradient threshold. Second, the difference between the orientation between the two edgels (Alpha) and each edgels orientation (Phi) must be less than LinkThreshold. Third, the difference between the two edgels Phi values must be less than PhiThreshold. The most successful link is selected. The measure is simply the sum of the three angle differences (actually stored as the sum of the cosines). If none of the four connect neighbors succeeds, then the eight connect neighbors are examined using the same method.

This filter requires gradient information so you will need to use a vtkImageGradient at some point prior to this filter. Typically a vtkNonMaximumSuppression filter is also used. vtkThresholdEdgels can be used to complete the two value edgel thresholding as used in a Canny edge detector. The vtkSubpixelPositionEdgels filter can also be used after this filter to adjust the edgel locations.

See also:

vtkImage vtkImageGradient vtkNonMaximumSuppression

Tests:

vtkLinkEdgels (Tests)

Definition at line 82 of file vtkLinkEdgels.h.

---

Constructor & Destructor Documentation

vtkLinkEdgels::vtkLinkEdgels (    )  [protected]

vtkLinkEdgels::~vtkLinkEdgels (    )  [inline, protected]

Definition at line 113 of file vtkLinkEdgels.h.

---

Member Function Documentation

virtual const char* vtkLinkEdgels::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkStructuredPointsToPolyDataFilter.

int vtkLinkEdgels::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkStructuredPointsToPolyDataFilter.

virtual int vtkLinkEdgels::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkStructuredPointsToPolyDataFilter.

vtkLinkEdgels* vtkLinkEdgels::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkStructuredPointsToPolyDataFilter.

void vtkLinkEdgels::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

vtkLinkEdgels* vtkLinkEdgels::New (    )  [static]

Construct instance of vtkLinkEdgels with GradientThreshold set to 0.1, PhiThreshold set to 90 degrees and LinkThreshold set to 90 degrees. Reimplemented from vtkPolyDataSource.

virtual void vtkLinkEdgels::SetLinkThreshold (  float    )  [virtual]

Set/Get the threshold for Phi vs. Alpha link thresholding.

virtual float vtkLinkEdgels::GetLinkThreshold (    )  [virtual]

Set/Get the threshold for Phi vs. Alpha link thresholding.

virtual void vtkLinkEdgels::SetPhiThreshold (  float    )  [virtual]

Set/get the threshold for Phi vs. Phi link thresholding.

virtual float vtkLinkEdgels::GetPhiThreshold (    )  [virtual]

Set/get the threshold for Phi vs. Phi link thresholding.

virtual void vtkLinkEdgels::SetGradientThreshold (  float    )  [virtual]

Set/Get the threshold for image gradient thresholding.

virtual float vtkLinkEdgels::GetGradientThreshold (    )  [virtual]

Set/Get the threshold for image gradient thresholding.

void vtkLinkEdgels::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

void vtkLinkEdgels::LinkEdgels (  int    xdim, int    ydim, float *    image, vtkDataArray *    inVectors, vtkCellArray *    newLines, vtkPoints *    newPts, vtkFloatArray *    outScalars, vtkFloatArray *    outVectors, int    z )  [protected]

---

Member Data Documentation

float vtkLinkEdgels::GradientThreshold [protected]

Definition at line 120 of file vtkLinkEdgels.h.

float vtkLinkEdgels::PhiThreshold [protected]

Definition at line 121 of file vtkLinkEdgels.h.

float vtkLinkEdgels::LinkThreshold [protected]

Definition at line 122 of file vtkLinkEdgels.h.

---

The documentation for this class was generated from the following file:

• Graphics/vtkLinkEdgels.h

---
