vtkMILVideoSource Class Reference

Matrox Imaging Library frame grabbers. More...

#include <vtkMILVideoSource.h>

Inheritance diagram for vtkMILVideoSource:

Inheritance graph
[legend]

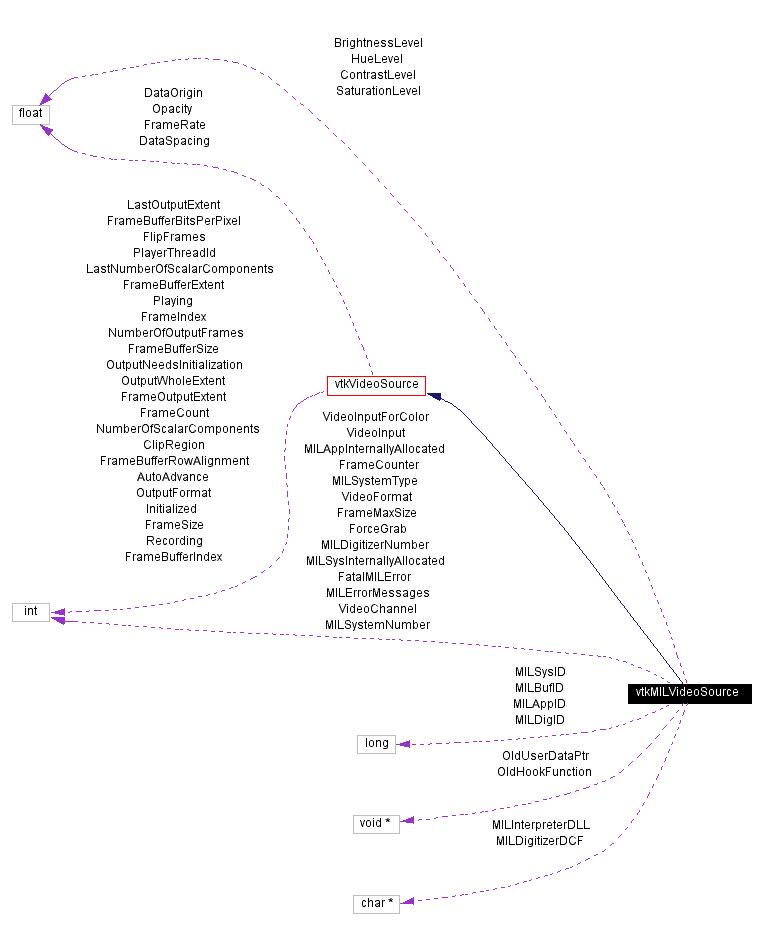

Collaboration diagram for vtkMILVideoSource:

Collaboration graph
[legend]
List of all members.

[NOHEADER]

void InternalGrab ()
void * OldHookFunction
void * OldUserDataPtr
int FrameCounter
int ForceGrab

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void Record ()
void Play ()
void Stop ()
void Grab ()
void SetFrameSize (int x, int y, int z)
void SetOutputFormat (int format)
void Initialize ()
void ReleaseSystemResources ()
virtual void SetVideoChannel (int channel)
virtual int GetVideoChannel ()
virtual void SetVideoFormat (int format)
void SetVideoFormatToNTSC ()
void SetVideoFormatToPAL ()
void SetVideoFormatToSECAM ()
void SetVideoFormatToRS170 ()
void SetVideoFormatToCCIR ()
void SetVideoFormatToNonStandard ()
virtual int GetVideoFormat ()
virtual void SetVideoInput (int input)
void SetVideoInputToMono ()
void SetVideoInputToComposite ()
void SetVideoInputToYC ()
void SetVideoInputToRGB ()
void SetVideoInputToDigital ()
virtual int GetVideoInput ()
virtual void SetContrastLevel (float contrast)
virtual float GetContrastLevel ()
virtual void SetBrightnessLevel (float brightness)
virtual float GetBrightnessLevel ()
virtual void SetHueLevel (float hue)
virtual float GetHueLevel ()
virtual void SetSaturationLevel (float saturation)
virtual float GetSaturationLevel ()
virtual void SetMILSystemType (int)
virtual int GetMILSystemType ()
void SetMILSystemTypeToMeteor ()
void SetMILSystemTypeToMeteorII ()
void SetMILSystemTypeToCorona ()
void SetMILSystemTypeToPulsar ()
void SetMILSystemTypeToMeteorIIDig ()
void SetMILSystemTypeToGenesis ()
virtual void SetMILSystemNumber (int)
virtual int GetMILSystemNumber ()
virtual void SetMILDigitizerDCF (const char *)
virtual char * GetMILDigitizerDCF ()
virtual void SetMILDigitizerNumber (int)
virtual int GetMILDigitizerNumber ()
virtual void SetMILErrorMessages (int yesno)
virtual void MILErrorMessagesOn ()
virtual void MILErrorMessagesOff ()
virtual int GetMILErrorMessages ()
virtual void SetMILAppID (long)
virtual long GetMILAppID ()
virtual void SetMILSysID (long)
virtual long GetMILSysID ()
virtual long GetMILDigID ()
virtual long GetMILBufID ()

Static Public Methods

vtkMILVideoSource * New ()
int IsTypeOf (const char *type)
vtkMILVideoSource * SafeDownCast (vtkObject *o)

Protected Methods

 vtkMILVideoSource ()
 ~vtkMILVideoSource ()
virtual void AllocateMILDigitizer ()
virtual void AllocateMILBuffer ()
virtual void * MILInterpreterForSystem (int system)

Protected Attributes

char * MILInterpreterDLL
int VideoChannel
int VideoInput
int VideoInputForColor
int VideoFormat
float ContrastLevel
float BrightnessLevel
float HueLevel
float SaturationLevel
int FrameMaxSize [2]
long MILAppID
long MILSysID
long MILDigID
long MILBufID
int MILSystemType
int MILSystemNumber
int MILDigitizerNumber
char * MILDigitizerDCF
int MILErrorMessages
int MILAppInternallyAllocated
int MILSysInternallyAllocated
int FatalMILError

Detailed Description

Matrox Imaging Library frame grabbers.

Date:
2001/10/16 04:21:26
Revision:
1.14
Thanks:
Thanks to David G. Gobbi who developed this class.
vtkMILVideoSource provides an interface to Matrox Meteor, MeteorII and Corona video digitizers through the Matrox Imaging Library interface. In order to use this class, you must link VTK with mil.lib, MIL version 5.0 or higher is required.

See also:
vtkWin32VideoSource vtkVideoSource

Definition at line 85 of file vtkMILVideoSource.h.

Constructor & Destructor Documentation

vtkMILVideoSource::vtkMILVideoSource (    )  [protected]


vtkMILVideoSource::~vtkMILVideoSource (    )  [protected]


Member Function Documentation

vtkMILVideoSource* vtkMILVideoSource::New (    )  [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkVideoSource.

virtual const char* vtkMILVideoSource::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkVideoSource.

int vtkMILVideoSource::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkVideoSource.

virtual int vtkMILVideoSource::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkVideoSource.

vtkMILVideoSource* vtkMILVideoSource::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::Record (    )  [virtual]


Standard VCR functionality: Record incoming video.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::Play (    )  [virtual]


Standard VCR functionality: Play recorded video.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::Stop (    )  [virtual]


Standard VCR functionality: Stop recording or playing.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::Grab (    )  [virtual]


Grab a single video frame.

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::SetFrameSize (  int    x,
int    y,
int    z
)  [virtual]


Request a particular frame size (set the third value to 1).

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::SetOutputFormat (  int    format )  [virtual]


Request a particular output format (default: VTK_RGB).

Reimplemented from vtkVideoSource.

virtual void vtkMILVideoSource::SetVideoChannel (  int    channel )  [virtual]


Set/Get the video channel

virtual int vtkMILVideoSource::GetVideoChannel (    )  [virtual]


Set/Get the video channel

virtual void vtkMILVideoSource::SetVideoFormat (  int    format )  [virtual]


Set/Get the video format

void vtkMILVideoSource::SetVideoFormatToNTSC (    )  [inline]


Set/Get the video format

Definition at line 119 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToPAL (    )  [inline]


Set/Get the video format

Definition at line 120 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToSECAM (    )  [inline]


Set/Get the video format

Definition at line 121 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToRS170 (    )  [inline]


Set/Get the video format

Definition at line 122 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToCCIR (    )  [inline]


Set/Get the video format

Definition at line 123 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoFormatToNonStandard (    )  [inline]


Set/Get the video format

Definition at line 124 of file vtkMILVideoSource.h.

virtual int vtkMILVideoSource::GetVideoFormat (    )  [virtual]


Set/Get the video format

virtual void vtkMILVideoSource::SetVideoInput (  int    input )  [virtual]


Set/Get the video input

void vtkMILVideoSource::SetVideoInputToMono (    )  [inline]


Set/Get the video input

Definition at line 132 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoInputToComposite (    )  [inline]


Set/Get the video input

Definition at line 133 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoInputToYC (    )  [inline]


Set/Get the video input

Definition at line 134 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoInputToRGB (    )  [inline]


Set/Get the video input

Definition at line 135 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetVideoInputToDigital (    )  [inline]


Set/Get the video input

Definition at line 136 of file vtkMILVideoSource.h.

virtual int vtkMILVideoSource::GetVideoInput (    )  [virtual]


Set/Get the video input

virtual void vtkMILVideoSource::SetContrastLevel (  float    contrast )  [virtual]


Set/Get the video levels: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual float vtkMILVideoSource::GetContrastLevel (    )  [virtual]


Set/Get the video levels: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual void vtkMILVideoSource::SetBrightnessLevel (  float    brightness )  [virtual]


Set/Get the video levels: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual float vtkMILVideoSource::GetBrightnessLevel (    )  [virtual]


Set/Get the video levels: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual void vtkMILVideoSource::SetHueLevel (  float    hue )  [virtual]


Set/Get the video levels: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual float vtkMILVideoSource::GetHueLevel (    )  [virtual]


Set/Get the video levels: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual void vtkMILVideoSource::SetSaturationLevel (  float    saturation )  [virtual]


Set/Get the video levels: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual float vtkMILVideoSource::GetSaturationLevel (    )  [virtual]


Set/Get the video levels: the valid ranges are: Contrast [0.0,2.0] Brighness [0.0,255.0] Hue [-0.5,0.5] Saturation [0.0,2.0]

virtual void vtkMILVideoSource::SetMILSystemType (  int    )  [virtual]


Set the system which you want use. If you don't specify a system, then an attempt will be made to autodetect your system.

virtual int vtkMILVideoSource::GetMILSystemType (    )  [virtual]


Set the system which you want use. If you don't specify a system, then an attempt will be made to autodetect your system.

void vtkMILVideoSource::SetMILSystemTypeToMeteor (    )  [inline]


Set the system which you want use. If you don't specify a system, then an attempt will be made to autodetect your system.

Definition at line 158 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToMeteorII (    )  [inline]


Set the system which you want use. If you don't specify a system, then an attempt will be made to autodetect your system.

Definition at line 159 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToCorona (    )  [inline]


Set the system which you want use. If you don't specify a system, then an attempt will be made to autodetect your system.

Definition at line 160 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToPulsar (    )  [inline]


Set the system which you want use. If you don't specify a system, then an attempt will be made to autodetect your system.

Definition at line 161 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToMeteorIIDig (    )  [inline]


Set the system which you want use. If you don't specify a system, then an attempt will be made to autodetect your system.

Definition at line 162 of file vtkMILVideoSource.h.

void vtkMILVideoSource::SetMILSystemTypeToGenesis (    )  [inline]


Set the system which you want use. If you don't specify a system, then an attempt will be made to autodetect your system.

Definition at line 163 of file vtkMILVideoSource.h.

virtual void vtkMILVideoSource::SetMILSystemNumber (  int    )  [virtual]


Set the system number if you have multiple systems of the same type

virtual int vtkMILVideoSource::GetMILSystemNumber (    )  [virtual]


Set the system number if you have multiple systems of the same type

virtual void vtkMILVideoSource::SetMILDigitizerDCF (  const char *    )  [virtual]


Set the DCF filename for non-standard video formats

virtual char* vtkMILVideoSource::GetMILDigitizerDCF (    )  [virtual]


Set the DCF filename for non-standard video formats

virtual void vtkMILVideoSource::SetMILDigitizerNumber (  int    )  [virtual]


Set the digitizer number for systems with multiple digitizers

virtual int vtkMILVideoSource::GetMILDigitizerNumber (    )  [virtual]


Set the digitizer number for systems with multiple digitizers

virtual void vtkMILVideoSource::SetMILErrorMessages (  int    yesno )  [virtual]


Set whether to display MIL error messages (default on)

virtual void vtkMILVideoSource::MILErrorMessagesOn (    )  [virtual]


Set whether to display MIL error messages (default on)

virtual void vtkMILVideoSource::MILErrorMessagesOff (    )  [virtual]


Set whether to display MIL error messages (default on)

virtual int vtkMILVideoSource::GetMILErrorMessages (    )  [virtual]


Set whether to display MIL error messages (default on)

virtual void vtkMILVideoSource::SetMILAppID (  long    )  [virtual]


Allows fine-grained control

virtual long vtkMILVideoSource::GetMILAppID (    )  [virtual]


Allows fine-grained control

virtual void vtkMILVideoSource::SetMILSysID (  long    )  [virtual]


Allows fine-grained control

virtual long vtkMILVideoSource::GetMILSysID (    )  [virtual]


Allows fine-grained control

virtual long vtkMILVideoSource::GetMILDigID (    )  [virtual]


Allows fine-grained control

virtual long vtkMILVideoSource::GetMILBufID (    )  [virtual]


Allows fine-grained control

void vtkMILVideoSource::Initialize (    )  [virtual]


Initialize the driver (this is called automatically when the first grab is done).

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::ReleaseSystemResources (    )  [virtual]


Free the driver (this is called automatically inside the destructor).

Reimplemented from vtkVideoSource.

void vtkMILVideoSource::InternalGrab (    )  [virtual]


The internal function which actually does the grab. You will definitely want to override this if you develop a vtkVideoSource subclass.

Reimplemented from vtkVideoSource.

virtual void vtkMILVideoSource::AllocateMILDigitizer (    )  [protected, virtual]


virtual void vtkMILVideoSource::AllocateMILBuffer (    )  [protected, virtual]


virtual void* vtkMILVideoSource::MILInterpreterForSystem (  int    system )  [protected, virtual]


Member Data Documentation

void* vtkMILVideoSource::OldHookFunction


For internal use only

Definition at line 210 of file vtkMILVideoSource.h.

void* vtkMILVideoSource::OldUserDataPtr


Definition at line 211 of file vtkMILVideoSource.h.

int vtkMILVideoSource::FrameCounter


Definition at line 212 of file vtkMILVideoSource.h.

int vtkMILVideoSource::ForceGrab


Definition at line 213 of file vtkMILVideoSource.h.

char* vtkMILVideoSource::MILInterpreterDLL [protected]


Definition at line 225 of file vtkMILVideoSource.h.

int vtkMILVideoSource::VideoChannel [protected]


Definition at line 227 of file vtkMILVideoSource.h.

int vtkMILVideoSource::VideoInput [protected]


Definition at line 228 of file vtkMILVideoSource.h.

int vtkMILVideoSource::VideoInputForColor [protected]


Definition at line 229 of file vtkMILVideoSource.h.

int vtkMILVideoSource::VideoFormat [protected]


Definition at line 230 of file vtkMILVideoSource.h.

float vtkMILVideoSource::ContrastLevel [protected]


Definition at line 232 of file vtkMILVideoSource.h.

float vtkMILVideoSource::BrightnessLevel [protected]


Definition at line 233 of file vtkMILVideoSource.h.

float vtkMILVideoSource::HueLevel [protected]


Definition at line 234 of file vtkMILVideoSource.h.

float vtkMILVideoSource::SaturationLevel [protected]


Definition at line 235 of file vtkMILVideoSource.h.

int vtkMILVideoSource::FrameMaxSize[2] [protected]


Definition at line 237 of file vtkMILVideoSource.h.

long vtkMILVideoSource::MILAppID [protected]


Definition at line 239 of file vtkMILVideoSource.h.

long vtkMILVideoSource::MILSysID [protected]


Definition at line 240 of file vtkMILVideoSource.h.

long vtkMILVideoSource::MILDigID [protected]


Definition at line 241 of file vtkMILVideoSource.h.

long vtkMILVideoSource::MILBufID [protected]


Definition at line 242 of file vtkMILVideoSource.h.

int vtkMILVideoSource::MILSystemType [protected]


Definition at line 246 of file vtkMILVideoSource.h.

int vtkMILVideoSource::MILSystemNumber [protected]


Definition at line 247 of file vtkMILVideoSource.h.

int vtkMILVideoSource::MILDigitizerNumber [protected]


Definition at line 249 of file vtkMILVideoSource.h.

char* vtkMILVideoSource::MILDigitizerDCF [protected]


Definition at line 250 of file vtkMILVideoSource.h.

int vtkMILVideoSource::MILErrorMessages [protected]


Definition at line 252 of file vtkMILVideoSource.h.

int vtkMILVideoSource::MILAppInternallyAllocated [protected]


Definition at line 254 of file vtkMILVideoSource.h.

int vtkMILVideoSource::MILSysInternallyAllocated [protected]


Definition at line 255 of file vtkMILVideoSource.h.

int vtkMILVideoSource::FatalMILError [protected]


Definition at line 257 of file vtkMILVideoSource.h.

The documentation for this class was generated from the following file:
Generated on Thu Mar 28 14:36:42 2002 for VTK by doxygen1.2.11.1 written by Dimitri van Heesch, © 1997-2001
