vtkWin32VideoSource Class Reference

Video-for-Windows video digitizer. More...

#include <vtkWin32VideoSource.h>

Inheritance diagram for vtkWin32VideoSource:

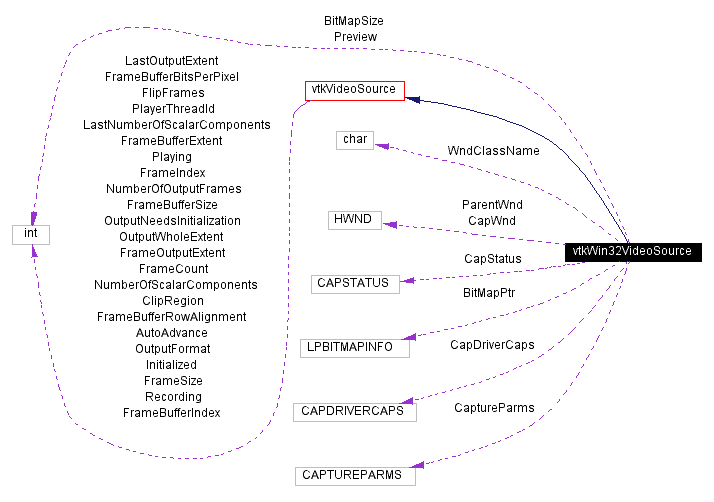

[legend]Collaboration diagram for vtkWin32VideoSource:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	Record ()
void	Play ()
void	Stop ()
void	Grab ()
void	SetFrameSize (int x, int y, int z)
void	SetFrameRate (float rate)
void	SetOutputFormat (int format)
void	VideoFormatDialog ()
void	VideoSourceDialog ()
void	Initialize ()
void	ReleaseSystemResources ()
void	SetPreview (int p)
virtual void	PreviewOn ()
virtual void	PreviewOff ()
virtual int	GetPreview ()
void	InternalGrab (LPVIDEOHDR VideoHdrPtr)
void	OnParentWndDestroy ()
Static Public Methods
vtkWin32VideoSource *	New ()
int	IsTypeOf (const char *type)
vtkWin32VideoSource *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkWin32VideoSource ()
	~vtkWin32VideoSource ()
void	CheckBuffer ()
void	UnpackRasterLine (char *outptr, char *inptr, int start, int count)
void	DoVFWFormatSetup ()
void	DoVFWFormatCheck ()
Protected Attributes
char	WndClassName [16]
HWND	CapWnd
HWND	ParentWnd
CAPSTATUS	CapStatus
CAPDRIVERCAPS	CapDriverCaps
CAPTUREPARMS	CaptureParms
LPBITMAPINFO	BitMapPtr
int	BitMapSize
int	Preview

---

Detailed Description

Video-for-Windows video digitizer.

Date:

2001/10/16 04:21:25

Revision:

1.13

Thanks:

Thanks to David G. Gobbi who developed this class.

vtkWin32VideoSource grabs frames or streaming video from a Video for Windows compatible device on the Win32 platform.

See also:

vtkVideoSource vtkMILVideoSource

Tests:

vtkWin32VideoSource (Tests)

Definition at line 65 of file vtkWin32VideoSource.h.

---

Constructor & Destructor Documentation

vtkWin32VideoSource::vtkWin32VideoSource (    )  [protected]

vtkWin32VideoSource::~vtkWin32VideoSource (    )  [protected]

---

Member Function Documentation

vtkWin32VideoSource* vtkWin32VideoSource::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkVideoSource.

virtual const char* vtkWin32VideoSource::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVideoSource.

int vtkWin32VideoSource::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVideoSource.

virtual int vtkWin32VideoSource::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVideoSource.

vtkWin32VideoSource* vtkWin32VideoSource::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVideoSource.

void vtkWin32VideoSource::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkVideoSource.

void vtkWin32VideoSource::Record (    )  [virtual]

Standard VCR functionality: Record incoming video. Reimplemented from vtkVideoSource.

void vtkWin32VideoSource::Play (    )  [virtual]

Standard VCR functionality: Play recorded video. Reimplemented from vtkVideoSource.

void vtkWin32VideoSource::Stop (    )  [virtual]

Standard VCR functionality: Stop recording or playing. Reimplemented from vtkVideoSource.

void vtkWin32VideoSource::Grab (    )  [virtual]

Grab a single video frame. Reimplemented from vtkVideoSource.

void vtkWin32VideoSource::SetFrameSize (  int    x, int    y, int    z )  [virtual]

Request a particular frame size (set the third value to 1). Reimplemented from vtkVideoSource.

void vtkWin32VideoSource::SetFrameRate (  float    rate )  [virtual]

Request a particular frame rate (default 30 frames per second). Reimplemented from vtkVideoSource.

void vtkWin32VideoSource::SetOutputFormat (  int    format )  [virtual]

Request a particular output format (default: VTK_RGB). Reimplemented from vtkVideoSource.

void vtkWin32VideoSource::SetPreview (  int    p )

Turn on/off the preview (overlay) window.

virtual void vtkWin32VideoSource::PreviewOn (    )  [virtual]

Turn on/off the preview (overlay) window.

virtual void vtkWin32VideoSource::PreviewOff (    )  [virtual]

Turn on/off the preview (overlay) window.

virtual int vtkWin32VideoSource::GetPreview (    )  [virtual]

Turn on/off the preview (overlay) window.

void vtkWin32VideoSource::VideoFormatDialog (    )

Bring up a modal dialog box for video format selection.

void vtkWin32VideoSource::VideoSourceDialog (    )

Bring up a modal dialog box for video input selection.

void vtkWin32VideoSource::Initialize (    )  [virtual]

Initialize the driver (this is called automatically when the first grab is done). Reimplemented from vtkVideoSource.

void vtkWin32VideoSource::ReleaseSystemResources (    )  [virtual]

Free the driver (this is called automatically inside the destructor). Reimplemented from vtkVideoSource.

void vtkWin32VideoSource::InternalGrab (  LPVIDEOHDR    VideoHdrPtr )

For internal use only

void vtkWin32VideoSource::OnParentWndDestroy (    )

For internal use only

void vtkWin32VideoSource::CheckBuffer (    )  [protected]

void vtkWin32VideoSource::UnpackRasterLine (  char *    outptr, char *    inptr, int    start, int    count )  [protected, virtual]

These methods can be overridden in subclasses Reimplemented from vtkVideoSource.

void vtkWin32VideoSource::DoVFWFormatSetup (    )  [protected]

void vtkWin32VideoSource::DoVFWFormatCheck (    )  [protected]

---

Member Data Documentation

char vtkWin32VideoSource::WndClassName[16] [protected]

Definition at line 123 of file vtkWin32VideoSource.h.

HWND vtkWin32VideoSource::CapWnd [protected]

Definition at line 124 of file vtkWin32VideoSource.h.

HWND vtkWin32VideoSource::ParentWnd [protected]

Definition at line 125 of file vtkWin32VideoSource.h.

CAPSTATUS vtkWin32VideoSource::CapStatus [protected]

Definition at line 126 of file vtkWin32VideoSource.h.

CAPDRIVERCAPS vtkWin32VideoSource::CapDriverCaps [protected]

Definition at line 127 of file vtkWin32VideoSource.h.

CAPTUREPARMS vtkWin32VideoSource::CaptureParms [protected]

Definition at line 128 of file vtkWin32VideoSource.h.

LPBITMAPINFO vtkWin32VideoSource::BitMapPtr [protected]

Definition at line 129 of file vtkWin32VideoSource.h.

int vtkWin32VideoSource::BitMapSize [protected]

Definition at line 130 of file vtkWin32VideoSource.h.

int vtkWin32VideoSource::Preview [protected]

Definition at line 132 of file vtkWin32VideoSource.h.

---

The documentation for this class was generated from the following file:

• Hybrid/vtkWin32VideoSource.h

---
