vtkVideoSource Class Reference

Superclass of video input devices for VTK. More...

#include <vtkVideoSource.h>

Inheritance diagram for vtkVideoSource:

Inheritance graph
[legend]

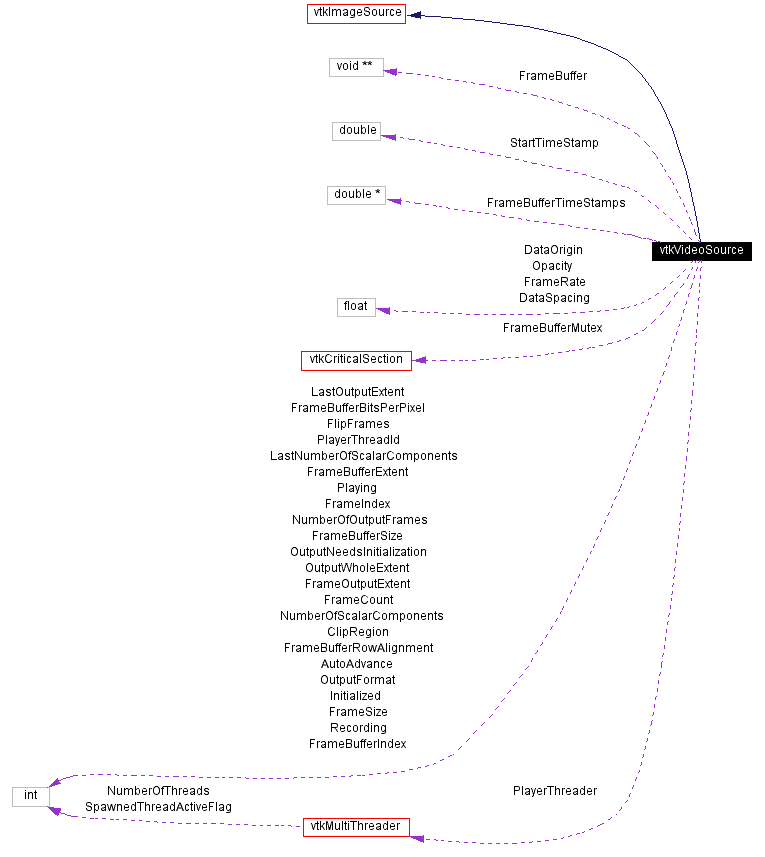

Collaboration diagram for vtkVideoSource:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void Record ()
virtual void Play ()
virtual void Stop ()
virtual void Rewind ()
virtual void FastForward ()
virtual void Seek (int n)
virtual void Grab ()
virtual void ReleaseSystemResources ()
virtual void InternalGrab ()
virtual int GetRecording ()
virtual int GetPlaying ()
virtual void SetFrameSize (int x, int y, int z)
virtual void SetFrameSize (int dim[3])
virtual int * GetFrameSize ()
virtual void GetFrameSize (int &, int &, int &)
virtual void GetFrameSize (int[3])
virtual void SetFrameRate (float rate)
virtual float GetFrameRate ()
virtual void SetOutputFormat (int format)
void SetOutputFormatToLuminance ()
void SetOutputFormatToRGB ()
void SetOutputFormatToRGBA ()
virtual int GetOutputFormat ()
virtual void SetFrameBufferSize (int FrameBufferSize)
virtual int GetFrameBufferSize ()
virtual void SetNumberOfOutputFrames (int)
virtual int GetNumberOfOutputFrames ()
virtual void AutoAdvanceOn ()
virtual void AutoAdvanceOff ()
virtual void SetAutoAdvance (int)
virtual int GetAutoAdvance ()
virtual void SetClipRegion (int r[6])
virtual void SetClipRegion (int x0, int x1, int y0, int y1, int z0, int z1)
virtual int * GetClipRegion ()
virtual void GetClipRegion (int &, int &, int &, int &, int &, int &)
virtual void GetClipRegion (int[6])
virtual void SetOutputWholeExtent (int, int, int, int, int, int)
virtual void SetOutputWholeExtent (int[6])
virtual int * GetOutputWholeExtent ()
virtual void GetOutputWholeExtent (int &, int &, int &, int &, int &, int &)
virtual void GetOutputWholeExtent (int[6])
virtual void SetDataSpacing (float, float, float)
virtual void SetDataSpacing (float[3])
virtual float * GetDataSpacing ()
virtual void GetDataSpacing (float &, float &, float &)
virtual void GetDataSpacing (float[3])
virtual void SetDataOrigin (float, float, float)
virtual void SetDataOrigin (float[3])
virtual float * GetDataOrigin ()
virtual void GetDataOrigin (float &, float &, float &)
virtual void GetDataOrigin (float[3])
virtual void SetOpacity (float)
virtual float GetOpacity ()
virtual int GetFrameCount ()
virtual void SetFrameCount (int)
virtual int GetFrameIndex ()
virtual double GetFrameTimeStamp (int frame)
virtual double GetFrameTimeStamp ()
virtual void Initialize ()
virtual int GetInitialized ()
void SetStartTimeStamp (double t)
double GetStartTimeStamp ()

Static Public Methods

vtkVideoSource * New ()
int IsTypeOf (const char *type)
vtkVideoSource * SafeDownCast (vtkObject *o)

Protected Methods

 vtkVideoSource ()
 ~vtkVideoSource ()
void ExecuteInformation ()
virtual void UpdateFrameBuffer ()
virtual void AdvanceFrameBuffer (int n)
virtual void ExecuteData (vtkDataObject *data)
virtual void UnpackRasterLine (char *outPtr, char *rowPtr, int start, int count)

Protected Attributes

int Initialized
int FrameSize [3]
int ClipRegion [6]
int OutputWholeExtent [6]
float DataSpacing [3]
float DataOrigin [3]
int OutputFormat
int NumberOfScalarComponents
int FrameOutputExtent [6]
int LastNumberOfScalarComponents
int LastOutputExtent [6]
int Recording
int Playing
float FrameRate
int FrameCount
int FrameIndex
double StartTimeStamp
int AutoAdvance
int NumberOfOutputFrames
float Opacity
int FlipFrames
int OutputNeedsInitialization
vtkMultiThreader * PlayerThreader
int PlayerThreadId
vtkCriticalSection * FrameBufferMutex
int FrameBufferBitsPerPixel
int FrameBufferRowAlignment
int FrameBufferExtent [6]
int FrameBufferSize
int FrameBufferIndex
void ** FrameBuffer
double * FrameBufferTimeStamps

Detailed Description

Superclass of video input devices for VTK.

Date:
2001/10/16 04:21:24
Revision:
1.20
Thanks:
Thanks to David G. Gobbi who developed this class.
vtkVideoSource is a superclass for video input interfaces for VTK. The goal is to provide an interface which is very similar to the interface of a VCR, where the 'tape' is an internal frame buffer capable of holding a preset number of video frames. Specialized versions of this class record input from various video input sources. This base class records input from a noise source.

See also:
vtkWin32VideoSource vtkMILVideoSource

Definition at line 67 of file vtkVideoSource.h.

Constructor & Destructor Documentation

vtkVideoSource::vtkVideoSource (    )  [protected]


vtkVideoSource::~vtkVideoSource (    )  [protected]


Member Function Documentation

vtkVideoSource* vtkVideoSource::New (    )  [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkImageSource.

Reimplemented in vtkMILVideoSource, and vtkWin32VideoSource.

virtual const char* vtkVideoSource::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageSource.

Reimplemented in vtkMILVideoSource, and vtkWin32VideoSource.

int vtkVideoSource::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageSource.

Reimplemented in vtkMILVideoSource, and vtkWin32VideoSource.

virtual int vtkVideoSource::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageSource.

Reimplemented in vtkMILVideoSource, and vtkWin32VideoSource.

vtkVideoSource* vtkVideoSource::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageSource.

Reimplemented in vtkMILVideoSource, and vtkWin32VideoSource.

void vtkVideoSource::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

Reimplemented in vtkMILVideoSource, and vtkWin32VideoSource.

virtual void vtkVideoSource::Record (    )  [virtual]


Record incoming video at the specified FrameRate. The recording continues indefinitely until Stop() is called.

Reimplemented in vtkMILVideoSource, and vtkWin32VideoSource.

virtual void vtkVideoSource::Play (    )  [virtual]


Play through the 'tape' sequentially at the specified frame rate. If you have just finished Recoding, you should call Rewind() first.

Reimplemented in vtkMILVideoSource, and vtkWin32VideoSource.

virtual void vtkVideoSource::Stop (    )  [virtual]


Stop recording or playing.

Reimplemented in vtkMILVideoSource, and vtkWin32VideoSource.

virtual void vtkVideoSource::Rewind (    )  [virtual]


Rewind to the frame with the earliest timestamp. Record operations will start on the following frame, therefore if you want to re-record over this frame you must call Seek(-1) before calling Grab() or Record().

virtual void vtkVideoSource::FastForward (    )  [virtual]


FastForward to the last frame that was recorded (i.e. to the frame that has the most recent timestamp).

virtual void vtkVideoSource::Seek (  int    n )  [virtual]


Seek forwards or backwards by the specified number of frames (positive is forward, negative is backward).

virtual void vtkVideoSource::Grab (    )  [virtual]


Grab a single video frame.

Reimplemented in vtkMILVideoSource, and vtkWin32VideoSource.

virtual int vtkVideoSource::GetRecording (    )  [virtual]


Are we in record mode? (record mode and play mode are mutually exclusive).

virtual int vtkVideoSource::GetPlaying (    )  [virtual]


Are we in play mode? (record mode and play mode are mutually exclusive).

virtual void vtkVideoSource::SetFrameSize (  int    x,
int    y,
int    z
)  [virtual]


Set the full-frame size. This must be an allowed size for the device, the device may either refuse a request for an illegal frame size or automatically choose a new frame size. The default is usually 320x240x1, but can be device specific. The 'depth' should always be 1 (unless you have a device that can handle 3D acquisition).

Reimplemented in vtkMILVideoSource, and vtkWin32VideoSource.

virtual void vtkVideoSource::SetFrameSize (  int    dim[3] )  [inline, virtual]


Set the full-frame size. This must be an allowed size for the device, the device may either refuse a request for an illegal frame size or automatically choose a new frame size. The default is usually 320x240x1, but can be device specific. The 'depth' should always be 1 (unless you have a device that can handle 3D acquisition).

Definition at line 121 of file vtkVideoSource.h.

virtual int* vtkVideoSource::GetFrameSize (    )  [virtual]


Set the full-frame size. This must be an allowed size for the device, the device may either refuse a request for an illegal frame size or automatically choose a new frame size. The default is usually 320x240x1, but can be device specific. The 'depth' should always be 1 (unless you have a device that can handle 3D acquisition).

virtual void vtkVideoSource::GetFrameSize (  int &   ,
int &   ,
int &
)  [virtual]


Set the full-frame size. This must be an allowed size for the device, the device may either refuse a request for an illegal frame size or automatically choose a new frame size. The default is usually 320x240x1, but can be device specific. The 'depth' should always be 1 (unless you have a device that can handle 3D acquisition).

virtual void vtkVideoSource::GetFrameSize (  int   [3] )  [virtual]


Set the full-frame size. This must be an allowed size for the device, the device may either refuse a request for an illegal frame size or automatically choose a new frame size. The default is usually 320x240x1, but can be device specific. The 'depth' should always be 1 (unless you have a device that can handle 3D acquisition).

virtual void vtkVideoSource::SetFrameRate (  float    rate )  [virtual]


Request a particular frame rate (default 30 frames per second).

Reimplemented in vtkWin32VideoSource.

virtual float vtkVideoSource::GetFrameRate (    )  [virtual]


Request a particular frame rate (default 30 frames per second).

virtual void vtkVideoSource::SetOutputFormat (  int    format )  [virtual]


Set the output format. This must be appropriate for device, usually only VTK_LUMINANCE, VTK_RGB, and VTK_RGBA are supported.

Reimplemented in vtkMILVideoSource, and vtkWin32VideoSource.

void vtkVideoSource::SetOutputFormatToLuminance (    )  [inline]


Set the output format. This must be appropriate for device, usually only VTK_LUMINANCE, VTK_RGB, and VTK_RGBA are supported.

Definition at line 136 of file vtkVideoSource.h.

void vtkVideoSource::SetOutputFormatToRGB (    )  [inline]


Set the output format. This must be appropriate for device, usually only VTK_LUMINANCE, VTK_RGB, and VTK_RGBA are supported.

Definition at line 137 of file vtkVideoSource.h.

void vtkVideoSource::SetOutputFormatToRGBA (    )  [inline]


Set the output format. This must be appropriate for device, usually only VTK_LUMINANCE, VTK_RGB, and VTK_RGBA are supported.

Definition at line 138 of file vtkVideoSource.h.

virtual int vtkVideoSource::GetOutputFormat (    )  [virtual]


Set the output format. This must be appropriate for device, usually only VTK_LUMINANCE, VTK_RGB, and VTK_RGBA are supported.

virtual void vtkVideoSource::SetFrameBufferSize (  int    FrameBufferSize )  [virtual]


Set size of the frame buffer, i.e. the number of frames that the 'tape' can store.

virtual int vtkVideoSource::GetFrameBufferSize (    )  [virtual]


Set size of the frame buffer, i.e. the number of frames that the 'tape' can store.

virtual void vtkVideoSource::SetNumberOfOutputFrames (  int    )  [virtual]


Set the number of frames to copy to the output on each execute. The frames will be concatenated along the Z dimension, with the most recent frame first. Default: 1

virtual int vtkVideoSource::GetNumberOfOutputFrames (    )  [virtual]


Set the number of frames to copy to the output on each execute. The frames will be concatenated along the Z dimension, with the most recent frame first. Default: 1

virtual void vtkVideoSource::AutoAdvanceOn (    )  [virtual]


Set whether to automatically advance the buffer before each grab. Default: on

virtual void vtkVideoSource::AutoAdvanceOff (    )  [virtual]


Set whether to automatically advance the buffer before each grab. Default: on

virtual void vtkVideoSource::SetAutoAdvance (  int    )  [virtual]


Set whether to automatically advance the buffer before each grab. Default: on

virtual int vtkVideoSource::GetAutoAdvance (    )  [virtual]


Set whether to automatically advance the buffer before each grab. Default: on

virtual void vtkVideoSource::SetClipRegion (  int    r[6] )  [inline, virtual]


Set the clip rectangle for the frames. The video will be clipped before it is copied into the framebuffer. Changing the ClipRegion will destroy the current contents of the framebuffer. The default ClipRegion is (0,VTK_INT_MAX,0,VTK_INT_MAX,0,VTK_INT_MAX).

Definition at line 170 of file vtkVideoSource.h.

virtual void vtkVideoSource::SetClipRegion (  int    x0,
int    x1,
int    y0,
int    y1,
int    z0,
int    z1
)  [virtual]


Set the clip rectangle for the frames. The video will be clipped before it is copied into the framebuffer. Changing the ClipRegion will destroy the current contents of the framebuffer. The default ClipRegion is (0,VTK_INT_MAX,0,VTK_INT_MAX,0,VTK_INT_MAX).

virtual int* vtkVideoSource::GetClipRegion (    )  [virtual]


Set the clip rectangle for the frames. The video will be clipped before it is copied into the framebuffer. Changing the ClipRegion will destroy the current contents of the framebuffer. The default ClipRegion is (0,VTK_INT_MAX,0,VTK_INT_MAX,0,VTK_INT_MAX).

virtual void vtkVideoSource::GetClipRegion (  int &   ,
int &   ,
int &   ,
int &   ,
int &   ,
int &
)  [virtual]


Set the clip rectangle for the frames. The video will be clipped before it is copied into the framebuffer. Changing the ClipRegion will destroy the current contents of the framebuffer. The default ClipRegion is (0,VTK_INT_MAX,0,VTK_INT_MAX,0,VTK_INT_MAX).

virtual void vtkVideoSource::GetClipRegion (  int   [6] )  [virtual]


Set the clip rectangle for the frames. The video will be clipped before it is copied into the framebuffer. Changing the ClipRegion will destroy the current contents of the framebuffer. The default ClipRegion is (0,VTK_INT_MAX,0,VTK_INT_MAX,0,VTK_INT_MAX).

virtual void vtkVideoSource::SetOutputWholeExtent (  int   ,
int   ,
int   ,
int   ,
int   ,
int
)  [virtual]


Get/Set the WholeExtent of the output. This can be used to either clip or pad the video frame. This clipping/padding is done when the frame is copied to the output, and does not change the contents of the framebuffer. This is useful e.g. for expanding the output size to a power of two for texture mapping. The default is (0,-1,0,-1,0,-1) which causes the entire frame to be copied to the output.

virtual void vtkVideoSource::SetOutputWholeExtent (  int   [6] )  [virtual]


Get/Set the WholeExtent of the output. This can be used to either clip or pad the video frame. This clipping/padding is done when the frame is copied to the output, and does not change the contents of the framebuffer. This is useful e.g. for expanding the output size to a power of two for texture mapping. The default is (0,-1,0,-1,0,-1) which causes the entire frame to be copied to the output.

virtual int* vtkVideoSource::GetOutputWholeExtent (    )  [virtual]


Get/Set the WholeExtent of the output. This can be used to either clip or pad the video frame. This clipping/padding is done when the frame is copied to the output, and does not change the contents of the framebuffer. This is useful e.g. for expanding the output size to a power of two for texture mapping. The default is (0,-1,0,-1,0,-1) which causes the entire frame to be copied to the output.

virtual void vtkVideoSource::GetOutputWholeExtent (  int &   ,
int &   ,
int &   ,
int &   ,
int &   ,
int &
)  [virtual]


Get/Set the WholeExtent of the output. This can be used to either clip or pad the video frame. This clipping/padding is done when the frame is copied to the output, and does not change the contents of the framebuffer. This is useful e.g. for expanding the output size to a power of two for texture mapping. The default is (0,-1,0,-1,0,-1) which causes the entire frame to be copied to the output.

virtual void vtkVideoSource::GetOutputWholeExtent (  int   [6] )  [virtual]


Get/Set the WholeExtent of the output. This can be used to either clip or pad the video frame. This clipping/padding is done when the frame is copied to the output, and does not change the contents of the framebuffer. This is useful e.g. for expanding the output size to a power of two for texture mapping. The default is (0,-1,0,-1,0,-1) which causes the entire frame to be copied to the output.

virtual void vtkVideoSource::SetDataSpacing (  float   ,
float   ,
float
)  [virtual]


Set/Get the pixel spacing. Default: (1.0,1.0,1.0)

virtual void vtkVideoSource::SetDataSpacing (  float   [3] )  [virtual]


Set/Get the pixel spacing. Default: (1.0,1.0,1.0)

virtual float* vtkVideoSource::GetDataSpacing (    )  [virtual]


Set/Get the pixel spacing. Default: (1.0,1.0,1.0)

virtual void vtkVideoSource::GetDataSpacing (  float &   ,
float &   ,
float &
)  [virtual]


Set/Get the pixel spacing. Default: (1.0,1.0,1.0)

virtual void vtkVideoSource::GetDataSpacing (  float   [3] )  [virtual]


Set/Get the pixel spacing. Default: (1.0,1.0,1.0)

virtual void vtkVideoSource::SetDataOrigin (  float   ,
float   ,
float
)  [virtual]


Set/Get the coordinates of the lower, left corner of the frame. Default: (0.0,0.0,0.0)

virtual void vtkVideoSource::SetDataOrigin (  float   [3] )  [virtual]


Set/Get the coordinates of the lower, left corner of the frame. Default: (0.0,0.0,0.0)

virtual float* vtkVideoSource::GetDataOrigin (    )  [virtual]


Set/Get the coordinates of the lower, left corner of the frame. Default: (0.0,0.0,0.0)

virtual void vtkVideoSource::GetDataOrigin (  float &   ,
float &   ,
float &
)  [virtual]


Set/Get the coordinates of the lower, left corner of the frame. Default: (0.0,0.0,0.0)

virtual void vtkVideoSource::GetDataOrigin (  float   [3] )  [virtual]


Set/Get the coordinates of the lower, left corner of the frame. Default: (0.0,0.0,0.0)

virtual void vtkVideoSource::SetOpacity (  float    )  [virtual]


For RGBA output only (4 scalar components), set the opacity. This will not modify the existing contents of the framebuffer, only subsequently grabbed frames.

virtual float vtkVideoSource::GetOpacity (    )  [virtual]


For RGBA output only (4 scalar components), set the opacity. This will not modify the existing contents of the framebuffer, only subsequently grabbed frames.

virtual int vtkVideoSource::GetFrameCount (    )  [virtual]


This value is incremented each time a frame is grabbed. reset it to zero (or any other value) at any time.

virtual void vtkVideoSource::SetFrameCount (  int    )  [virtual]


This value is incremented each time a frame is grabbed. reset it to zero (or any other value) at any time.

virtual int vtkVideoSource::GetFrameIndex (    )  [virtual]


Get the frame index relative to the 'beginning of the tape'. This value wraps back to zero if it increases past the FrameBufferSize.

virtual double vtkVideoSource::GetFrameTimeStamp (  int    frame )  [virtual]


Get a time stamp in seconds (resolution of milliseconds) for a video frame. Time began on Jan 1, 1970. You can specify a number (negative or positive) to specify the position of the video frame relative to the current frame.

virtual double vtkVideoSource::GetFrameTimeStamp (    )  [inline, virtual]


Get a time stamp in seconds (resolution of milliseconds) for a video frame. Time began on Jan 1, 1970. You can specify a number (negative or positive) to specify the position of the video frame relative to the current frame.

Definition at line 228 of file vtkVideoSource.h.

virtual void vtkVideoSource::Initialize (    )  [virtual]


Initialize the hardware. This is called automatically on the first Update or Grab.

Reimplemented in vtkMILVideoSource, and vtkWin32VideoSource.

virtual int vtkVideoSource::GetInitialized (    )  [inline, virtual]


Initialize the hardware. This is called automatically on the first Update or Grab.

Definition at line 235 of file vtkVideoSource.h.

virtual void vtkVideoSource::ReleaseSystemResources (    )  [virtual]


Release the video driver. This is called automatically when the vtkVideoSource is destroyed.

Reimplemented in vtkMILVideoSource, and vtkWin32VideoSource.

virtual void vtkVideoSource::InternalGrab (    )  [virtual]


The internal function which actually does the grab. You will definitely want to override this if you develop a vtkVideoSource subclass.

Reimplemented in vtkMILVideoSource.

void vtkVideoSource::SetStartTimeStamp (  double    t )  [inline]


And internal variable which marks the beginning of a Record session. These methods are for internal use only.

Definition at line 250 of file vtkVideoSource.h.

double vtkVideoSource::GetStartTimeStamp (    )  [inline]


And internal variable which marks the beginning of a Record session. These methods are for internal use only.

Definition at line 251 of file vtkVideoSource.h.

void vtkVideoSource::ExecuteInformation (    )  [protected, virtual]


Reimplemented from vtkSource.

virtual void vtkVideoSource::UpdateFrameBuffer (    )  [protected, virtual]


These methods can be overridden in subclasses

virtual void vtkVideoSource::AdvanceFrameBuffer (  int    n )  [protected, virtual]


These methods can be overridden in subclasses

virtual void vtkVideoSource::ExecuteData (  vtkDataObject *    data )  [protected, virtual]


These methods can be overridden in subclasses

virtual void vtkVideoSource::UnpackRasterLine (  char *    outptr,
char *    inptr,
int    start,
int    count
)  [protected, virtual]


These methods can be overridden in subclasses

Reimplemented in vtkWin32VideoSource.

Member Data Documentation

int vtkVideoSource::Initialized [protected]


Definition at line 259 of file vtkVideoSource.h.

int vtkVideoSource::FrameSize[3] [protected]


Definition at line 261 of file vtkVideoSource.h.

int vtkVideoSource::ClipRegion[6] [protected]


Definition at line 262 of file vtkVideoSource.h.

int vtkVideoSource::OutputWholeExtent[6] [protected]


Definition at line 263 of file vtkVideoSource.h.

float vtkVideoSource::DataSpacing[3] [protected]


Definition at line 264 of file vtkVideoSource.h.

float vtkVideoSource::DataOrigin[3] [protected]


Definition at line 265 of file vtkVideoSource.h.

int vtkVideoSource::OutputFormat [protected]


Definition at line 266 of file vtkVideoSource.h.

int vtkVideoSource::NumberOfScalarComponents [protected]


Definition at line 268 of file vtkVideoSource.h.

int vtkVideoSource::FrameOutputExtent[6] [protected]


Definition at line 271 of file vtkVideoSource.h.

int vtkVideoSource::LastNumberOfScalarComponents [protected]


Definition at line 275 of file vtkVideoSource.h.

int vtkVideoSource::LastOutputExtent[6] [protected]


Definition at line 276 of file vtkVideoSource.h.

int vtkVideoSource::Recording [protected]


Definition at line 278 of file vtkVideoSource.h.

int vtkVideoSource::Playing [protected]


Definition at line 279 of file vtkVideoSource.h.

float vtkVideoSource::FrameRate [protected]


Definition at line 280 of file vtkVideoSource.h.

int vtkVideoSource::FrameCount [protected]


Definition at line 281 of file vtkVideoSource.h.

int vtkVideoSource::FrameIndex [protected]


Definition at line 282 of file vtkVideoSource.h.

double vtkVideoSource::StartTimeStamp [protected]


Definition at line 283 of file vtkVideoSource.h.

int vtkVideoSource::AutoAdvance [protected]


Definition at line 285 of file vtkVideoSource.h.

int vtkVideoSource::NumberOfOutputFrames [protected]


Definition at line 286 of file vtkVideoSource.h.

float vtkVideoSource::Opacity [protected]


Definition at line 288 of file vtkVideoSource.h.

int vtkVideoSource::FlipFrames [protected]


Definition at line 291 of file vtkVideoSource.h.

int vtkVideoSource::OutputNeedsInitialization [protected]


Definition at line 294 of file vtkVideoSource.h.

vtkMultiThreader* vtkVideoSource::PlayerThreader [protected]


Definition at line 297 of file vtkVideoSource.h.

int vtkVideoSource::PlayerThreadId [protected]


Definition at line 298 of file vtkVideoSource.h.

vtkCriticalSection* vtkVideoSource::FrameBufferMutex [protected]


Definition at line 302 of file vtkVideoSource.h.

int vtkVideoSource::FrameBufferBitsPerPixel [protected]


Definition at line 306 of file vtkVideoSource.h.

int vtkVideoSource::FrameBufferRowAlignment [protected]


Definition at line 308 of file vtkVideoSource.h.

int vtkVideoSource::FrameBufferExtent[6] [protected]


Definition at line 311 of file vtkVideoSource.h.

int vtkVideoSource::FrameBufferSize [protected]


Definition at line 313 of file vtkVideoSource.h.

int vtkVideoSource::FrameBufferIndex [protected]


Definition at line 314 of file vtkVideoSource.h.

void** vtkVideoSource::FrameBuffer [protected]


Definition at line 315 of file vtkVideoSource.h.

double* vtkVideoSource::FrameBufferTimeStamps [protected]


Definition at line 316 of file vtkVideoSource.h.

The documentation for this class was generated from the following file:
Generated on Thu Mar 28 14:45:14 2002 for VTK by doxygen1.2.11.1 written by Dimitri van Heesch, © 1997-2001
