vtkMarchingCubes Class Reference
generate isosurface(s) from volume.
More...
#include <vtkMarchingCubes.h>
Inheritance diagram for vtkMarchingCubes:

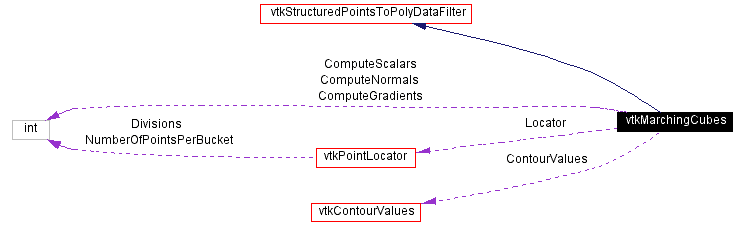

[legend]Collaboration diagram for vtkMarchingCubes:
[legend]List of all members.
Detailed Description
generate isosurface(s) from volume.
-
Date:
-
2001/12/17 15:42:38
-
Revision:
-
1.47.2.1
vtkMarchingCubes is a filter that takes as input a volume (e.g., 3D structured point set) and generates on output one or more isosurfaces. One or more contour values must be specified to generate the isosurfaces. Alternatively, you can specify a min/max scalar range and the number of contours to generate a series of evenly spaced contour values.
-
Warning:
-
This filter is specialized to volumes. If you are interested in contouring other types of data, use the general vtkContourFilter. If you want to contour an image (i.e., a volume slice), use vtkMarchingSquares.
-
See also:
-
vtkContourFilter vtkSliceCubes vtkMarchingSquares vtkDividingCubes
-
Tests:
-
vtkMarchingCubes (Tests)
Definition at line 84 of file vtkMarchingCubes.h.
Constructor & Destructor Documentation
| vtkMarchingCubes::vtkMarchingCubes |
( |
|
) |
[protected] |
|
| vtkMarchingCubes::~vtkMarchingCubes |
( |
|
) |
[protected] |
|
Member Function Documentation
| vtkMarchingCubes* vtkMarchingCubes::New |
( |
|
) |
[static] |
|
|
|
Instantiate object with no start, end, or progress methods.
Reimplemented from vtkPolyDataSource. |
| virtual const char* vtkMarchingCubes::GetClassName |
( |
|
) |
[virtual] |
|
| int vtkMarchingCubes::IsTypeOf |
( |
const char * |
type |
) |
[static] |
|
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkStructuredPointsToPolyDataFilter. |
| virtual int vtkMarchingCubes::IsA |
( |
const char * |
type |
) |
[virtual] |
|
| vtkMarchingCubes* vtkMarchingCubes::SafeDownCast |
( |
vtkObject * |
o |
) |
[static] |
|
| void vtkMarchingCubes::PrintSelf |
( |
ostream & |
os, |
|
|
vtkIndent |
indent |
|
) |
[virtual] |
|
|
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkSource. |
| void vtkMarchingCubes::SetValue |
( |
int |
i, |
|
|
float |
value |
|
) |
[inline] |
|
|
|
Set a particular contour value at contour number i. The index i ranges between 0<=i<NumberOfContours.
Definition at line 158 of file vtkMarchingCubes.h. |
| float vtkMarchingCubes::GetValue |
( |
int |
i |
) |
[inline] |
|
| float * vtkMarchingCubes::GetValues |
( |
|
) |
[inline] |
|
| void vtkMarchingCubes::GetValues |
( |
float * |
contourValues |
) |
[inline] |
|
|
|
Fill a supplied list with contour values. There will be GetNumberOfContours() values in the list. Make sure you allocate enough memory to hold the list.
Definition at line 177 of file vtkMarchingCubes.h. |
| void vtkMarchingCubes::SetNumberOfContours |
( |
int |
number |
) |
[inline] |
|
|
|
Set the number of contours to place into the list. You only really need to use this method to reduce list size. The method SetValue() will automatically increase list size as needed.
Definition at line 183 of file vtkMarchingCubes.h. |
| int vtkMarchingCubes::GetNumberOfContours |
( |
|
) |
[inline] |
|
|
|
Get the number of contours in the list of contour values.
Definition at line 188 of file vtkMarchingCubes.h. |
| void vtkMarchingCubes::GenerateValues |
( |
int |
numContours, |
|
|
float |
range[2] |
|
) |
[inline] |
|
|
|
Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values.
Definition at line 195 of file vtkMarchingCubes.h. |
| void vtkMarchingCubes::GenerateValues |
( |
int |
numContours, |
|
|
float |
rangeStart, |
|
|
float |
rangeEnd |
|
) |
[inline] |
|
|
|
Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values.
Definition at line 202 of file vtkMarchingCubes.h. |
| unsigned long int vtkMarchingCubes::GetMTime |
( |
|
) |
[virtual] |
|
|
|
Return this object's modified time.
Reimplemented from vtkObject. |
| virtual void vtkMarchingCubes::SetComputeNormals |
( |
int |
|
) |
[virtual] |
|
|
|
Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off. |
| virtual int vtkMarchingCubes::GetComputeNormals |
( |
|
) |
[virtual] |
|
|
|
Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off. |
| virtual void vtkMarchingCubes::ComputeNormalsOn |
( |
|
) |
[virtual] |
|
|
|
Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off. |
| virtual void vtkMarchingCubes::ComputeNormalsOff |
( |
|
) |
[virtual] |
|
|
|
Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off. |
| virtual void vtkMarchingCubes::SetComputeGradients |
( |
int |
|
) |
[virtual] |
|
|
|
Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off. |
| virtual int vtkMarchingCubes::GetComputeGradients |
( |
|
) |
[virtual] |
|
|
|
Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off. |
| virtual void vtkMarchingCubes::ComputeGradientsOn |
( |
|
) |
[virtual] |
|
|
|
Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off. |
| virtual void vtkMarchingCubes::ComputeGradientsOff |
( |
|
) |
[virtual] |
|
|
|
Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off. |
| virtual void vtkMarchingCubes::SetComputeScalars |
( |
int |
|
) |
[virtual] |
|
|
|
Set/Get the computation of scalars. |
| virtual int vtkMarchingCubes::GetComputeScalars |
( |
|
) |
[virtual] |
|
|
|
Set/Get the computation of scalars. |
| virtual void vtkMarchingCubes::ComputeScalarsOn |
( |
|
) |
[virtual] |
|
|
|
Set/Get the computation of scalars. |
| virtual void vtkMarchingCubes::ComputeScalarsOff |
( |
|
) |
[virtual] |
|
|
|
Set/Get the computation of scalars. |
| void vtkMarchingCubes::CreateDefaultLocator |
( |
void |
|
) |
|
|
|
|
Create default locator. Used to create one when none is specified. The locator is used to merge coincident points. |
| void vtkMarchingCubes::Execute |
( |
|
) |
[protected, virtual] |
|
|
|
This method is the old style execute method
Reimplemented from vtkSource. |
Member Data Documentation
int vtkMarchingCubes::ComputeNormals [protected]
|
|
int vtkMarchingCubes::ComputeGradients [protected]
|
|
int vtkMarchingCubes::ComputeScalars [protected]
|
|
The documentation for this class was generated from the following file:
