vtkMesaRenderWindow Class Reference

Mesa rendering window. More...

#include <vtkMesaRenderWindow.h>

Inheritance diagram for vtkMesaRenderWindow:

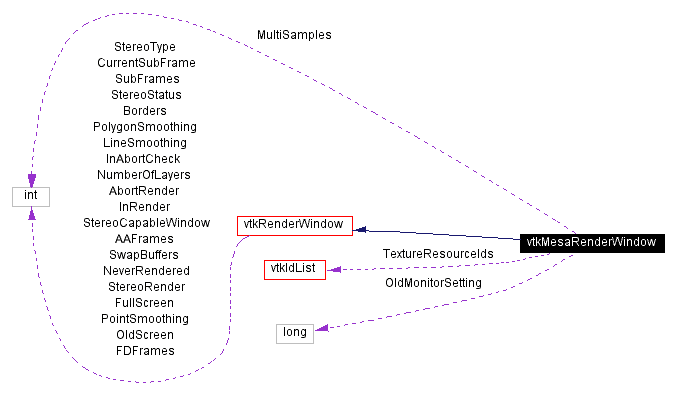

[legend]Collaboration diagram for vtkMesaRenderWindow:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	StereoUpdate ()
void	MakeCurrent ()=0
void	RegisterTextureResource (GLuint id)
int	GetDepthBufferSize ()
virtual void	OpenGLInit ()
virtual void	SetMultiSamples (int)
virtual int	GetMultiSamples ()
virtual unsigned char *	GetPixelData (int x, int y, int x2, int y2, int front)
virtual void	SetPixelData (int x, int y, int x2, int y2, unsigned char *, int front)
virtual float *	GetRGBAPixelData (int x, int y, int x2, int y2, int front)
virtual void	SetRGBAPixelData (int x, int y, int x2, int y2, float *, int front, int blend=0)
virtual void	ReleaseRGBAPixelData (float *data)
virtual unsigned char *	GetRGBACharPixelData (int x, int y, int x2, int y2, int front)
virtual void	SetRGBACharPixelData (int x, int y, int x2, int y2, unsigned char *, int front, int blend=0)
virtual float *	GetZbufferData (int x1, int y1, int x2, int y2)
virtual void	SetZbufferData (int x1, int y1, int x2, int y2, float *buffer)
Static Public Methods
int	IsTypeOf (const char *type)
vtkMesaRenderWindow *	SafeDownCast (vtkObject *o)
vtkMesaRenderWindow *	New ()
void	SetGlobalMaximumNumberOfMultiSamples (int val)
int	GetGlobalMaximumNumberOfMultiSamples ()
Protected Methods
	vtkMesaRenderWindow ()
	~vtkMesaRenderWindow ()
Protected Attributes
int	MultiSamples
long	OldMonitorSetting
vtkIdList *	TextureResourceIds

---

Detailed Description

Mesa rendering window.

Date:

2001/11/13 14:17:24

Revision:

1.24

vtkMesaRenderWindow is a concrete implementation of the abstract class vtkRenderWindow. It uses the mangle openGL namespace mgl, so Mesa render windows can be created in the same program as openGL render windows.

Examples:

vtkMesaRenderWindow (Examples)

Tests:

vtkMesaRenderWindow (Tests)

Definition at line 70 of file vtkMesaRenderWindow.h.

---

Constructor & Destructor Documentation

vtkMesaRenderWindow::vtkMesaRenderWindow (    )  [protected]

vtkMesaRenderWindow::~vtkMesaRenderWindow (    )  [protected]

---

Member Function Documentation

virtual const char* vtkMesaRenderWindow::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkRenderWindow. Reimplemented in vtkXMesaRenderWindow.

int vtkMesaRenderWindow::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkRenderWindow. Reimplemented in vtkXMesaRenderWindow.

virtual int vtkMesaRenderWindow::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkRenderWindow. Reimplemented in vtkXMesaRenderWindow.

vtkMesaRenderWindow* vtkMesaRenderWindow::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkRenderWindow. Reimplemented in vtkXMesaRenderWindow.

void vtkMesaRenderWindow::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkRenderWindow. Reimplemented in vtkXMesaRenderWindow.

vtkMesaRenderWindow* vtkMesaRenderWindow::New (    )  [static]

Construct an instance of vtkRenderWindow with its screen size set to 300x300, borders turned on, positioned at (0,0), double buffering turned on. Reimplemented from vtkRenderWindow. Reimplemented in vtkXMesaRenderWindow.

void vtkMesaRenderWindow::SetGlobalMaximumNumberOfMultiSamples (  int    val )  [static]

Set/Get the maximum number of multisamples

int vtkMesaRenderWindow::GetGlobalMaximumNumberOfMultiSamples (    )  [static]

Set/Get the maximum number of multisamples

virtual void vtkMesaRenderWindow::SetMultiSamples (  int    )  [virtual]

Set / Get the number of multisamples to use for hardware antialiasing.

virtual int vtkMesaRenderWindow::GetMultiSamples (    )  [virtual]

Set / Get the number of multisamples to use for hardware antialiasing.

virtual void vtkMesaRenderWindow::StereoUpdate (    )  [virtual]

Update system if needed due to stereo rendering. Reimplemented from vtkRenderWindow.

virtual unsigned char* vtkMesaRenderWindow::GetPixelData (  int    x, int    y, int    x2, int    y2, int    front )  [virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB... Reimplemented from vtkWindow.

virtual void vtkMesaRenderWindow::SetPixelData (  int    x, int    y, int    x2, int    y2, unsigned char *   , int    front )  [virtual]

Set/Get the pixel data of an image, transmitted as RGBRGB... Reimplemented from vtkRenderWindow.

virtual float* vtkMesaRenderWindow::GetRGBAPixelData (  int    x, int    y, int    x2, int    y2, int    front )  [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA... Reimplemented from vtkRenderWindow.

virtual void vtkMesaRenderWindow::SetRGBAPixelData (  int    x, int    y, int    x2, int    y2, float *   , int    front, int    blend = 0 )  [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA... Reimplemented from vtkRenderWindow.

virtual void vtkMesaRenderWindow::ReleaseRGBAPixelData (  float *    data )  [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA...

virtual unsigned char* vtkMesaRenderWindow::GetRGBACharPixelData (  int    x, int    y, int    x2, int    y2, int    front )  [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA... Reimplemented from vtkRenderWindow.

virtual void vtkMesaRenderWindow::SetRGBACharPixelData (  int    x, int    y, int    x2, int    y2, unsigned char *   , int    front, int    blend = 0 )  [virtual]

Set/Get the pixel data of an image, transmitted as RGBARGBA... Reimplemented from vtkRenderWindow.

virtual float* vtkMesaRenderWindow::GetZbufferData (  int    x1, int    y1, int    x2, int    y2 )  [virtual]

Set/Get the zbuffer data from an image Reimplemented from vtkRenderWindow.

virtual void vtkMesaRenderWindow::SetZbufferData (  int    x1, int    y1, int    x2, int    y2, float *    buffer )  [virtual]

Set/Get the zbuffer data from an image Reimplemented from vtkRenderWindow.

void vtkMesaRenderWindow::MakeCurrent (    )  [pure virtual]

Make this window the current Mesa context. Reimplemented from vtkRenderWindow. Reimplemented in vtkXMesaRenderWindow.

void vtkMesaRenderWindow::RegisterTextureResource (  GLuint    id )

Register a texture name with this render window.

int vtkMesaRenderWindow::GetDepthBufferSize (    )  [virtual]

Get the size of the depth buffer. Reimplemented from vtkRenderWindow.

virtual void vtkMesaRenderWindow::OpenGLInit (    )  [virtual]

Initialize OpenGL for this window.

---

Member Data Documentation

int vtkMesaRenderWindow::MultiSamples [protected]

Definition at line 73 of file vtkMesaRenderWindow.h.

long vtkMesaRenderWindow::OldMonitorSetting [protected]

Definition at line 74 of file vtkMesaRenderWindow.h.

vtkIdList* vtkMesaRenderWindow::TextureResourceIds [protected]

Definition at line 138 of file vtkMesaRenderWindow.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkMesaRenderWindow.h

---
