vtkXMesaRenderWindow Class Reference

Mesa rendering window. More...

#include <vtkXMesaRenderWindow.h>

Inheritance diagram for vtkXMesaRenderWindow:

Inheritance graph
[legend]

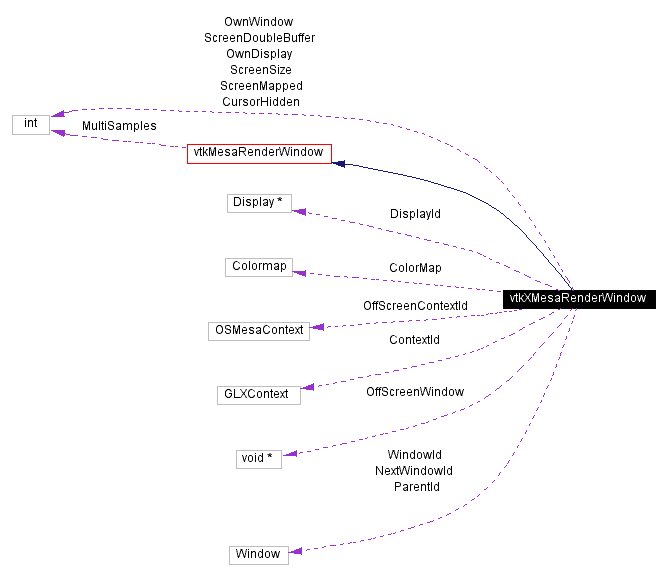

Collaboration diagram for vtkXMesaRenderWindow:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void Start (void)
virtual void Frame (void)
virtual void WindowInitialize (void)
virtual void Initialize (void)
virtual void SetFullScreen (int)
virtual void WindowRemap (void)
virtual void PrefFullScreen (void)
virtual void SetStereoCapableWindow (int capable)
void MakeCurrent ()
virtual int * GetSize ()
virtual int * GetScreenSize ()
virtual int * GetPosition ()
Display * GetDisplayId ()
Window GetParentId ()
Window GetWindowId ()
virtual int GetEventPending ()
void SetWindowInfo (char *info)
void SetParentInfo (char *info)
void Render ()
void SetOffScreenRendering (int i)
virtual void SetSize (int, int)
virtual void SetSize (int a[2])
virtual Colormap GetDesiredColormap ()
virtual Visual * GetDesiredVisual ()
virtual XVisualInfo * GetDesiredVisualInfo ()
virtual int GetDesiredDepth ()
virtual void * GetGenericDisplayId ()
virtual void * GetGenericWindowId ()
virtual void * GetGenericParentId ()
virtual void * GetGenericContext ()
virtual void * GetGenericDrawable ()
void SetDisplayId (Display *)
void SetDisplayId (void *)
void SetParentId (Window)
void SetParentId (void *)
void SetWindowId (Window)
void SetWindowId (void *)
void SetNextWindowId (Window)
void SetWindowName (char *)
void SetPosition (int, int)
void SetPosition (int a[2])
void HideCursor ()
void ShowCursor ()

Static Public Methods

vtkXMesaRenderWindow * New ()
int IsTypeOf (const char *type)
vtkXMesaRenderWindow * SafeDownCast (vtkObject *o)

Protected Methods

 vtkXMesaRenderWindow ()
 ~vtkXMesaRenderWindow ()

Protected Attributes

GLXContext ContextId
Window ParentId
Window WindowId
Window NextWindowId
Display * DisplayId
Colormap ColorMap
int OwnWindow
int OwnDisplay
int ScreenSize [2]
int CursorHidden
OSMesaContext OffScreenContextId
void * OffScreenWindow
int ScreenMapped
int ScreenDoubleBuffer

Detailed Description

Mesa rendering window.

Date:
2001/10/11 13:38:36
Revision:
1.5

vtkXMesaRenderWindow is a concrete implementation of the abstract class vtkRenderWindow. vtkOpenGLRenderer interfaces to the OpenGL graphics library. Application programmers should normally use vtkRenderWindow instead of the OpenGL specific version.

Definition at line 69 of file vtkXMesaRenderWindow.h.

Constructor & Destructor Documentation

vtkXMesaRenderWindow::vtkXMesaRenderWindow (    )  [protected]


vtkXMesaRenderWindow::~vtkXMesaRenderWindow (    )  [protected]


Member Function Documentation

vtkXMesaRenderWindow* vtkXMesaRenderWindow::New (    )  [static]


Construct an instance of vtkRenderWindow with its screen size set to 300x300, borders turned on, positioned at (0,0), double buffering turned on.

Reimplemented from vtkMesaRenderWindow.

virtual const char* vtkXMesaRenderWindow::GetClassName (    )  [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkMesaRenderWindow.

int vtkXMesaRenderWindow::IsTypeOf (  const char *    type )  [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkMesaRenderWindow.

virtual int vtkXMesaRenderWindow::IsA (  const char *    type )  [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkMesaRenderWindow.

vtkXMesaRenderWindow* vtkXMesaRenderWindow::SafeDownCast (  vtkObject *    o )  [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkMesaRenderWindow.

void vtkXMesaRenderWindow::PrintSelf (  ostream &    os,
vtkIndent    indent
)  [virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkMesaRenderWindow.

virtual void vtkXMesaRenderWindow::Start (  void    )  [virtual]


Begin the rendering process.

Reimplemented from vtkRenderWindow.

virtual void vtkXMesaRenderWindow::Frame (  void    )  [virtual]


End the rendering process and display the image.

Reimplemented from vtkRenderWindow.

virtual void vtkXMesaRenderWindow::WindowInitialize (  void    )  [virtual]


Initialize the window for rendering.

virtual void vtkXMesaRenderWindow::Initialize (  void    )  [virtual]


Initialize the rendering window.

virtual void vtkXMesaRenderWindow::SetFullScreen (  int    )  [virtual]


Change the window to fill the entire screen.

Reimplemented from vtkRenderWindow.

virtual void vtkXMesaRenderWindow::WindowRemap (  void    )  [virtual]


Resize the window.

Reimplemented from vtkRenderWindow.

virtual void vtkXMesaRenderWindow::PrefFullScreen (  void    )  [virtual]


Set the preferred window size to full screen.

virtual void vtkXMesaRenderWindow::SetSize (  int    x,
int    y
)  [virtual]


Specify the size of the rendering window.

Reimplemented from vtkWindow.

virtual void vtkXMesaRenderWindow::SetSize (  int    a[2] )  [inline, virtual]


Specify the size of the rendering window.

Reimplemented from vtkWindow.

Definition at line 103 of file vtkXMesaRenderWindow.h.

virtual Colormap vtkXMesaRenderWindow::GetDesiredColormap (    )  [virtual]


Get the X properties of an ideal rendering window.

virtual Visual* vtkXMesaRenderWindow::GetDesiredVisual (    )  [virtual]


Get the X properties of an ideal rendering window.

virtual XVisualInfo* vtkXMesaRenderWindow::GetDesiredVisualInfo (    )  [virtual]


Get the X properties of an ideal rendering window.

virtual int vtkXMesaRenderWindow::GetDesiredDepth (    )  [virtual]


Get the X properties of an ideal rendering window.

virtual void vtkXMesaRenderWindow::SetStereoCapableWindow (  int    capable )  [virtual]


Prescribe that the window be created in a stereo-capable mode. This method must be called before the window is realized. This method overrides the superclass method since this class can actually check whether the window has been realized yet.

Reimplemented from vtkRenderWindow.

void vtkXMesaRenderWindow::MakeCurrent (    )  [virtual]


Make this window the current OpenGL context.

Reimplemented from vtkMesaRenderWindow.

virtual void* vtkXMesaRenderWindow::GetGenericDisplayId (    )  [inline, virtual]


Xwindow get set functions

Reimplemented from vtkRenderWindow.

Definition at line 125 of file vtkXMesaRenderWindow.h.

virtual void* vtkXMesaRenderWindow::GetGenericWindowId (    )  [virtual]


Xwindow get set functions

Reimplemented from vtkRenderWindow.

virtual void* vtkXMesaRenderWindow::GetGenericParentId (    )  [inline, virtual]


Xwindow get set functions

Reimplemented from vtkRenderWindow.

Definition at line 127 of file vtkXMesaRenderWindow.h.

virtual void* vtkXMesaRenderWindow::GetGenericContext (    )  [virtual]


Xwindow get set functions

Reimplemented from vtkRenderWindow.

virtual void* vtkXMesaRenderWindow::GetGenericDrawable (    )  [inline, virtual]


Xwindow get set functions

Reimplemented from vtkRenderWindow.

Definition at line 129 of file vtkXMesaRenderWindow.h.

virtual int* vtkXMesaRenderWindow::GetSize (    )  [virtual]


Get the current size of the window in pixels.

Reimplemented from vtkWindow.

virtual int* vtkXMesaRenderWindow::GetScreenSize (    )  [virtual]


Get the size of the screen in pixels

virtual int* vtkXMesaRenderWindow::GetPosition (    )  [virtual]


Get the position in screen coordinates (pixels) of the window.

Reimplemented from vtkWindow.

Display* vtkXMesaRenderWindow::GetDisplayId (    )


Get this RenderWindow's X display id.

void vtkXMesaRenderWindow::SetDisplayId (  Display *    )


Set the X display id for this RenderWindow to use to a pre-existing X display id.

void vtkXMesaRenderWindow::SetDisplayId (  void *    foo )  [virtual]


Set the X display id for this RenderWindow to use to a pre-existing X display id.

Reimplemented from vtkRenderWindow.

Window vtkXMesaRenderWindow::GetParentId (    )


Get this RenderWindow's parent X window id.

void vtkXMesaRenderWindow::SetParentId (  Window    )


Sets the parent of the window that WILL BE created.

void vtkXMesaRenderWindow::SetParentId (  void *    foo )  [virtual]


Sets the parent of the window that WILL BE created.

Reimplemented from vtkRenderWindow.

Window vtkXMesaRenderWindow::GetWindowId (    )


Get this RenderWindow's X window id.

void vtkXMesaRenderWindow::SetWindowId (  Window    )


Set this RenderWindow's X window id to a pre-existing window.

void vtkXMesaRenderWindow::SetWindowId (  void *    foo )  [virtual]


Set this RenderWindow's X window id to a pre-existing window.

Reimplemented from vtkRenderWindow.

void vtkXMesaRenderWindow::SetNextWindowId (  Window    )


Specify the X window id to use if a WindowRemap is done.

void vtkXMesaRenderWindow::SetWindowName (  char *    name )  [virtual]


Specify the X window id to use if a WindowRemap is done.

Reimplemented from vtkWindow.

void vtkXMesaRenderWindow::SetPosition (  int    x,
int    y
)  [virtual]


Move the window to a new position on the display.

Reimplemented from vtkWindow.

void vtkXMesaRenderWindow::SetPosition (  int    a[2] )  [inline, virtual]


Move the window to a new position on the display.

Reimplemented from vtkWindow.

Definition at line 178 of file vtkXMesaRenderWindow.h.

void vtkXMesaRenderWindow::HideCursor (    )  [virtual]


Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead.

Reimplemented from vtkRenderWindow.

void vtkXMesaRenderWindow::ShowCursor (    )  [virtual]


Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead.

Reimplemented from vtkRenderWindow.

virtual int vtkXMesaRenderWindow::GetEventPending (    )  [virtual]


Get the properties available at runtime that would result in the best Xwindow for 3D rendering.

Reimplemented from vtkRenderWindow.

void vtkXMesaRenderWindow::SetWindowInfo (  char *    info )  [virtual]


Set this RenderWindow's X window id to a pre-existing window.

Reimplemented from vtkRenderWindow.

void vtkXMesaRenderWindow::SetParentInfo (  char *    info )  [virtual]


Sets the X window id of the window that WILL BE created.

Reimplemented from vtkRenderWindow.

void vtkXMesaRenderWindow::Render (  void    )  [virtual]


This computes the size of the render window before calling the supper classes render

Reimplemented from vtkRenderWindow.

void vtkXMesaRenderWindow::SetOffScreenRendering (  int    i )  [virtual]


Render without displaying the window.

Reimplemented from vtkWindow.

Member Data Documentation

GLXContext vtkXMesaRenderWindow::ContextId [protected]


Definition at line 72 of file vtkXMesaRenderWindow.h.

Window vtkXMesaRenderWindow::ParentId [protected]


Definition at line 209 of file vtkXMesaRenderWindow.h.

Window vtkXMesaRenderWindow::WindowId [protected]


Definition at line 210 of file vtkXMesaRenderWindow.h.

Window vtkXMesaRenderWindow::NextWindowId [protected]


Definition at line 211 of file vtkXMesaRenderWindow.h.

Display* vtkXMesaRenderWindow::DisplayId [protected]


Definition at line 212 of file vtkXMesaRenderWindow.h.

Colormap vtkXMesaRenderWindow::ColorMap [protected]


Definition at line 213 of file vtkXMesaRenderWindow.h.

int vtkXMesaRenderWindow::OwnWindow [protected]


Definition at line 214 of file vtkXMesaRenderWindow.h.

int vtkXMesaRenderWindow::OwnDisplay [protected]


Definition at line 215 of file vtkXMesaRenderWindow.h.

int vtkXMesaRenderWindow::ScreenSize[2] [protected]


Definition at line 216 of file vtkXMesaRenderWindow.h.

int vtkXMesaRenderWindow::CursorHidden [protected]


Definition at line 217 of file vtkXMesaRenderWindow.h.

OSMesaContext vtkXMesaRenderWindow::OffScreenContextId [protected]


Definition at line 220 of file vtkXMesaRenderWindow.h.

void* vtkXMesaRenderWindow::OffScreenWindow [protected]


Definition at line 221 of file vtkXMesaRenderWindow.h.

int vtkXMesaRenderWindow::ScreenMapped [protected]


Definition at line 222 of file vtkXMesaRenderWindow.h.

int vtkXMesaRenderWindow::ScreenDoubleBuffer [protected]


Definition at line 224 of file vtkXMesaRenderWindow.h.

The documentation for this class was generated from the following file:
Generated on Thu Mar 28 14:48:43 2002 for VTK by doxygen1.2.11.1 written by Dimitri van Heesch, © 1997-2001
