vtkMesaVolumeTextureMapper2D Class Reference

Abstract class for a volume mapper. More...

#include <vtkMesaVolumeTextureMapper2D.h>

Inheritance diagram for vtkMesaVolumeTextureMapper2D:

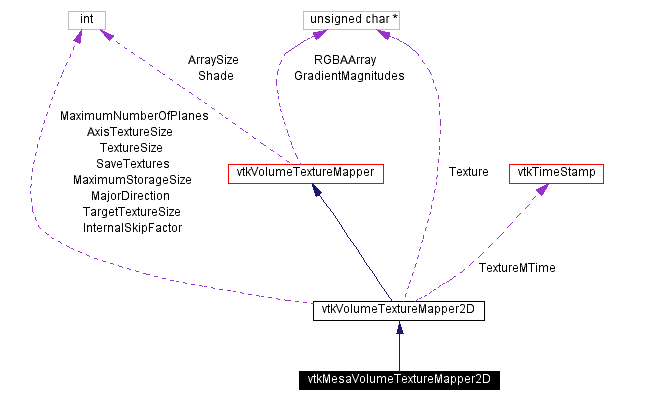

[legend]Collaboration diagram for vtkMesaVolumeTextureMapper2D:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent index)
virtual void	Render (vtkRenderer *ren, vtkVolume *vol)
void	RenderQuads (int count, float *v, float *t, unsigned char *texture, int size[2], int reverseFlag)
Static Public Methods
int	IsTypeOf (const char *type)
vtkMesaVolumeTextureMapper2D *	SafeDownCast (vtkObject *o)
vtkMesaVolumeTextureMapper2D *	New ()
Protected Methods
	vtkMesaVolumeTextureMapper2D ()
	~vtkMesaVolumeTextureMapper2D ()

---

Detailed Description

Abstract class for a volume mapper.

Date:

2001/10/11 13:38:16

Revision:

1.13

vtkMesaVolumeTextureMapper2D renders a volume using 2D texture mapping.

See also:

vtkVolumeMapper

Definition at line 58 of file vtkMesaVolumeTextureMapper2D.h.

---

Constructor & Destructor Documentation

vtkMesaVolumeTextureMapper2D::vtkMesaVolumeTextureMapper2D (    )  [protected]

vtkMesaVolumeTextureMapper2D::~vtkMesaVolumeTextureMapper2D (    )  [protected]

---

Member Function Documentation

virtual const char* vtkMesaVolumeTextureMapper2D::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVolumeTextureMapper2D.

int vtkMesaVolumeTextureMapper2D::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVolumeTextureMapper2D.

virtual int vtkMesaVolumeTextureMapper2D::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVolumeTextureMapper2D.

vtkMesaVolumeTextureMapper2D* vtkMesaVolumeTextureMapper2D::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkVolumeTextureMapper2D.

void vtkMesaVolumeTextureMapper2D::PrintSelf (  ostream &    os, vtkIndent    index )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkVolumeTextureMapper2D.

vtkMesaVolumeTextureMapper2D* vtkMesaVolumeTextureMapper2D::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkVolumeTextureMapper2D.

virtual void vtkMesaVolumeTextureMapper2D::Render (  vtkRenderer *    ren, vtkVolume *    vol )  [virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS Render the volume Reimplemented from vtkVolumeTextureMapper2D.

void vtkMesaVolumeTextureMapper2D::RenderQuads (  int    count, float *    v, float *    t, unsigned char *    texture, int    size[2], int    reverseFlag )

---

The documentation for this class was generated from the following file:

• Rendering/vtkMesaVolumeTextureMapper2D.h

---
