vtkVolumeTextureMapper2D Class Reference

Abstract class for a volume mapper. More...

#include <vtkVolumeTextureMapper2D.h>

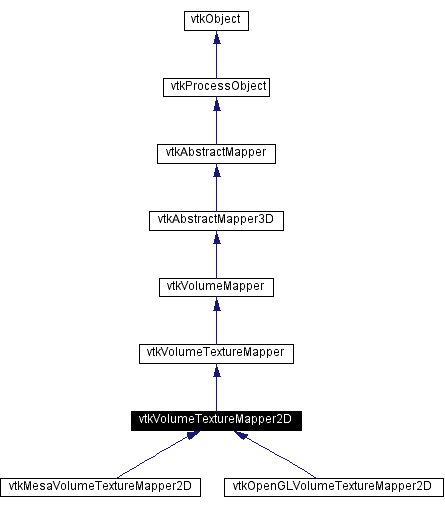

Inheritance diagram for vtkVolumeTextureMapper2D:

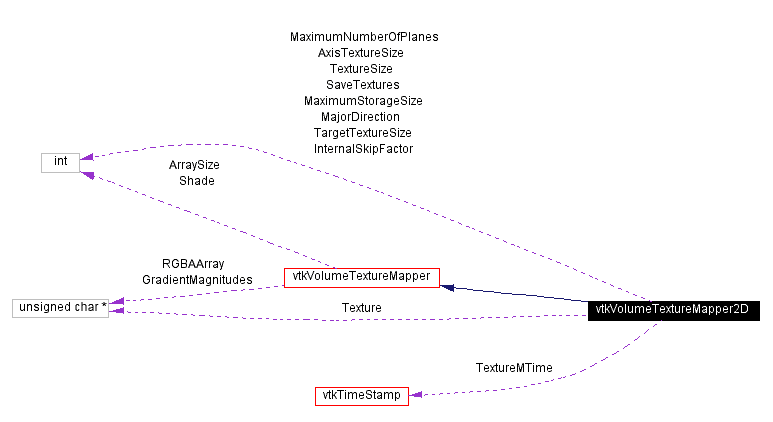

[legend]Collaboration diagram for vtkVolumeTextureMapper2D:

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent index)
virtual void	Render (vtkRenderer , vtkVolume )
virtual void	RenderQuads (int vtkNotUsed(count), float vtkNotUsed(v), float vtkNotUsed(t), unsigned char *vtkNotUsed(texture), int vtkNotUsed(size)[2], int vtkNotUsed(reverseFlag))
int	GetInternalSkipFactor ()
int *	GetAxisTextureSize ()
int	GetSaveTextures ()
unsigned char *	GetTexture ()

virtual void	SetTargetTextureSize (int, int)
void	SetTargetTextureSize (int[2])
virtual int *	GetTargetTextureSize ()
virtual void	GetTargetTextureSize (int &, int &)
virtual void	GetTargetTextureSize (int[2])

virtual void	SetMaximumNumberOfPlanes (int)
virtual int	GetMaximumNumberOfPlanes ()

virtual void	SetMaximumStorageSize (int)
virtual int	GetMaximumStorageSize ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkVolumeTextureMapper2D *	SafeDownCast (vtkObject *o)
vtkVolumeTextureMapper2D *	New ()
Protected Methods
	vtkVolumeTextureMapper2D ()
	~vtkVolumeTextureMapper2D ()
void	InitializeRender (vtkRenderer ren, vtkVolume vol)
void	InitializeRender (vtkRenderer ren, vtkVolume vol, int majorDirection)
void	GenerateTexturesAndRenderQuads (vtkRenderer ren, vtkVolume vol)
void	ComputeAxisTextureSize (int axis, int *size)
void	RenderSavedTexture ()
Protected Attributes
int	MajorDirection
int	TargetTextureSize [2]
int	MaximumNumberOfPlanes
int	InternalSkipFactor
int	MaximumStorageSize
unsigned char *	Texture
int	TextureSize
int	SaveTextures
vtkTimeStamp	TextureMTime
int	AxisTextureSize [3][3]

Detailed Description

Abstract class for a volume mapper.

Date:: 2001/10/11 13:38:32

Revision:: 1.17

vtkVolumeTextureMapper2D renders a volume using 2D texture mapping.

See also:: vtkVolumeMapper

Examples:: vtkVolumeTextureMapper2D (Examples)

Tests:: vtkVolumeTextureMapper2D (Tests)

Definition at line 64 of file vtkVolumeTextureMapper2D.h.

Constructor & Destructor Documentation

vtkVolumeTextureMapper2D::vtkVolumeTextureMapper2D ( ) [protected]

vtkVolumeTextureMapper2D::~vtkVolumeTextureMapper2D ( ) [protected]

Member Function Documentation

virtual const char* vtkVolumeTextureMapper2D::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkVolumeTextureMapper.
Reimplemented in vtkMesaVolumeTextureMapper2D, and vtkOpenGLVolumeTextureMapper2D.

int vtkVolumeTextureMapper2D::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkVolumeTextureMapper.
Reimplemented in vtkMesaVolumeTextureMapper2D, and vtkOpenGLVolumeTextureMapper2D.

virtual int vtkVolumeTextureMapper2D::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkVolumeTextureMapper.
Reimplemented in vtkMesaVolumeTextureMapper2D, and vtkOpenGLVolumeTextureMapper2D.

vtkVolumeTextureMapper2D* vtkVolumeTextureMapper2D::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkVolumeTextureMapper.
Reimplemented in vtkMesaVolumeTextureMapper2D, and vtkOpenGLVolumeTextureMapper2D.

void vtkVolumeTextureMapper2D::PrintSelf ( ostream & os,

vtkIndent index

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkVolumeTextureMapper.
Reimplemented in vtkMesaVolumeTextureMapper2D, and vtkOpenGLVolumeTextureMapper2D.

vtkVolumeTextureMapper2D* vtkVolumeTextureMapper2D::New ( ) [static]

Instantiate object with no start, end, or progress methods.
Reimplemented from vtkProcessObject.
Reimplemented in vtkMesaVolumeTextureMapper2D, and vtkOpenGLVolumeTextureMapper2D.

virtual void vtkVolumeTextureMapper2D::SetTargetTextureSize ( int ,

int

) [virtual]

Target size in pixels of each size of the texture for downloading. Default is 512x512 - so a 512x512 texture will be tiled with as many slices of the volume as possible, then all the quads will be rendered. This can be set to optimize for a particular architecture. This must be set with numbers that are a power of two.

void vtkVolumeTextureMapper2D::SetTargetTextureSize ( int [2] )

Target size in pixels of each size of the texture for downloading. Default is 512x512 - so a 512x512 texture will be tiled with as many slices of the volume as possible, then all the quads will be rendered. This can be set to optimize for a particular architecture. This must be set with numbers that are a power of two.

virtual int* vtkVolumeTextureMapper2D::GetTargetTextureSize ( ) [virtual]

Target size in pixels of each size of the texture for downloading. Default is 512x512 - so a 512x512 texture will be tiled with as many slices of the volume as possible, then all the quads will be rendered. This can be set to optimize for a particular architecture. This must be set with numbers that are a power of two.

virtual void vtkVolumeTextureMapper2D::GetTargetTextureSize ( int & ,

int &

) [virtual]

Target size in pixels of each size of the texture for downloading. Default is 512x512 - so a 512x512 texture will be tiled with as many slices of the volume as possible, then all the quads will be rendered. This can be set to optimize for a particular architecture. This must be set with numbers that are a power of two.

virtual void vtkVolumeTextureMapper2D::GetTargetTextureSize ( int [2] ) [virtual]

Target size in pixels of each size of the texture for downloading. Default is 512x512 - so a 512x512 texture will be tiled with as many slices of the volume as possible, then all the quads will be rendered. This can be set to optimize for a particular architecture. This must be set with numbers that are a power of two.

virtual void vtkVolumeTextureMapper2D::SetMaximumNumberOfPlanes ( int ) [virtual]

This is the maximum number of planes that will be created for texture mapping the volume. If the volume has more voxels than this along the viewing direction, then planes of the volume will be skipped to ensure that this maximum is not violated. A skip factor is used, and is incremented until the maximum condition is satisfied.

virtual int vtkVolumeTextureMapper2D::GetMaximumNumberOfPlanes ( ) [virtual]

This is the maximum number of planes that will be created for texture mapping the volume. If the volume has more voxels than this along the viewing direction, then planes of the volume will be skipped to ensure that this maximum is not violated. A skip factor is used, and is incremented until the maximum condition is satisfied.

virtual void vtkVolumeTextureMapper2D::SetMaximumStorageSize ( int ) [virtual]

This is the maximum size of saved textures in bytes. If this size is large enough to hold the RGBA textures for all three directions (XxYxZx3x4 is the approximate value - it is actually a bit larger due to wasted space in the textures) then the textures will be saved.

virtual int vtkVolumeTextureMapper2D::GetMaximumStorageSize ( ) [virtual]

This is the maximum size of saved textures in bytes. If this size is large enough to hold the RGBA textures for all three directions (XxYxZx3x4 is the approximate value - it is actually a bit larger due to wasted space in the textures) then the textures will be saved.

virtual void vtkVolumeTextureMapper2D::Render ( vtkRenderer * ren,

vtkVolume * vol

) [inline, virtual]

WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS Render the volume
Reimplemented from vtkVolumeTextureMapper.
Reimplemented in vtkMesaVolumeTextureMapper2D, and vtkOpenGLVolumeTextureMapper2D.
Definition at line 105 of file vtkVolumeTextureMapper2D.h.

virtual void vtkVolumeTextureMapper2D::RenderQuads ( int vtkNotUsed(count) ,

float *vtkNotUsed(v) ,

float *vtkNotUsed(t) ,

unsigned char *vtkNotUsed(texture) ,

int vtkNotUsed(size) [2],

int vtkNotUsed(reverseFlag)

) [inline, virtual]

Definition at line 107 of file vtkVolumeTextureMapper2D.h.

int vtkVolumeTextureMapper2D::GetInternalSkipFactor ( ) [inline]

Made public only for access from the templated method. Not a vtkGetMacro to avoid the PrintSelf defect.
Definition at line 115 of file vtkVolumeTextureMapper2D.h.

int* vtkVolumeTextureMapper2D::GetAxisTextureSize ( ) [inline]

Definition at line 117 of file vtkVolumeTextureMapper2D.h.

int vtkVolumeTextureMapper2D::GetSaveTextures ( ) [inline]

Definition at line 119 of file vtkVolumeTextureMapper2D.h.

unsigned char* vtkVolumeTextureMapper2D::GetTexture ( ) [inline]

Definition at line 121 of file vtkVolumeTextureMapper2D.h.

void vtkVolumeTextureMapper2D::InitializeRender ( vtkRenderer * ren,

vtkVolume * vol

) [inline, protected]

Reimplemented from vtkVolumeTextureMapper.
Definition at line 130 of file vtkVolumeTextureMapper2D.h.

void vtkVolumeTextureMapper2D::InitializeRender ( vtkRenderer * ren,

vtkVolume * vol,

int majorDirection

) [protected]

void vtkVolumeTextureMapper2D::GenerateTexturesAndRenderQuads ( vtkRenderer * ren,

vtkVolume * vol

) [protected]

void vtkVolumeTextureMapper2D::ComputeAxisTextureSize ( int axis,

int * size

) [protected]

void vtkVolumeTextureMapper2D::RenderSavedTexture ( ) [protected]

Member Data Documentation

int vtkVolumeTextureMapper2D::MajorDirection [protected]

Definition at line 137 of file vtkVolumeTextureMapper2D.h.

int vtkVolumeTextureMapper2D::TargetTextureSize[2] [protected]

Definition at line 138 of file vtkVolumeTextureMapper2D.h.

int vtkVolumeTextureMapper2D::MaximumNumberOfPlanes [protected]

Definition at line 140 of file vtkVolumeTextureMapper2D.h.

int vtkVolumeTextureMapper2D::InternalSkipFactor [protected]

Definition at line 141 of file vtkVolumeTextureMapper2D.h.

int vtkVolumeTextureMapper2D::MaximumStorageSize [protected]

Definition at line 142 of file vtkVolumeTextureMapper2D.h.

unsigned char* vtkVolumeTextureMapper2D::Texture [protected]

Definition at line 144 of file vtkVolumeTextureMapper2D.h.

int vtkVolumeTextureMapper2D::TextureSize [protected]

Definition at line 145 of file vtkVolumeTextureMapper2D.h.

int vtkVolumeTextureMapper2D::SaveTextures [protected]

Definition at line 146 of file vtkVolumeTextureMapper2D.h.

vtkTimeStamp vtkVolumeTextureMapper2D::TextureMTime [protected]

Definition at line 147 of file vtkVolumeTextureMapper2D.h.

int vtkVolumeTextureMapper2D::AxisTextureSize[3][3] [protected]

Definition at line 149 of file vtkVolumeTextureMapper2D.h.

The documentation for this class was generated from the following file:

Rendering/vtkVolumeTextureMapper2D.h
