vtkOpenGLProperty Class Reference

OpenGL property. More...

#include <vtkOpenGLProperty.h>

Inheritance diagram for vtkOpenGLProperty:

Inheritance graph
[legend]

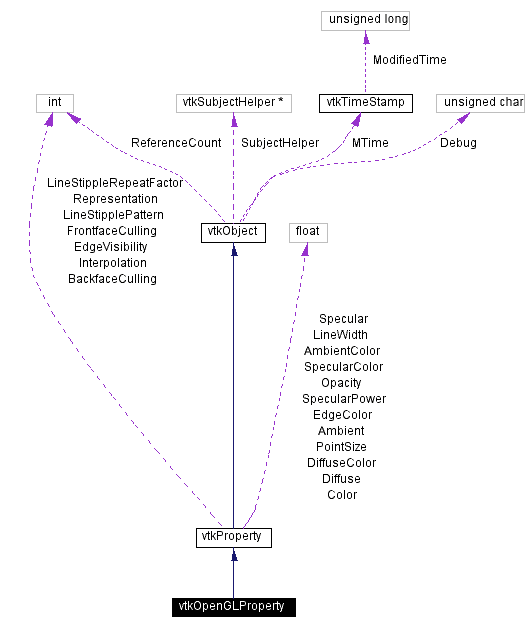

Collaboration diagram for vtkOpenGLProperty:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void Render (vtkActor *a, vtkRenderer *ren)
void BackfaceRender (vtkActor *a, vtkRenderer *ren)

Static Public Methods

vtkOpenGLProperty * New ()
int IsTypeOf (const char *type)
vtkOpenGLProperty * SafeDownCast (vtkObject *o)

Protected Methods

 vtkOpenGLProperty ()
 ~vtkOpenGLProperty ()

Detailed Description

OpenGL property.

Date:
2001/10/11 13:38:19
Revision:
1.16

vtkOpenGLProperty is a concrete implementation of the abstract class vtkProperty. vtkOpenGLProperty interfaces to the OpenGL rendering library.

Definition at line 57 of file vtkOpenGLProperty.h.


Constructor & Destructor Documentation

vtkOpenGLProperty::vtkOpenGLProperty   [inline, protected]


Definition at line 70 of file vtkOpenGLProperty.h.

vtkOpenGLProperty::~vtkOpenGLProperty   [inline, protected]


Definition at line 71 of file vtkOpenGLProperty.h.


Member Function Documentation

vtkOpenGLProperty* vtkOpenGLProperty::New   [static]


Construct object with object color, ambient color, diffuse color, specular color, and edge color white; ambient coefficient=0; diffuse coefficient=0; specular coefficient=0; specular power=1; Gouraud shading; and surface representation. Backface and frontface culling are off.

Reimplemented from vtkProperty.

virtual const char* vtkOpenGLProperty::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkProperty.

int vtkOpenGLProperty::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkProperty.

virtual int vtkOpenGLProperty::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkProperty.

vtkOpenGLProperty* vtkOpenGLProperty::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkProperty.

void vtkOpenGLProperty::Render vtkActor   a,
vtkRenderer   ren
[virtual]


Implement base class method.

Reimplemented from vtkProperty.

void vtkOpenGLProperty::BackfaceRender vtkActor   a,
vtkRenderer   ren
[virtual]


Implement base class method.

Reimplemented from vtkProperty.


The documentation for this class was generated from the following file:
