vtkProperty Class Reference

represent surface properties of a geometric object. More...

#include <vtkProperty.h>

Inheritance diagram for vtkProperty:

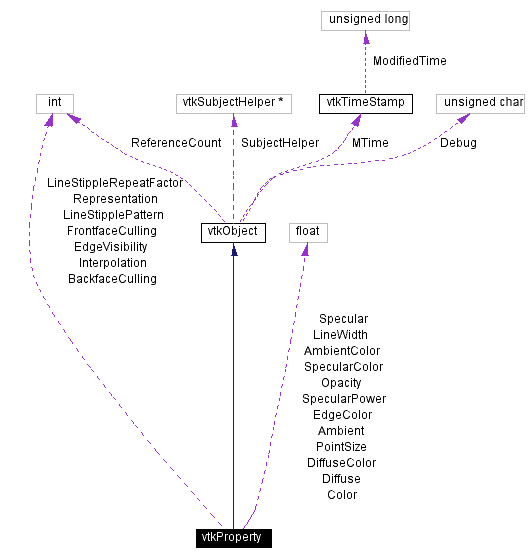

[legend]Collaboration diagram for vtkProperty:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	DeepCopy (vtkProperty *p)
virtual void	Render (vtkActor *, vtkRenderer *)
virtual void	BackfaceRender (vtkActor *, vtkRenderer *)
virtual void	SetInterpolation (int)
virtual int	GetInterpolation ()
void	SetInterpolationToFlat ()
void	SetInterpolationToGouraud ()
void	SetInterpolationToPhong ()
char *	GetInterpolationAsString ()
virtual void	SetRepresentation (int)
virtual int	GetRepresentation ()
void	SetRepresentationToPoints ()
void	SetRepresentationToWireframe ()
void	SetRepresentationToSurface ()
char *	GetRepresentationAsString ()
void	SetColor (float r, float g, float b)
void	SetColor (float a[3])
float *	GetColor ()
void	GetColor (float rgb[3])
virtual void	SetAmbient (float)
virtual float	GetAmbient ()
virtual void	SetDiffuse (float)
virtual float	GetDiffuse ()
virtual void	SetSpecular (float)
virtual float	GetSpecular ()
virtual void	SetSpecularPower (float)
virtual float	GetSpecularPower ()
virtual void	SetOpacity (float)
virtual float	GetOpacity ()
virtual void	SetAmbientColor (float, float, float)
virtual void	SetAmbientColor (float[3])
virtual float *	GetAmbientColor ()
virtual void	GetAmbientColor (float data[3])
virtual void	SetDiffuseColor (float, float, float)
virtual void	SetDiffuseColor (float[3])
virtual float *	GetDiffuseColor ()
virtual void	GetDiffuseColor (float data[3])
virtual void	SetSpecularColor (float, float, float)
virtual void	SetSpecularColor (float[3])
virtual float *	GetSpecularColor ()
virtual void	GetSpecularColor (float data[3])
virtual int	GetEdgeVisibility ()
virtual void	SetEdgeVisibility (int)
virtual void	EdgeVisibilityOn ()
virtual void	EdgeVisibilityOff ()
virtual void	SetEdgeColor (float, float, float)
virtual void	SetEdgeColor (float[3])
virtual float *	GetEdgeColor ()
virtual void	GetEdgeColor (float data[3])
virtual void	SetLineWidth (float)
virtual float	GetLineWidth ()
virtual void	SetLineStipplePattern (int)
virtual int	GetLineStipplePattern ()
virtual void	SetLineStippleRepeatFactor (int)
virtual int	GetLineStippleRepeatFactor ()
virtual void	SetPointSize (float)
virtual float	GetPointSize ()
virtual int	GetBackfaceCulling ()
virtual void	SetBackfaceCulling (int)
virtual void	BackfaceCullingOn ()
virtual void	BackfaceCullingOff ()
virtual int	GetFrontfaceCulling ()
virtual void	SetFrontfaceCulling (int)
virtual void	FrontfaceCullingOn ()
virtual void	FrontfaceCullingOff ()
Static Public Methods
int	IsTypeOf (const char *type)
vtkProperty *	SafeDownCast (vtkObject *o)
vtkProperty *	New ()
Protected Methods
	vtkProperty ()
	~vtkProperty ()
Protected Attributes
float	Color [3]
float	AmbientColor [3]
float	DiffuseColor [3]
float	SpecularColor [3]
float	EdgeColor [3]
float	Ambient
float	Diffuse
float	Specular
float	SpecularPower
float	Opacity
float	PointSize
float	LineWidth
int	LineStipplePattern
int	LineStippleRepeatFactor
int	Interpolation
int	Representation
int	EdgeVisibility
int	BackfaceCulling
int	FrontfaceCulling

---

Detailed Description

represent surface properties of a geometric object.

Date:

2001/10/11 13:38:22

Revision:

1.56

vtkProperty is an object that represents lighting and other surface properties of a geometric object. The primary properties that can be set are colors (overall, ambient, diffuse, specular, and edge color); specular power; opacity of the object; the representation of the object (points, wireframe, or surface); and the shading method to be used (flat, Gouraud, and Phong). Also, some special graphics features like backface properties can be set and manipulated with this object.

See also:

vtkActor vtkPropertyDevice

Examples:

vtkProperty (Examples)

Tests:

vtkProperty (Tests)

Definition at line 74 of file vtkProperty.h.

---

Constructor & Destructor Documentation

vtkProperty::vtkProperty (    )  [protected]

vtkProperty::~vtkProperty (    )  [inline, protected]

Definition at line 252 of file vtkProperty.h.

---

Member Function Documentation

virtual const char* vtkProperty::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkRIBProperty, vtkMesaProperty, and vtkOpenGLProperty.

int vtkProperty::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkRIBProperty, vtkMesaProperty, and vtkOpenGLProperty.

virtual int vtkProperty::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkRIBProperty, vtkMesaProperty, and vtkOpenGLProperty.

vtkProperty* vtkProperty::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkObject. Reimplemented in vtkRIBProperty, vtkMesaProperty, and vtkOpenGLProperty.

void vtkProperty::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkObject. Reimplemented in vtkRIBProperty.

vtkProperty* vtkProperty::New (    )  [static]

Construct object with object color, ambient color, diffuse color, specular color, and edge color white; ambient coefficient=0; diffuse coefficient=0; specular coefficient=0; specular power=1; Gouraud shading; and surface representation. Backface and frontface culling are off. Reimplemented from vtkObject. Reimplemented in vtkRIBProperty, vtkMesaProperty, and vtkOpenGLProperty.

void vtkProperty::DeepCopy (  vtkProperty *    p )

Assign one property to another.

virtual void vtkProperty::Render (  vtkActor *    a, vtkRenderer *    ren )  [inline, virtual]

This method causes the property to set up whatever is required for its instance variables. This is actually handled by a subclass of vtkProperty, which is created automatically. This method includes the invoking actor as an argument which can be used by property devices that require the actor. Reimplemented in vtkRIBProperty, vtkMesaProperty, and vtkOpenGLProperty. Definition at line 95 of file vtkProperty.h.

virtual void vtkProperty::BackfaceRender (  vtkActor *    a, vtkRenderer *    ren )  [inline, virtual]

This method renders the property as a backface property. TwoSidedLighting must be turned off to see any backface properties. Note that only colors and opacity are used for backface properties. Other properties such as Representation, Culling are specified by the Property. Reimplemented in vtkMesaProperty, and vtkOpenGLProperty. Definition at line 102 of file vtkProperty.h.

virtual void vtkProperty::SetInterpolation (  int    )  [virtual]

Set the shading interpolation method for an object.

virtual int vtkProperty::GetInterpolation (    )  [virtual]

Set the shading interpolation method for an object.

void vtkProperty::SetInterpolationToFlat (    )  [inline]

Set the shading interpolation method for an object. Definition at line 108 of file vtkProperty.h.

void vtkProperty::SetInterpolationToGouraud (    )  [inline]

Set the shading interpolation method for an object. Definition at line 109 of file vtkProperty.h.

void vtkProperty::SetInterpolationToPhong (    )  [inline]

Set the shading interpolation method for an object. Definition at line 110 of file vtkProperty.h.

char * vtkProperty::GetInterpolationAsString (  void    )  [inline]

Return the method of shading as a descriptive character string. Definition at line 279 of file vtkProperty.h.

virtual void vtkProperty::SetRepresentation (  int    )  [virtual]

Control the surface geometry representation for the object.

virtual int vtkProperty::GetRepresentation (    )  [virtual]

Control the surface geometry representation for the object.

void vtkProperty::SetRepresentationToPoints (    )  [inline]

Control the surface geometry representation for the object. Definition at line 118 of file vtkProperty.h.

void vtkProperty::SetRepresentationToWireframe (    )  [inline]

Control the surface geometry representation for the object. Definition at line 119 of file vtkProperty.h.

void vtkProperty::SetRepresentationToSurface (    )  [inline]

Control the surface geometry representation for the object. Definition at line 121 of file vtkProperty.h.

char * vtkProperty::GetRepresentationAsString (  void    )  [inline]

Return the method of shading as a descriptive character string. Definition at line 297 of file vtkProperty.h.

void vtkProperty::SetColor (  float    r, float    g, float    b )

Set the color of the object. Has the side effect of setting the ambient diffuse and specular colors as well. This is basically a quick overall color setting method.

void vtkProperty::SetColor (  float    a[3] )  [inline]

Set the color of the object. Has the side effect of setting the ambient diffuse and specular colors as well. This is basically a quick overall color setting method. Definition at line 130 of file vtkProperty.h.

float* vtkProperty::GetColor (    )

Set the color of the object. Has the side effect of setting the ambient diffuse and specular colors as well. This is basically a quick overall color setting method.

void vtkProperty::GetColor (  float    rgb[3] )

Set the color of the object. Has the side effect of setting the ambient diffuse and specular colors as well. This is basically a quick overall color setting method.

virtual void vtkProperty::SetAmbient (  float    )  [virtual]

Set/Get the ambient lighting coefficient.

virtual float vtkProperty::GetAmbient (    )  [virtual]

Set/Get the ambient lighting coefficient.

virtual void vtkProperty::SetDiffuse (  float    )  [virtual]

Set/Get the diffuse lighting coefficient.

virtual float vtkProperty::GetDiffuse (    )  [virtual]

Set/Get the diffuse lighting coefficient.

virtual void vtkProperty::SetSpecular (  float    )  [virtual]

Set/Get the specular lighting coefficient.

virtual float vtkProperty::GetSpecular (    )  [virtual]

Set/Get the specular lighting coefficient.

virtual void vtkProperty::SetSpecularPower (  float    )  [virtual]

Set/Get the specular power.

virtual float vtkProperty::GetSpecularPower (    )  [virtual]

Set/Get the specular power.

virtual void vtkProperty::SetOpacity (  float    )  [virtual]

Set/Get the object's opacity. 1.0 is totally opaque and 0.0 is completely transparent.

virtual float vtkProperty::GetOpacity (    )  [virtual]

Set/Get the object's opacity. 1.0 is totally opaque and 0.0 is completely transparent.

virtual void vtkProperty::SetAmbientColor (  float   , float   , float    )  [virtual]

Set/Get the ambient surface color. Not all renderers support separate ambient and diffuse colors. From a physical standpoint it really doesn't make too much sense to have both. For the rendering libraries that don't support both, the diffuse color is used.

virtual void vtkProperty::SetAmbientColor (  float   [3] )  [virtual]

Set/Get the ambient surface color. Not all renderers support separate ambient and diffuse colors. From a physical standpoint it really doesn't make too much sense to have both. For the rendering libraries that don't support both, the diffuse color is used.

virtual float* vtkProperty::GetAmbientColor (    )  [virtual]

Set/Get the ambient surface color. Not all renderers support separate ambient and diffuse colors. From a physical standpoint it really doesn't make too much sense to have both. For the rendering libraries that don't support both, the diffuse color is used.

virtual void vtkProperty::GetAmbientColor (  float    data[3] )  [virtual]

Set/Get the ambient surface color. Not all renderers support separate ambient and diffuse colors. From a physical standpoint it really doesn't make too much sense to have both. For the rendering libraries that don't support both, the diffuse color is used.

virtual void vtkProperty::SetDiffuseColor (  float   , float   , float    )  [virtual]

Set/Get the diffuse surface color.

virtual void vtkProperty::SetDiffuseColor (  float   [3] )  [virtual]

Set/Get the diffuse surface color.

virtual float* vtkProperty::GetDiffuseColor (    )  [virtual]

Set/Get the diffuse surface color.

virtual void vtkProperty::GetDiffuseColor (  float    data[3] )  [virtual]

Set/Get the diffuse surface color.

virtual void vtkProperty::SetSpecularColor (  float   , float   , float    )  [virtual]

Set/Get the specular surface color.

virtual void vtkProperty::SetSpecularColor (  float   [3] )  [virtual]

Set/Get the specular surface color.

virtual float* vtkProperty::GetSpecularColor (    )  [virtual]

Set/Get the specular surface color.

virtual void vtkProperty::GetSpecularColor (  float    data[3] )  [virtual]

Set/Get the specular surface color.

virtual int vtkProperty::GetEdgeVisibility (    )  [virtual]

Turn on/off the visibility of edges. On some renderers it is possible to render the edges of geometric primitives separately from the interior.

virtual void vtkProperty::SetEdgeVisibility (  int    )  [virtual]

Turn on/off the visibility of edges. On some renderers it is possible to render the edges of geometric primitives separately from the interior.

virtual void vtkProperty::EdgeVisibilityOn (    )  [virtual]

Turn on/off the visibility of edges. On some renderers it is possible to render the edges of geometric primitives separately from the interior.

virtual void vtkProperty::EdgeVisibilityOff (    )  [virtual]

Turn on/off the visibility of edges. On some renderers it is possible to render the edges of geometric primitives separately from the interior.

virtual void vtkProperty::SetEdgeColor (  float   , float   , float    )  [virtual]

Set/Get the color of primitive edges (if edge visibility is enabled).

virtual void vtkProperty::SetEdgeColor (  float   [3] )  [virtual]

Set/Get the color of primitive edges (if edge visibility is enabled).

virtual float* vtkProperty::GetEdgeColor (    )  [virtual]

Set/Get the color of primitive edges (if edge visibility is enabled).

virtual void vtkProperty::GetEdgeColor (  float    data[3] )  [virtual]

Set/Get the color of primitive edges (if edge visibility is enabled).

virtual void vtkProperty::SetLineWidth (  float    )  [virtual]

Set/Get the width of a Line. The width is expressed in screen units. This is only implemented for OpenGL. The default is 1.0.

virtual float vtkProperty::GetLineWidth (    )  [virtual]

Set/Get the width of a Line. The width is expressed in screen units. This is only implemented for OpenGL. The default is 1.0.

virtual void vtkProperty::SetLineStipplePattern (  int    )  [virtual]

Set/Get the stippling pattern of a Line, as a 16-bit binary pattern (1 = pixel on, 0 = pixel off). This is only implemented for OpenGL. The default is 0xFFFF.

virtual int vtkProperty::GetLineStipplePattern (    )  [virtual]

Set/Get the stippling pattern of a Line, as a 16-bit binary pattern (1 = pixel on, 0 = pixel off). This is only implemented for OpenGL. The default is 0xFFFF.

virtual void vtkProperty::SetLineStippleRepeatFactor (  int    )  [virtual]

Set/Get the stippling repeat factor of a Line, which specifies how many times each bit in the pattern is to be repeated. This is only implemented for OpenGL. The default is 1.

virtual int vtkProperty::GetLineStippleRepeatFactor (    )  [virtual]

Set/Get the stippling repeat factor of a Line, which specifies how many times each bit in the pattern is to be repeated. This is only implemented for OpenGL. The default is 1.

virtual void vtkProperty::SetPointSize (  float    )  [virtual]

Set/Get the diameter of a point. The size is expressed in screen units. This is only implemented for OpenGL. The default is 1.0.

virtual float vtkProperty::GetPointSize (    )  [virtual]

Set/Get the diameter of a point. The size is expressed in screen units. This is only implemented for OpenGL. The default is 1.0.

virtual int vtkProperty::GetBackfaceCulling (    )  [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If backface culling is on, polygons facing away from camera are not drawn.

virtual void vtkProperty::SetBackfaceCulling (  int    )  [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If backface culling is on, polygons facing away from camera are not drawn.

virtual void vtkProperty::BackfaceCullingOn (    )  [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If backface culling is on, polygons facing away from camera are not drawn.

virtual void vtkProperty::BackfaceCullingOff (    )  [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If backface culling is on, polygons facing away from camera are not drawn.

virtual int vtkProperty::GetFrontfaceCulling (    )  [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If frontface culling is on, polygons facing towards camera are not drawn.

virtual void vtkProperty::SetFrontfaceCulling (  int    )  [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If frontface culling is on, polygons facing towards camera are not drawn.

virtual void vtkProperty::FrontfaceCullingOn (    )  [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If frontface culling is on, polygons facing towards camera are not drawn.

virtual void vtkProperty::FrontfaceCullingOff (    )  [virtual]

Turn on/off fast culling of polygons based on orientation of normal with respect to camera. If frontface culling is on, polygons facing towards camera are not drawn.

---

Member Data Documentation

float vtkProperty::Color[3] [protected]

Definition at line 254 of file vtkProperty.h.

float vtkProperty::AmbientColor[3] [protected]

Definition at line 255 of file vtkProperty.h.

float vtkProperty::DiffuseColor[3] [protected]

Definition at line 256 of file vtkProperty.h.

float vtkProperty::SpecularColor[3] [protected]

Definition at line 257 of file vtkProperty.h.

float vtkProperty::EdgeColor[3] [protected]

Definition at line 258 of file vtkProperty.h.

float vtkProperty::Ambient [protected]

Definition at line 259 of file vtkProperty.h.

float vtkProperty::Diffuse [protected]

Definition at line 260 of file vtkProperty.h.

float vtkProperty::Specular [protected]

Definition at line 261 of file vtkProperty.h.

float vtkProperty::SpecularPower [protected]

Definition at line 262 of file vtkProperty.h.

float vtkProperty::Opacity [protected]

Definition at line 263 of file vtkProperty.h.

float vtkProperty::PointSize [protected]

Definition at line 264 of file vtkProperty.h.

float vtkProperty::LineWidth [protected]

Definition at line 265 of file vtkProperty.h.

int vtkProperty::LineStipplePattern [protected]

Definition at line 266 of file vtkProperty.h.

int vtkProperty::LineStippleRepeatFactor [protected]

Definition at line 267 of file vtkProperty.h.

int vtkProperty::Interpolation [protected]

Definition at line 268 of file vtkProperty.h.

int vtkProperty::Representation [protected]

Definition at line 269 of file vtkProperty.h.

int vtkProperty::EdgeVisibility [protected]

Definition at line 270 of file vtkProperty.h.

int vtkProperty::BackfaceCulling [protected]

Definition at line 271 of file vtkProperty.h.

int vtkProperty::FrontfaceCulling [protected]

Definition at line 272 of file vtkProperty.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkProperty.h

---
