vtkOpenGLVolumeTextureMapper2D Class Reference

Abstract class for a volume mapper. More...

#include <vtkOpenGLVolumeTextureMapper2D.h>

Inheritance diagram for vtkOpenGLVolumeTextureMapper2D:

Inheritance graph
[legend]

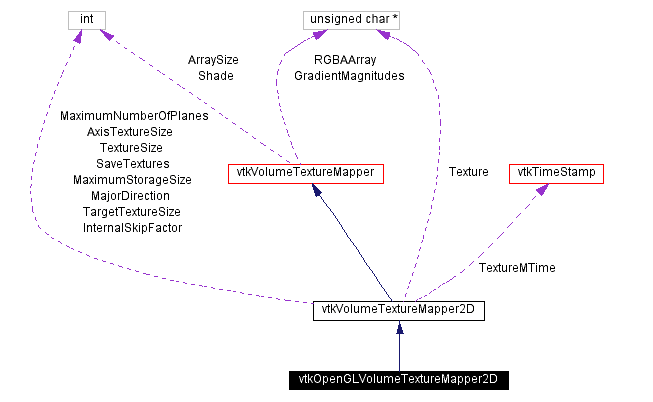

Collaboration diagram for vtkOpenGLVolumeTextureMapper2D:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent index)
virtual void Render (vtkRenderer *ren, vtkVolume *vol)
void RenderQuads (int count, float *v, float *t, unsigned char *texture, int size[2], int reverseFlag)

Static Public Methods

int IsTypeOf (const char *type)
vtkOpenGLVolumeTextureMapper2D * SafeDownCast (vtkObject *o)
vtkOpenGLVolumeTextureMapper2D * New ()

Protected Methods

 vtkOpenGLVolumeTextureMapper2D ()
 ~vtkOpenGLVolumeTextureMapper2D ()

Detailed Description

Abstract class for a volume mapper.

Date:
2001/10/11 13:38:20
Revision:
1.15

vtkOpenGLVolumeTextureMapper2D renders a volume using 2D texture mapping.

See also:
vtkVolumeMapper

Definition at line 58 of file vtkOpenGLVolumeTextureMapper2D.h.


Constructor & Destructor Documentation

vtkOpenGLVolumeTextureMapper2D::vtkOpenGLVolumeTextureMapper2D   [protected]


vtkOpenGLVolumeTextureMapper2D::~vtkOpenGLVolumeTextureMapper2D   [protected]



Member Function Documentation

virtual const char* vtkOpenGLVolumeTextureMapper2D::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeTextureMapper2D.

int vtkOpenGLVolumeTextureMapper2D::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeTextureMapper2D.

virtual int vtkOpenGLVolumeTextureMapper2D::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeTextureMapper2D.

vtkOpenGLVolumeTextureMapper2D* vtkOpenGLVolumeTextureMapper2D::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkVolumeTextureMapper2D.

void vtkOpenGLVolumeTextureMapper2D::PrintSelf ostream &    os,
vtkIndent    index
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkVolumeTextureMapper2D.

vtkOpenGLVolumeTextureMapper2D* vtkOpenGLVolumeTextureMapper2D::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkVolumeTextureMapper2D.

virtual void vtkOpenGLVolumeTextureMapper2D::Render vtkRenderer   ren,
vtkVolume   vol
[virtual]


WARNING: INTERNAL METHOD - NOT INTENDED FOR GENERAL USE DO NOT USE THIS METHOD OUTSIDE OF THE RENDERING PROCESS Render the volume

Reimplemented from vtkVolumeTextureMapper2D.

void vtkOpenGLVolumeTextureMapper2D::RenderQuads int    count,
float *    v,
float *    t,
unsigned char *    texture,
int    size[2],
int    reverseFlag



The documentation for this class was generated from the following file:
