vtkOutputPort Class Reference

Connects pipelines in different processes. More...

#include <vtkOutputPort.h>

Inheritance diagram for vtkOutputPort:

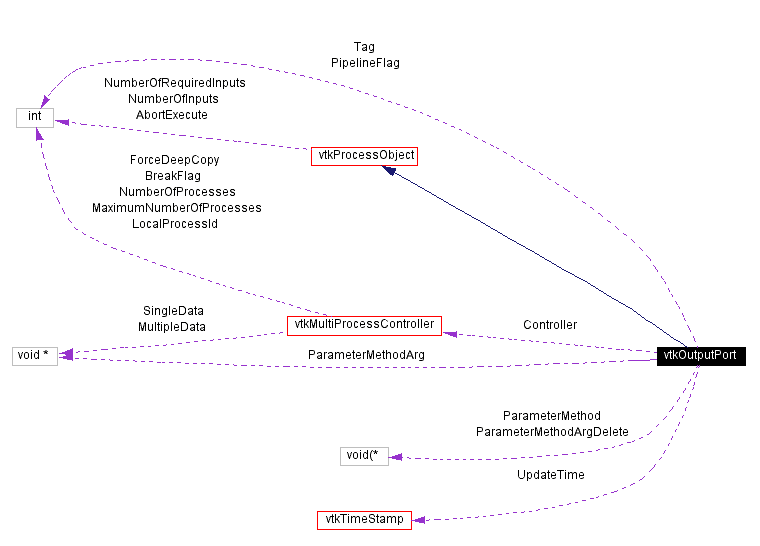

[legend]Collaboration diagram for vtkOutputPort:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	WaitForUpdate ()
void	SetParameterMethod (void(*f)(void *), void *arg)
void	SetParameterMethodArgDelete (void(*f)(void *))
void	SetInput (vtkDataObject *input)
vtkDataObject *	GetInput ()
void	SetTag (int tag)
virtual int	GetTag ()
vtkMultiProcessController *	GetController ()
virtual void	SetController (vtkMultiProcessController *)
void	TriggerUpdateInformation (int remoteProcessId)
void	TriggerUpdate (int remoteProcessId)
virtual void	SetPipelineFlag (int)
virtual int	GetPipelineFlag ()
virtual void	PipelineFlagOn ()
virtual void	PipelineFlagOff ()
Static Public Methods
vtkOutputPort *	New ()
int	IsTypeOf (const char *type)
vtkOutputPort *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkOutputPort ()
	~vtkOutputPort ()
Protected Attributes
int	Tag
vtkMultiProcessController *	Controller
vtkTimeStamp	UpdateTime
int	PipelineFlag
void(*	ParameterMethod )(void *)
void(*	ParameterMethodArgDelete )(void *)
void *	ParameterMethodArg

---

Detailed Description

Connects pipelines in different processes.

Date:

2001/10/11 13:37:59

Revision:

1.4

OutputPort Connects the pipeline in this process to one in another processes. It communicates all the pipeline protocol so that the fact you are running in multiple processes is transparent. The output port is placed at the end of the pipeline (an output for a process). It can have multiple corresponding input ports in other processes that receive its data. Updates in a port are triggered asynchronously, so filter with multiple inputs will take advantage of task parallelism.

See also:

vtkInputPort vtkMultiProcessController

Events:

vtkCommand::StartEvent vtkCommand::EndEvent

Examples:

vtkOutputPort (Examples)

Tests:

vtkOutputPort (Tests)

Definition at line 74 of file vtkOutputPort.h.

---

Constructor & Destructor Documentation

vtkOutputPort::vtkOutputPort (    )  [protected]

vtkOutputPort::~vtkOutputPort (    )  [protected]

---

Member Function Documentation

vtkOutputPort* vtkOutputPort::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkProcessObject.

virtual const char* vtkOutputPort::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProcessObject.

int vtkOutputPort::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProcessObject.

virtual int vtkOutputPort::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProcessObject.

vtkOutputPort* vtkOutputPort::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProcessObject.

void vtkOutputPort::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkProcessObject.

void vtkOutputPort::SetInput (  vtkDataObject *    input )

Should accept vtkDataObjects in the future.

vtkDataObject* vtkOutputPort::GetInput (    )

Should accept vtkDataObjects in the future.

void vtkOutputPort::SetTag (  int    tag )

Output is specified by the process the output port is in, and a tag so there can be more than one output port per process. Tag must be set before this port can be used. THIS TAG MUST BE EVEN BECAUSE TWO RMIs ARE CREATED FROM IT!!!

virtual int vtkOutputPort::GetTag (    )  [virtual]

Output is specified by the process the output port is in, and a tag so there can be more than one output port per process. Tag must be set before this port can be used. THIS TAG MUST BE EVEN BECAUSE TWO RMIs ARE CREATED FROM IT!!!

void vtkOutputPort::WaitForUpdate (    )  [inline]

This just forwards the wait onto the controller, which will wait for a message for any of its ports (or any RMI). Since this method is implemented in the controller, multiple output ports can be waiting at once (as long as they share a controller). This method will only return if the BreakFlag is turned on in the controller. The controller automatically creates a break rmi with the vtkMultiProcessController::BREAK_RMI_TAG for doing this remotely. Definition at line 103 of file vtkOutputPort.h.

vtkMultiProcessController* vtkOutputPort::GetController (    )  [inline]

Access to the global controller. Definition at line 107 of file vtkOutputPort.h.

virtual void vtkOutputPort::SetController (  vtkMultiProcessController *    )  [virtual]

Access to the global controller.

void vtkOutputPort::TriggerUpdateInformation (  int    remoteProcessId )

RMI function needs to call this. Should make function a friend. No one else should call it.

void vtkOutputPort::TriggerUpdate (  int    remoteProcessId )

RMI function needs to call this. Should make function a friend. No one else should call it.

virtual void vtkOutputPort::SetPipelineFlag (  int    )  [virtual]

Trying to get pipeline parallelism working.

virtual int vtkOutputPort::GetPipelineFlag (    )  [virtual]

Trying to get pipeline parallelism working.

virtual void vtkOutputPort::PipelineFlagOn (    )  [virtual]

Trying to get pipeline parallelism working.

virtual void vtkOutputPort::PipelineFlagOff (    )  [virtual]

Trying to get pipeline parallelism working.

void vtkOutputPort::SetParameterMethod (  void(*    f)(void *), void *    arg )

This method is called after the port updates. It is meant to change a parameter if a series is being processed (for pipeline parallelism).

void vtkOutputPort::SetParameterMethodArgDelete (  void(*    f)(void *) )

Set the arg delete method. This is used to free user memory.

---

Member Data Documentation

int vtkOutputPort::Tag [protected]

Definition at line 137 of file vtkOutputPort.h.

vtkMultiProcessController* vtkOutputPort::Controller [protected]

Definition at line 139 of file vtkOutputPort.h.

vtkTimeStamp vtkOutputPort::UpdateTime [protected]

Definition at line 140 of file vtkOutputPort.h.

int vtkOutputPort::PipelineFlag [protected]

Definition at line 143 of file vtkOutputPort.h.

void(* vtkOutputPort::ParameterMethod)(void *) [protected]

void(* vtkOutputPort::ParameterMethodArgDelete)(void *) [protected]

void* vtkOutputPort::ParameterMethodArg [protected]

Definition at line 146 of file vtkOutputPort.h.

---

The documentation for this class was generated from the following file:

• Parallel/vtkOutputPort.h

---
