vtkInputPort Class Reference

Receives data from another process. More...

#include <vtkInputPort.h>

Inheritance diagram for vtkInputPort:

Inheritance graph
[legend]

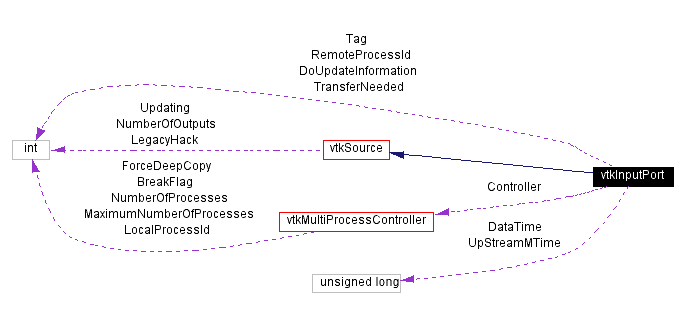

Collaboration diagram for vtkInputPort:

Collaboration graph
[legend]
List of all members.

Public Types

enum  Tags {
  DOWN_DATA_TIME_TAG = 98970, UPDATE_EXTENT_TAG = 98971, TRANSFER_NEEDED_TAG = 98972, INFORMATION_TRANSFER_TAG = 98973,
  DATA_TRANSFER_TAG = 98974, NEW_DATA_TIME_TAG = 98975
}

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void UpdateInformation ()
void PropagateUpdateExtent (vtkDataObject *vtkNotUsed(output))
void UpdateData (vtkDataObject *out)
void TriggerAsynchronousUpdate ()
vtkPolyDataGetPolyDataOutput ()
vtkUnstructuredGridGetUnstructuredGridOutput ()
vtkStructuredGridGetStructuredGridOutput ()
vtkRectilinearGridGetRectilinearGridOutput ()
vtkStructuredPointsGetStructuredPointsOutput ()
vtkImageDataGetImageDataOutput ()
virtual void SetRemoteProcessId (int)
virtual int GetRemoteProcessId ()
virtual void SetTag (int)
virtual int GetTag ()
vtkMultiProcessControllerGetController ()
virtual void SetController (vtkMultiProcessController *)
virtual void SetDoUpdateInformation (int)
virtual int GetDoUpdateInformation ()

Static Public Methods

vtkInputPort * New ()
int IsTypeOf (const char *type)
vtkInputPort * SafeDownCast (vtkObject *o)

Protected Methods

 vtkInputPort ()
 ~vtkInputPort ()

Protected Attributes

vtkMultiProcessControllerController
int RemoteProcessId
int Tag
unsigned long DataTime
unsigned long UpStreamMTime
int TransferNeeded
int DoUpdateInformation

Detailed Description

Receives data from another process.

Date:
2001/10/11 13:37:59
Revision:
1.5

InputPort connects the pipeline in this process to one in another processes. It communicates all the pipeline protocol so that the fact you are running in multiple processes is transparent. An input port is used as a source (input to a process). One is placed at the start of a pipeline, and has a single corresponding output port in another process (specified by RemoteProcessId).

See also:
vtkOutputPort vtkMultiProcessController
Events:
vtkCommand::StartEvent vtkCommand::EndEvent
Examples:
vtkInputPort (Examples)
Tests:
vtkInputPort (Tests)

Definition at line 80 of file vtkInputPort.h.


Member Enumeration Documentation

enum vtkInputPort::Tags


Enumeration values:
DOWN_DATA_TIME_TAG
UPDATE_EXTENT_TAG
TRANSFER_NEEDED_TAG
INFORMATION_TRANSFER_TAG
DATA_TRANSFER_TAG
NEW_DATA_TIME_TAG

Definition at line 142 of file vtkInputPort.h.


Constructor & Destructor Documentation

vtkInputPort::vtkInputPort   [protected]


vtkInputPort::~vtkInputPort   [protected]



Member Function Documentation

vtkInputPort* vtkInputPort::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkSource.

virtual const char* vtkInputPort::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

int vtkInputPort::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

virtual int vtkInputPort::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

vtkInputPort* vtkInputPort::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

void vtkInputPort::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

vtkPolyData* vtkInputPort::GetPolyDataOutput


Note: You have to ask for the right type, and it has to match the type of the up stream port input, or you will get an error. We have to live with the fact that the error will not occur until an update is called.

vtkUnstructuredGrid* vtkInputPort::GetUnstructuredGridOutput


Note: You have to ask for the right type, and it has to match the type of the up stream port input, or you will get an error. We have to live with the fact that the error will not occur until an update is called.

vtkStructuredGrid* vtkInputPort::GetStructuredGridOutput


Note: You have to ask for the right type, and it has to match the type of the up stream port input, or you will get an error. We have to live with the fact that the error will not occur until an update is called.

vtkRectilinearGrid* vtkInputPort::GetRectilinearGridOutput


Note: You have to ask for the right type, and it has to match the type of the up stream port input, or you will get an error. We have to live with the fact that the error will not occur until an update is called.

vtkStructuredPoints* vtkInputPort::GetStructuredPointsOutput


Note: You have to ask for the right type, and it has to match the type of the up stream port input, or you will get an error. We have to live with the fact that the error will not occur until an update is called.

vtkImageData* vtkInputPort::GetImageDataOutput


Note: You have to ask for the right type, and it has to match the type of the up stream port input, or you will get an error. We have to live with the fact that the error will not occur until an update is called.

virtual void vtkInputPort::SetRemoteProcessId int    [virtual]


The matching OutputPort is specified by the output port's process and a tag. There can be more than one output port per process. THE TAG MUST BE EVEN BECAUSE TWO RMIs ARE CREATED FROM IT!!!

virtual int vtkInputPort::GetRemoteProcessId   [virtual]


The matching OutputPort is specified by the output port's process and a tag. There can be more than one output port per process. THE TAG MUST BE EVEN BECAUSE TWO RMIs ARE CREATED FROM IT!!!

virtual void vtkInputPort::SetTag int    [virtual]


The matching OutputPort is specified by the output port's process and a tag. There can be more than one output port per process. THE TAG MUST BE EVEN BECAUSE TWO RMIs ARE CREATED FROM IT!!!

virtual int vtkInputPort::GetTag   [virtual]


The matching OutputPort is specified by the output port's process and a tag. There can be more than one output port per process. THE TAG MUST BE EVEN BECAUSE TWO RMIs ARE CREATED FROM IT!!!

void vtkInputPort::UpdateInformation   [virtual]


Need to override to propagate across port.

Reimplemented from vtkSource.

void vtkInputPort::PropagateUpdateExtent vtkDataObject *vtkNotUsed(output)    [inline]


Need to override to propagate across port.

Definition at line 114 of file vtkInputPort.h.

void vtkInputPort::UpdateData vtkDataObject   out [virtual]


Need to override to propagate across port

Reimplemented from vtkSource.

void vtkInputPort::TriggerAsynchronousUpdate   [virtual]


Need to override to trigger the update across the port

Reimplemented from vtkSource.

vtkMultiProcessController* vtkInputPort::GetController   [inline]


Access to the controller used for communication. By default, the global controller is used.

Definition at line 125 of file vtkInputPort.h.

virtual void vtkInputPort::SetController vtkMultiProcessController   [virtual]


Access to the controller used for communication. By default, the global controller is used.

virtual void vtkInputPort::SetDoUpdateInformation int    [virtual]


If DoUpdateInformation if false (it is true by default), UpdateInformation is not performed during Update. This can be used to avoid unnecessary communication once the data has been transferred. However, if the pipeline changes upstream, DoUpdateInformation has to be set to true again. Otherwise, Updata will not occur.

virtual int vtkInputPort::GetDoUpdateInformation   [virtual]


If DoUpdateInformation if false (it is true by default), UpdateInformation is not performed during Update. This can be used to avoid unnecessary communication once the data has been transferred. However, if the pipeline changes upstream, DoUpdateInformation has to be set to true again. Otherwise, Updata will not occur.


Member Data Documentation

vtkMultiProcessController* vtkInputPort::Controller [protected]


Definition at line 157 of file vtkInputPort.h.

int vtkInputPort::RemoteProcessId [protected]


Definition at line 158 of file vtkInputPort.h.

int vtkInputPort::Tag [protected]


Definition at line 159 of file vtkInputPort.h.

unsigned long vtkInputPort::DataTime [protected]


Definition at line 161 of file vtkInputPort.h.

unsigned long vtkInputPort::UpStreamMTime [protected]


Definition at line 162 of file vtkInputPort.h.

int vtkInputPort::TransferNeeded [protected]


Definition at line 163 of file vtkInputPort.h.

int vtkInputPort::DoUpdateInformation [protected]


Definition at line 164 of file vtkInputPort.h.


The documentation for this class was generated from the following file:
