vtkPLYWriter Class Reference

write Stanford PLY file format. More...

#include <vtkPLYWriter.h>

Inheritance diagram for vtkPLYWriter:

Inheritance graph
[legend]

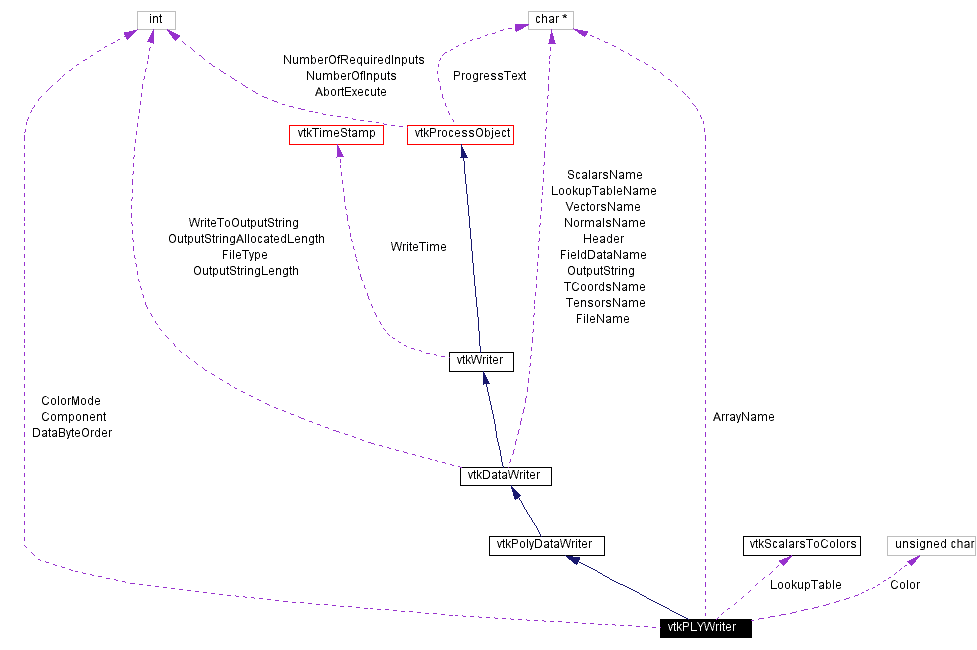

Collaboration diagram for vtkPLYWriter:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetDataByteOrder (int)
virtual int GetDataByteOrder ()
void SetDataByteOrderToBigEndian ()
void SetDataByteOrderToLittleEndian ()
virtual void SetColorMode (int)
virtual int GetColorMode ()
void SetColorModeToDefault ()
void SetColorModeToUniformCellColor ()
void SetColorModeToUniformPointColor ()
void SetColorModeToUniformColor ()
void SetColorModeToOff ()
virtual void SetArrayName (const char *)
virtual char * GetArrayName ()
virtual void SetComponent (int)
virtual int GetComponent ()
virtual void SetLookupTable (vtkScalarsToColors *)
virtual vtkScalarsToColorsGetLookupTable ()
virtual void SetColor (unsigned char, unsigned char, unsigned char)
virtual void SetColor (unsigned char[3])
virtual unsigned char * GetColor ()
virtual void GetColor (unsigned char &, unsigned char &, unsigned char &)
virtual void GetColor (unsigned char[3])

Static Public Methods

vtkPLYWriter * New ()
int IsTypeOf (const char *type)
vtkPLYWriter * SafeDownCast (vtkObject *o)

Protected Methods

 vtkPLYWriter ()
 ~vtkPLYWriter ()
void WriteData ()
unsigned char * GetColors (vtkIdType num, vtkDataSetAttributes *dsa)

Protected Attributes

int DataByteOrder
char * ArrayName
int Component
int ColorMode
vtkScalarsToColorsLookupTable
unsigned char Color [3]

Detailed Description

write Stanford PLY file format.

Date:
2001/12/06 02:53:53
Revision:
1.5
Thanks:
Mike Dresser MD/PhD Director of Core Facility for Imaging Program in Molecular and Cell Biology Oklahoma Medical Research Foundation
vtkPLYWriter writes polygonal data in Stanford University PLY format (see http://graphics.stanford.edu/data/3Dscanrep/). The data can be written in either binary (little or big endian) or ASCII representation.

Warning:
PLY does not handle big endian versus little endian correctly. Also, this class is compiled into VTK only if the PLY library is found during the make process (using CMake).
See also:
vtkPLYReader
Tests:
vtkPLYWriter (Tests)

Definition at line 84 of file vtkPLYWriter.h.


Constructor & Destructor Documentation

vtkPLYWriter::vtkPLYWriter   [protected]


vtkPLYWriter::~vtkPLYWriter   [protected]



Member Function Documentation

vtkPLYWriter* vtkPLYWriter::New   [static]


Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates.

Reimplemented from vtkPolyDataWriter.

virtual const char* vtkPLYWriter::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataWriter.

int vtkPLYWriter::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataWriter.

virtual int vtkPLYWriter::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataWriter.

vtkPLYWriter* vtkPLYWriter::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataWriter.

void vtkPLYWriter::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataWriter.

virtual void vtkPLYWriter::SetDataByteOrder int    [virtual]


If the file type is binary, then the user can specify which byte order to use (little versus big endian).

virtual int vtkPLYWriter::GetDataByteOrder   [virtual]


If the file type is binary, then the user can specify which byte order to use (little versus big endian).

void vtkPLYWriter::SetDataByteOrderToBigEndian   [inline]


If the file type is binary, then the user can specify which byte order to use (little versus big endian).

Definition at line 96 of file vtkPLYWriter.h.

void vtkPLYWriter::SetDataByteOrderToLittleEndian   [inline]


If the file type is binary, then the user can specify which byte order to use (little versus big endian).

Definition at line 98 of file vtkPLYWriter.h.

virtual void vtkPLYWriter::SetColorMode int    [virtual]


These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

virtual int vtkPLYWriter::GetColorMode   [virtual]


These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

void vtkPLYWriter::SetColorModeToDefault   [inline]


These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

Definition at line 118 of file vtkPLYWriter.h.

void vtkPLYWriter::SetColorModeToUniformCellColor   [inline]


These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

Definition at line 120 of file vtkPLYWriter.h.

void vtkPLYWriter::SetColorModeToUniformPointColor   [inline]


These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

Definition at line 122 of file vtkPLYWriter.h.

void vtkPLYWriter::SetColorModeToUniformColor   [inline]


These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

Definition at line 124 of file vtkPLYWriter.h.

void vtkPLYWriter::SetColorModeToOff   [inline]


These methods enable the user to control how to add color into the PLY output file. The default behavior is as follows. The user provides the name of an array and a component number. If the type of the array is three components, unsigned char, then the data is written as three separate "red", "green" and "blue" properties. If the type is not unsigned char, and a lookup table is provided, then the array/component are mapped through the table to generate three separate "red", "green" and "blue" properties in the PLY file. The user can also set the ColorMode to specify a uniform color for the whole part (on a vertex colors, face colors, or both. (Note: vertex colors or cell colors may be written, depending on where the named array is found. If points and cells have the arrays with the same name, then both colors will be written.)

Definition at line 126 of file vtkPLYWriter.h.

virtual void vtkPLYWriter::SetArrayName const char *    [virtual]


Specify the array name to use to color the data.

virtual char* vtkPLYWriter::GetArrayName   [virtual]


Specify the array name to use to color the data.

virtual void vtkPLYWriter::SetComponent int    [virtual]


Specify the array component to use to color the data.

virtual int vtkPLYWriter::GetComponent   [virtual]


Specify the array component to use to color the data.

virtual void vtkPLYWriter::SetLookupTable vtkScalarsToColors   [virtual]


A lookup table can be specified in order to convert data arrays to RGBA colors.

virtual vtkScalarsToColors* vtkPLYWriter::GetLookupTable   [virtual]


A lookup table can be specified in order to convert data arrays to RGBA colors.

virtual void vtkPLYWriter::SetColor unsigned    char,
unsigned    char,
unsigned    char
[virtual]


Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

virtual void vtkPLYWriter::SetColor unsigned    char[3] [virtual]


Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

virtual unsigned char* vtkPLYWriter::GetColor   [virtual]


Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

virtual void vtkPLYWriter::GetColor unsigned char &   ,
unsigned char &   ,
unsigned char &
[virtual]


Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

virtual void vtkPLYWriter::GetColor unsigned    char[3] [virtual]


Set the color to use when using a uniform color (either point or cells, or both). The color is specified as a triplet of three unsigned chars between (0,255). This only takes effect when the ColorMode is set to uniform point, uniform cell, or uniform color.

void vtkPLYWriter::WriteData   [protected, virtual]


Reimplemented from vtkPolyDataWriter.

unsigned char* vtkPLYWriter::GetColors vtkIdType    num,
vtkDataSetAttributes   dsa
[protected]



Member Data Documentation

int vtkPLYWriter::DataByteOrder [protected]


Definition at line 165 of file vtkPLYWriter.h.

char* vtkPLYWriter::ArrayName [protected]


Definition at line 166 of file vtkPLYWriter.h.

int vtkPLYWriter::Component [protected]


Definition at line 167 of file vtkPLYWriter.h.

int vtkPLYWriter::ColorMode [protected]


Definition at line 168 of file vtkPLYWriter.h.

vtkScalarsToColors* vtkPLYWriter::LookupTable [protected]


Definition at line 169 of file vtkPLYWriter.h.

unsigned char vtkPLYWriter::Color[3] [protected]


Definition at line 170 of file vtkPLYWriter.h.


The documentation for this class was generated from the following file:
