vtkPieceScalars Class Reference

Sets all cell scalars from the update piece. More...

#include <vtkPieceScalars.h>

Inheritance diagram for vtkPieceScalars:

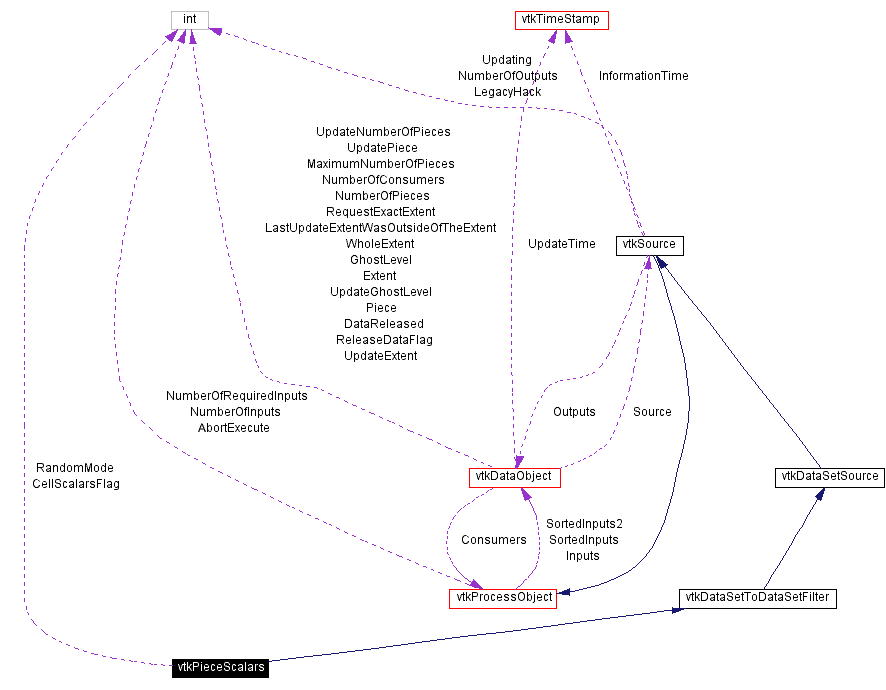

[legend]Collaboration diagram for vtkPieceScalars:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	SetRandomMode (int)
virtual int	GetRandomMode ()
virtual void	RandomModeOn ()
virtual void	RandomModeOff ()
void	SetScalarModeToCellData ()
void	SetScalarModeToPointData ()
int	GetScalarMode ()
Static Public Methods
vtkPieceScalars *	New ()
int	IsTypeOf (const char *type)
vtkPieceScalars *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkPieceScalars ()
	~vtkPieceScalars ()
void	Execute ()
vtkIntArray *	MakePieceScalars (int piece, vtkIdType numScalars)
vtkFloatArray *	MakeRandomScalars (int piece, vtkIdType numScalars)
virtual void	SetCellScalarsFlag (int)
Protected Attributes
int	CellScalarsFlag
int	RandomMode

---

Detailed Description

Sets all cell scalars from the update piece.

Date:

2001/10/11 13:38:00

Revision:

1.8

vtkPieceScalars is meant to display which piece is being requested as scalar values. It is usefull for visualizing the partioning for streaming or distributed pipelines.

See also:

vtkPolyDataStreamer

Tests:

vtkPieceScalars (Tests)

Definition at line 61 of file vtkPieceScalars.h.

---

Constructor & Destructor Documentation

vtkPieceScalars::vtkPieceScalars (    )  [protected]

vtkPieceScalars::~vtkPieceScalars (    )  [protected]

---

Member Function Documentation

vtkPieceScalars* vtkPieceScalars::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkDataSetSource.

virtual const char* vtkPieceScalars::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

int vtkPieceScalars::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

virtual int vtkPieceScalars::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

vtkPieceScalars* vtkPieceScalars::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataSetToDataSetFilter.

void vtkPieceScalars::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkSource.

void vtkPieceScalars::SetScalarModeToCellData (    )  [inline]

Option to centerate cell scalars of poi9nts scalars. Default is point scalars. Definition at line 72 of file vtkPieceScalars.h.

void vtkPieceScalars::SetScalarModeToPointData (    )  [inline]

Option to centerate cell scalars of poi9nts scalars. Default is point scalars. Definition at line 73 of file vtkPieceScalars.h.

int vtkPieceScalars::GetScalarMode (    )  [inline]

Option to centerate cell scalars of poi9nts scalars. Default is point scalars. Definition at line 74 of file vtkPieceScalars.h.

virtual void vtkPieceScalars::SetRandomMode (  int    )  [virtual]

virtual int vtkPieceScalars::GetRandomMode (    )  [virtual]

virtual void vtkPieceScalars::RandomModeOn (    )  [virtual]

virtual void vtkPieceScalars::RandomModeOff (    )  [virtual]

void vtkPieceScalars::Execute (    )  [protected, virtual]

This method is the old style execute method Reimplemented from vtkSource.

vtkIntArray* vtkPieceScalars::MakePieceScalars (  int    piece, vtkIdType    numScalars )  [protected]

vtkFloatArray* vtkPieceScalars::MakeRandomScalars (  int    piece, vtkIdType    numScalars )  [protected]

virtual void vtkPieceScalars::SetCellScalarsFlag (  int    )  [protected, virtual]

---

Member Data Documentation

int vtkPieceScalars::CellScalarsFlag [protected]

Definition at line 95 of file vtkPieceScalars.h.

int vtkPieceScalars::RandomMode [protected]

Definition at line 96 of file vtkPieceScalars.h.

---

The documentation for this class was generated from the following file:

• Parallel/vtkPieceScalars.h

---
