vtkMesaPolyDataMapper Class Reference

a PolyDataMapper for the Mesa library. More...

#include <vtkMesaPolyDataMapper.h>

Inheritance diagram for vtkMesaPolyDataMapper:

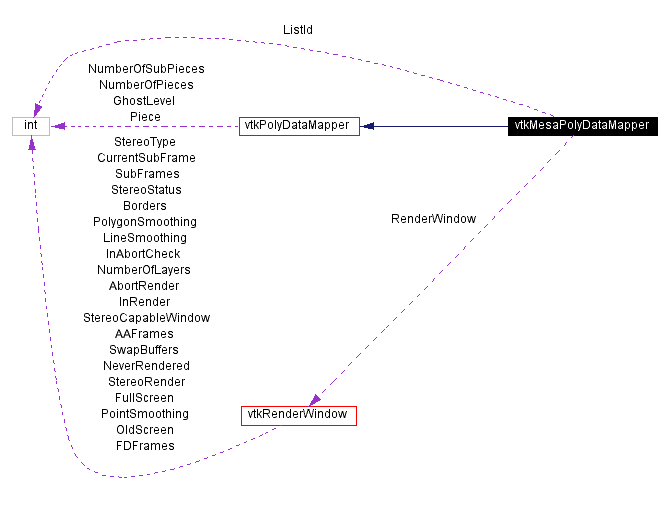

[legend]Collaboration diagram for vtkMesaPolyDataMapper:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	RenderPiece (vtkRenderer *ren, vtkActor *a)
void	ReleaseGraphicsResources (vtkWindow *)
virtual void	Draw (vtkRenderer *ren, vtkActor *a)
GLenum	GetLmcolorMode (vtkProperty *prop)
Static Public Methods
vtkMesaPolyDataMapper *	New ()
int	IsTypeOf (const char *type)
vtkMesaPolyDataMapper *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkMesaPolyDataMapper ()
	~vtkMesaPolyDataMapper ()
Protected Attributes
int	ListId
vtkRenderWindow *	RenderWindow

---

Detailed Description

a PolyDataMapper for the Mesa library.

Date:

2001/10/11 13:38:15

Revision:

1.15

vtkMesaPolyDataMapper is a subclass of vtkPolyDataMapper. vtkMesaPolyDataMapper is a geometric PolyDataMapper for the Mesa rendering library.

Examples:

vtkMesaPolyDataMapper (Examples)

Tests:

vtkMesaPolyDataMapper (Tests)

Definition at line 73 of file vtkMesaPolyDataMapper.h.

---

Constructor & Destructor Documentation

vtkMesaPolyDataMapper::vtkMesaPolyDataMapper (    )  [protected]

vtkMesaPolyDataMapper::~vtkMesaPolyDataMapper (    )  [protected]

---

Member Function Documentation

vtkMesaPolyDataMapper* vtkMesaPolyDataMapper::New (    )  [static]

Instantiate object with no start, end, or progress methods. Reimplemented from vtkPolyDataMapper.

virtual const char* vtkMesaPolyDataMapper::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataMapper.

int vtkMesaPolyDataMapper::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataMapper.

virtual int vtkMesaPolyDataMapper::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataMapper.

vtkMesaPolyDataMapper* vtkMesaPolyDataMapper::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkPolyDataMapper.

virtual void vtkMesaPolyDataMapper::RenderPiece (  vtkRenderer *    ren, vtkActor *    a )  [virtual]

Implement superclass render method. Reimplemented from vtkPolyDataMapper.

void vtkMesaPolyDataMapper::ReleaseGraphicsResources (  vtkWindow *    )  [virtual]

Release any graphics resources that are being consumed by this mapper. The parameter window could be used to determine which graphic resources to release. Reimplemented from vtkMapper.

virtual void vtkMesaPolyDataMapper::Draw (  vtkRenderer *    ren, vtkActor *    a )  [virtual]

Draw method for Mesa.

GLenum vtkMesaPolyDataMapper::GetLmcolorMode (  vtkProperty *    prop )

Get the lmcolor property, this is a pretty important little function. It determines how vertex colors will be handled in gl. When a PolyDataMapper has vertex colors it will use this method to determine what lmcolor mode to set.

---

Member Data Documentation

int vtkMesaPolyDataMapper::ListId [protected]

Definition at line 105 of file vtkMesaPolyDataMapper.h.

vtkRenderWindow* vtkMesaPolyDataMapper::RenderWindow [protected]

Definition at line 106 of file vtkMesaPolyDataMapper.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkMesaPolyDataMapper.h

---
