vtkPolyDataMapper2D Class Reference
draw vtkPolyData onto the image plane.
More...
#include <vtkPolyDataMapper2D.h>

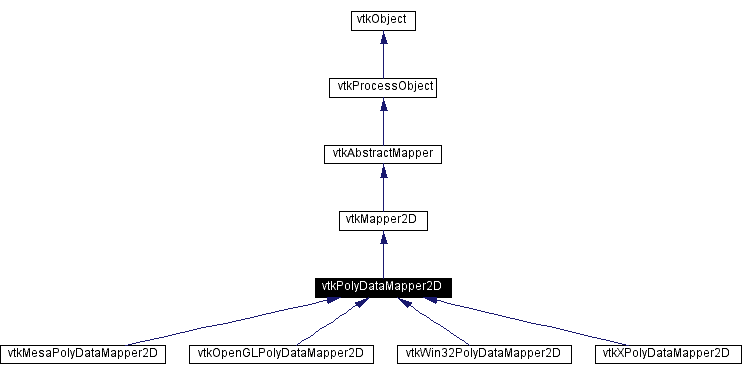

Inheritance diagram for vtkPolyDataMapper2D:

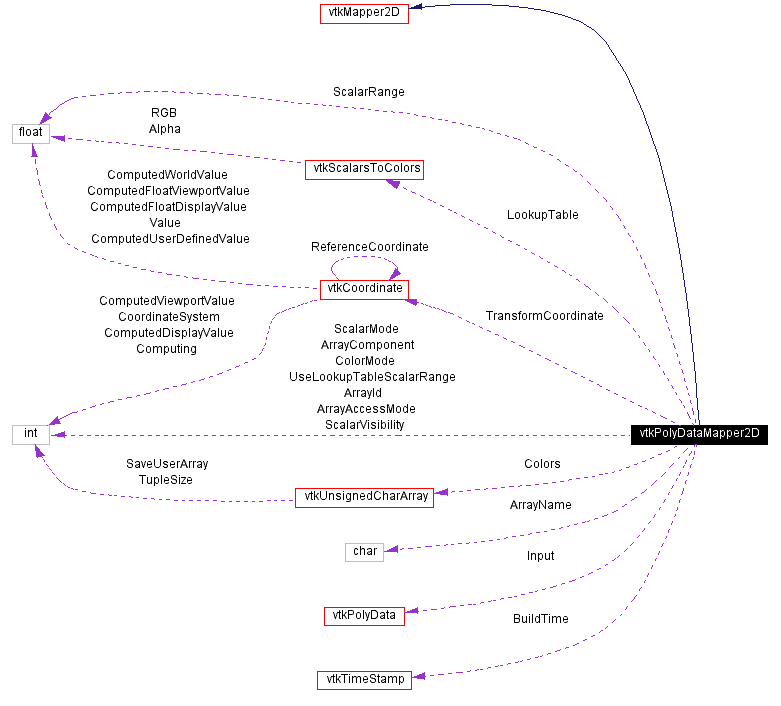

[legend]Collaboration diagram for vtkPolyDataMapper2D:
[legend]List of all members.
Detailed Description
draw vtkPolyData onto the image plane.
-
Date:
-
2001/11/02 16:43:20
-
Revision:
-
1.31
vtkPolyDataMapper2D is a mapper that renders 3D polygonal data (vtkPolyData) onto the 2D image plane (i.e., the renderer's viewport). By default, the 3D data is transformed into 2D data by ignoring the z-coordinate of the 3D points in vtkPolyData, and taking the x-y values as local display values (i.e., pixel coordinates). Alternatively, you can provide a vtkCoordinate object that will transform the data into local display coordinates (use the vtkCoordinate::SetCoordinateSystem() methods to indicate which coordinate system you are transforming the data from).
-
See also:
-
vtkMapper2D vtkActor2D
-
Examples:
-
vtkPolyDataMapper2D (Examples)
-
Tests:
-
vtkPolyDataMapper2D (Tests)
Definition at line 77 of file vtkPolyDataMapper2D.h.
Constructor & Destructor Documentation
| vtkPolyDataMapper2D::vtkPolyDataMapper2D |
( |
|
) |
[protected] |
|
| vtkPolyDataMapper2D::~vtkPolyDataMapper2D |
( |
|
) |
[protected] |
|
Member Function Documentation
| virtual const char* vtkPolyDataMapper2D::GetClassName |
( |
|
) |
[virtual] |
|
| int vtkPolyDataMapper2D::IsTypeOf |
( |
const char * |
type |
) |
[static] |
|
| virtual int vtkPolyDataMapper2D::IsA |
( |
const char * |
type |
) |
[virtual] |
|
| vtkPolyDataMapper2D* vtkPolyDataMapper2D::SafeDownCast |
( |
vtkObject * |
o |
) |
[static] |
|
| vtkPolyDataMapper2D* vtkPolyDataMapper2D::New |
( |
|
) |
[static] |
|
| void vtkPolyDataMapper2D::PrintSelf |
( |
ostream & |
os, |
|
|
vtkIndent |
indent |
|
) |
[virtual] |
|
|
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkMapper2D. |
| virtual void vtkPolyDataMapper2D::SetInput |
( |
vtkPolyData * |
|
) |
[virtual] |
|
|
|
Set the input to the mapper. |
| virtual vtkPolyData* vtkPolyDataMapper2D::GetInput |
( |
|
) |
[virtual] |
|
|
|
Set the input to the mapper. |
|
|
Specify a lookup table for the mapper to use. |
|
|
Specify a lookup table for the mapper to use. |
| virtual void vtkPolyDataMapper2D::CreateDefaultLookupTable |
( |
|
) |
[virtual] |
|
|
|
Create default lookup table. Generally used to create one when none is available with the scalar data. |
| virtual void vtkPolyDataMapper2D::SetScalarVisibility |
( |
int |
|
) |
[virtual] |
|
|
|
Turn on/off flag to control whether scalar data is used to color objects. |
| virtual int vtkPolyDataMapper2D::GetScalarVisibility |
( |
|
) |
[virtual] |
|
|
|
Turn on/off flag to control whether scalar data is used to color objects. |
| virtual void vtkPolyDataMapper2D::ScalarVisibilityOn |
( |
|
) |
[virtual] |
|
|
|
Turn on/off flag to control whether scalar data is used to color objects. |
| virtual void vtkPolyDataMapper2D::ScalarVisibilityOff |
( |
|
) |
[virtual] |
|
|
|
Turn on/off flag to control whether scalar data is used to color objects. |
| virtual void vtkPolyDataMapper2D::SetColorMode |
( |
int |
|
) |
[virtual] |
|
|
|
Control how the scalar data is mapped to colors. By default (ColorModeToDefault), unsigned char scalars are treated as colors, and NOT mapped through the lookup table, while everything else is. Setting ColorModeToMapScalars means that all scalar data will be mapped through the lookup table. (Note that for multi-component scalars, the particular component to use for mapping can be specified using the ColorByArrayComponent() method.) |
| virtual int vtkPolyDataMapper2D::GetColorMode |
( |
|
) |
[virtual] |
|
|
|
Control how the scalar data is mapped to colors. By default (ColorModeToDefault), unsigned char scalars are treated as colors, and NOT mapped through the lookup table, while everything else is. Setting ColorModeToMapScalars means that all scalar data will be mapped through the lookup table. (Note that for multi-component scalars, the particular component to use for mapping can be specified using the ColorByArrayComponent() method.) |
| void vtkPolyDataMapper2D::SetColorModeToDefault |
( |
|
) |
[inline] |
|
|
|
Control how the scalar data is mapped to colors. By default (ColorModeToDefault), unsigned char scalars are treated as colors, and NOT mapped through the lookup table, while everything else is. Setting ColorModeToMapScalars means that all scalar data will be mapped through the lookup table. (Note that for multi-component scalars, the particular component to use for mapping can be specified using the ColorByArrayComponent() method.)
Definition at line 118 of file vtkPolyDataMapper2D.h. |
| void vtkPolyDataMapper2D::SetColorModeToMapScalars |
( |
|
) |
[inline] |
|
|
|
Control how the scalar data is mapped to colors. By default (ColorModeToDefault), unsigned char scalars are treated as colors, and NOT mapped through the lookup table, while everything else is. Setting ColorModeToMapScalars means that all scalar data will be mapped through the lookup table. (Note that for multi-component scalars, the particular component to use for mapping can be specified using the ColorByArrayComponent() method.)
Definition at line 120 of file vtkPolyDataMapper2D.h. |
| const char* vtkPolyDataMapper2D::GetColorModeAsString |
( |
void |
|
) |
|
|
|
|
Return the method of coloring scalar data. |
| virtual void vtkPolyDataMapper2D::SetUseLookupTableScalarRange |
( |
int |
|
) |
[virtual] |
|
|
|
Control whether the mapper sets the lookuptable range based on its own ScalarRange, or whether it will use the LookupTable ScalarRange regardless of it's own setting. By default the Mapper is allowed to set the LookupTable range, but users who are sharing LookupTables between mappers/actors will probably wish to force the mapper to use the LookupTable unchanged. |
| virtual int vtkPolyDataMapper2D::GetUseLookupTableScalarRange |
( |
|
) |
[virtual] |
|
|
|
Control whether the mapper sets the lookuptable range based on its own ScalarRange, or whether it will use the LookupTable ScalarRange regardless of it's own setting. By default the Mapper is allowed to set the LookupTable range, but users who are sharing LookupTables between mappers/actors will probably wish to force the mapper to use the LookupTable unchanged. |
| virtual void vtkPolyDataMapper2D::UseLookupTableScalarRangeOn |
( |
|
) |
[virtual] |
|
|
|
Control whether the mapper sets the lookuptable range based on its own ScalarRange, or whether it will use the LookupTable ScalarRange regardless of it's own setting. By default the Mapper is allowed to set the LookupTable range, but users who are sharing LookupTables between mappers/actors will probably wish to force the mapper to use the LookupTable unchanged. |
| virtual void vtkPolyDataMapper2D::UseLookupTableScalarRangeOff |
( |
|
) |
[virtual] |
|
|
|
Control whether the mapper sets the lookuptable range based on its own ScalarRange, or whether it will use the LookupTable ScalarRange regardless of it's own setting. By default the Mapper is allowed to set the LookupTable range, but users who are sharing LookupTables between mappers/actors will probably wish to force the mapper to use the LookupTable unchanged. |
| virtual void vtkPolyDataMapper2D::SetScalarRange |
( |
float |
, |
|
|
float |
|
|
) |
[virtual] |
|
|
|
Specify range in terms of scalar minimum and maximum (smin,smax). These values are used to map scalars into lookup table. Has no effect when UseLookupTableScalarRange is true. |
| void vtkPolyDataMapper2D::SetScalarRange |
( |
float |
[2] |
) |
|
|
|
|
Specify range in terms of scalar minimum and maximum (smin,smax). These values are used to map scalars into lookup table. Has no effect when UseLookupTableScalarRange is true. |
| virtual float* vtkPolyDataMapper2D::GetScalarRange |
( |
|
) |
[virtual] |
|
|
|
Specify range in terms of scalar minimum and maximum (smin,smax). These values are used to map scalars into lookup table. Has no effect when UseLookupTableScalarRange is true. |
| virtual void vtkPolyDataMapper2D::GetScalarRange |
( |
float |
data[2] |
) |
[virtual] |
|
|
|
Specify range in terms of scalar minimum and maximum (smin,smax). These values are used to map scalars into lookup table. Has no effect when UseLookupTableScalarRange is true. |
| virtual void vtkPolyDataMapper2D::SetScalarMode |
( |
int |
|
) |
[virtual] |
|
|
|
Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call ColorByArrayComponent before you call GetColors. |
| virtual int vtkPolyDataMapper2D::GetScalarMode |
( |
|
) |
[virtual] |
|
|
|
Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call ColorByArrayComponent before you call GetColors. |
| void vtkPolyDataMapper2D::SetScalarModeToDefault |
( |
|
) |
[inline] |
|
|
|
Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call ColorByArrayComponent before you call GetColors.
Definition at line 160 of file vtkPolyDataMapper2D.h. |
| void vtkPolyDataMapper2D::SetScalarModeToUsePointData |
( |
|
) |
[inline] |
|
|
|
Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call ColorByArrayComponent before you call GetColors.
Definition at line 162 of file vtkPolyDataMapper2D.h. |
| void vtkPolyDataMapper2D::SetScalarModeToUseCellData |
( |
|
) |
[inline] |
|
|
|
Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call ColorByArrayComponent before you call GetColors.
Definition at line 164 of file vtkPolyDataMapper2D.h. |
| void vtkPolyDataMapper2D::SetScalarModeToUsePointFieldData |
( |
|
) |
[inline] |
|
|
|
Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call ColorByArrayComponent before you call GetColors.
Definition at line 166 of file vtkPolyDataMapper2D.h. |
| void vtkPolyDataMapper2D::SetScalarModeToUseCellFieldData |
( |
|
) |
[inline] |
|
|
|
Control how the filter works with scalar point data and cell attribute data. By default (ScalarModeToDefault), the filter will use point data, and if no point data is available, then cell data is used. Alternatively you can explicitly set the filter to use point data (ScalarModeToUsePointData) or cell data (ScalarModeToUseCellData). You can also choose to get the scalars from an array in point field data (ScalarModeToUsePointFieldData) or cell field data (ScalarModeToUseCellFieldData). If scalars are coming from a field data array, you must call ColorByArrayComponent before you call GetColors.
Definition at line 168 of file vtkPolyDataMapper2D.h. |
| void vtkPolyDataMapper2D::ColorByArrayComponent |
( |
int |
arrayNum, |
|
|
int |
component |
|
) |
|
|
|
|
Choose which component of which field data array to color by. |
| void vtkPolyDataMapper2D::ColorByArrayComponent |
( |
char * |
arrayName, |
|
|
int |
component |
|
) |
|
|
|
|
Choose which component of which field data array to color by. |
| char* vtkPolyDataMapper2D::GetArrayName |
( |
|
) |
[inline] |
|
| int vtkPolyDataMapper2D::GetArrayId |
( |
|
) |
[inline] |
|
| int vtkPolyDataMapper2D::GetArrayAccessMode |
( |
|
) |
[inline] |
|
| int vtkPolyDataMapper2D::GetArrayComponent |
( |
|
) |
[inline] |
|
| virtual unsigned long vtkPolyDataMapper2D::GetMTime |
( |
|
) |
[virtual] |
|
|
|
Overload standard modified time function. If lookup table is modified, then this object is modified as well.
Reimplemented from vtkAbstractMapper. |
| virtual void vtkPolyDataMapper2D::SetTransformCoordinate |
( |
vtkCoordinate * |
|
) |
[virtual] |
|
|
|
Specify a vtkCoordinate object to be used to transform the vtkPolyData point coordinates. By default (no vtkCoordinate specified), the point coordinates are taken as local display coordinates. |
| virtual vtkCoordinate* vtkPolyDataMapper2D::GetTransformCoordinate |
( |
|
) |
[virtual] |
|
|
|
Specify a vtkCoordinate object to be used to transform the vtkPolyData point coordinates. By default (no vtkCoordinate specified), the point coordinates are taken as local display coordinates. |
|
|
Map the scalars (if there are any scalars and ScalarVisibility is on) through the lookup table, returning an unsigned char RGBA array. This is typically done as part of the rendering process. The alpha parameter allows the blending of the scalars with an additional alpha (typically which comes from a vtkActor, etc.) |
Member Data Documentation
int vtkPolyDataMapper2D::ScalarVisibility [protected]
|
|
float vtkPolyDataMapper2D::ScalarRange[2] [protected]
|
|
int vtkPolyDataMapper2D::UseLookupTableScalarRange [protected]
|
|
int vtkPolyDataMapper2D::ColorMode [protected]
|
|
int vtkPolyDataMapper2D::ScalarMode [protected]
|
|
vtkCoordinate* vtkPolyDataMapper2D::TransformCoordinate [protected]
|
|
int vtkPolyDataMapper2D::ArrayId [protected]
|
|
char vtkPolyDataMapper2D::ArrayName[256] [protected]
|
|
int vtkPolyDataMapper2D::ArrayComponent [protected]
|
|
int vtkPolyDataMapper2D::ArrayAccessMode [protected]
|
|
The documentation for this class was generated from the following file:
