vtkMapper2D Class Reference

#include <vtkMapper2D.h>

Inheritance diagram for vtkMapper2D:

Inheritance graph
[legend]

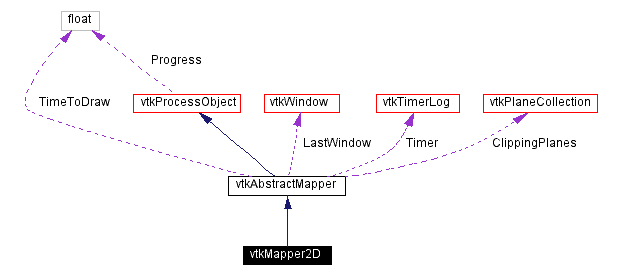

Collaboration diagram for vtkMapper2D:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void RenderOverlay (vtkViewport *, vtkActor2D *)
virtual void RenderOpaqueGeometry (vtkViewport *, vtkActor2D *)
virtual void RenderTranslucentGeometry (vtkViewport *, vtkActor2D *)

Static Public Methods

vtkMapper2D * New ()
int IsTypeOf (const char *type)
vtkMapper2D * SafeDownCast (vtkObject *o)

Protected Methods

 vtkMapper2D ()
 ~vtkMapper2D ()

Detailed Description

Date:
2001/10/11 13:36:17
Revision:
1.24
Thanks:
Thanks to Matt Turek who developed this class.
vtkMapper2D is an abstract class which defines the interface for objects which render two dimensional actors (vtkActor2D).

See also:
vtkActor2D

Definition at line 62 of file vtkMapper2D.h.


Constructor & Destructor Documentation

vtkMapper2D::vtkMapper2D   [inline, protected]


Definition at line 75 of file vtkMapper2D.h.

vtkMapper2D::~vtkMapper2D   [inline, protected]


Definition at line 76 of file vtkMapper2D.h.


Member Function Documentation

vtkMapper2D* vtkMapper2D::New   [static]


Instantiate object with no start, end, or progress methods.

Reimplemented from vtkProcessObject.

Reimplemented in vtkImageMapper, vtkLabeledDataMapper, vtkMesaImageMapper, vtkMesaPolyDataMapper2D, vtkOpenGLImageMapper, vtkOpenGLPolyDataMapper2D, vtkPolyDataMapper2D, vtkQuartzImageMapper, vtkQuartzTextMapper, vtkTextMapper, vtkWin32ImageMapper, vtkWin32OpenGLTextMapper, vtkWin32PolyDataMapper2D, vtkWin32TextMapper, vtkXImageMapper, vtkXMesaTextMapper, vtkXOpenGLTextMapper, vtkXPolyDataMapper2D, and vtkXTextMapper.

virtual const char* vtkMapper2D::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractMapper.

Reimplemented in vtkImageMapper, vtkLabeledDataMapper, vtkMesaImageMapper, vtkMesaPolyDataMapper2D, vtkOpenGLImageMapper, vtkOpenGLPolyDataMapper2D, vtkPolyDataMapper2D, vtkQuartzImageMapper, vtkQuartzTextMapper, vtkTextMapper, vtkWin32ImageMapper, vtkWin32OpenGLTextMapper, vtkWin32PolyDataMapper2D, vtkWin32TextMapper, vtkXImageMapper, vtkXMesaTextMapper, vtkXOpenGLTextMapper, vtkXPolyDataMapper2D, and vtkXTextMapper.

int vtkMapper2D::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractMapper.

Reimplemented in vtkImageMapper, vtkLabeledDataMapper, vtkMesaImageMapper, vtkMesaPolyDataMapper2D, vtkOpenGLImageMapper, vtkOpenGLPolyDataMapper2D, vtkPolyDataMapper2D, vtkQuartzImageMapper, vtkQuartzTextMapper, vtkTextMapper, vtkWin32ImageMapper, vtkWin32OpenGLTextMapper, vtkWin32PolyDataMapper2D, vtkWin32TextMapper, vtkXImageMapper, vtkXMesaTextMapper, vtkXOpenGLTextMapper, vtkXPolyDataMapper2D, and vtkXTextMapper.

virtual int vtkMapper2D::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractMapper.

Reimplemented in vtkImageMapper, vtkLabeledDataMapper, vtkMesaImageMapper, vtkMesaPolyDataMapper2D, vtkOpenGLImageMapper, vtkOpenGLPolyDataMapper2D, vtkPolyDataMapper2D, vtkQuartzImageMapper, vtkQuartzTextMapper, vtkTextMapper, vtkWin32ImageMapper, vtkWin32OpenGLTextMapper, vtkWin32PolyDataMapper2D, vtkWin32TextMapper, vtkXImageMapper, vtkXMesaTextMapper, vtkXOpenGLTextMapper, vtkXPolyDataMapper2D, and vtkXTextMapper.

vtkMapper2D* vtkMapper2D::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAbstractMapper.

Reimplemented in vtkImageMapper, vtkLabeledDataMapper, vtkMesaImageMapper, vtkMesaPolyDataMapper2D, vtkOpenGLImageMapper, vtkOpenGLPolyDataMapper2D, vtkPolyDataMapper2D, vtkQuartzImageMapper, vtkQuartzTextMapper, vtkTextMapper, vtkWin32ImageMapper, vtkWin32OpenGLTextMapper, vtkWin32PolyDataMapper2D, vtkWin32TextMapper, vtkXImageMapper, vtkXMesaTextMapper, vtkXOpenGLTextMapper, vtkXPolyDataMapper2D, and vtkXTextMapper.

void vtkMapper2D::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAbstractMapper.

Reimplemented in vtkImageMapper, vtkLabeledDataMapper, vtkPolyDataMapper2D, vtkTextMapper, vtkWin32ImageMapper, and vtkXImageMapper.

virtual void vtkMapper2D::RenderOverlay vtkViewport   viewport,
vtkActor2D   actor
[inline, virtual]


Reimplemented in vtkLabeledDataMapper, vtkQuartzImageMapper, vtkQuartzTextMapper, vtkWin32ImageMapper, vtkWin32OpenGLTextMapper, vtkWin32PolyDataMapper2D, vtkXImageMapper, vtkXMesaTextMapper, vtkXOpenGLTextMapper, and vtkXPolyDataMapper2D.

Definition at line 70 of file vtkMapper2D.h.

virtual void vtkMapper2D::RenderOpaqueGeometry vtkViewport   viewport,
vtkActor2D   actor
[inline, virtual]


Reimplemented in vtkLabeledDataMapper, vtkMesaImageMapper, vtkMesaPolyDataMapper2D, vtkOpenGLImageMapper, vtkOpenGLPolyDataMapper2D, vtkWin32OpenGLTextMapper, vtkXMesaTextMapper, and vtkXOpenGLTextMapper.

Definition at line 71 of file vtkMapper2D.h.

virtual void vtkMapper2D::RenderTranslucentGeometry vtkViewport   viewport,
vtkActor2D   actor
[inline, virtual]


Reimplemented in vtkWin32OpenGLTextMapper, and vtkXOpenGLTextMapper.

Definition at line 72 of file vtkMapper2D.h.


The documentation for this class was generated from the following file:
