vtkPropPicker Class Reference

pick an actor/prop using graphics hardware. More...

#include <vtkPropPicker.h>

Inheritance diagram for vtkPropPicker:

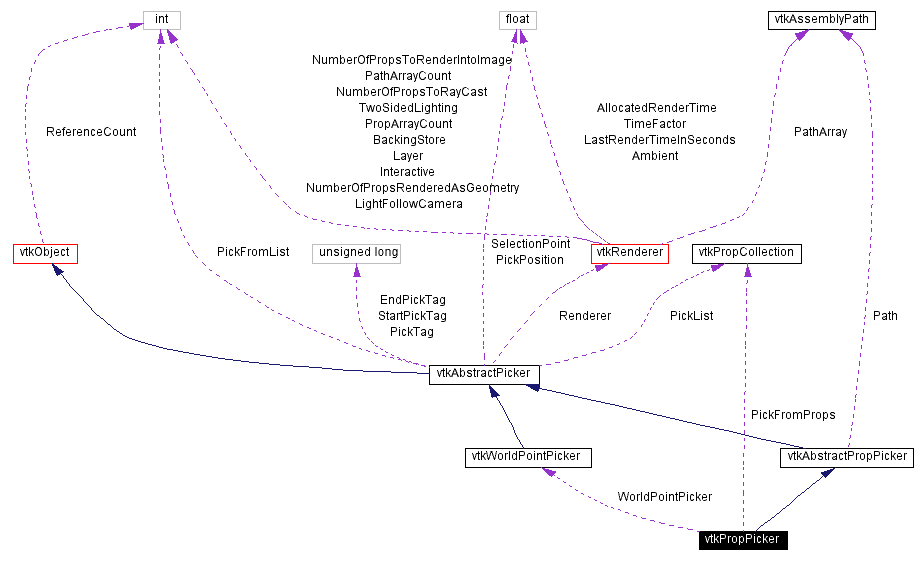

[legend]Collaboration diagram for vtkPropPicker:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	PickProp (float selectionX, float selectionY, vtkRenderer *renderer)
int	PickProp (float selectionX, float selectionY, vtkRenderer *renderer, vtkPropCollection *pickfrom)
int	Pick (float selectionX, float selectionY, float selectionZ, vtkRenderer *renderer)
int	Pick (float selectionPt[3], vtkRenderer *renderer)
Static Public Methods
vtkPropPicker *	New ()
int	IsTypeOf (const char *type)
vtkPropPicker *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkPropPicker ()
	~vtkPropPicker ()
void	Initialize ()
Protected Attributes
vtkPropCollection *	PickFromProps
vtkWorldPointPicker *	WorldPointPicker

---

Detailed Description

pick an actor/prop using graphics hardware.

Date:

2001/11/13 14:17:26

Revision:

1.17

vtkPropPicker is used to pick an actor/prop given a selection point (in display coordinates) and a renderer. This class uses graphics hardware/rendering system to pick rapidly (as compared to using ray casting as does vtkCellPicker and vtkPointPicker). This class determines the actor/prop and pick position in world coordinates; point and cell ids are not determined.

See also:

vtkPicker vtkWorldPointPicker vtkCellPicker vtkPointPicker

Events:

vtkCommand::EndPickEvent vtkCommand::PickEvent vtkCommand::StartPickEvent

Definition at line 68 of file vtkPropPicker.h.

---

Constructor & Destructor Documentation

vtkPropPicker::vtkPropPicker (    )  [protected]

vtkPropPicker::~vtkPropPicker (    )  [protected]

---

Member Function Documentation

vtkPropPicker* vtkPropPicker::New (    )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject.

virtual const char* vtkPropPicker::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkAbstractPropPicker.

int vtkPropPicker::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkAbstractPropPicker.

virtual int vtkPropPicker::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkAbstractPropPicker.

vtkPropPicker* vtkPropPicker::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkAbstractPropPicker.

void vtkPropPicker::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkAbstractPropPicker.

int vtkPropPicker::PickProp (  float    selectionX, float    selectionY, vtkRenderer *    renderer )

Perform the pick and set the PickedProp ivar. If something is picked, a 1 is returned, otherwise 0 is returned. Use the GetProp() method to get the instance of vtkProp that was picked. Props are picked from the renderers list of pickable Props.

int vtkPropPicker::PickProp (  float    selectionX, float    selectionY, vtkRenderer *    renderer, vtkPropCollection *    pickfrom )

Perform a pick from the user-provided list of vtkProps and not from the list of vtkProps that the render maintains.

int vtkPropPicker::Pick (  float    selectionX, float    selectionY, float    selectionZ, vtkRenderer *    renderer )  [virtual]

Overide superclasses' Pick() method. Reimplemented from vtkAbstractPicker.

int vtkPropPicker::Pick (  float    selectionPt[3], vtkRenderer *    renderer )  [inline]

Overide superclasses' Pick() method. Reimplemented from vtkAbstractPicker. Definition at line 93 of file vtkPropPicker.h.

void vtkPropPicker::Initialize (    )  [protected, virtual]

Reimplemented from vtkAbstractPropPicker.

---

Member Data Documentation

vtkPropCollection* vtkPropPicker::PickFromProps [protected]

Definition at line 104 of file vtkPropPicker.h.

vtkWorldPointPicker* vtkPropPicker::WorldPointPicker [protected]

Definition at line 107 of file vtkPropPicker.h.

---

The documentation for this class was generated from the following file:

• Rendering/vtkPropPicker.h

---
