vtkAbstractPicker Class Reference

define API for picking subclasses. More...

#include <vtkAbstractPicker.h>

Inheritance diagram for vtkAbstractPicker:

Inheritance graph
[legend]
Collaboration diagram for vtkAbstractPicker:

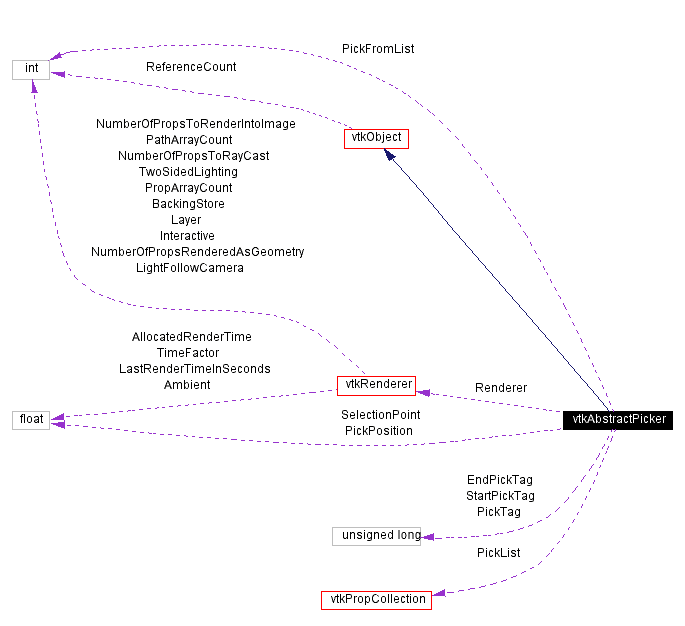

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetStartPickMethod (void(*f)(void *), void *arg)
void SetPickMethod (void(*f)(void *), void *arg)
void SetEndPickMethod (void(*f)(void *), void *arg)
void SetStartPickMethodArgDelete (void(*f)(void *))
void SetPickMethodArgDelete (void(*f)(void *))
void SetEndPickMethodArgDelete (void(*f)(void *))
void InitializePickList ()
void AddPickList (vtkProp *)
void DeletePickList (vtkProp *)
vtkPropCollectionGetPickList ()
virtual vtkRendererGetRenderer ()
virtual float * GetSelectionPoint ()
virtual void GetSelectionPoint (float data[3])
virtual float * GetPickPosition ()
virtual void GetPickPosition (float data[3])
virtual int Pick (float selectionX, float selectionY, float selectionZ, vtkRenderer *renderer)=0
int Pick (float selectionPt[3], vtkRenderer *ren)
virtual void SetPickFromList (int)
virtual int GetPickFromList ()
virtual void PickFromListOn ()
virtual void PickFromListOff ()

Static Public Methods

int IsTypeOf (const char *type)
vtkAbstractPicker * SafeDownCast (vtkObject *o)

Protected Methods

 vtkAbstractPicker ()
 ~vtkAbstractPicker ()
virtual void Initialize ()

Protected Attributes

vtkRendererRenderer
float SelectionPoint [3]
float PickPosition [3]
unsigned long StartPickTag
unsigned long PickTag
unsigned long EndPickTag
int PickFromList
vtkPropCollectionPickList

Detailed Description

define API for picking subclasses.

Date:
2001/11/13 14:17:17
Revision:
1.8

vtkAbstractPicker is an abstract superclass that defines a minimal API for its concrete subclasses. The minimum functionality of a picker is to return the x-y-z global coordinate position of a pick (the pick itself is defined in display coordinates).

The API to this class is to invoke the Pick() method with a selection point (in display coordinates - pixels) and a renderer. Then get the resulting pick position in global coordinates with the GetPickPosition() method.

vtkPicker has hooks for methods to call during the picking process. These methods are StartPickMethod(), PickMethod(), and EndPickMethod() which are invoked prior to picking, when something is picked, and after all picking candidates have been tested. Note that during the pick process the PickMethod() of vtkProp (and its subclasses such as vtkActor) is called prior to the pick method of vtkPicker.

Warning:
vtkAbstractPicker and its subclasses will not pick props that are "unpickable" (see vtkProp) or are fully transparent (if transparency is a property of the vtkProp).
Warning:
There are two classes of pickers: those that pick using geometric methods (typically a ray cast); and those that use rendering hardware. Geometric methods return more information but are slower. Hardware methods are much faster and return minimal information. Examples of geometric pickers include vtkPicker, vtkCellPicker, and vtkPointPicker. Examples of hardware pickers include vtkWorldPointPicker and vtkPropPicker.
See also:
vtkPropPicker uses hardware acceleration to pick an instance of vtkProp. (This means that 2D and 3D props can be picked, and it's relatively fast.) If you need to pick cells or points, you might wish to use vtkCellPicker or vtkPointPicker. vtkWorldPointPicker is the fastest picker, returning an x-y-z coordinate value using the hardware z-buffer. vtkPicker can be used to pick the bounding box of 3D props.

Definition at line 90 of file vtkAbstractPicker.h.


Constructor & Destructor Documentation

vtkAbstractPicker::vtkAbstractPicker   [protected]


vtkAbstractPicker::~vtkAbstractPicker   [protected]



Member Function Documentation

virtual const char* vtkAbstractPicker::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkAbstractPropPicker, vtkCellPicker, vtkPicker, vtkPointPicker, vtkPropPicker, and vtkWorldPointPicker.

int vtkAbstractPicker::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkAbstractPropPicker, vtkCellPicker, vtkPicker, vtkPointPicker, vtkPropPicker, and vtkWorldPointPicker.

virtual int vtkAbstractPicker::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkAbstractPropPicker, vtkCellPicker, vtkPicker, vtkPointPicker, vtkPropPicker, and vtkWorldPointPicker.

vtkAbstractPicker* vtkAbstractPicker::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkAbstractPropPicker, vtkCellPicker, vtkPicker, vtkPointPicker, vtkPropPicker, and vtkWorldPointPicker.

void vtkAbstractPicker::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkAbstractPropPicker, vtkCellPicker, vtkPicker, vtkPointPicker, vtkPropPicker, and vtkWorldPointPicker.

virtual vtkRenderer* vtkAbstractPicker::GetRenderer   [virtual]


Get the renderer in which pick event occurred.

virtual float* vtkAbstractPicker::GetSelectionPoint   [virtual]


Get the selection point in screen (pixel) coordinates. The third value is related to z-buffer depth. (Normally should be =0.)

virtual void vtkAbstractPicker::GetSelectionPoint float    data[3] [virtual]


Get the selection point in screen (pixel) coordinates. The third value is related to z-buffer depth. (Normally should be =0.)

virtual float* vtkAbstractPicker::GetPickPosition   [virtual]


Return position in global coordinates of pick point.

virtual void vtkAbstractPicker::GetPickPosition float    data[3] [virtual]


Return position in global coordinates of pick point.

virtual int vtkAbstractPicker::Pick float    selectionX,
float    selectionY,
float    selectionZ,
vtkRenderer   renderer
[pure virtual]


Perform pick operation with selection point provided. Normally the first two values for the selection point are x-y pixel coordinate, and the third value is =0. Return non-zero if something was successfully picked.

Reimplemented in vtkPicker, vtkPropPicker, and vtkWorldPointPicker.

Referenced by vtkWorldPointPicker::Pick(), vtkPropPicker::Pick(), and vtkPicker::Pick().

int vtkAbstractPicker::Pick float    selectionPt[3],
vtkRenderer   renderer
[inline]


provided. Normally the first two values for the selection point are x-y pixel coordinate, and the third value is =0. Return non-zero if something was successfully picked.

Reimplemented in vtkPicker, vtkPropPicker, and vtkWorldPointPicker.

Definition at line 125 of file vtkAbstractPicker.h.

void vtkAbstractPicker::SetStartPickMethod void(*    f)(void *),
void *    arg


begins.

void vtkAbstractPicker::SetPickMethod void(*    f)(void *),
void *    arg


Specify function to be called when something is picked.

void vtkAbstractPicker::SetEndPickMethod void(*    f)(void *),
void *    arg


Specify function to be called after all picking operations have been performed.

void vtkAbstractPicker::SetStartPickMethodArgDelete void(*    f)(void *)


Set a method to delete user arguments for StartPickMethod.

void vtkAbstractPicker::SetPickMethodArgDelete void(*    f)(void *)


Set a method to delete user arguments for PickMethod.

void vtkAbstractPicker::SetEndPickMethodArgDelete void(*    f)(void *)


Set a method to delete user arguments for EndPickMethod.

virtual void vtkAbstractPicker::SetPickFromList int    [virtual]


Use these methods to control whether to limit the picking to this list (rather than renderer's actors). Make sure that the pick list contains actors that referred to by the picker's renderer.

virtual int vtkAbstractPicker::GetPickFromList   [virtual]


Use these methods to control whether to limit the picking to this list (rather than renderer's actors). Make sure that the pick list contains actors that referred to by the picker's renderer.

virtual void vtkAbstractPicker::PickFromListOn   [virtual]


Use these methods to control whether to limit the picking to this list (rather than renderer's actors). Make sure that the pick list contains actors that referred to by the picker's renderer.

virtual void vtkAbstractPicker::PickFromListOff   [virtual]


Use these methods to control whether to limit the picking to this list (rather than renderer's actors). Make sure that the pick list contains actors that referred to by the picker's renderer.

void vtkAbstractPicker::InitializePickList


Initialize list of actors in pick list.

void vtkAbstractPicker::AddPickList vtkProp


Add an actor to the pick list.

void vtkAbstractPicker::DeletePickList vtkProp


Delete an actor from the pick list.

vtkPropCollection* vtkAbstractPicker::GetPickList   [inline]


Return the list of actors in the PickList.

Definition at line 167 of file vtkAbstractPicker.h.

virtual void vtkAbstractPicker::Initialize   [protected, virtual]


Reimplemented in vtkAbstractPropPicker, vtkCellPicker, vtkPicker, vtkPointPicker, and vtkPropPicker.


Member Data Documentation

vtkRenderer* vtkAbstractPicker::Renderer [protected]


Definition at line 175 of file vtkAbstractPicker.h.

float vtkAbstractPicker::SelectionPoint[3] [protected]


Definition at line 176 of file vtkAbstractPicker.h.

float vtkAbstractPicker::PickPosition[3] [protected]


Definition at line 177 of file vtkAbstractPicker.h.

unsigned long vtkAbstractPicker::StartPickTag [protected]


Definition at line 180 of file vtkAbstractPicker.h.

unsigned long vtkAbstractPicker::PickTag [protected]


Definition at line 181 of file vtkAbstractPicker.h.

unsigned long vtkAbstractPicker::EndPickTag [protected]


Definition at line 182 of file vtkAbstractPicker.h.

int vtkAbstractPicker::PickFromList [protected]


Definition at line 185 of file vtkAbstractPicker.h.

vtkPropCollection* vtkAbstractPicker::PickList [protected]


Definition at line 186 of file vtkAbstractPicker.h.


The documentation for this class was generated from the following file:
