vtkRIBProperty Class Reference

RIP Property. More...

#include <vtkRIBProperty.h>

Inheritance diagram for vtkRIBProperty:

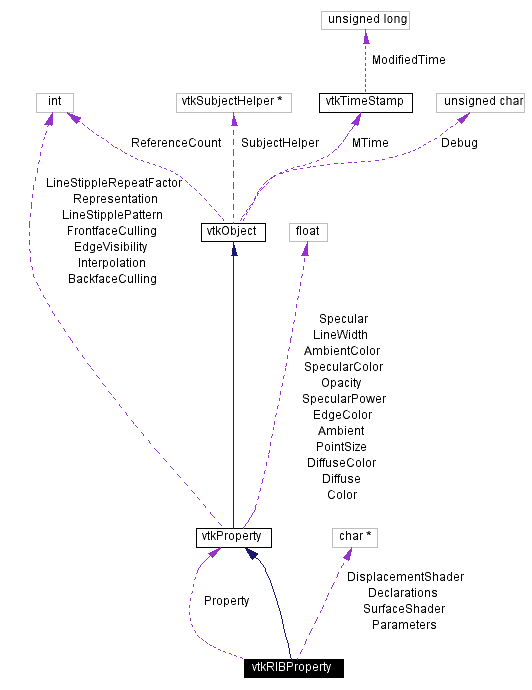

[legend]Collaboration diagram for vtkRIBProperty:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
char *	GetDeclarations ()
char *	GetParameters ()
virtual void	SetSurfaceShader (const char *)
virtual char *	GetSurfaceShader ()
virtual void	SetDisplacementShader (const char *)
virtual char *	GetDisplacementShader ()
void	SetVariable (char *variable, char *declaration)
void	AddVariable (char *variable, char *declaration)
void	SetParameter (char *parameter, char *value)
void	AddParameter (char *parameter, char *value)
Static Public Methods
vtkRIBProperty *	New ()
int	IsTypeOf (const char *type)
vtkRIBProperty *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkRIBProperty ()
	~vtkRIBProperty ()
void	Render (vtkActor *a, vtkRenderer *ren)
Protected Attributes
vtkProperty *	Property
char *	SurfaceShader
char *	DisplacementShader
char *	Declarations
char *	Parameters

---

Detailed Description

RIP Property.

Date:

2001/10/11 13:37:26

Revision:

1.14

vtkRIBProperty is a subclass of vtkProperty that allows the user to specify named shaders for use with RenderMan. Both a surface shader and displacement shader can be specified. Parameters for the shaders can be declared and set.

See also:

vtkRIBExporter

Tests:

vtkRIBProperty (Tests)

Definition at line 66 of file vtkRIBProperty.h.

---

Constructor & Destructor Documentation

vtkRIBProperty::vtkRIBProperty (    )  [protected]

vtkRIBProperty::~vtkRIBProperty (    )  [protected]

---

Member Function Documentation

vtkRIBProperty* vtkRIBProperty::New (    )  [static]

Construct object with object color, ambient color, diffuse color, specular color, and edge color white; ambient coefficient=0; diffuse coefficient=0; specular coefficient=0; specular power=1; Gouraud shading; and surface representation. Backface and frontface culling are off. Reimplemented from vtkProperty.

virtual const char* vtkRIBProperty::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProperty.

int vtkRIBProperty::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProperty.

virtual int vtkRIBProperty::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProperty.

vtkRIBProperty* vtkRIBProperty::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkProperty.

void vtkRIBProperty::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkProperty.

virtual void vtkRIBProperty::SetSurfaceShader (  const char *    )  [virtual]

Specify the name of a surface shader.

virtual char* vtkRIBProperty::GetSurfaceShader (    )  [virtual]

Specify the name of a surface shader.

virtual void vtkRIBProperty::SetDisplacementShader (  const char *    )  [virtual]

Specify the name of a displacement shader.

virtual char* vtkRIBProperty::GetDisplacementShader (    )  [virtual]

Specify the name of a displacement shader.

void vtkRIBProperty::SetVariable (  char *    variable, char *    declaration )

Specify declarations for variables..

void vtkRIBProperty::AddVariable (  char *    variable, char *    declaration )

Specify declarations for variables..

char* vtkRIBProperty::GetDeclarations (    )

Get variable declarations

void vtkRIBProperty::SetParameter (  char *    parameter, char *    value )

Specify parameter values for variables.

void vtkRIBProperty::AddParameter (  char *    parameter, char *    value )

Specify parameter values for variables.

char* vtkRIBProperty::GetParameters (    )

Get parameters.

void vtkRIBProperty::Render (  vtkActor *    a, vtkRenderer *    ren )  [protected, virtual]

This method causes the property to set up whatever is required for its instance variables. This is actually handled by a subclass of vtkProperty, which is created automatically. This method includes the invoking actor as an argument which can be used by property devices that require the actor. Reimplemented from vtkProperty.

---

Member Data Documentation

vtkProperty* vtkRIBProperty::Property [protected]

Definition at line 108 of file vtkRIBProperty.h.

char* vtkRIBProperty::SurfaceShader [protected]

Definition at line 109 of file vtkRIBProperty.h.

char* vtkRIBProperty::DisplacementShader [protected]

Definition at line 110 of file vtkRIBProperty.h.

char* vtkRIBProperty::Declarations [protected]

Definition at line 111 of file vtkRIBProperty.h.

char* vtkRIBProperty::Parameters [protected]

Definition at line 112 of file vtkRIBProperty.h.

---

The documentation for this class was generated from the following file:

• Hybrid/vtkRIBProperty.h

---
