vtkRectilinearGridWriter Class Reference

write vtk rectilinear grid data file. More...

#include <vtkRectilinearGridWriter.h>

Inheritance diagram for vtkRectilinearGridWriter:

Inheritance graph
[legend]

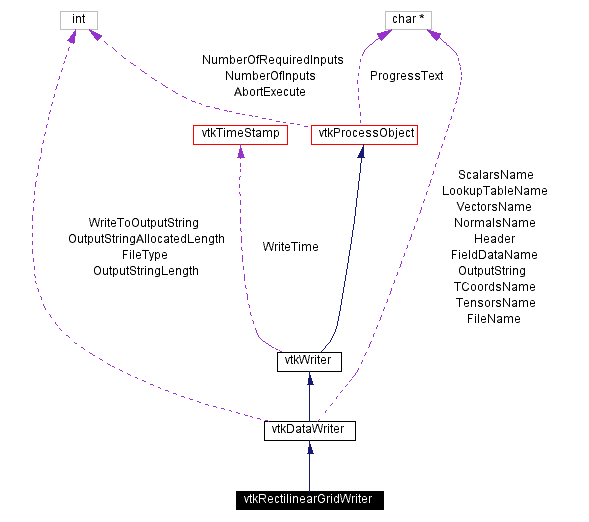

Collaboration diagram for vtkRectilinearGridWriter:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetInput (vtkRectilinearGrid *input)
vtkRectilinearGridGetInput ()

Static Public Methods

vtkRectilinearGridWriter * New ()
int IsTypeOf (const char *type)
vtkRectilinearGridWriter * SafeDownCast (vtkObject *o)

Protected Methods

 vtkRectilinearGridWriter ()
 ~vtkRectilinearGridWriter ()
void WriteData ()

Detailed Description

write vtk rectilinear grid data file.

Date:
2001/10/11 13:37:33
Revision:
1.19

vtkRectilinearGridWriter is a source object that writes ASCII or binary rectilinear grid data files in vtk format. See text for format details.

Warning:
Binary files written on one system may not be readable on other systems.

Definition at line 59 of file vtkRectilinearGridWriter.h.


Constructor & Destructor Documentation

vtkRectilinearGridWriter::vtkRectilinearGridWriter   [inline, protected]


Definition at line 73 of file vtkRectilinearGridWriter.h.

vtkRectilinearGridWriter::~vtkRectilinearGridWriter   [inline, protected]


Definition at line 74 of file vtkRectilinearGridWriter.h.


Member Function Documentation

vtkRectilinearGridWriter* vtkRectilinearGridWriter::New   [static]


Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates.

Reimplemented from vtkDataWriter.

virtual const char* vtkRectilinearGridWriter::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataWriter.

int vtkRectilinearGridWriter::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataWriter.

virtual int vtkRectilinearGridWriter::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataWriter.

vtkRectilinearGridWriter* vtkRectilinearGridWriter::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataWriter.

void vtkRectilinearGridWriter::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataWriter.

void vtkRectilinearGridWriter::SetInput vtkRectilinearGrid   input


Set / get the input data or filter.

vtkRectilinearGrid* vtkRectilinearGridWriter::GetInput


Set / get the input data or filter.

Reimplemented from vtkWriter.

void vtkRectilinearGridWriter::WriteData   [protected, virtual]


Reimplemented from vtkDataWriter.


The documentation for this class was generated from the following file:
