vtkStructuredGridWriter Class Reference

write vtk structured grid data file. More...

#include <vtkStructuredGridWriter.h>

Inheritance diagram for vtkStructuredGridWriter:

Inheritance graph
[legend]

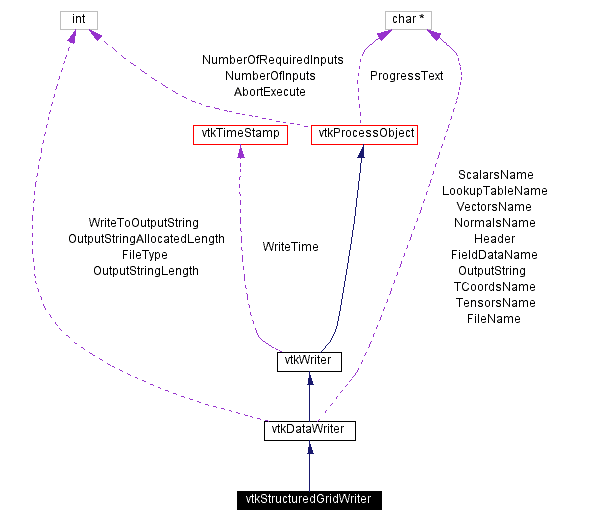

Collaboration diagram for vtkStructuredGridWriter:

Collaboration graph
[legend]
List of all members.

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetInput (vtkStructuredGrid *input)
vtkStructuredGridGetInput ()

Static Public Methods

vtkStructuredGridWriter * New ()
int IsTypeOf (const char *type)
vtkStructuredGridWriter * SafeDownCast (vtkObject *o)

Protected Methods

 vtkStructuredGridWriter ()
 ~vtkStructuredGridWriter ()
void WriteData ()
void WriteBlanking (ostream *fp, vtkStructuredGrid *ds)

Detailed Description

write vtk structured grid data file.

Date:
2001/10/11 13:37:34
Revision:
1.34

vtkStructuredGridWriter is a source object that writes ASCII or binary structured grid data files in vtk format. See text for format details.

Warning:
Binary files written on one system may not be readable on other systems.
Tests:
vtkStructuredGridWriter (Tests)

Definition at line 62 of file vtkStructuredGridWriter.h.


Constructor & Destructor Documentation

vtkStructuredGridWriter::vtkStructuredGridWriter   [inline, protected]


Definition at line 76 of file vtkStructuredGridWriter.h.

vtkStructuredGridWriter::~vtkStructuredGridWriter   [inline, protected]


Definition at line 77 of file vtkStructuredGridWriter.h.


Member Function Documentation

vtkStructuredGridWriter* vtkStructuredGridWriter::New   [static]


Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates.

Reimplemented from vtkDataWriter.

virtual const char* vtkStructuredGridWriter::GetClassName   [virtual]


Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataWriter.

int vtkStructuredGridWriter::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataWriter.

virtual int vtkStructuredGridWriter::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataWriter.

vtkStructuredGridWriter* vtkStructuredGridWriter::SafeDownCast vtkObject   o [static]


Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataWriter.

void vtkStructuredGridWriter::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataWriter.

void vtkStructuredGridWriter::SetInput vtkStructuredGrid   input


Set / get the input data or filter.

vtkStructuredGrid* vtkStructuredGridWriter::GetInput


Set / get the input data or filter.

Reimplemented from vtkWriter.

void vtkStructuredGridWriter::WriteData   [protected, virtual]


Reimplemented from vtkDataWriter.

void vtkStructuredGridWriter::WriteBlanking ostream *    fp,
vtkStructuredGrid   ds
[protected]



The documentation for this class was generated from the following file:
