vtkStructuredPointsWriter Class Reference

write vtk structured points data file. More...

#include <vtkStructuredPointsWriter.h>

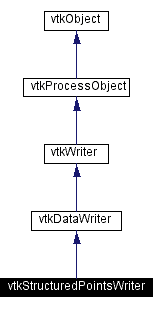

Inheritance diagram for vtkStructuredPointsWriter:

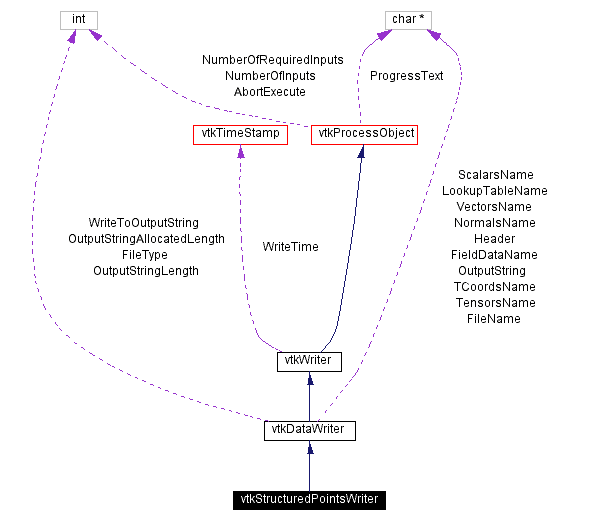

[legend]Collaboration diagram for vtkStructuredPointsWriter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetInput (vtkImageData *input)
vtkImageData *	GetInput ()
Static Public Methods
vtkStructuredPointsWriter *	New ()
int	IsTypeOf (const char *type)
vtkStructuredPointsWriter *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkStructuredPointsWriter ()
	~vtkStructuredPointsWriter ()
void	WriteData ()

---

Detailed Description

write vtk structured points data file.

Date:

2001/10/11 13:37:34

Revision:

1.39

vtkStructuredPointsWriter is a source object that writes ASCII or binary structured points data in vtk file format. See text for format details.

Warning:

Binary files written on one system may not be writable on other systems.

Definition at line 58 of file vtkStructuredPointsWriter.h.

---

Constructor & Destructor Documentation

vtkStructuredPointsWriter::vtkStructuredPointsWriter (    )  [inline, protected]

Definition at line 72 of file vtkStructuredPointsWriter.h.

vtkStructuredPointsWriter::~vtkStructuredPointsWriter (    )  [inline, protected]

Definition at line 73 of file vtkStructuredPointsWriter.h.

---

Member Function Documentation

vtkStructuredPointsWriter* vtkStructuredPointsWriter::New (    )  [static]

Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates. Reimplemented from vtkDataWriter.

virtual const char* vtkStructuredPointsWriter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataWriter.

int vtkStructuredPointsWriter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataWriter.

virtual int vtkStructuredPointsWriter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataWriter.

vtkStructuredPointsWriter* vtkStructuredPointsWriter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkDataWriter.

void vtkStructuredPointsWriter::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkDataWriter.

void vtkStructuredPointsWriter::SetInput (  vtkImageData *    input )

Set / get the input data or filter.

vtkImageData* vtkStructuredPointsWriter::GetInput (    )

Set / get the input data or filter. Reimplemented from vtkWriter.

void vtkStructuredPointsWriter::WriteData (    )  [protected, virtual]

Reimplemented from vtkDataWriter.

---

The documentation for this class was generated from the following file:

• IO/vtkStructuredPointsWriter.h

---
