vtkTriangle Class Reference

a cell that represents a triangle. More...

#include <vtkTriangle.h>

Inheritance diagram for vtkTriangle:

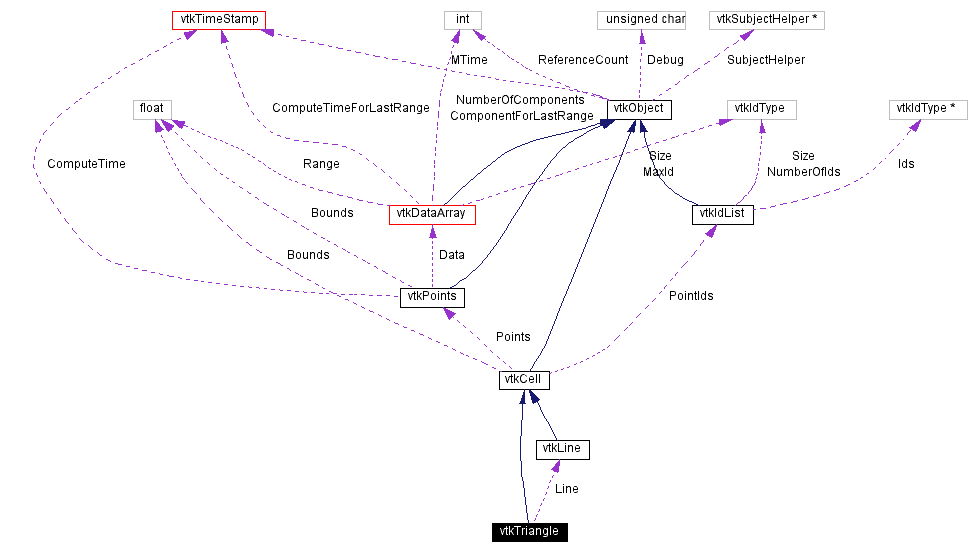

[legend]Collaboration diagram for vtkTriangle:

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
vtkCell *	MakeObject ()
vtkCell *	GetEdge (int edgeId)
int	GetParametricCenter (float pcoords[3])

int	GetCellType ()
int	GetCellDimension ()
int	GetNumberOfEdges ()
int	GetNumberOfFaces ()
vtkCell *	GetFace (int)
int	CellBoundary (int subId, float pcoords[3], vtkIdList *pts)
void	Contour (float value, vtkDataArray cellScalars, vtkPointLocator locator, vtkCellArray verts, vtkCellArray lines, vtkCellArray polys, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd)
int	EvaluatePosition (float x[3], float closestPoint, int &subId, float pcoords[3], float &dist2, float weights)
void	EvaluateLocation (int &subId, float pcoords[3], float x[3], float *weights)
int	Triangulate (int index, vtkIdList ptIds, vtkPoints pts)
void	Derivatives (int subId, float pcoords[3], float values, int dim, float derivs)

void	Clip (float value, vtkDataArray cellScalars, vtkPointLocator locator, vtkCellArray polys, vtkPointData inPd, vtkPointData outPd, vtkCellData inCd, vtkIdType cellId, vtkCellData *outCd, int insideOut)

int	IntersectWithLine (float p1[3], float p2[3], float tol, float &t, float x[3], float pcoords[3], int &subId)
Static Public Methods
vtkTriangle *	New ()
int	IsTypeOf (const char *type)
vtkTriangle *	SafeDownCast (vtkObject *o)
float	TriangleArea (float p1[3], float p2[3], float p3[3])
void	ComputeNormal (float v1[3], float v2[3], float v3[3], float n[3])

void	TriangleCenter (float p1[3], float p2[3], float p3[3], float center[3])

double	Circumcircle (double p1[2], double p2[2], double p3[2], double center[2])

int	BarycentricCoords (double x[2], double x1[2], double x2[2], double x3[2], double bcoords[3])

int	ProjectTo2D (double x1[3], double x2[3], double x3[3], double v1[2], double v2[2], double v3[2])

void	ComputeNormal (vtkPoints p, int numPts, vtkIdType pts, float n[3])

void	ComputeNormalDirection (float v1[3], float v2[3], float v3[3], float n[3])

void	ComputeNormal (double v1[3], double v2[3], double v3[3], double n[3])

void	ComputeNormalDirection (double v1[3], double v2[3], double v3[3], double n[3])

int	PointInTriangle (float x[3], float x1[3], float x2[3], float x3[3], float tol2)

void	ComputeQuadric (float x1[3], float x2[3], float x3[3], float quadric[4][4])
void	ComputeQuadric (float x1[3], float x2[3], float x3[3], vtkQuadric *quadric)
Protected Methods
	vtkTriangle ()
	~vtkTriangle ()
Protected Attributes
vtkLine *	Line

Detailed Description

a cell that represents a triangle.

Date:: 2001/11/30 19:14:14

Revision:: 1.74

vtkTriangle is a concrete implementation of vtkCell to represent a triangle located in 3-space.

Examples:: vtkTriangle (Examples)

Tests:: vtkTriangle (Tests)

Definition at line 64 of file vtkTriangle.h.

Constructor & Destructor Documentation

vtkTriangle::vtkTriangle ( ) [protected]

vtkTriangle::~vtkTriangle ( ) [protected]

Member Function Documentation

vtkTriangle* vtkTriangle::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject.

virtual const char* vtkTriangle::GetClassName ( ) [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkCell.

int vtkTriangle::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkCell.

virtual int vtkTriangle::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkCell.

vtkTriangle* vtkTriangle::SafeDownCast ( vtkObject * o ) [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h.
Reimplemented from vtkCell.

vtkCell* vtkTriangle::MakeObject ( ) [virtual]

Create a new cell and copy this triangle's information into the cell. Returns a pointer to the new cell created.
Reimplemented from vtkCell.

vtkCell* vtkTriangle::GetEdge ( int edgeId ) [virtual]

Get the edge specified by edgeId (range 0 to 2) and return that edge's coordinates.
Reimplemented from vtkCell.

int vtkTriangle::GetCellType ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.
Definition at line 80 of file vtkTriangle.h.

int vtkTriangle::GetCellDimension ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.
Definition at line 81 of file vtkTriangle.h.

int vtkTriangle::GetNumberOfEdges ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.
Definition at line 82 of file vtkTriangle.h.

int vtkTriangle::GetNumberOfFaces ( ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.
Definition at line 83 of file vtkTriangle.h.

vtkCell* vtkTriangle::GetFace ( int faceId ) [inline, virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.
Definition at line 84 of file vtkTriangle.h.

int vtkTriangle::CellBoundary ( int subId,

float pcoords[3],

vtkIdList * pts

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

void vtkTriangle::Contour ( float value,

vtkDataArray * cellScalars,

vtkPointLocator * locator,

vtkCellArray * verts,

vtkCellArray * lines,

vtkCellArray * polys,

vtkPointData * inPd,

vtkPointData * outPd,

vtkCellData * inCd,

vtkIdType cellId,

vtkCellData * outCd

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

int vtkTriangle::EvaluatePosition ( float x[3],

float * closestPoint,

int & subId,

float pcoords[3],

float & dist2,

float * weights

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

void vtkTriangle::EvaluateLocation ( int & subId,

float pcoords[3],

float x[3],

float * weights

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

int vtkTriangle::Triangulate ( int index,

vtkIdList * ptIds,

vtkPoints * pts

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

void vtkTriangle::Derivatives ( int subId,

float pcoords[3],

float * values,

int dim,

float * derivs

) [virtual]

See the vtkCell API for descriptions of these methods.
Reimplemented from vtkCell.

void vtkTriangle::Clip ( float value,

vtkDataArray * cellScalars,

vtkPointLocator * locator,

vtkCellArray * polys,

vtkPointData * inPd,

vtkPointData * outPd,

vtkCellData * inCd,

vtkIdType cellId,

vtkCellData * outCd,

int insideOut

) [virtual]

Clip this triangle using scalar value provided. Like contouring, except that it cuts the triangle to produce other triangles.
Reimplemented from vtkCell.

int vtkTriangle::IntersectWithLine ( float p1[3],

float p2[3],

float tol,

float & t,

float x[3],

float pcoords[3],

int & subId

) [virtual]

Plane intersection plus in/out test on triangle. The in/out test is performed using tol as the tolerance.
Reimplemented from vtkCell.

int vtkTriangle::GetParametricCenter ( float pcoords[3] ) [inline, virtual]

Return the center of the triangle in parametric coordinates.
Reimplemented from vtkCell.
Definition at line 227 of file vtkTriangle.h.

void vtkTriangle::TriangleCenter ( float p1[3],

float p2[3],

float p3[3],

float center[3]

) [inline, static]

Compute the center of the triangle.
Definition at line 291 of file vtkTriangle.h.

float vtkTriangle::TriangleArea ( float p1[3],

float p2[3],

float p3[3]

) [inline, static]

Compute the area of a triangle in 3D.
Definition at line 299 of file vtkTriangle.h.

double vtkTriangle::Circumcircle ( double p1[2],

double p2[2],

double p3[2],

double center[2]

) [static]

Compute the circumcenter (center[3]) and radius (method return value) of a triangle defined by the three points x1, x2, and x3. (Note that the coordinates are 2D. 3D points can be used but the z-component will be ignored.)

int vtkTriangle::BarycentricCoords ( double x[2],

double x1[2],

double x2[2],

double x3[2],

double bcoords[3]

) [static]

Given a 2D point x[2], determine the barycentric coordinates of the point. Barycentric coordinates are a natural coordinate system for simplices that express a position as a linear combination of the vertices. For a triangle, there are three barycentric coordinates (because there are three vertices), and the sum of the coordinates must equal 1. If a point x is inside a simplex, then all three coordinates will be strictly positive. If two coordinates are zero (so the third =1), then the point x is on a vertex. If one coordinates are zero, the point x is on an edge. In this method, you must specify the vertex coordinates x1->x3. Returns 0 if triangle is degenerate.

int vtkTriangle::ProjectTo2D ( double x1[3],

double x2[3],

double x3[3],

double v1[2],

double v2[2],

double v3[2]

) [static]

Project triangle defined in 3D to 2D coordinates. Returns 0 if degenerate triangle; non-zero value otherwise. Input points are x1->x3; output 2D points are v1->v3.

void vtkTriangle::ComputeNormal ( vtkPoints * p,

int numPts,

vtkIdType * pts,

float n[3]

) [static]

Compute the triangle normal from a points list, and a list of point ids that index into the points list.

void vtkTriangle::ComputeNormal ( float v1[3],

float v2[3],

float v3[3],

float n[3]

) [inline, static]

Compute the triangle normal from three points.
Definition at line 247 of file vtkTriangle.h.

void vtkTriangle::ComputeNormalDirection ( float v1[3],

float v2[3],

float v3[3],

float n[3]

) [inline, static]

Compute the (unnormalized) triangle normal direction from three points.
Definition at line 233 of file vtkTriangle.h.
Referenced by ComputeNormal().

void vtkTriangle::ComputeNormal ( double v1[3],

double v2[3],

double v3[3],

double n[3]

) [inline, static]

Compute the triangle normal from three points (double-precision version).
Definition at line 276 of file vtkTriangle.h.

void vtkTriangle::ComputeNormalDirection ( double v1[3],

double v2[3],

double v3[3],

double n[3]

) [inline, static]

Compute the (unnormalized) triangle normal direction from three points (double precision version).
Definition at line 262 of file vtkTriangle.h.

int vtkTriangle::PointInTriangle ( float x[3],

float x1[3],

float x2[3],

float x3[3],

float tol2

) [static]

Given a point x, determine whether it is inside (within the tolerance squared, tol2) the triangle defined by the three coordinate values p1, p2, p3. Method is via comparing dot products. (Note: in current implementation the tolerance only works in the neighborhood of the three vertices of the triangle.

void vtkTriangle::ComputeQuadric ( float x1[3],

float x2[3],

float x3[3],

float quadric[4][4]

) [static]

Calculate the error quadric for this triangle. Return the quadric as a 4x4 matrix or a vtkQuadric. (from Peter Lindstrom's Siggraph 2000 paper, "Out-of-Core Simplification of Large Polygonal Models")

void vtkTriangle::ComputeQuadric ( float x1[3],

float x2[3],

float x3[3],

vtkQuadric * quadric

) [static]

Calculate the error quadric for this triangle. Return the quadric as a 4x4 matrix or a vtkQuadric. (from Peter Lindstrom's Siggraph 2000 paper, "Out-of-Core Simplification of Large Polygonal Models")

Member Data Documentation

vtkLine* vtkTriangle::Line [protected]

Definition at line 220 of file vtkTriangle.h.

The documentation for this class was generated from the following file:

Common/vtkTriangle.h
