vtkVRMLImporter Class Reference

imports VRML 2.0 files. More...

#include <vtkVRMLImporter.h>

Inheritance diagram for vtkVRMLImporter:

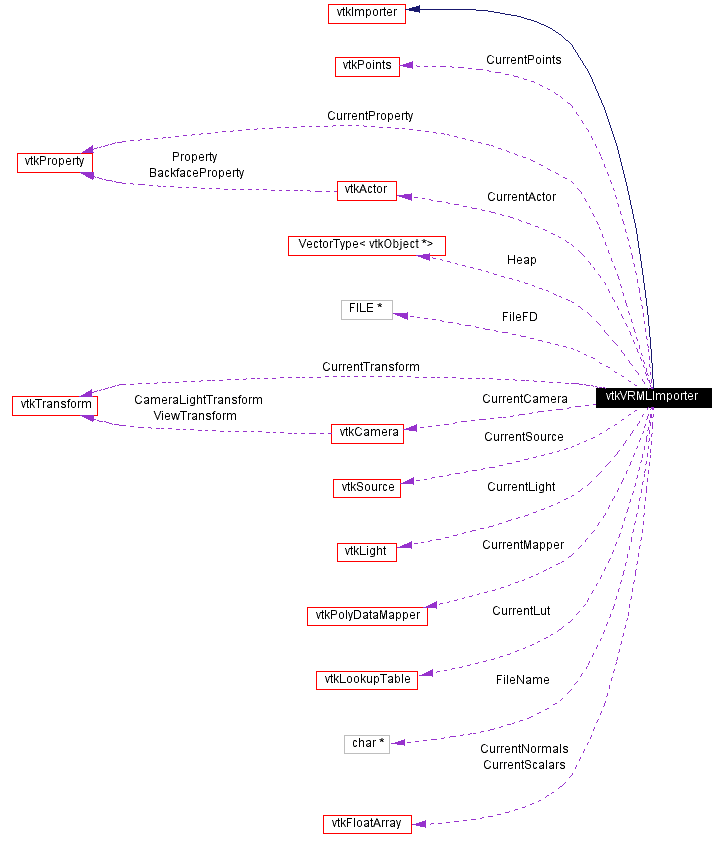

[legend]Collaboration diagram for vtkVRMLImporter:

[legend]List of all members.

Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkObject *	GetVRMLDEFObject (const char *name)
FILE *	GetFileFD ()
void	enterNode (const char *)
void	exitNode ()
void	enterField (const char *)
void	exitField ()
void	useNode (const char *)
virtual void	SetFileName (const char *)
virtual char *	GetFileName ()
Static Public Methods
vtkVRMLImporter *	New ()
int	IsTypeOf (const char *type)
vtkVRMLImporter *	SafeDownCast (vtkObject *o)
Protected Methods
	vtkVRMLImporter ()
	~vtkVRMLImporter ()
virtual int	ImportBegin ()
virtual void	ImportEnd ()
virtual void	ImportActors (vtkRenderer *)
virtual void	ImportCameras (vtkRenderer *)
virtual void	ImportLights (vtkRenderer *)
virtual void	ImportProperties (vtkRenderer *)
int	OpenImportFile ()
Protected Attributes
char *	FileName
FILE *	FileFD
Friends
int	yylex (vtkVRMLImporter *)

---

Detailed Description

imports VRML 2.0 files.

Date:

2001/10/11 13:37:26

Revision:

1.13

Thanks:

Tom Citriniti who implemented and contributed this class

vtkVRMLImporter imports VRML 2.0 files into vtk.

Warning:

These nodes are currently supported: Appearance IndexedFaceSet Box IndexedLineSet Color Material Cone Shape Coordinate Sphere Cylinder Transform DirectionalLight

Warning:

As you can see this implementation focuses on getting the geometry translated. The routes and scripting nodes are ignored since they deal with directly accessing a nodes internal structure based on the VRML spec. Since this is a translation the internal data structures differ greatly from the VRML spec and the External Authoring Interface (see the VRML spec). The DEF/USE mechanism does allow the Vtk user to extract objects from the scene and directly manipulate them using the native language (Tcl, Python, Java, or whatever language Vtk is wrapped in). This, in a way, removes the need for the route and script mechanism (not completely though).

See also:

vtkImporter

Tests:

vtkVRMLImporter (Tests)

Definition at line 98 of file vtkVRMLImporter.h.

---

Constructor & Destructor Documentation

vtkVRMLImporter::vtkVRMLImporter (    )  [protected]

vtkVRMLImporter::~vtkVRMLImporter (    )  [protected]

---

Member Function Documentation

vtkVRMLImporter* vtkVRMLImporter::New (    )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject.

virtual const char* vtkVRMLImporter::GetClassName (    )  [virtual]

Return the class name as a string. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImporter.

int vtkVRMLImporter::IsTypeOf (  const char *    type )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImporter.

virtual int vtkVRMLImporter::IsA (  const char *    type )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImporter.

vtkVRMLImporter* vtkVRMLImporter::SafeDownCast (  vtkObject *    o )  [static]

Will cast the supplied object to vtkObject* is this is a safe operation (i.e., a safe downcast); otherwise NULL is returned. This method is defined in all subclasses of vtkObject with the vtkTypeMacro found in vtkSetGet.h. Reimplemented from vtkImporter.

void vtkVRMLImporter::PrintSelf (  ostream &    os, vtkIndent    indent )  [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImporter.

vtkObject* vtkVRMLImporter::GetVRMLDEFObject (  const char *    name )

In the VRML spec you can DEF and USE nodes (name them), This routine will return the associated VTK object which was created as a result of the DEF mechanism Send in the name from the VRML file, get the VTK object. You will have to check and correctly cast the object since this only returns vtkObjects.

void vtkVRMLImporter::enterNode (  const char *    )

Needed by the yacc/lex grammar used

void vtkVRMLImporter::exitNode (    )

Needed by the yacc/lex grammar used

void vtkVRMLImporter::enterField (  const char *    )

Needed by the yacc/lex grammar used

void vtkVRMLImporter::exitField (    )

Needed by the yacc/lex grammar used

void vtkVRMLImporter::useNode (  const char *    )

Needed by the yacc/lex grammar used

virtual void vtkVRMLImporter::SetFileName (  const char *    )  [virtual]

Specify the name of the file to read.

virtual char* vtkVRMLImporter::GetFileName (    )  [virtual]

Specify the name of the file to read.

FILE* vtkVRMLImporter::GetFileFD (    )  [inline]

Return the file pointer to the open file. Definition at line 129 of file vtkVRMLImporter.h.

virtual int vtkVRMLImporter::ImportBegin (    )  [protected, virtual]

Reimplemented from vtkImporter.

virtual void vtkVRMLImporter::ImportEnd (    )  [protected, virtual]

Reimplemented from vtkImporter.

virtual void vtkVRMLImporter::ImportActors (  vtkRenderer *    )  [inline, protected, virtual]

Definition at line 143 of file vtkVRMLImporter.h.

virtual void vtkVRMLImporter::ImportCameras (  vtkRenderer *    )  [inline, protected, virtual]

Definition at line 144 of file vtkVRMLImporter.h.

virtual void vtkVRMLImporter::ImportLights (  vtkRenderer *    )  [inline, protected, virtual]

Definition at line 145 of file vtkVRMLImporter.h.

virtual void vtkVRMLImporter::ImportProperties (  vtkRenderer *    )  [inline, protected, virtual]

Definition at line 146 of file vtkVRMLImporter.h.

int vtkVRMLImporter::OpenImportFile (    )  [protected]

---

Friends And Related Function Documentation

int yylex (  vtkVRMLImporter *    )  [friend]

---

Member Data Documentation

char* vtkVRMLImporter::FileName [protected]

Definition at line 149 of file vtkVRMLImporter.h.

FILE* vtkVRMLImporter::FileFD [protected]

Definition at line 150 of file vtkVRMLImporter.h.

---

The documentation for this class was generated from the following file:

• Hybrid/vtkVRMLImporter.h

---
