vtk3DSImporter Class Reference
#include <vtk3DSImporter.h>
Inheritance diagram for vtk3DSImporter:

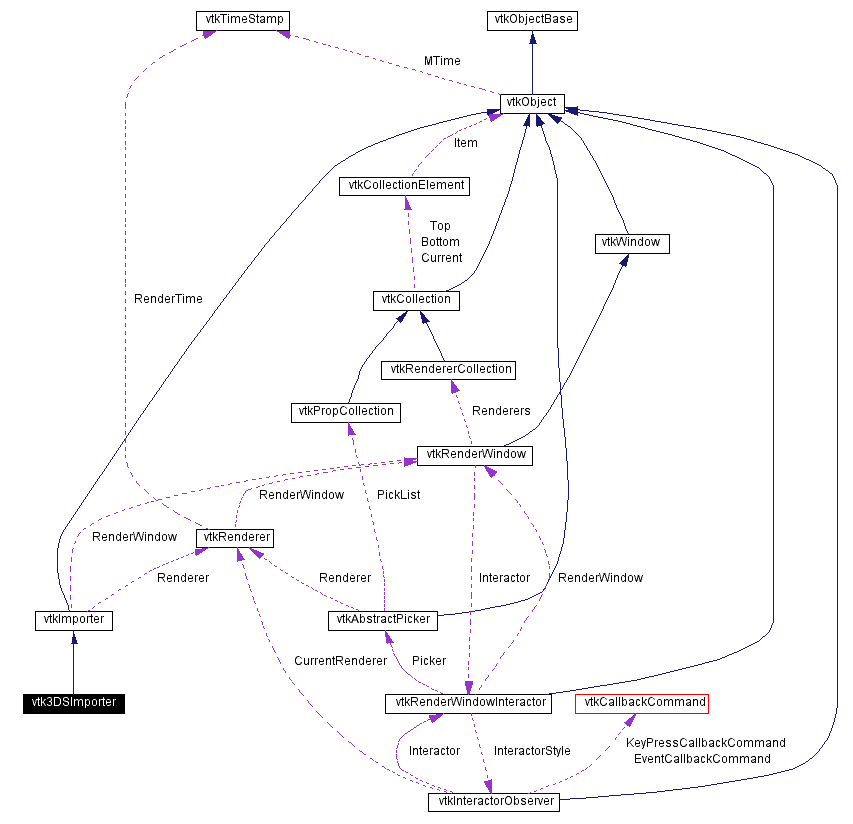

[legend]Collaboration diagram for vtk3DSImporter:
[legend]List of all members.
Detailed Description
imports 3D Studio files.
- Date:
-
2002/08/13 12:29:50
- Revision:
-
1.22
vtk3DSImporter imports 3D Studio files into vtk.
- See also:
-
vtkImporter
- Created by:
-
- CVS contributions (if > 5%):
-
- Lorensen, Bill (68%)
- Schroeder, Will (26%)
- CVS logs (CVSweb):
-
- .
h (/Hybrid/vtk3DSImporter.h) - .
cxx (/Hybrid/vtk3DSImporter.cxx)
- Examples:
-
vtk3DSImporter (Examples)
- Tests:
-
vtk3DSImporter (Tests)
Definition at line 53 of file vtk3DSImporter.h.
Member Typedef Documentation
Constructor & Destructor Documentation
| vtk3DSImporter::vtk3DSImporter |
( |
|
) |
[protected] |
|
| vtk3DSImporter::~vtk3DSImporter |
( |
|
) |
[protected] |
|
Member Function Documentation
| vtk3DSImporter* vtk3DSImporter::New |
( |
|
) |
[static] |
|
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject. |
| virtual const char* vtk3DSImporter::GetClassName |
( |
|
) |
[virtual] |
|
| int vtk3DSImporter::IsTypeOf |
( |
const char * |
type |
) |
[static] |
|
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkImporter. |
| virtual int vtk3DSImporter::IsA |
( |
const char * |
type |
) |
[virtual] |
|
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkImporter. |
| vtk3DSImporter* vtk3DSImporter::SafeDownCast |
( |
vtkObject * |
o |
) |
[static] |
|
| void vtk3DSImporter::PrintSelf |
( |
ostream & |
os, |
|
|
vtkIndent |
indent |
|
) |
[virtual] |
|
|
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkImporter. |
| virtual void vtk3DSImporter::SetFileName |
( |
const char * |
|
) |
[virtual] |
|
|
|
Specify the name of the file to read. |
| virtual char* vtk3DSImporter::GetFileName |
( |
|
) |
[virtual] |
|
|
|
Specify the name of the file to read. |
| virtual void vtk3DSImporter::SetComputeNormals |
( |
int |
|
) |
[virtual] |
|
|
|
Set/Get the computation of normals. If on, imported geometry will be run through vtkPolyDataNormals. |
| virtual int vtk3DSImporter::GetComputeNormals |
( |
|
) |
[virtual] |
|
|
|
Set/Get the computation of normals. If on, imported geometry will be run through vtkPolyDataNormals. |
| virtual void vtk3DSImporter::ComputeNormalsOn |
( |
|
) |
[virtual] |
|
|
|
Set/Get the computation of normals. If on, imported geometry will be run through vtkPolyDataNormals. |
| virtual void vtk3DSImporter::ComputeNormalsOff |
( |
|
) |
[virtual] |
|
|
|
Set/Get the computation of normals. If on, imported geometry will be run through vtkPolyDataNormals. |
| FILE* vtk3DSImporter::GetFileFD |
( |
|
) |
[inline] |
|
| virtual int vtk3DSImporter::ImportBegin |
( |
|
) |
[protected, virtual] |
|
| virtual void vtk3DSImporter::ImportEnd |
( |
|
) |
[protected, virtual] |
|
| virtual void vtk3DSImporter::ImportActors |
( |
vtkRenderer * |
renderer |
) |
[protected, virtual] |
|
| virtual void vtk3DSImporter::ImportCameras |
( |
vtkRenderer * |
renderer |
) |
[protected, virtual] |
|
| virtual void vtk3DSImporter::ImportLights |
( |
vtkRenderer * |
renderer |
) |
[protected, virtual] |
|
| virtual void vtk3DSImporter::ImportProperties |
( |
vtkRenderer * |
renderer |
) |
[protected, virtual] |
|
| vtkPolyData* vtk3DSImporter::GeneratePolyData |
( |
vtk3DSMesh * |
meshPtr |
) |
[protected] |
|
| int vtk3DSImporter::Read3DS |
( |
|
) |
[protected] |
|
Member Data Documentation
| vtk3DSOmniLight* vtk3DSImporter::OmniList
|
|
| vtk3DSSpotLight* vtk3DSImporter::SpotLightList
|
|
| vtk3DSCamera* vtk3DSImporter::CameraList
|
|
| vtk3DSMesh* vtk3DSImporter::MeshList
|
|
| vtk3DSMaterial* vtk3DSImporter::MaterialList
|
|
| vtk3DSMatProp* vtk3DSImporter::MatPropList
|
|
char* vtk3DSImporter::FileName [protected]
|
|
FILE* vtk3DSImporter::FileFD [protected]
|
|
int vtk3DSImporter::ComputeNormals [protected]
|
|
The documentation for this class was generated from the following file:
