vtkObject Class Reference

#include <vtkObject.h>

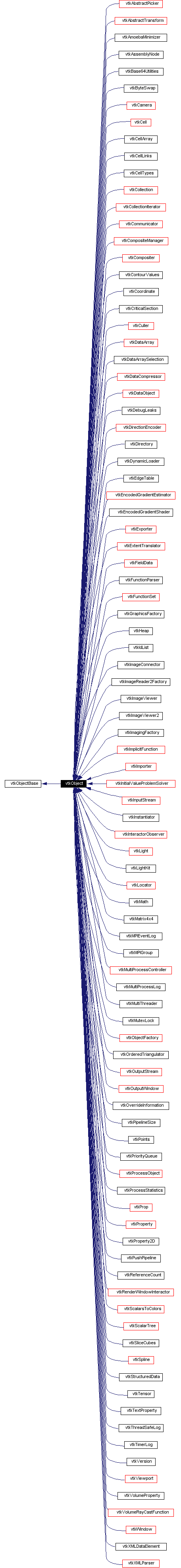

Inheritance diagram for vtkObject:

[legend]Collaboration diagram for vtkObject:

[legend]List of all members.

Detailed Description

abstract base class for most VTK objects

Date:: 2003/01/07 18:36:00

Revision:: 1.94

vtkObject is the base class for most objects in the visualization toolkit. vtkObject provides methods for tracking modification time, debugging, printing, and event callbacks. Most objects created within the VTK framework should be a subclass of vtkObject or one of its children. The few exceptions tend to be very small helper classes that usually never get instantiated or situations where multiple inheritance gets in the way. vtkObject also performs reference counting: objects that are reference counted exist as long as another object uses them. Once the last reference to a reference counted object is removed, the object will spontaneously destruct.

Warning:: Note: in VTK objects should always be created with the New() method and deleted with the Delete() method. VTK objects cannot be allocated off the stack (i.e., automatic objects) because the constructor is a protected method.

See also:: vtkCommand vtkTimeStamp

Events:: vtkCommand::ModifiedEvent vtkCommand::DeleteEvent

Created by:

Schroeder, Will

CVS contributions (if > 5%):

Martin, Ken (32%)
Schroeder, Will (30%)
Cedilnik, Andy (11%)
Hoffman, Bill (6%)

CVS logs (CVSweb):

.cxx (/Common/vtkObject.cxx)
.h (/Common/vtkObject.h)

Examples:: vtkObject (Examples)

Tests:: vtkObject (Tests)

Definition at line 76 of file vtkObject.h.

Public Types

typedef vtkObjectBase Superclass

Public Methods

virtual const char * GetClassName ()

virtual int IsA (const char *type)

virtual void DebugOn ()

virtual void DebugOff ()

unsigned char GetDebug ()

void SetDebug (unsigned char debugFlag)

virtual void Modified ()

virtual unsigned long GetMTime ()

virtual void PrintSelf (ostream &os, vtkIndent indent)

virtual void Register (vtkObjectBase *o)

virtual void UnRegister (vtkObjectBase *o)

int InvokeEvent (unsigned long event, void *callData)

int InvokeEvent (const char *event, void *callData)

int InvokeEvent (unsigned long event)

int InvokeEvent (const char *event)

unsigned long AddObserver (unsigned long event, vtkCommand *, float priority=0.0)

unsigned long AddObserver (const char *event, vtkCommand *, float priority=0.0)

vtkCommand * GetCommand (unsigned long tag)

void RemoveObserver (vtkCommand *)

void RemoveObserver (unsigned long tag)

void RemoveObservers (unsigned long event)

void RemoveObservers (const char *event)

int HasObserver (unsigned long event)

int HasObserver (const char *event)

Static Public Methods

int IsTypeOf (const char *type)

vtkObject * SafeDownCast (vtkObject *o)

vtkObject * New ()

void BreakOnError ()

void SetGlobalWarningDisplay (int val)

void GlobalWarningDisplayOn ()

void GlobalWarningDisplayOff ()

int GetGlobalWarningDisplay ()

Protected Methods

vtkObject ()

virtual ~vtkObject ()

Protected Attributes

unsigned char Debug

vtkTimeStamp MTime

vtkSubjectHelper * SubjectHelper

Member Typedef Documentation

Constructor & Destructor Documentation

vtkObject::vtkObject ( ) [protected]

virtual vtkObject::~vtkObject ( ) [protected, virtual]

Member Function Documentation

virtual const char* vtkObject::GetClassName ( ) [virtual]

Reimplemented in vtkAbstractMapper, vtkAbstractTransform, vtkActor2D, vtkActor2DCollection, vtkAmoebaMinimizer, vtkAssemblyNode, vtkAssemblyPath, vtkAssemblyPaths, vtkBitArray, vtkByteSwap, vtkCell, vtkCell3D, vtkCellArray, vtkCellData, vtkCellLinks, vtkCellTypes, vtkCharArray, vtkCollection, vtkCollectionIterator, vtkContourValues, vtkConvexPointSet, vtkCoordinate, vtkCriticalSection, vtkCylindricalTransform, vtkDataArray, vtkDataArrayCollection, vtkDataArrayCollectionIterator, vtkDataArraySelection, vtkDataObject, vtkDataObjectCollection, vtkDataSet, vtkDataSetAttributes, vtkDataSetCollection, vtkDebugLeaks, vtkDirectory, vtkDoubleArray, vtkDynamicLoader, vtkEdgeTable, vtkEmptyCell, vtkExplicitCell, vtkExtentTranslator, vtkFieldData, vtkFileOutputWindow, vtkFloatArray, vtkFunctionParser, vtkFunctionSet, vtkGeneralTransform, vtkGenericCell, vtkHeap, vtkHexahedron, vtkHomogeneousTransform, vtkIdentityTransform, vtkIdList, vtkIdListCollection, vtkIdTypeArray, vtkImageData, vtkImplicitFunction, vtkImplicitFunctionCollection, vtkInitialValueProblemSolver, vtkInstantiator, vtkIntArray, vtkInterpolatedVelocityField, vtkLine, vtkLinearTransform, vtkLocator, vtkLogLookupTable, vtkLongArray, vtkLookupTable, vtkMapper2D, vtkMath, vtkMatrix4x4, vtkMatrixToHomogeneousTransform, vtkMatrixToLinearTransform, vtkMultiPartExtentTranslator, vtkMultiThreader, vtkMutexLock, vtkNonLinearCell, vtkObjectFactory, vtkObjectFactoryCollection, vtkOrderedTriangulator, vtkOutputWindow, vtkOverrideInformation, vtkOverrideInformationCollection, vtkPerspectiveTransform, vtkPixel, vtkPlane, vtkPlaneCollection, vtkPlanes, vtkPointData, vtkPointLocator, vtkPointLocator2D, vtkPoints, vtkPointSet, vtkPolyData, vtkPolygon, vtkPolyLine, vtkPolyVertex, vtkPriorityQueue, vtkProcessObject, vtkProcessStatistics, vtkProp, vtkPropAssembly, vtkPropCollection, vtkProperty2D, vtkPyramid, vtkQuad, vtkQuadraticEdge, vtkQuadraticHexahedron, vtkQuadraticQuad, vtkQuadraticTetra, vtkQuadraticTriangle, vtkQuadric, vtkRectilinearGrid, vtkReferenceCount, vtkRungeKutta2, vtkRungeKutta4, vtkRungeKutta45, vtkScalarsToColors, vtkShortArray, vtkSource, vtkSphericalTransform, vtkStructuredData, vtkStructuredGrid, vtkStructuredPoints, vtkTableExtentTranslator, vtkTensor, vtkTetra, vtkTimerLog, vtkTransform, vtkTransformCollection, vtkTriangle, vtkTriangleStrip, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedShortArray, vtkUnstructuredGrid, vtkVersion, vtkVertex, vtkViewport, vtkVoidArray, vtkVoxel, vtkWarpTransform, vtkWedge, vtkWin32OutputWindow, vtkWindow, vtkWindowLevelLookupTable, vtkXMLFileOutputWindow, vtkCardinalSpline, vtkCastToConcrete, vtkCellLocator, vtkColorTransferFunction, vtkCone, vtkCylinder, vtkDataObjectSource, vtkDataSetSource, vtkDataSetToDataSetFilter, vtkDataSetToImageFilter, vtkDataSetToPolyDataFilter, vtkDataSetToStructuredGridFilter, vtkDataSetToStructuredPointsFilter, vtkDataSetToUnstructuredGridFilter, vtkImageInPlaceFilter, vtkImageMultipleInputFilter, vtkImageMultipleInputOutputFilter, vtkImageSource, vtkImageToImageFilter, vtkImageToStructuredPoints, vtkImageTwoInputFilter, vtkImplicitBoolean, vtkImplicitDataSet, vtkImplicitSelectionLoop, vtkImplicitSum, vtkImplicitVolume, vtkImplicitWindowFunction, vtkKochanekSpline, vtkMergePoints, vtkMergePoints2D, vtkPerlinNoise, vtkPiecewiseFunction, vtkPiecewiseFunctionShiftScale, vtkPiecewiseFunctionSource, vtkPiecewiseFunctionToPiecewiseFunctionFilter, vtkPointSetSource, vtkPointSetToPointSetFilter, vtkPolyDataCollection, vtkPolyDataSource, vtkPolyDataToPolyDataFilter, vtkRectilinearGridSource, vtkRectilinearGridToPolyDataFilter, vtkScalarTree, vtkSimpleImageToImageFilter, vtkSimpleScalarTree, vtkSphere, vtkSpline, vtkStructuredGridSource, vtkStructuredGridToPolyDataFilter, vtkStructuredGridToStructuredGridFilter, vtkStructuredPointsCollection, vtkStructuredPointsSource, vtkStructuredPointsToPolyDataFilter, vtkStructuredPointsToStructuredPointsFilter, vtkStructuredPointsToUnstructuredGridFilter, vtkSuperquadric, vtkUnstructuredGridSource, vtkUnstructuredGridToPolyDataFilter, vtkUnstructuredGridToUnstructuredGridFilter, vtkAppendFilter, vtkAppendPolyData, vtkApproximatingSubdivisionFilter, vtkArrayCalculator, vtkArrowSource, vtkAssignAttribute, vtkAttributeDataToFieldDataFilter, vtkAxes, vtkBandedPolyDataContourFilter, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkBrownianPoints, vtkButterflySubdivisionFilter, vtkButtonSource, vtkCellCenters, vtkCellDataToPointData, vtkCellDerivatives, vtkCleanPolyData, vtkClipDataSet, vtkClipPolyData, vtkClipVolume, vtkConeSource, vtkConnectivityFilter, vtkContourFilter, vtkContourGrid, vtkCubeSource, vtkCursor3D, vtkCurvatures, vtkCutter, vtkCylinderSource, vtkDashedStreamLine, vtkDataObjectToDataSetFilter, vtkDataSetSurfaceFilter, vtkDataSetToDataObjectFilter, vtkDataSetTriangleFilter, vtkDecimatePro, vtkDelaunay2D, vtkDelaunay3D, vtkDicer, vtkDiskSource, vtkEdgePoints, vtkElevationFilter, vtkExtractEdges, vtkExtractGeometry, vtkExtractGrid, vtkExtractPolyDataGeometry, vtkExtractRectilinearGrid, vtkExtractTensorComponents, vtkExtractUnstructuredGrid, vtkExtractVectorComponents, vtkFeatureEdges, vtkFieldDataToAttributeDataFilter, vtkGeometryFilter, vtkGlyph2D, vtkGlyph3D, vtkGlyphSource2D, vtkGraphLayoutFilter, vtkHedgeHog, vtkHull, vtkHyperStreamline, vtkIdFilter, vtkImageDataGeometryFilter, vtkImplicitTextureCoords, vtkInterpolateDataSetAttributes, vtkInterpolatingSubdivisionFilter, vtkLinearExtrusionFilter, vtkLinearSubdivisionFilter, vtkLineSource, vtkLinkEdgels, vtkLoopSubdivisionFilter, vtkMaskFields, vtkMaskPoints, vtkMaskPolyData, vtkMassProperties, vtkMergeDataObjectFilter, vtkMergeFields, vtkMergeFilter, vtkMeshQuality, vtkOBBDicer, vtkOBBTree, vtkOutlineCornerFilter, vtkOutlineCornerSource, vtkOutlineFilter, vtkOutlineSource, vtkPlaneSource, vtkPointDataToCellData, vtkPointSource, vtkPolyDataConnectivityFilter, vtkPolyDataNormals, vtkPolyDataStreamer, vtkProbeFilter, vtkProgrammableAttributeDataFilter, vtkProgrammableDataObjectSource, vtkProgrammableFilter, vtkProgrammableGlyphFilter, vtkProgrammableSource, vtkProjectedTexture, vtkQuadricClustering, vtkQuadricDecimation, vtkQuantizePolyDataPoints, vtkRearrangeFields, vtkRectilinearGridGeometryFilter, vtkRecursiveDividingCubes, vtkReflectionFilter, vtkReverseSense, vtkRibbonFilter, vtkRotationalExtrusionFilter, vtkRuledSurfaceFilter, vtkSelectPolyData, vtkShrinkFilter, vtkShrinkPolyData, vtkSimpleElevationFilter, vtkSmoothPolyDataFilter, vtkSpatialRepresentationFilter, vtkSpherePuzzle, vtkSpherePuzzleArrows, vtkSphereSource, vtkSplineFilter, vtkSplitField, vtkStreamer, vtkStreamLine, vtkStreamPoints, vtkStreamTracer, vtkStripper, vtkStructuredGridGeometryFilter, vtkStructuredGridOutlineFilter, vtkStructuredPointsGeometryFilter, vtkSubdivideTetra, vtkSubPixelPositionEdgels, vtkSuperquadricSource, vtkTensorGlyph, vtkTextSource, vtkTexturedSphereSource, vtkTextureMapToCylinder, vtkTextureMapToPlane, vtkTextureMapToSphere, vtkThreshold, vtkThresholdPoints, vtkThresholdTextureCoords, vtkTransformFilter, vtkTransformPolyDataFilter, vtkTransformTextureCoords, vtkTriangleFilter, vtkTriangularTCoords, vtkTubeFilter, vtkVectorDot, vtkVectorNorm, vtkVoxelContoursToSurfaceFilter, vtkWarpLens, vtkWarpScalar, vtkWarpTo, vtkWarpVector, vtkWindowedSincPolyDataFilter, vtk3DSImporter, vtk3DWidget, vtkArcPlotter, vtkBoxWidget, vtkCaptionActor2D, vtkCubeAxesActor2D, vtkDepthSortPolyData, vtkEarthSource, vtkGLUTesselatorTriangleFilter, vtkGridTransform, vtkImagePlaneWidget, vtkImageToPolyDataFilter, vtkImplicitModeller, vtkImplicitPlaneWidget, vtkIterativeClosestPointTransform, vtkLandmarkTransform, vtkLegendBoxActor, vtkLineWidget, vtkMILVideoSource, vtkPCAAnalysisFilter, vtkPlaneWidget, vtkPointWidget, vtkPolyDataSourceWidget, vtkPolyDataToImageStencil, vtkProcrustesAlignmentFilter, vtkPushImageFilterSample, vtkPushImageReader, vtkPushPipeline, vtkRenderLargeImage, vtkRIBExporter, vtkRIBLight, vtkRIBProperty, vtkScalarBarWidget, vtkSphereWidget, vtkSplineWidget, vtkThinPlateSplineTransform, vtkTransformToGrid, vtkVectorText, vtkVideoSource, vtkVRMLImporter, vtkWeightedTransformFilter, vtkWin32VideoSource, vtkXYPlotActor, vtkXYPlotWidget, vtkBooleanTexture, vtkExtractVOI, vtkGaussianSplatter, vtkImageAccumulate, vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCacheFilter, vtkImageCanvasSource2D, vtkImageCast, vtkImageChangeInformation, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageClip, vtkImageConnector, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageCursor3D, vtkImageDataStreamer, vtkImageDecomposeFilter, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEllipsoidSource, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExport, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageFourierFilter, vtkImageGaussianSmooth, vtkImageGaussianSource, vtkImageGradient, vtkImageGradientMagnitude, vtkImageGridSource, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageImport, vtkImageIslandRemoval2D, vtkImageIterateFilter, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMandelbrotSource, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNoiseSource, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImageOpenClose3D, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSV, vtkImageSeedConnectivity, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSinusoidSource, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageStencilData, vtkImageStencilSource, vtkImageThreshold, vtkImageToImageStencil, vtkImageTranslateExtent, vtkImageVariance3D, vtkImageWrapPad, vtkImplicitFunctionToImageStencil, vtkPointLoad, vtkSampleFunction, vtkShepardMethod, vtkSimpleImageFilterExample, vtkSurfaceReconstructionFilter, vtkTriangularTexture, vtkVoxelModeller, vtkBase64InputStream, vtkBase64OutputStream, vtkBase64Utilities, vtkBMPReader, vtkBMPWriter, vtkBYUReader, vtkBYUWriter, vtkCGMWriter, vtkDataCompressor, vtkDataObjectReader, vtkDataObjectWriter, vtkDataReader, vtkDataSetReader, vtkDataSetWriter, vtkDataWriter, vtkDEMReader, vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightMasterServerReader, vtkEnSightReader, vtkGenericEnSightReader, vtkGESignaReader, vtkImageReader, vtkImageReader2, vtkImageReader2Collection, vtkImageReader2Factory, vtkImageWriter, vtkInputStream, vtkIVWriter, vtkJPEGReader, vtkJPEGWriter, vtkMCubesReader, vtkMCubesWriter, vtkMedicalImageReader2, vtkOBJReader, vtkOutputStream, vtkParticleReader, vtkPLOT3DReader, vtkPLYReader, vtkPLYWriter, vtkPNGReader, vtkPNGWriter, vtkPNMReader, vtkPNMWriter, vtkPolyDataReader, vtkPolyDataWriter, vtkPostScriptWriter, vtkRectilinearGridReader, vtkRectilinearGridWriter, vtkSLCReader, vtkSTLReader, vtkSTLWriter, vtkStructuredGridReader, vtkStructuredGridWriter, vtkStructuredPointsReader, vtkStructuredPointsWriter, vtkTIFFReader, vtkTIFFWriter, vtkUGFacetReader, vtkUnstructuredGridReader, vtkUnstructuredGridWriter, vtkVolume16Reader, vtkVolumeReader, vtkWriter, vtkXMLDataElement, vtkXMLDataParser, vtkXMLDataReader, vtkXMLDataSetWriter, vtkXMLFileReadTester, vtkXMLImageDataReader, vtkXMLImageDataWriter, vtkXMLParser, vtkXMLPDataReader, vtkXMLPDataSetWriter, vtkXMLPDataWriter, vtkXMLPImageDataReader, vtkXMLPImageDataWriter, vtkXMLPolyDataReader, vtkXMLPolyDataWriter, vtkXMLPPolyDataReader, vtkXMLPPolyDataWriter, vtkXMLPRectilinearGridReader, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredDataReader, vtkXMLPStructuredDataWriter, vtkXMLPStructuredGridReader, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredDataReader, vtkXMLPUnstructuredDataWriter, vtkXMLPUnstructuredGridReader, vtkXMLPUnstructuredGridWriter, vtkXMLReader, vtkXMLRectilinearGridReader, vtkXMLRectilinearGridWriter, vtkXMLStructuredDataReader, vtkXMLStructuredDataWriter, vtkXMLStructuredGridReader, vtkXMLStructuredGridWriter, vtkXMLUnstructuredDataReader, vtkXMLUnstructuredDataWriter, vtkXMLUnstructuredGridReader, vtkXMLUnstructuredGridWriter, vtkXMLWriter, vtkZLibDataCompressor, vtkBranchExtentTranslator, vtkCollectPolyData, vtkCommunicator, vtkCompositeManager, vtkCompositer, vtkCompressCompositer, vtkCutMaterial, vtkDummyController, vtkExtractPolyDataPiece, vtkExtractUnstructuredGridPiece, vtkImageBlockReader, vtkImageBlockWriter, vtkInputPort, vtkMemoryLimitImageDataStreamer, vtkMPICommunicator, vtkMPIController, vtkMPIEventLog, vtkMPIGroup, vtkMultiProcessController, vtkMultiProcessLog, vtkOutputPort, vtkParallelFactory, vtkPassThroughFilter, vtkPCellDataToPointData, vtkPDataSetReader, vtkPDataSetWriter, vtkPieceScalars, vtkPImageWriter, vtkPipelineSize, vtkPLinearExtrusionFilter, vtkPOPReader, vtkPOutlineCornerFilter, vtkPOutlineFilter, vtkPPolyDataNormals, vtkPProbeFilter, vtkPSphereSource, vtkPStreamTracer, vtkPVGeometryFilter, vtkRectilinearGridOutlineFilter, vtkRTAnalyticSource, vtkSharedMemoryCommunicator, vtkSocketCommunicator, vtkSocketController, vtkThreadedController, vtkThreadSafeLog, vtkTransmitPolyDataPiece, vtkTransmitUnstructuredGridPiece, vtkTreeComposite, vtkTreeCompositer, vtkDecimate, vtkDividingCubes, vtkGridSynchronizedTemplates3D, vtkImageMarchingCubes, vtkKitwareContourFilter, vtkKitwareObjectFactory, vtkMarchingContourFilter, vtkMarchingCubes, vtkMarchingSquares, vtkSliceCubes, vtkSweptSurface, vtkSynchronizedTemplates2D, vtkSynchronizedTemplates3D, vtkAbstractMapper3D, vtkAbstractPicker, vtkAbstractPropPicker, vtkActor, vtkActorCollection, vtkAssembly, vtkAxisActor2D, vtkCamera, vtkCarbonRenderWindow, vtkCarbonRenderWindowInteractor, vtkCellPicker, vtkCocoaRenderWindow, vtkCocoaRenderWindowInteractor, vtkCuller, vtkCullerCollection, vtkDataSetMapper, vtkDirectionEncoder, vtkEncodedGradientEstimator, vtkEncodedGradientShader, vtkExporter, vtkFiniteDifferenceGradientEstimator, vtkFollower, vtkFrustumCoverageCuller, vtkGenericRenderWindowInteractor, vtkGraphicsFactory, vtkImageActor, vtkImageMapper, vtkImageViewer, vtkImageViewer2, vtkImagingFactory, vtkImporter, vtkInteractorEventRecorder, vtkInteractorObserver, vtkInteractorStyle, vtkInteractorStyleFlight, vtkInteractorStyleImage, vtkInteractorStyleJoystickActor, vtkInteractorStyleJoystickCamera, vtkInteractorStyleSwitch, vtkInteractorStyleTerrain, vtkInteractorStyleTrackball, vtkInteractorStyleTrackballActor, vtkInteractorStyleTrackballCamera, vtkInteractorStyleUnicam, vtkInteractorStyleUser, vtkIVExporter, vtkLabeledDataMapper, vtkLight, vtkLightCollection, vtkLightKit, vtkLODActor, vtkLODProp3D, vtkMapper, vtkMapperCollection, vtkMesaActor, vtkMesaCamera, vtkMesaFreeTypeTextMapper, vtkMesaImageActor, vtkMesaImageMapper, vtkMesaLight, vtkMesaPolyDataMapper, vtkMesaPolyDataMapper2D, vtkMesaProperty, vtkMesaRenderer, vtkMesaRenderWindow, vtkMesaTexture, vtkMesaVolumeRayCastMapper, vtkMesaVolumeTextureMapper2D, vtkOBJExporter, vtkOOGLExporter, vtkOpenGLActor, vtkOpenGLCamera, vtkOpenGLFreeTypeTextMapper, vtkOpenGLImageActor, vtkOpenGLImageMapper, vtkOpenGLLight, vtkOpenGLPolyDataMapper, vtkOpenGLPolyDataMapper2D, vtkOpenGLProperty, vtkOpenGLRenderer, vtkOpenGLRenderWindow, vtkOpenGLTexture, vtkOpenGLVolumeProVG500Mapper, vtkOpenGLVolumeProVP1000Mapper, vtkOpenGLVolumeRayCastMapper, vtkOpenGLVolumeTextureMapper2D, vtkParallelCoordinatesActor, vtkPicker, vtkPointPicker, vtkPolyDataMapper, vtkPolyDataMapper2D, vtkProp3D, vtkProp3DCollection, vtkProperty, vtkPropPicker, vtkRecursiveSphereDirectionEncoder, vtkRenderer, vtkRendererCollection, vtkRendererSource, vtkRenderWindow, vtkRenderWindowCollection, vtkRenderWindowInteractor, vtkScalarBarActor, vtkScaledTextActor, vtkSelectVisiblePoints, vtkTextActor, vtkTextMapper, vtkTextProperty, vtkTexture, vtkVolume, vtkVolumeCollection, vtkVolumeMapper, vtkVolumeProMapper, vtkVolumeProperty, vtkVolumeProVG500Mapper, vtkVolumeProVP1000Mapper, vtkVolumeRayCastCompositeFunction, vtkVolumeRayCastFunction, vtkVolumeRayCastIsosurfaceFunction, vtkVolumeRayCastMapper, vtkVolumeRayCastMIPFunction, vtkVolumeTextureMapper, vtkVolumeTextureMapper2D, vtkVRMLExporter, vtkWin32ImageMapper, vtkWin32OpenGLRenderWindow, vtkWin32PolyDataMapper2D, vtkWin32RenderWindowInteractor, vtkWinCEOpenGLRenderWindow, vtkWindowToImageFilter, vtkWorldPointPicker, vtkXMesaRenderWindow, vtkXOpenGLRenderWindow, vtkXPolyDataMapper2D, vtkXRenderWindowInteractor, and vtkXRenderWindowTclInteractor.

vtkObject* vtkObject::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObjectBase.
Reimplemented in vtkActor2D, vtkActor2DCollection, vtkAmoebaMinimizer, vtkAssemblyNode, vtkAssemblyPath, vtkAssemblyPaths, vtkBitArray, vtkByteSwap, vtkCellArray, vtkCellData, vtkCellLinks, vtkCellTypes, vtkCharArray, vtkCollection, vtkCollectionIterator, vtkContourValues, vtkConvexPointSet, vtkCoordinate, vtkCriticalSection, vtkCylindricalTransform, vtkDataArrayCollection, vtkDataArrayCollectionIterator, vtkDataArraySelection, vtkDataObject, vtkDataObjectCollection, vtkDataSetAttributes, vtkDataSetCollection, vtkDebugLeaks, vtkDirectory, vtkDoubleArray, vtkDynamicLoader, vtkEdgeTable, vtkEmptyCell, vtkExtentTranslator, vtkFieldData, vtkFileOutputWindow, vtkFloatArray, vtkFunctionParser, vtkGeneralTransform, vtkGenericCell, vtkHeap, vtkHexahedron, vtkIdentityTransform, vtkIdList, vtkIdListCollection, vtkIdTypeArray, vtkImageData, vtkImplicitFunctionCollection, vtkInstantiator, vtkIntArray, vtkInterpolatedVelocityField, vtkLine, vtkLogLookupTable, vtkLongArray, vtkLookupTable, vtkMath, vtkMatrix4x4, vtkMatrixToHomogeneousTransform, vtkMatrixToLinearTransform, vtkMultiPartExtentTranslator, vtkMultiThreader, vtkMutexLock, vtkObjectFactoryCollection, vtkOrderedTriangulator, vtkOutputWindow, vtkOverrideInformation, vtkOverrideInformationCollection, vtkPerspectiveTransform, vtkPixel, vtkPlane, vtkPlaneCollection, vtkPlanes, vtkPointData, vtkPointLocator, vtkPointLocator2D, vtkPoints, vtkPolyData, vtkPolygon, vtkPolyLine, vtkPolyVertex, vtkPriorityQueue, vtkProcessStatistics, vtkPropAssembly, vtkPropCollection, vtkProperty2D, vtkPyramid, vtkQuad, vtkQuadraticEdge, vtkQuadraticHexahedron, vtkQuadraticQuad, vtkQuadraticTetra, vtkQuadraticTriangle, vtkQuadric, vtkRectilinearGrid, vtkReferenceCount, vtkRungeKutta2, vtkRungeKutta4, vtkRungeKutta45, vtkShortArray, vtkSphericalTransform, vtkStructuredGrid, vtkStructuredPoints, vtkTableExtentTranslator, vtkTensor, vtkTetra, vtkTimerLog, vtkTransform, vtkTransformCollection, vtkTriangle, vtkTriangleStrip, vtkUnsignedCharArray, vtkUnsignedIntArray, vtkUnsignedLongArray, vtkUnsignedShortArray, vtkUnstructuredGrid, vtkVersion, vtkVertex, vtkVoidArray, vtkVoxel, vtkWedge, vtkWin32OutputWindow, vtkWindowLevelLookupTable, vtkXMLFileOutputWindow, vtkCardinalSpline, vtkCastToConcrete, vtkCellLocator, vtkColorTransferFunction, vtkCone, vtkCylinder, vtkImageToStructuredPoints, vtkImplicitBoolean, vtkImplicitDataSet, vtkImplicitSelectionLoop, vtkImplicitSum, vtkImplicitVolume, vtkImplicitWindowFunction, vtkKochanekSpline, vtkMergePoints, vtkMergePoints2D, vtkPerlinNoise, vtkPiecewiseFunction, vtkPiecewiseFunctionShiftScale, vtkPolyDataCollection, vtkSimpleScalarTree, vtkSphere, vtkStructuredPointsCollection, vtkSuperquadric, vtkAppendFilter, vtkAppendPolyData, vtkArrayCalculator, vtkArrowSource, vtkAssignAttribute, vtkAttributeDataToFieldDataFilter, vtkAxes, vtkBandedPolyDataContourFilter, vtkBlankStructuredGrid, vtkBlankStructuredGridWithImage, vtkBrownianPoints, vtkButterflySubdivisionFilter, vtkButtonSource, vtkCellCenters, vtkCellDataToPointData, vtkCellDerivatives, vtkCleanPolyData, vtkClipDataSet, vtkClipPolyData, vtkClipVolume, vtkConeSource, vtkConnectivityFilter, vtkContourFilter, vtkContourGrid, vtkCubeSource, vtkCursor3D, vtkCurvatures, vtkCutter, vtkCylinderSource, vtkDashedStreamLine, vtkDataObjectToDataSetFilter, vtkDataSetSurfaceFilter, vtkDataSetToDataObjectFilter, vtkDataSetTriangleFilter, vtkDecimatePro, vtkDelaunay2D, vtkDelaunay3D, vtkDiskSource, vtkEdgePoints, vtkElevationFilter, vtkExtractEdges, vtkExtractGeometry, vtkExtractGrid, vtkExtractPolyDataGeometry, vtkExtractRectilinearGrid, vtkExtractTensorComponents, vtkExtractUnstructuredGrid, vtkExtractVectorComponents, vtkFeatureEdges, vtkFieldDataToAttributeDataFilter, vtkGeometryFilter, vtkGlyph2D, vtkGlyph3D, vtkGlyphSource2D, vtkGraphLayoutFilter, vtkHedgeHog, vtkHull, vtkHyperStreamline, vtkIdFilter, vtkImageDataGeometryFilter, vtkImplicitTextureCoords, vtkInterpolateDataSetAttributes, vtkLinearExtrusionFilter, vtkLinearSubdivisionFilter, vtkLineSource, vtkLinkEdgels, vtkLoopSubdivisionFilter, vtkMaskFields, vtkMaskPoints, vtkMaskPolyData, vtkMassProperties, vtkMergeDataObjectFilter, vtkMergeFields, vtkMergeFilter, vtkMeshQuality, vtkOBBDicer, vtkOBBTree, vtkOutlineCornerFilter, vtkOutlineCornerSource, vtkOutlineFilter, vtkOutlineSource, vtkPlaneSource, vtkPointDataToCellData, vtkPointSource, vtkPolyDataConnectivityFilter, vtkPolyDataNormals, vtkPolyDataStreamer, vtkProbeFilter, vtkProgrammableAttributeDataFilter, vtkProgrammableDataObjectSource, vtkProgrammableFilter, vtkProgrammableGlyphFilter, vtkProgrammableSource, vtkProjectedTexture, vtkQuadricClustering, vtkQuadricDecimation, vtkQuantizePolyDataPoints, vtkRearrangeFields, vtkRectilinearGridGeometryFilter, vtkRecursiveDividingCubes, vtkReflectionFilter, vtkReverseSense, vtkRibbonFilter, vtkRotationalExtrusionFilter, vtkRuledSurfaceFilter, vtkSelectPolyData, vtkShrinkFilter, vtkShrinkPolyData, vtkSimpleElevationFilter, vtkSmoothPolyDataFilter, vtkSpatialRepresentationFilter, vtkSpherePuzzle, vtkSpherePuzzleArrows, vtkSphereSource, vtkSplineFilter, vtkSplitField, vtkStreamLine, vtkStreamPoints, vtkStreamTracer, vtkStripper, vtkStructuredGridGeometryFilter, vtkStructuredGridOutlineFilter, vtkStructuredPointsGeometryFilter, vtkSubdivideTetra, vtkSubPixelPositionEdgels, vtkSuperquadricSource, vtkTensorGlyph, vtkTextSource, vtkTexturedSphereSource, vtkTextureMapToCylinder, vtkTextureMapToPlane, vtkTextureMapToSphere, vtkThreshold, vtkThresholdPoints, vtkThresholdTextureCoords, vtkTransformFilter, vtkTransformPolyDataFilter, vtkTransformTextureCoords, vtkTriangleFilter, vtkTriangularTCoords, vtkTubeFilter, vtkVectorDot, vtkVectorNorm, vtkVoxelContoursToSurfaceFilter, vtkWarpLens, vtkWarpScalar, vtkWarpTo, vtkWarpVector, vtkWindowedSincPolyDataFilter, vtk3DSImporter, vtkArcPlotter, vtkBoxWidget, vtkCaptionActor2D, vtkCubeAxesActor2D, vtkDepthSortPolyData, vtkEarthSource, vtkGLUTesselatorTriangleFilter, vtkGridTransform, vtkImagePlaneWidget, vtkImageToPolyDataFilter, vtkImplicitModeller, vtkImplicitPlaneWidget, vtkIterativeClosestPointTransform, vtkLandmarkTransform, vtkLegendBoxActor, vtkLineWidget, vtkMILVideoSource, vtkPCAAnalysisFilter, vtkPlaneWidget, vtkPointWidget, vtkPolyDataToImageStencil, vtkProcrustesAlignmentFilter, vtkPushImageFilterSample, vtkPushImageReader, vtkPushPipeline, vtkRenderLargeImage, vtkRIBExporter, vtkRIBLight, vtkRIBProperty, vtkScalarBarWidget, vtkSphereWidget, vtkSplineWidget, vtkThinPlateSplineTransform, vtkTransformToGrid, vtkVectorText, vtkVideoSource, vtkVRMLImporter, vtkWeightedTransformFilter, vtkWin32VideoSource, vtkXYPlotActor, vtkXYPlotWidget, vtkBooleanTexture, vtkExtractVOI, vtkGaussianSplatter, vtkImageAccumulate, vtkImageAnisotropicDiffusion2D, vtkImageAnisotropicDiffusion3D, vtkImageAppend, vtkImageAppendComponents, vtkImageBlend, vtkImageButterworthHighPass, vtkImageButterworthLowPass, vtkImageCacheFilter, vtkImageCanvasSource2D, vtkImageCast, vtkImageChangeInformation, vtkImageCheckerboard, vtkImageCityBlockDistance, vtkImageClip, vtkImageConnector, vtkImageConstantPad, vtkImageContinuousDilate3D, vtkImageContinuousErode3D, vtkImageConvolve, vtkImageCorrelation, vtkImageCursor3D, vtkImageDataStreamer, vtkImageDifference, vtkImageDilateErode3D, vtkImageDivergence, vtkImageDotProduct, vtkImageEllipsoidSource, vtkImageEuclideanDistance, vtkImageEuclideanToPolar, vtkImageExport, vtkImageExtractComponents, vtkImageFFT, vtkImageFlip, vtkImageFourierCenter, vtkImageGaussianSmooth, vtkImageGaussianSource, vtkImageGradient, vtkImageGradientMagnitude, vtkImageGridSource, vtkImageHSVToRGB, vtkImageHybridMedian2D, vtkImageIdealHighPass, vtkImageIdealLowPass, vtkImageImport, vtkImageIslandRemoval2D, vtkImageLaplacian, vtkImageLogarithmicScale, vtkImageLogic, vtkImageLuminance, vtkImageMagnify, vtkImageMagnitude, vtkImageMandelbrotSource, vtkImageMapToColors, vtkImageMapToRGBA, vtkImageMapToWindowLevelColors, vtkImageMask, vtkImageMaskBits, vtkImageMathematics, vtkImageMedian3D, vtkImageMirrorPad, vtkImageNoiseSource, vtkImageNonMaximumSuppression, vtkImageNormalize, vtkImageOpenClose3D, vtkImagePadFilter, vtkImagePermute, vtkImageQuantizeRGBToIndex, vtkImageRange3D, vtkImageResample, vtkImageReslice, vtkImageRFFT, vtkImageRGBToHSV, vtkImageSeedConnectivity, vtkImageSeparableConvolution, vtkImageShiftScale, vtkImageShrink3D, vtkImageSinusoidSource, vtkImageSkeleton2D, vtkImageSobel2D, vtkImageSobel3D, vtkImageSpatialFilter, vtkImageStencil, vtkImageStencilData, vtkImageStencilSource, vtkImageThreshold, vtkImageToImageStencil, vtkImageTranslateExtent, vtkImageVariance3D, vtkImageWrapPad, vtkImplicitFunctionToImageStencil, vtkPointLoad, vtkSampleFunction, vtkShepardMethod, vtkSimpleImageFilterExample, vtkSurfaceReconstructionFilter, vtkTriangularTexture, vtkVoxelModeller, vtkBase64InputStream, vtkBase64OutputStream, vtkBase64Utilities, vtkBMPReader, vtkBMPWriter, vtkBYUReader, vtkBYUWriter, vtkCGMWriter, vtkDataObjectReader, vtkDataObjectWriter, vtkDataReader, vtkDataSetReader, vtkDataSetWriter, vtkDataWriter, vtkDEMReader, vtkEnSight6BinaryReader, vtkEnSight6Reader, vtkEnSightGoldBinaryReader, vtkEnSightGoldReader, vtkEnSightMasterServerReader, vtkGenericEnSightReader, vtkGESignaReader, vtkImageReader, vtkImageReader2, vtkImageReader2Collection, vtkImageReader2Factory, vtkImageWriter, vtkInputStream, vtkIVWriter, vtkJPEGReader, vtkJPEGWriter, vtkMCubesReader, vtkMCubesWriter, vtkMedicalImageReader2, vtkOBJReader, vtkOutputStream, vtkParticleReader, vtkPLOT3DReader, vtkPLYReader, vtkPLYWriter, vtkPNGReader, vtkPNGWriter, vtkPNMReader, vtkPNMWriter, vtkPolyDataReader, vtkPolyDataWriter, vtkPostScriptWriter, vtkRectilinearGridReader, vtkRectilinearGridWriter, vtkSLCReader, vtkSTLReader, vtkSTLWriter, vtkStructuredGridReader, vtkStructuredGridWriter, vtkStructuredPointsReader, vtkStructuredPointsWriter, vtkTIFFReader, vtkTIFFWriter, vtkUGFacetReader, vtkUnstructuredGridReader, vtkUnstructuredGridWriter, vtkVolume16Reader, vtkXMLDataElement, vtkXMLDataParser, vtkXMLDataSetWriter, vtkXMLFileReadTester, vtkXMLImageDataReader, vtkXMLImageDataWriter, vtkXMLParser, vtkXMLPDataSetWriter, vtkXMLPImageDataReader, vtkXMLPImageDataWriter, vtkXMLPolyDataReader, vtkXMLPolyDataWriter, vtkXMLPPolyDataReader, vtkXMLPPolyDataWriter, vtkXMLPRectilinearGridReader, vtkXMLPRectilinearGridWriter, vtkXMLPStructuredGridReader, vtkXMLPStructuredGridWriter, vtkXMLPUnstructuredGridReader, vtkXMLPUnstructuredGridWriter, vtkXMLRectilinearGridReader, vtkXMLRectilinearGridWriter, vtkXMLStructuredGridReader, vtkXMLStructuredGridWriter, vtkXMLUnstructuredGridReader, vtkXMLUnstructuredGridWriter, vtkZLibDataCompressor, vtkBranchExtentTranslator, vtkCollectPolyData, vtkCompositeManager, vtkCompositer, vtkCompressCompositer, vtkCutMaterial, vtkDummyController, vtkExtractPolyDataPiece, vtkExtractUnstructuredGridPiece, vtkImageBlockReader, vtkImageBlockWriter, vtkInputPort, vtkMemoryLimitImageDataStreamer, vtkMPICommunicator, vtkMPIController, vtkMPIEventLog, vtkMPIGroup, vtkMultiProcessController, vtkMultiProcessLog, vtkOutputPort, vtkParallelFactory, vtkPassThroughFilter, vtkPCellDataToPointData, vtkPDataSetReader, vtkPDataSetWriter, vtkPieceScalars, vtkPImageWriter, vtkPipelineSize, vtkPLinearExtrusionFilter, vtkPOPReader, vtkPOutlineCornerFilter, vtkPOutlineFilter, vtkPPolyDataNormals, vtkPProbeFilter, vtkPSphereSource, vtkPStreamTracer, vtkPVGeometryFilter, vtkRectilinearGridOutlineFilter, vtkRTAnalyticSource, vtkSharedMemoryCommunicator, vtkSocketCommunicator, vtkSocketController, vtkThreadedController, vtkThreadSafeLog, vtkTransmitPolyDataPiece, vtkTransmitUnstructuredGridPiece, vtkTreeComposite, vtkTreeCompositer, vtkDecimate, vtkDividingCubes, vtkGridSynchronizedTemplates3D, vtkImageMarchingCubes, vtkKitwareContourFilter, vtkKitwareObjectFactory, vtkMarchingContourFilter, vtkMarchingCubes, vtkMarchingSquares, vtkSliceCubes, vtkSweptSurface, vtkSynchronizedTemplates2D, vtkSynchronizedTemplates3D, vtkActor, vtkActorCollection, vtkAssembly, vtkAxisActor2D, vtkCamera, vtkCarbonRenderWindow, vtkCarbonRenderWindowInteractor, vtkCellPicker, vtkCocoaRenderWindow, vtkCocoaRenderWindowInteractor, vtkCullerCollection, vtkDataSetMapper, vtkEncodedGradientShader, vtkFiniteDifferenceGradientEstimator, vtkFollower, vtkFrustumCoverageCuller, vtkGenericRenderWindowInteractor, vtkGraphicsFactory, vtkImageActor, vtkImageMapper, vtkImageViewer, vtkImageViewer2, vtkImagingFactory, vtkInteractorEventRecorder, vtkInteractorStyle, vtkInteractorStyleFlight, vtkInteractorStyleImage, vtkInteractorStyleJoystickActor, vtkInteractorStyleJoystickCamera, vtkInteractorStyleSwitch, vtkInteractorStyleTerrain, vtkInteractorStyleTrackball, vtkInteractorStyleTrackballActor, vtkInteractorStyleTrackballCamera, vtkInteractorStyleUnicam, vtkInteractorStyleUser, vtkIVExporter, vtkLabeledDataMapper, vtkLight, vtkLightCollection, vtkLightKit, vtkLODActor, vtkLODProp3D, vtkMapperCollection, vtkMesaActor, vtkMesaCamera, vtkMesaFreeTypeTextMapper, vtkMesaImageActor, vtkMesaImageMapper, vtkMesaLight, vtkMesaPolyDataMapper, vtkMesaPolyDataMapper2D, vtkMesaProperty, vtkMesaRenderer, vtkMesaTexture, vtkMesaVolumeRayCastMapper, vtkMesaVolumeTextureMapper2D, vtkOBJExporter, vtkOOGLExporter, vtkOpenGLActor, vtkOpenGLCamera, vtkOpenGLFreeTypeTextMapper, vtkOpenGLImageActor, vtkOpenGLImageMapper, vtkOpenGLLight, vtkOpenGLPolyDataMapper, vtkOpenGLPolyDataMapper2D, vtkOpenGLProperty, vtkOpenGLRenderer, vtkOpenGLTexture, vtkOpenGLVolumeProVG500Mapper, vtkOpenGLVolumeProVP1000Mapper, vtkOpenGLVolumeRayCastMapper, vtkOpenGLVolumeTextureMapper2D, vtkParallelCoordinatesActor, vtkPicker, vtkPointPicker, vtkPolyDataMapper, vtkPolyDataMapper2D, vtkProp3DCollection, vtkProperty, vtkPropPicker, vtkRecursiveSphereDirectionEncoder, vtkRenderer, vtkRendererCollection, vtkRendererSource, vtkRenderWindow, vtkRenderWindowCollection, vtkRenderWindowInteractor, vtkScalarBarActor, vtkScaledTextActor, vtkSelectVisiblePoints, vtkTextActor, vtkTextMapper, vtkTextProperty, vtkTexture, vtkVolume, vtkVolumeCollection, vtkVolumeProMapper, vtkVolumeProperty, vtkVolumeProVG500Mapper, vtkVolumeProVP1000Mapper, vtkVolumeRayCastCompositeFunction, vtkVolumeRayCastIsosurfaceFunction, vtkVolumeRayCastMapper, vtkVolumeRayCastMIPFunction, vtkVolumeTextureMapper2D, vtkVRMLExporter, vtkWin32ImageMapper, vtkWin32OpenGLRenderWindow, vtkWin32PolyDataMapper2D, vtkWin32RenderWindowInteractor, vtkWinCEOpenGLRenderWindow, vtkWindowToImageFilter, vtkWorldPointPicker, vtkXMesaRenderWindow, vtkXOpenGLRenderWindow, vtkXPolyDataMapper2D, vtkXRenderWindowInteractor, and vtkXRenderWindowTclInteractor.

virtual void vtkObject::DebugOn ( ) [virtual]

Turn debugging output on.
Reimplemented in vtkImageOpenClose3D.

virtual void vtkObject::DebugOff ( ) [virtual]

Turn debugging output off.
Reimplemented in vtkImageOpenClose3D.

unsigned char vtkObject::GetDebug ( )

Get the value of the debug flag.

void vtkObject::SetDebug ( unsigned char debugFlag )

Set the value of the debug flag. A non-zero value turns debugging on.

void vtkObject::BreakOnError ( ) [static]

This method is called when vtkErrorMacro executes. It allows the debugger to break on error.

virtual void vtkObject::Modified ( ) [virtual]

Update the modification time for this object. Many filters rely on the modification time to determine if they need to recompute their data. The modification time is a unique monotonically increasing unsigned long integer.
Reimplemented in vtkImageOpenClose3D, vtkLightKit, and vtkLODActor.
Referenced by vtkMatrix4x4::DeepCopy(), vtkRenderWindowInteractor::Disable(), vtkRenderWindowInteractor::Enable(), vtkPerspectiveTransform::Identity(), vtkMatrix4x4::Identity(), vtkGeneralTransform::Identity(), vtkPerspectiveTransform::Inverse(), vtkGeneralTransform::Inverse(), vtkMatrix4x4::Invert(), vtkTransform::Pop(), vtkPerspectiveTransform::Pop(), vtkGeneralTransform::Pop(), vtkTransform::PostMultiply(), vtkPerspectiveTransform::PostMultiply(), vtkGeneralTransform::PostMultiply(), vtkTransform::PreMultiply(), vtkPerspectiveTransform::PreMultiply(), vtkGeneralTransform::PreMultiply(), vtkTransform::Push(), vtkPerspectiveTransform::Push(), vtkGeneralTransform::Push(), vtkRearrangeFields::RemoveAllOperations(), vtkThinPlateSplineTransform::SetBasisDerivative(), vtkThinPlateSplineTransform::SetBasisFunction(), vtkImageReader::SetDataMask(), vtkMatrix4x4::SetElement(), vtkRenderWindowInteractor::SetEventInformation(), vtkRenderWindowInteractor::SetEventPosition(), vtkRenderWindowInteractor::SetKeyEventInformation(), vtkProp3D::SetOrigin(), vtkProp3D::SetPosition(), vtkSelectVisiblePoints::SetRenderer(), vtkProp3D::SetScale(), vtkMatrix4x4::Transpose(), and vtkMatrix4x4::Zero().

virtual unsigned long vtkObject::GetMTime ( ) [virtual]

Return this object's modified time.
Reimplemented in vtkAbstractMapper, vtkAbstractTransform, vtkActor2D, vtkAssemblyNode, vtkAssemblyPath, vtkAssemblyPaths, vtkDataObject, vtkDataSet, vtkFieldData, vtkGeneralTransform, vtkImplicitFunction, vtkMatrixToHomogeneousTransform, vtkMatrixToLinearTransform, vtkPerspectiveTransform, vtkPointSet, vtkPropAssembly, vtkTransform, vtkImplicitBoolean, vtkImplicitDataSet, vtkImplicitSelectionLoop, vtkImplicitSum, vtkImplicitVolume, vtkImplicitWindowFunction, vtkPiecewiseFunction, vtkSpline, vtkBandedPolyDataContourFilter, vtkCleanPolyData, vtkClipDataSet, vtkClipPolyData, vtkClipVolume, vtkContourFilter, vtkContourGrid, vtkCutter, vtkDelaunay3D, vtkExtractEdges, vtkExtractGeometry, vtkExtractPolyDataGeometry, vtkExtractUnstructuredGrid, vtkFeatureEdges, vtkGeometryFilter, vtkSelectPolyData, vtkTransformFilter, vtkTransformPolyDataFilter, vtkArcPlotter, vtkDepthSortPolyData, vtkGridTransform, vtkIterativeClosestPointTransform, vtkLandmarkTransform, vtkThinPlateSplineTransform, vtkTransformToGrid, vtkWeightedTransformFilter, vtkXYPlotActor, vtkImageMapToColors, vtkImageOpenClose3D, vtkImageReslice, vtkImageSeparableConvolution, vtkSampleFunction, vtkMCubesReader, vtkSTLReader, vtkUGFacetReader, vtkGridSynchronizedTemplates3D, vtkImageMarchingCubes, vtkMarchingContourFilter, vtkMarchingCubes, vtkMarchingSquares, vtkSweptSurface, vtkSynchronizedTemplates2D, vtkSynchronizedTemplates3D, vtkActor, vtkAssembly, vtkDataSetMapper, vtkExporter, vtkImageMapper, vtkMapper, vtkPolyDataMapper2D, vtkProp3D, vtkRenderer, vtkRendererSource, vtkSelectVisiblePoints, vtkVolume, vtkVolumeProperty, and vtkWin32ImageMapper.
Referenced by vtkProp::GetRedrawMTime().

void vtkObject::SetGlobalWarningDisplay ( int val ) [static]

This is a global flag that controls whether any debug, warning or error messages are displayed.
Referenced by GlobalWarningDisplayOff(), and GlobalWarningDisplayOn().

void vtkObject::GlobalWarningDisplayOn ( ) [inline, static]

This is a global flag that controls whether any debug, warning or error messages are displayed.
Definition at line 126 of file vtkObject.h.
References SetGlobalWarningDisplay().

void vtkObject::GlobalWarningDisplayOff ( ) [inline, static]

This is a global flag that controls whether any debug, warning or error messages are displayed.
Definition at line 127 of file vtkObject.h.
References SetGlobalWarningDisplay().

int vtkObject::GetGlobalWarningDisplay ( ) [static]

This is a global flag that controls whether any debug, warning or error messages are displayed.

virtual void vtkObject::Register ( vtkObjectBase * o ) [virtual]

Increase the reference count (mark as used by another object).
Reimplemented from vtkObjectBase.

virtual void vtkObject::UnRegister ( vtkObjectBase * o ) [virtual]

Decrease the reference count (release by another object). This has the same effect as invoking Delete() (i.e., it reduces the reference count by 1).
Reimplemented from vtkObjectBase.
Reimplemented in vtkAbstractTransform, vtkDataObject, vtkPointSet, vtkSource, vtkSelectPolyData, vtkRenderWindow, and vtkRenderWindowInteractor.

unsigned long vtkObject::AddObserver ( unsigned long event,

vtkCommand * ,

float priority = 0.0

)

Allow people to add/remove/invoke observers (callbacks) to any VTK object. This is an implementation of the subject/observer design pattern. An observer is added by specifying an event to respond to and a vtkCommand to execute. It returns an unsigned long tag which can be used later to remove the event or retrieve the command. When events are invoked, the observers are called in the order they were added. If a priority value is specified, then the higher priority commands are called first. A command may set an abort flag to stop processing of the event. (See vtkCommand.h for more information.) BTX

unsigned long vtkObject::AddObserver ( const char * event,

vtkCommand * ,

float priority = 0.0

)

Allow people to add/remove/invoke observers (callbacks) to any VTK object. This is an implementation of the subject/observer design pattern. An observer is added by specifying an event to respond to and a vtkCommand to execute. It returns an unsigned long tag which can be used later to remove the event or retrieve the command. When events are invoked, the observers are called in the order they were added. If a priority value is specified, then the higher priority commands are called first. A command may set an abort flag to stop processing of the event. (See vtkCommand.h for more information.) BTX

vtkCommand* vtkObject::GetCommand ( unsigned long tag )

Allow people to add/remove/invoke observers (callbacks) to any VTK object. This is an implementation of the subject/observer design pattern. An observer is added by specifying an event to respond to and a vtkCommand to execute. It returns an unsigned long tag which can be used later to remove the event or retrieve the command. When events are invoked, the observers are called in the order they were added. If a priority value is specified, then the higher priority commands are called first. A command may set an abort flag to stop processing of the event. (See vtkCommand.h for more information.) BTX

void vtkObject::RemoveObserver ( vtkCommand * )

Allow people to add/remove/invoke observers (callbacks) to any VTK object. This is an implementation of the subject/observer design pattern. An observer is added by specifying an event to respond to and a vtkCommand to execute. It returns an unsigned long tag which can be used later to remove the event or retrieve the command. When events are invoked, the observers are called in the order they were added. If a priority value is specified, then the higher priority commands are called first. A command may set an abort flag to stop processing of the event. (See vtkCommand.h for more information.) BTX

void vtkObject::RemoveObserver ( unsigned long tag )

Allow people to add/remove/invoke observers (callbacks) to any VTK object. This is an implementation of the subject/observer design pattern. An observer is added by specifying an event to respond to and a vtkCommand to execute. It returns an unsigned long tag which can be used later to remove the event or retrieve the command. When events are invoked, the observers are called in the order they were added. If a priority value is specified, then the higher priority commands are called first. A command may set an abort flag to stop processing of the event. (See vtkCommand.h for more information.) BTX

void vtkObject::RemoveObservers ( unsigned long event )

Allow people to add/remove/invoke observers (callbacks) to any VTK object. This is an implementation of the subject/observer design pattern. An observer is added by specifying an event to respond to and a vtkCommand to execute. It returns an unsigned long tag which can be used later to remove the event or retrieve the command. When events are invoked, the observers are called in the order they were added. If a priority value is specified, then the higher priority commands are called first. A command may set an abort flag to stop processing of the event. (See vtkCommand.h for more information.) BTX

void vtkObject::RemoveObservers ( const char * event )

Allow people to add/remove/invoke observers (callbacks) to any VTK object. This is an implementation of the subject/observer design pattern. An observer is added by specifying an event to respond to and a vtkCommand to execute. It returns an unsigned long tag which can be used later to remove the event or retrieve the command. When events are invoked, the observers are called in the order they were added. If a priority value is specified, then the higher priority commands are called first. A command may set an abort flag to stop processing of the event. (See vtkCommand.h for more information.) BTX

int vtkObject::HasObserver ( unsigned long event )

Allow people to add/remove/invoke observers (callbacks) to any VTK object. This is an implementation of the subject/observer design pattern. An observer is added by specifying an event to respond to and a vtkCommand to execute. It returns an unsigned long tag which can be used later to remove the event or retrieve the command. When events are invoked, the observers are called in the order they were added. If a priority value is specified, then the higher priority commands are called first. A command may set an abort flag to stop processing of the event. (See vtkCommand.h for more information.) BTX

int vtkObject::HasObserver ( const char * event )

Allow people to add/remove/invoke observers (callbacks) to any VTK object. This is an implementation of the subject/observer design pattern. An observer is added by specifying an event to respond to and a vtkCommand to execute. It returns an unsigned long tag which can be used later to remove the event or retrieve the command. When events are invoked, the observers are called in the order they were added. If a priority value is specified, then the higher priority commands are called first. A command may set an abort flag to stop processing of the event. (See vtkCommand.h for more information.) BTX

int vtkObject::InvokeEvent ( unsigned long event,

void * callData

)

Allow people to add/remove/invoke observers (callbacks) to any VTK object. This is an implementation of the subject/observer design pattern. An observer is added by specifying an event to respond to and a vtkCommand to execute. It returns an unsigned long tag which can be used later to remove the event or retrieve the command. When events are invoked, the observers are called in the order they were added. If a priority value is specified, then the higher priority commands are called first. A command may set an abort flag to stop processing of the event. (See vtkCommand.h for more information.)

int vtkObject::InvokeEvent ( const char * event,

void * callData

)

int vtkObject::InvokeEvent ( unsigned long event ) [inline]

Definition at line 181 of file vtkObject.h.

int vtkObject::InvokeEvent ( const char * event ) [inline]

Definition at line 182 of file vtkObject.h.

Member Data Documentation

unsigned char vtkObject::Debug [protected]

Definition at line 188 of file vtkObject.h.

vtkTimeStamp vtkObject::MTime [protected]

Definition at line 189 of file vtkObject.h.

vtkSubjectHelper* vtkObject::SubjectHelper [protected]

Definition at line 190 of file vtkObject.h.

The documentation for this class was generated from the following file:

Common/vtkObject.h


Public Types
typedef vtkObjectBase	Superclass
Public Methods
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	DebugOn ()
virtual void	DebugOff ()
unsigned char	GetDebug ()
void	SetDebug (unsigned char debugFlag)
virtual void	Modified ()
virtual unsigned long	GetMTime ()
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Register (vtkObjectBase *o)
virtual void	UnRegister (vtkObjectBase *o)
int	InvokeEvent (unsigned long event, void *callData)
int	InvokeEvent (const char event, void callData)
int	InvokeEvent (unsigned long event)
int	InvokeEvent (const char *event)

unsigned long	AddObserver (unsigned long event, vtkCommand *, float priority=0.0)
unsigned long	AddObserver (const char event, vtkCommand , float priority=0.0)
vtkCommand *	GetCommand (unsigned long tag)
void	RemoveObserver (vtkCommand *)
void	RemoveObserver (unsigned long tag)
void	RemoveObservers (unsigned long event)
void	RemoveObservers (const char *event)
int	HasObserver (unsigned long event)
int	HasObserver (const char *event)
Static Public Methods
int	IsTypeOf (const char *type)
vtkObject *	SafeDownCast (vtkObject *o)
vtkObject *	New ()
void	BreakOnError ()

void	SetGlobalWarningDisplay (int val)
void	GlobalWarningDisplayOn ()
void	GlobalWarningDisplayOff ()
int	GetGlobalWarningDisplay ()
Protected Methods
	vtkObject ()
virtual	~vtkObject ()
Protected Attributes
unsigned char	Debug
vtkTimeStamp	MTime
vtkSubjectHelper *	SubjectHelper
