vtkAssemblyPath Class Reference

#include <vtkAssemblyPath.h>

Inheritance diagram for vtkAssemblyPath:

Inheritance graph
[legend]

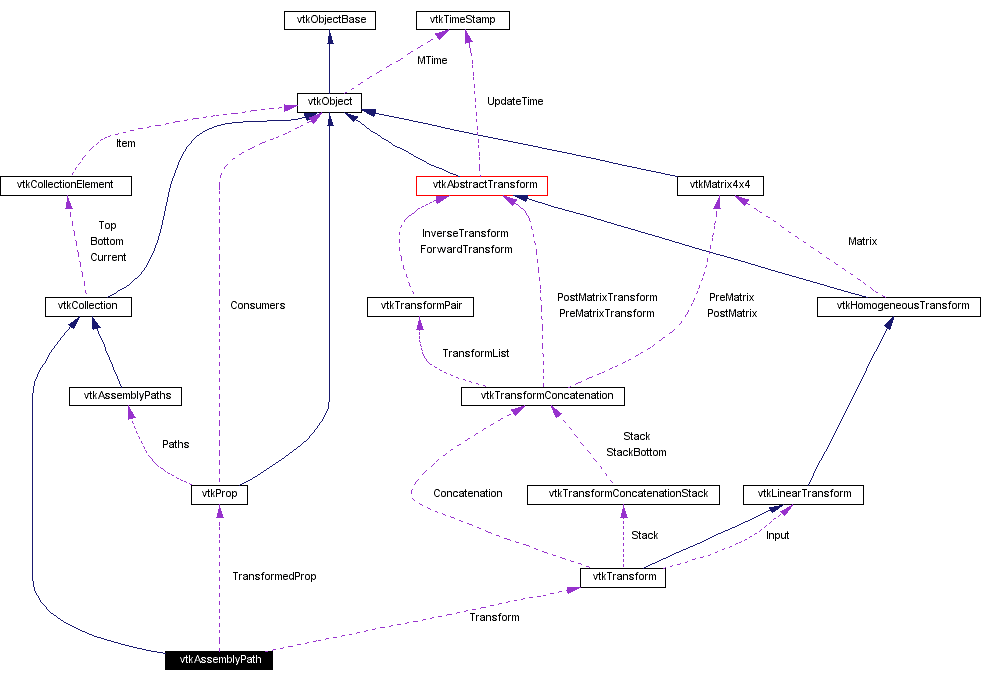

Collaboration diagram for vtkAssemblyPath:

Collaboration graph
[legend]
List of all members.

Detailed Description

a list of nodes that form an assembly path

Date:
2002/01/22 15:25:10
Revision:
1.8

vtkAssemblyPath represents an ordered list of assembly nodes that represent a fully evaluated assembly path. This class is used primarily for picking. Note that the use of this class is to add one or more assembly nodes to form the path. (An assembly node consists of an instance of vtkProp and vtkMatrix4x4, the matrix may be NULL.) As each node is added, the matrices are concatenated to create a final, evaluated matrix.

See also:
vtkAssemblyNode vtkAssembly vtkActor vtkMatrix4x4 vtkProp vtkAbstractPicker
Created by:
  • Schroeder, Will
CVS contributions (if > 5%):
  • Schroeder, Will (93%)
CVS logs (CVSweb):
  • .h (/Common/vtkAssemblyPath.h)
  • .cxx (/Common/vtkAssemblyPath.cxx)
Examples:
vtkAssemblyPath (Examples)

Definition at line 56 of file vtkAssemblyPath.h.

Public Types

typedef vtkCollection Superclass

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void AddNode (vtkProp *p, vtkMatrix4x4 *m)
vtkAssemblyNodeGetNextNode ()
vtkAssemblyNodeGetFirstNode ()
vtkAssemblyNodeGetLastNode ()
void DeleteLastNode ()
void ShallowCopy (vtkAssemblyPath *path)
virtual unsigned long GetMTime ()

Static Public Methods

int IsTypeOf (const char *type)
vtkAssemblyPath * SafeDownCast (vtkObject *o)
vtkAssemblyPath * New ()

Protected Methods

 vtkAssemblyPath ()
 ~vtkAssemblyPath ()
void AddNode (vtkAssemblyNode *n)

Protected Attributes

vtkTransformTransform
vtkPropTransformedProp


Member Typedef Documentation

typedef vtkCollection vtkAssemblyPath::Superclass


Reimplemented from vtkCollection.

Definition at line 59 of file vtkAssemblyPath.h.


Constructor & Destructor Documentation

vtkAssemblyPath::vtkAssemblyPath   [protected]


vtkAssemblyPath::~vtkAssemblyPath   [protected]



Member Function Documentation

virtual const char* vtkAssemblyPath::GetClassName   [virtual]


Reimplemented from vtkCollection.

int vtkAssemblyPath::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCollection.

virtual int vtkAssemblyPath::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkCollection.

vtkAssemblyPath* vtkAssemblyPath::SafeDownCast vtkObject   o [static]


Reimplemented from vtkCollection.

void vtkAssemblyPath::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkCollection.

vtkAssemblyPath* vtkAssemblyPath::New   [static]


Instantiate empty path with identify matrix.

Reimplemented from vtkCollection.

void vtkAssemblyPath::AddNode vtkProp   p,
vtkMatrix4x4   m


Convenience method adds a prop and matrix together, creating an assembly node transparently. The matrix pointer m may be NULL. Note: that matrix is the one, if any, associated with the prop.

vtkAssemblyNode* vtkAssemblyPath::GetNextNode


Get the next assembly node in the list. The node returned contains a pointer to a prop and a 4x4 matrix. The matrix is evaluated based on the preceding assembly hierarchy (i.e., the matrix is not necessarily as the same as the one that was added with AddNode() because of the concatenation of matrices in the assembly hierarchy).

vtkAssemblyNode* vtkAssemblyPath::GetFirstNode


Get the first assembly node in the list. See the comments for GetNextNode() regarding the contents of the returned node. (Note: This node corresponds to the vtkProp associated with the vtkRenderer.

vtkAssemblyNode* vtkAssemblyPath::GetLastNode


Get the last assembly node in the list. See the comments for GetNextNode() regarding the contents of the returned node.

void vtkAssemblyPath::DeleteLastNode


Delete the last assembly node in the list. This is like a stack pop.

void vtkAssemblyPath::ShallowCopy vtkAssemblyPath *    path


Perform a shallow copy (reference counted) on the incoming path.

virtual unsigned long vtkAssemblyPath::GetMTime   [virtual]


Override the standard GetMTime() to check for the modified times of the nodes in this path.

Reimplemented from vtkObject.

void vtkAssemblyPath::AddNode vtkAssemblyNode   n [protected]



Member Data Documentation

vtkTransform* vtkAssemblyPath::Transform [protected]


Definition at line 101 of file vtkAssemblyPath.h.

vtkProp* vtkAssemblyPath::TransformedProp [protected]


Definition at line 102 of file vtkAssemblyPath.h.
