vtkCocoaRenderWindow Class Reference

#include <vtkCocoaRenderWindow.h>

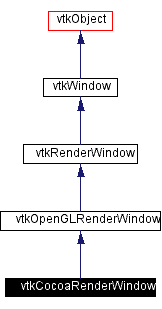

Inheritance diagram for vtkCocoaRenderWindow:

Inheritance graph
[legend]

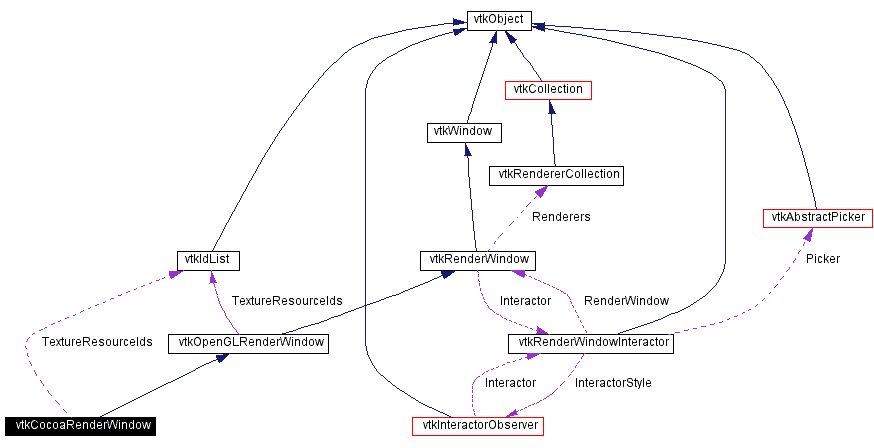

Collaboration diagram for vtkCocoaRenderWindow:

Collaboration graph
[legend]
List of all members.

Detailed Description

Cocoa OpenGL rendering window.

Date:
2003/02/05 20:38:10
Revision:
1.8

vtkCocoaRenderWindow is a concrete implementation of the abstract class vtkOpenGLRenderWindow. vtkCocoaRenderWindow interfaces to the OpenGL graphics library using the Cocoa API on Mac OSX.

Created by:
  • Starreveld, Yves
CVS contributions (if > 5%):
  • Starreveld, Yves (79%)
  • Cedilnik, Andy (17%)
CVS logs (CVSweb):
  • .mm (/Rendering/vtkCocoaRenderWindow.mm)
  • .h (/Rendering/vtkCocoaRenderWindow.h)

Definition at line 46 of file vtkCocoaRenderWindow.h.

Public Types

typedef vtkOpenGLRenderWindow Superclass

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void Start (void)
virtual void Frame (void)
virtual void WindowConfigure (void)
virtual void WindowInitialize (void)
virtual void Initialize (void)
virtual void SetFullScreen (int)
virtual void WindowRemap (void)
virtual void PrefFullScreen (void)
virtual void SetSize (int, int)
virtual int * GetSize ()
virtual void SetPosition (int, int)
virtual int * GetScreenSize ()
virtual int * GetPosition ()
virtual void SetWindowName (const char *)
virtual void SetWindowInfo (void *)
virtual void * GetGenericDisplayId ()
virtual void * GetGenericWindowId ()
virtual void * GetGenericContext ()
virtual void SetDisplayId (void *)
virtual void SetParentId (void *)
virtual void * GetGenericParentId ()
virtual void * GetGenericDrawable ()
virtual void SetWindowInfo (char *)
virtual void SetParentInfo (char *)
virtual void * GetWindowId ()
virtual void SetWindowId (void *)
void SetContextId (void *)
void SetDeviceContext (void *)
virtual void SetMultiSamples (int)
virtual int GetMultiSamples ()
virtual void StereoUpdate ()
virtual void SetStereoCapableWindow (int capable)
virtual void MakeCurrent ()
const char * ReportCapabilities ()
int SupportsOpenGL ()
int IsDirect ()
virtual void SetForceMakeCurrent ()
virtual int GetEventPending ()
void Clean ()
void RegisterTextureResource (GLuint id)
int GetDepthBufferSize ()
void UpdateSizeAndPosition (int xPos, int yPos, int xSize, int ySize)
virtual void OpenGLInit ()
virtual void SetupPalette (void *hDC)
virtual void SetupPixelFormat (void *hDC, void *dwFlags, int debug, int bpp=16, int zbpp=16)
virtual void HideCursor ()
virtual void ShowCursor ()

Static Public Methods

vtkCocoaRenderWindow * New ()
int IsTypeOf (const char *type)
vtkCocoaRenderWindow * SafeDownCast (vtkObject *o)

Protected Methods

 vtkCocoaRenderWindow ()
 ~vtkCocoaRenderWindow ()
int GetPixelData (int x, int y, int x2, int y2, int front, unsigned char *data)
int GetZbufferData (int x1, int y1, int x2, int y2, float *z)
int GetRGBAPixelData (int x, int y, int x2, int y2, int front, float *data)
int GetRGBACharPixelData (int x, int y, int x2, int y2, int front, unsigned char *data)

Protected Attributes

int ApplicationInitialized
void * ContextId
void * DeviceContext
void * WindowId
void * WindowController
int OwnWindow
int ScreenSize [2]
int MultiSamples
vtkIdListTextureResourceIds
int ScreenMapped
int ScreenWindowSize [2]
void * ScreenDeviceContext
int ScreenDoubleBuffer
void * ScreenContextId
int CursorHidden
int ForceMakeCurrent
char * Capabilities


Member Typedef Documentation

typedef vtkOpenGLRenderWindow vtkCocoaRenderWindow::Superclass


Reimplemented from vtkOpenGLRenderWindow.

Definition at line 50 of file vtkCocoaRenderWindow.h.


Constructor & Destructor Documentation

vtkCocoaRenderWindow::vtkCocoaRenderWindow   [protected]


vtkCocoaRenderWindow::~vtkCocoaRenderWindow   [protected]



Member Function Documentation

vtkCocoaRenderWindow* vtkCocoaRenderWindow::New   [static]


Construct an instance of vtkRenderWindow with its screen size set to 300x300, borders turned on, positioned at (0,0), double buffering turned on.

Reimplemented from vtkRenderWindow.

virtual const char* vtkCocoaRenderWindow::GetClassName   [virtual]


Reimplemented from vtkOpenGLRenderWindow.

int vtkCocoaRenderWindow::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkOpenGLRenderWindow.

virtual int vtkCocoaRenderWindow::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkOpenGLRenderWindow.

vtkCocoaRenderWindow* vtkCocoaRenderWindow::SafeDownCast vtkObject   o [static]


Reimplemented from vtkOpenGLRenderWindow.

void vtkCocoaRenderWindow::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkOpenGLRenderWindow.

virtual void vtkCocoaRenderWindow::Start void    [virtual]


Begin the rendering process.

Implements vtkRenderWindow.

virtual void vtkCocoaRenderWindow::Frame void    [virtual]


End the rendering process and display the image.

Implements vtkRenderWindow.

virtual void vtkCocoaRenderWindow::WindowConfigure void    [virtual]


Specify various window parameters.

virtual void vtkCocoaRenderWindow::WindowInitialize void    [virtual]


Initialize the window for rendering.

virtual void vtkCocoaRenderWindow::Initialize void    [virtual]


Initialize the rendering window.

virtual void vtkCocoaRenderWindow::SetFullScreen int    [virtual]


Change the window to fill the entire screen.

Implements vtkRenderWindow.

virtual void vtkCocoaRenderWindow::WindowRemap void    [virtual]


Remap the window.

Implements vtkRenderWindow.

virtual void vtkCocoaRenderWindow::PrefFullScreen void    [virtual]


Set the preferred window size to full screen.

virtual void vtkCocoaRenderWindow::SetSize int   ,
int
[virtual]


Set the size of the window.

Reimplemented from vtkWindow.

virtual int* vtkCocoaRenderWindow::GetSize   [virtual]


Get the current size of the window.

Reimplemented from vtkWindow.

virtual void vtkCocoaRenderWindow::SetPosition int   ,
int
[virtual]


Set the position of the window.

Reimplemented from vtkWindow.

virtual int* vtkCocoaRenderWindow::GetScreenSize   [virtual]


Return the scrren size.

virtual int* vtkCocoaRenderWindow::GetPosition   [virtual]


Get the position in screen coordinates of the window.

Reimplemented from vtkWindow.

virtual void vtkCocoaRenderWindow::SetWindowName const char *    [virtual]


Set the name of the window. This appears at the top of the window normally.

Reimplemented from vtkWindow.

virtual void vtkCocoaRenderWindow::SetWindowInfo void *    [virtual]


Set this RenderWindow's window id to a pre-existing window.

virtual void* vtkCocoaRenderWindow::GetGenericDisplayId   [inline, virtual]


Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 100 of file vtkCocoaRenderWindow.h.

virtual void* vtkCocoaRenderWindow::GetGenericWindowId   [inline, virtual]


Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 101 of file vtkCocoaRenderWindow.h.

virtual void* vtkCocoaRenderWindow::GetGenericContext   [inline, virtual]


Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 102 of file vtkCocoaRenderWindow.h.

virtual void vtkCocoaRenderWindow::SetDisplayId void *    [inline, virtual]


Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 103 of file vtkCocoaRenderWindow.h.

virtual void vtkCocoaRenderWindow::SetParentId void *    [inline, virtual]


Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 104 of file vtkCocoaRenderWindow.h.

virtual void* vtkCocoaRenderWindow::GetGenericParentId   [inline, virtual]


Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 108 of file vtkCocoaRenderWindow.h.

virtual void* vtkCocoaRenderWindow::GetGenericDrawable   [inline, virtual]


Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 113 of file vtkCocoaRenderWindow.h.

virtual void vtkCocoaRenderWindow::SetWindowInfo char *    [inline, virtual]


Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 118 of file vtkCocoaRenderWindow.h.

virtual void vtkCocoaRenderWindow::SetParentInfo char *    [inline, virtual]


Dummy stubs for vtkWindow API.

Implements vtkRenderWindow.

Definition at line 122 of file vtkCocoaRenderWindow.h.

virtual void* vtkCocoaRenderWindow::GetWindowId   [virtual]


Get the window id.

virtual void vtkCocoaRenderWindow::SetWindowId void *    [virtual]


Set the window id to a pre-existing window.

Implements vtkRenderWindow.

void vtkCocoaRenderWindow::SetContextId void *


void vtkCocoaRenderWindow::SetDeviceContext void *


virtual void vtkCocoaRenderWindow::SetMultiSamples int    [virtual]


Set / Get the number of multisamples to use for hardware antialiasing.

Reimplemented from vtkOpenGLRenderWindow.

virtual int vtkCocoaRenderWindow::GetMultiSamples   [virtual]


Set / Get the number of multisamples to use for hardware antialiasing.

Reimplemented from vtkOpenGLRenderWindow.

virtual void vtkCocoaRenderWindow::StereoUpdate   [virtual]


Update system if needed due to stereo rendering.

Reimplemented from vtkOpenGLRenderWindow.

virtual void vtkCocoaRenderWindow::SetStereoCapableWindow int    capable [virtual]


Prescribe that the window be created in a stereo-capable mode. This method must be called before the window is realized. This method overrrides the superclass method since this class can actually check whether the window has been realized yet.

Reimplemented from vtkRenderWindow.

virtual void vtkCocoaRenderWindow::MakeCurrent   [virtual]


Make this windows OpenGL context the current context.

Implements vtkOpenGLRenderWindow.

const char* vtkCocoaRenderWindow::ReportCapabilities   [virtual]


Get report of capabilities for the render window

Reimplemented from vtkRenderWindow.

int vtkCocoaRenderWindow::SupportsOpenGL   [virtual]


Does this render window support OpenGL? 0-false, 1-true

Reimplemented from vtkRenderWindow.

int vtkCocoaRenderWindow::IsDirect   [virtual]


Is this render window using hardware acceleration? 0-false, 1-true

Reimplemented from vtkRenderWindow.

virtual void vtkCocoaRenderWindow::SetForceMakeCurrent   [virtual]


If called, allow MakeCurrent() to skip cache-check when called. MakeCurrent() reverts to original behavior of cache-checking on the next render.

Reimplemented from vtkRenderWindow.

virtual int vtkCocoaRenderWindow::GetEventPending   [virtual]


Check to see if an event is pending for this window. This is a useful check to abort a long render.

Implements vtkRenderWindow.

virtual void vtkCocoaRenderWindow::OpenGLInit   [virtual]


Initialize OpenGL for this window.

Reimplemented from vtkOpenGLRenderWindow.

virtual void vtkCocoaRenderWindow::SetupPalette void *    hDC [virtual]


Initialize OpenGL for this window.

virtual void vtkCocoaRenderWindow::SetupPixelFormat void *    hDC,
void *    dwFlags,
int    debug,
int    bpp = 16,
int    zbpp = 16
[virtual]


Initialize OpenGL for this window.

void vtkCocoaRenderWindow::Clean


Clean up device contexts, rendering contexts, etc.

void vtkCocoaRenderWindow::RegisterTextureResource GLuint    id


Register a texture name with this render window

Reimplemented from vtkOpenGLRenderWindow.

int vtkCocoaRenderWindow::GetDepthBufferSize   [virtual]


Get the size of the depth buffer.

Reimplemented from vtkOpenGLRenderWindow.

virtual void vtkCocoaRenderWindow::HideCursor   [virtual]


Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead.

Implements vtkRenderWindow.

virtual void vtkCocoaRenderWindow::ShowCursor   [virtual]


Hide or Show the mouse cursor, it is nice to be able to hide the default cursor if you want VTK to display a 3D cursor instead.

Implements vtkRenderWindow.

void vtkCocoaRenderWindow::UpdateSizeAndPosition int    xPos,
int    yPos,
int    xSize,
int    ySize


int vtkCocoaRenderWindow::GetPixelData int    x,
int    y,
int    x2,
int    y2,
int    front,
unsigned char *    data
[protected]


Reimplemented from vtkOpenGLRenderWindow.

int vtkCocoaRenderWindow::GetZbufferData int    x1,
int    y1,
int    x2,
int    y2,
float *    z
[protected]


Reimplemented from vtkOpenGLRenderWindow.

int vtkCocoaRenderWindow::GetRGBAPixelData int    x,
int    y,
int    x2,
int    y2,
int    front,
float *    data
[protected]


Reimplemented from vtkOpenGLRenderWindow.

int vtkCocoaRenderWindow::GetRGBACharPixelData int    x,
int    y,
int    x2,
int    y2,
int    front,
unsigned char *    data
[protected]


Reimplemented from vtkOpenGLRenderWindow.


Member Data Documentation

int vtkCocoaRenderWindow::ApplicationInitialized [protected]


Definition at line 208 of file vtkCocoaRenderWindow.h.

void* vtkCocoaRenderWindow::ContextId [protected]


Definition at line 209 of file vtkCocoaRenderWindow.h.

void* vtkCocoaRenderWindow::DeviceContext [protected]


Definition at line 210 of file vtkCocoaRenderWindow.h.

void* vtkCocoaRenderWindow::WindowId [protected]


Definition at line 211 of file vtkCocoaRenderWindow.h.

void* vtkCocoaRenderWindow::WindowController [protected]


Definition at line 212 of file vtkCocoaRenderWindow.h.

int vtkCocoaRenderWindow::OwnWindow [protected]


Definition at line 213 of file vtkCocoaRenderWindow.h.

int vtkCocoaRenderWindow::ScreenSize[2] [protected]


Definition at line 214 of file vtkCocoaRenderWindow.h.

int vtkCocoaRenderWindow::MultiSamples [protected]


Reimplemented from vtkOpenGLRenderWindow.

Definition at line 215 of file vtkCocoaRenderWindow.h.

vtkIdList* vtkCocoaRenderWindow::TextureResourceIds [protected]


Reimplemented from vtkOpenGLRenderWindow.

Definition at line 216 of file vtkCocoaRenderWindow.h.

int vtkCocoaRenderWindow::ScreenMapped [protected]


Definition at line 230 of file vtkCocoaRenderWindow.h.

int vtkCocoaRenderWindow::ScreenWindowSize[2] [protected]


Definition at line 231 of file vtkCocoaRenderWindow.h.

void* vtkCocoaRenderWindow::ScreenDeviceContext [protected]


Definition at line 232 of file vtkCocoaRenderWindow.h.

int vtkCocoaRenderWindow::ScreenDoubleBuffer [protected]


Definition at line 233 of file vtkCocoaRenderWindow.h.

void* vtkCocoaRenderWindow::ScreenContextId [protected]


Definition at line 234 of file vtkCocoaRenderWindow.h.

int vtkCocoaRenderWindow::CursorHidden [protected]


Definition at line 236 of file vtkCocoaRenderWindow.h.

int vtkCocoaRenderWindow::ForceMakeCurrent [protected]


Definition at line 237 of file vtkCocoaRenderWindow.h.

char* vtkCocoaRenderWindow::Capabilities [protected]


Definition at line 239 of file vtkCocoaRenderWindow.h.


The documentation for this class was generated from the following file:
