vtkColorTransferFunction Class Reference

#include <vtkColorTransferFunction.h>

Inheritance diagram for vtkColorTransferFunction:

Inheritance graph
[legend]

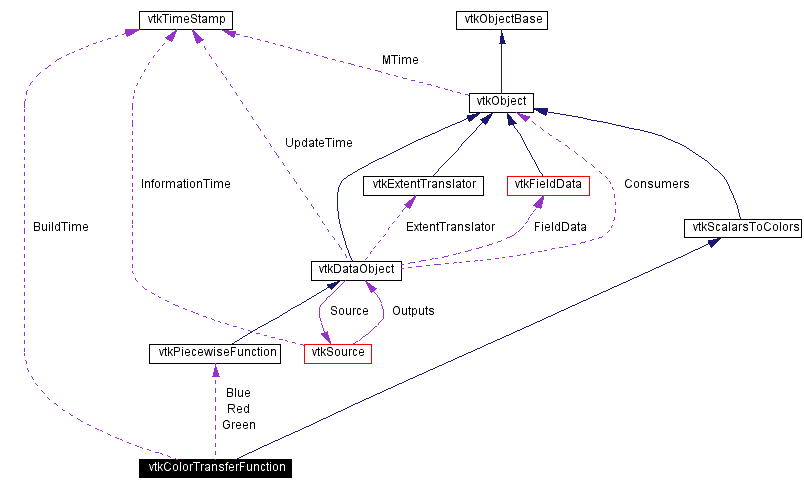

Collaboration diagram for vtkColorTransferFunction:

Collaboration graph
[legend]
List of all members.

Detailed Description

Defines a transfer function for mapping a property to an RGB color value.

Date:
2003/01/17 18:22:28
Revision:
1.38

vtkColorTransferFunction encapsulates three vtkPiecewiseFunction instances to provide a full RGB transfer function.

See also:
vtkPiecewiseFunction
Created by:
  • Avila, Lisa
CVS contributions (if > 5%):
  • Avila, Lisa (52%)
  • Martin, Ken (27%)
  • Gobbi, David (12%)
CVS logs (CVSweb):
  • .h (/Filtering/vtkColorTransferFunction.h)
  • .cxx (/Filtering/vtkColorTransferFunction.cxx)
Examples:
vtkColorTransferFunction (Examples)
Tests:
vtkColorTransferFunction (Tests)

Definition at line 58 of file vtkColorTransferFunction.h.

Public Types

typedef vtkScalarsToColors Superclass

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void DeepCopy (vtkColorTransferFunction *f)
void PrintSelf (ostream &os, vtkIndent indent)
int GetSize ()
virtual unsigned char * MapValue (float v)
void BuildFunctionFromTable (float x1, float x2, int size, float *table)
void AddRGBPoint (float x, float r, float g, float b)
void AddHSVPoint (float x, float h, float s, float v)
void AddRGBSegment (float x1, float r1, float g1, float b1, float x2, float r2, float g2, float b2)
void AddHSVSegment (float x1, float h1, float s1, float v1, float x2, float h2, float s2, float v2)
void RemovePoint (float x)
void RemoveAllPoints ()
float * GetColor (float x)
void GetColor (float x, float rgb[3])
float GetRedValue (float x)
float GetGreenValue (float x)
float GetBlueValue (float x)
virtual float * GetRange ()
virtual void GetRange (float &, float &)
virtual void GetRange (float[2])
void GetTable (float x1, float x2, int n, float *table)
const unsigned char * GetTable (float x1, float x2, int n)
virtual void SetClamping (int)
virtual int GetClamping ()
virtual void ClampingOn ()
virtual void ClampingOff ()
virtual void SetColorSpace (int)
void SetColorSpaceToRGB ()
void SetColorSpaceToHSV ()
virtual int GetColorSpace ()
float * GetDataPointer ()
void FillFromDataPointer (int, float *)
virtual void MapScalarsThroughTable2 (void *input, unsigned char *output, int inputDataType, int numberOfValues, int inputIncrement, int outputIncrement)

Static Public Methods

vtkColorTransferFunction * New ()
int IsTypeOf (const char *type)
vtkColorTransferFunction * SafeDownCast (vtkObject *o)

Protected Methods

 vtkColorTransferFunction ()
 ~vtkColorTransferFunction ()
void RGBToHSV (float r, float g, float b, float &h, float &s, float &v)
void HSVToRGB (float h, float s, float v, float &r, float &g, float &b)
virtual void SetRange (float, float)
void SetRange (float rng[2])

Protected Attributes

int Clamping
int ColorSpace
float * Function
int FunctionSize
int NumberOfPoints
unsigned char UnsignedCharRGBAValue [4]
float Range [2]
vtkPiecewiseFunctionRed
vtkPiecewiseFunctionGreen
vtkPiecewiseFunctionBlue
vtkTimeStamp BuildTime
unsigned char * Table
int TableSize


Member Typedef Documentation

typedef vtkScalarsToColors vtkColorTransferFunction::Superclass


Reimplemented from vtkScalarsToColors.

Definition at line 62 of file vtkColorTransferFunction.h.


Constructor & Destructor Documentation

vtkColorTransferFunction::vtkColorTransferFunction   [protected]


vtkColorTransferFunction::~vtkColorTransferFunction   [protected]



Member Function Documentation

vtkColorTransferFunction* vtkColorTransferFunction::New   [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkColorTransferFunction::GetClassName   [virtual]


Reimplemented from vtkScalarsToColors.

int vtkColorTransferFunction::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkScalarsToColors.

virtual int vtkColorTransferFunction::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkScalarsToColors.

vtkColorTransferFunction* vtkColorTransferFunction::SafeDownCast vtkObject   o [static]


Reimplemented from vtkScalarsToColors.

void vtkColorTransferFunction::DeepCopy vtkColorTransferFunction *    f


void vtkColorTransferFunction::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Print method for vtkColorTransferFunction

Reimplemented from vtkScalarsToColors.

int vtkColorTransferFunction::GetSize   [inline]


How many points are there defining this function?

Definition at line 69 of file vtkColorTransferFunction.h.

void vtkColorTransferFunction::AddRGBPoint float    x,
float    r,
float    g,
float    b


Add a point to the function defined in RGB or HSV

void vtkColorTransferFunction::AddHSVPoint float    x,
float    h,
float    s,
float    v


Add a point to the function defined in RGB or HSV

void vtkColorTransferFunction::AddRGBSegment float    x1,
float    r1,
float    g1,
float    b1,
float    x2,
float    r2,
float    g2,
float    b2


Add two points to the function and remove all the points between them

void vtkColorTransferFunction::AddHSVSegment float    x1,
float    h1,
float    s1,
float    v1,
float    x2,
float    h2,
float    s2,
float    v2


Add two points to the function and remove all the points between them

void vtkColorTransferFunction::RemovePoint float    x


Remove a point / remove all points

void vtkColorTransferFunction::RemoveAllPoints


Remove a point / remove all points

float* vtkColorTransferFunction::GetColor float    x [inline]


Returns an RGB color for the specified scalar value (from vtkScalarsToColors)

Reimplemented from vtkScalarsToColors.

Definition at line 94 of file vtkColorTransferFunction.h.

References vtkScalarsToColors::GetColor().

void vtkColorTransferFunction::GetColor float    x,
float    rgb[3]
[virtual]


Returns an RGB color for the specified scalar value (from vtkScalarsToColors)

Implements vtkScalarsToColors.

float vtkColorTransferFunction::GetRedValue float    x


Get the color components individually.

float vtkColorTransferFunction::GetGreenValue float    x


Get the color components individually.

float vtkColorTransferFunction::GetBlueValue float    x


Get the color components individually.

virtual unsigned char* vtkColorTransferFunction::MapValue float    v [virtual]


Map one value through the lookup table.

Implements vtkScalarsToColors.

virtual float* vtkColorTransferFunction::GetRange   [virtual]


Returns min and max position of all function points.

Implements vtkScalarsToColors.

virtual void vtkColorTransferFunction::GetRange float &   ,
float &
[virtual]


Returns min and max position of all function points.

virtual void vtkColorTransferFunction::GetRange float   [2] [virtual]


Returns min and max position of all function points.

void vtkColorTransferFunction::GetTable float    x1,
float    x2,
int    n,
float *    table


Fills in a table of n function values between x1 and x2

const unsigned char* vtkColorTransferFunction::GetTable float    x1,
float    x2,
int    n


Fills in a table of n function values between x1 and x2

void vtkColorTransferFunction::BuildFunctionFromTable float    x1,
float    x2,
int    size,
float *    table


Construct a color transfer function from a table. Function range is is set to [x1, x2], each function size is set to size, and function points are regularly spaced between x1 and x2. Parameter "table" is assumed to be a block of memory of size [3*size]

virtual void vtkColorTransferFunction::SetClamping int    [virtual]


Sets and gets the clamping value for this transfer function.

virtual int vtkColorTransferFunction::GetClamping   [virtual]


Sets and gets the clamping value for this transfer function.

virtual void vtkColorTransferFunction::ClampingOn   [virtual]


Sets and gets the clamping value for this transfer function.

virtual void vtkColorTransferFunction::ClampingOff   [virtual]


Sets and gets the clamping value for this transfer function.

virtual void vtkColorTransferFunction::SetColorSpace int    [virtual]


How should we interpolate - in RGB, or HSV

void vtkColorTransferFunction::SetColorSpaceToRGB   [inline]


How should we interpolate - in RGB, or HSV

Definition at line 136 of file vtkColorTransferFunction.h.

References VTK_CTF_RGB.

void vtkColorTransferFunction::SetColorSpaceToHSV   [inline]


How should we interpolate - in RGB, or HSV

Definition at line 137 of file vtkColorTransferFunction.h.

References VTK_CTF_HSV.

virtual int vtkColorTransferFunction::GetColorSpace   [virtual]


How should we interpolate - in RGB, or HSV

float* vtkColorTransferFunction::GetDataPointer   [inline]


Returns a list of all nodes Fills from a pointer to data stored in a similar list of nodes.

Definition at line 144 of file vtkColorTransferFunction.h.

void vtkColorTransferFunction::FillFromDataPointer int   ,
float *


Returns a list of all nodes Fills from a pointer to data stored in a similar list of nodes.

virtual void vtkColorTransferFunction::MapScalarsThroughTable2 void *    input,
unsigned char *    output,
int    inputDataType,
int    numberOfValues,
int    inputIncrement,
int    outputIncrement
[virtual]


map a set of scalars through the lookup table

Implements vtkScalarsToColors.

void vtkColorTransferFunction::RGBToHSV float    r,
float    g,
float    b,
float &    h,
float &    s,
float &    v
[protected]


void vtkColorTransferFunction::HSVToRGB float    h,
float    s,
float    v,
float &    r,
float &    g,
float &    b
[protected]


virtual void vtkColorTransferFunction::SetRange float   ,
float
[inline, protected, virtual]


Set the range of scalars being mapped. The set has no functionality in this subclass of vtkScalarsToColors.

Implements vtkScalarsToColors.

Definition at line 195 of file vtkColorTransferFunction.h.

void vtkColorTransferFunction::SetRange float    rng[2] [inline, protected]


Set the range of scalars being mapped. The set has no functionality in this subclass of vtkScalarsToColors.

Reimplemented from vtkScalarsToColors.

Definition at line 196 of file vtkColorTransferFunction.h.

References vtkScalarsToColors::SetRange().


Member Data Documentation

int vtkColorTransferFunction::Clamping [protected]


Definition at line 163 of file vtkColorTransferFunction.h.

int vtkColorTransferFunction::ColorSpace [protected]


Definition at line 166 of file vtkColorTransferFunction.h.

float* vtkColorTransferFunction::Function [protected]


Definition at line 169 of file vtkColorTransferFunction.h.

int vtkColorTransferFunction::FunctionSize [protected]


Definition at line 170 of file vtkColorTransferFunction.h.

int vtkColorTransferFunction::NumberOfPoints [protected]


Definition at line 171 of file vtkColorTransferFunction.h.

unsigned char vtkColorTransferFunction::UnsignedCharRGBAValue[4] [protected]


Definition at line 178 of file vtkColorTransferFunction.h.

float vtkColorTransferFunction::Range[2] [protected]


Definition at line 181 of file vtkColorTransferFunction.h.

vtkPiecewiseFunction* vtkColorTransferFunction::Red [protected]


Definition at line 185 of file vtkColorTransferFunction.h.

vtkPiecewiseFunction* vtkColorTransferFunction::Green [protected]


Definition at line 186 of file vtkColorTransferFunction.h.

vtkPiecewiseFunction* vtkColorTransferFunction::Blue [protected]


Definition at line 187 of file vtkColorTransferFunction.h.

vtkTimeStamp vtkColorTransferFunction::BuildTime [protected]


Definition at line 188 of file vtkColorTransferFunction.h.

unsigned char* vtkColorTransferFunction::Table [protected]


Definition at line 189 of file vtkColorTransferFunction.h.

int vtkColorTransferFunction::TableSize [protected]


Definition at line 190 of file vtkColorTransferFunction.h.


The documentation for this class was generated from the following file:
