vtkCompositeManager Class Reference
#include <vtkCompositeManager.h>
Inheritance diagram for vtkCompositeManager:

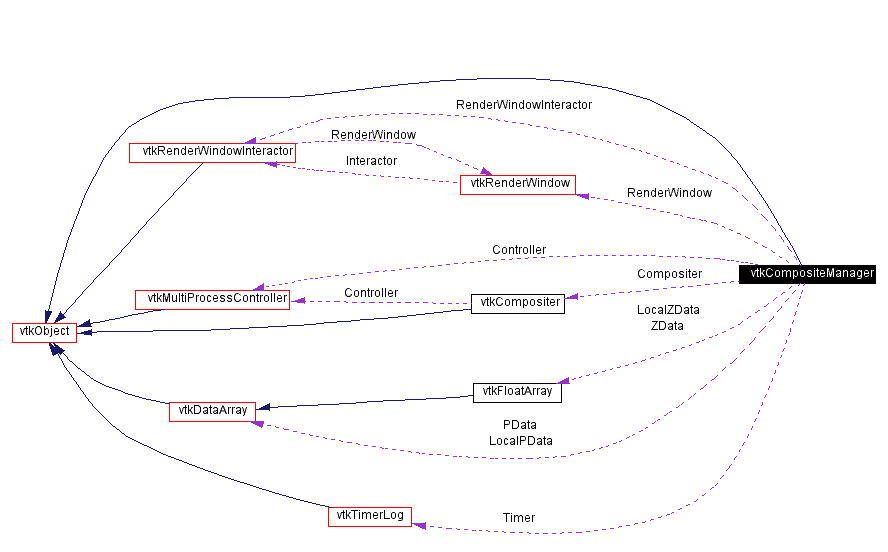

[legend]Collaboration diagram for vtkCompositeManager:
[legend]List of all members.
Detailed Description
An object to composite multiple render windows.
- Date:
-
2002/11/21 16:18:47
- Revision:
-
1.17
vtkCompositeManager operates in multiple processes. Each compositer has a render window. They use vtkMultiProcessControllers to comunicate the color and depth buffer to process 0's render window. Subclass implementation may not handle transparency well.
- Attention:
-
You should set up the renders and render window interactor before setting the compositers render window. We set up observers on the renderer, An have no easy way of knowing when the renderers change. We could create AddRenderer and RemoveRenderer events ...
- See also:
-
vtkMultiProcessController vtkRenderWindow.
- Created by:
-
- CVS contributions (if > 5%):
-
- Hoffman, Bill (45%)
- Law, Charles (25%)
- Geveci, Berk (16%)
- Cedilnik, Andy (10%)
- CVS logs (CVSweb):
-
- .
h (/Parallel/vtkCompositeManager.h) - .
cxx (/Parallel/vtkCompositeManager.cxx)
- Examples:
-
vtkCompositeManager (Examples)
- Tests:
-
vtkCompositeManager (Tests)
Definition at line 69 of file vtkCompositeManager.h.
|
Public Types |
| typedef vtkObject | Superclass |
| enum | Tags {
RENDER_RMI_TAG = 12721,
COMPUTE_VISIBLE_PROP_BOUNDS_RMI_TAG = 56563,
WIN_INFO_TAG = 22134,
REN_INFO_TAG = 22135,
BOUNDS_TAG = 94135
} |
Public Methods |
| virtual const char * | GetClassName () |
| virtual int | IsA (const char *type) |
| void | PrintSelf (ostream &os, vtkIndent indent) |
| void | InitializePieces () |
| void | InitializeOffScreen () |
| virtual void | InitializeRMIs () |
| float | GetZ (int x, int y) |
| virtual void | ComputeVisiblePropBounds (vtkRenderer *ren, float bounds[6]) |
|
| virtual vtkRenderWindow * | GetRenderWindow () |
| virtual void | SetRenderWindow (vtkRenderWindow *renWin) |
|
| void | StartInteractor () |
| void | ExitInteractor () |
| virtual void | StartRender () |
| virtual void | EndRender () |
| virtual void | SatelliteStartRender () |
| virtual void | SatelliteEndRender () |
| void | RenderRMI () |
| void | ResetCamera (vtkRenderer *ren) |
| void | ResetCameraClippingRange (vtkRenderer *ren) |
| void | ComputeVisiblePropBoundsRMI () |
|
| void | SetReductionFactor (int factor) |
| virtual int | GetReductionFactor () |
|
| void | SetUseChar (int useChar) |
| virtual int | GetUseChar () |
| virtual void | UseCharOn () |
| virtual void | UseCharOff () |
|
| void | SetUseRGB (int useRGB) |
| virtual int | GetUseRGB () |
| virtual void | UseRGBOn () |
| virtual void | UseRGBOff () |
|
| virtual void | SetUseCompositing (int) |
| virtual int | GetUseCompositing () |
| virtual void | UseCompositingOn () |
| virtual void | UseCompositingOff () |
|
| virtual double | GetGetBuffersTime () |
| virtual double | GetSetBuffersTime () |
| virtual double | GetCompositeTime () |
| virtual double | GetMaxRenderTime () |
|
| void | SetController (vtkMultiProcessController *controller) |
| virtual vtkMultiProcessController * | GetController () |
|
| virtual void | CheckForAbortRender () |
| virtual int | CheckForAbortComposite () |
|
| virtual void | SetManual (int) |
| virtual int | GetManual () |
| virtual void | ManualOn () |
| virtual void | ManualOff () |
| void | Composite () |
|
| virtual void | SetCompositer (vtkCompositer *) |
| virtual vtkCompositer * | GetCompositer () |
|
| void | SetNumberOfProcesses (int numProcs) |
| virtual int | GetNumberOfProcesses () |
Static Public Methods |
| vtkCompositeManager * | New () |
| int | IsTypeOf (const char *type) |
| vtkCompositeManager * | SafeDownCast (vtkObject *o) |
|
| void | DeleteArray (vtkDataArray *da) |
| void | ResizeFloatArray (vtkFloatArray *fa, int numComp, vtkIdType size) |
| void | ResizeUnsignedCharArray (vtkUnsignedCharArray *uca, int numComp, vtkIdType size) |
Protected Methods |
| | vtkCompositeManager () |
| | ~vtkCompositeManager () |
| void | SetRendererSize (int x, int y) |
| void | MagnifyBuffer (vtkDataArray *localPdata, vtkDataArray *magPdata, int windowSize[2]) |
| void | ReallocPDataArrays () |
| void | SetRenderWindowInteractor (vtkRenderWindowInteractor *iren) |
Protected Attributes |
| vtkRenderWindow * | RenderWindow |
| vtkRenderWindowInteractor * | RenderWindowInteractor |
| vtkMultiProcessController * | Controller |
| unsigned long | StartInteractorTag |
| unsigned long | EndInteractorTag |
| unsigned long | StartTag |
| unsigned long | EndTag |
| unsigned long | ResetCameraTag |
| unsigned long | ResetCameraClippingRangeTag |
| int | UseChar |
| int | UseRGB |
| int | UseCompositing |
| vtkCompositer * | Compositer |
| int | NumberOfProcesses |
| vtkDataArray * | PData |
| vtkFloatArray * | ZData |
| vtkDataArray * | LocalPData |
| vtkFloatArray * | LocalZData |
| int | RendererSize [2] |
| int | ReductionFactor |
| int | Lock |
| double | GetBuffersTime |
| double | SetBuffersTime |
| double | CompositeTime |
| double | MaxRenderTime |
| vtkTimerLog * | Timer |
| int | Manual |
| int | FirstRender |
Member Typedef Documentation
| typedef vtkObject vtkCompositeManager::Superclass
|
|
Member Enumeration Documentation
| enum vtkCompositeManager::Tags
|
|
|
|
- Enumeration values:
-
| RENDER_RMI_TAG |
|
| COMPUTE_VISIBLE_PROP_BOUNDS_RMI_TAG |
|
| WIN_INFO_TAG |
|
| REN_INFO_TAG |
|
| BOUNDS_TAG |
|
Definition at line 168 of file vtkCompositeManager.h. |
Constructor & Destructor Documentation
| vtkCompositeManager::vtkCompositeManager |
( |
|
) |
[protected] |
|
| vtkCompositeManager::~vtkCompositeManager |
( |
|
) |
[protected] |
|
Member Function Documentation
| vtkCompositeManager* vtkCompositeManager::New |
( |
|
) |
[static] |
|
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject.
Reimplemented in vtkTreeComposite. |
| virtual const char* vtkCompositeManager::GetClassName |
( |
|
) |
[virtual] |
|
| int vtkCompositeManager::IsTypeOf |
( |
const char * |
type |
) |
[static] |
|
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkObject.
Reimplemented in vtkTreeComposite. |
| virtual int vtkCompositeManager::IsA |
( |
const char * |
type |
) |
[virtual] |
|
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkObject.
Reimplemented in vtkTreeComposite. |
| vtkCompositeManager* vtkCompositeManager::SafeDownCast |
( |
vtkObject * |
o |
) |
[static] |
|
| void vtkCompositeManager::PrintSelf |
( |
ostream & |
os, |
|
|
vtkIndent |
indent |
|
) |
[virtual] |
|
|
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkObject.
Reimplemented in vtkTreeComposite. |
| virtual vtkRenderWindow* vtkCompositeManager::GetRenderWindow |
( |
|
) |
[virtual] |
|
|
|
Set/Get the RenderWindow to use for compositing. We add a start and end observer to the window. |
| virtual void vtkCompositeManager::SetRenderWindow |
( |
vtkRenderWindow * |
renWin |
) |
[virtual] |
|
|
|
Set/Get the RenderWindow to use for compositing. We add a start and end observer to the window. |
| void vtkCompositeManager::InitializePieces |
( |
|
) |
|
|
|
|
This method sets the piece and number of pieces for each actor with a polydata mapper. My other option is to do it every render, but that would force a partioning scheme. |
| void vtkCompositeManager::InitializeOffScreen |
( |
|
) |
|
|
|
|
turn off screen rendering on for the |
| void vtkCompositeManager::StartInteractor |
( |
|
) |
|
|
|
|
Callbacks that initialize and finish the compositing. |
| void vtkCompositeManager::ExitInteractor |
( |
|
) |
|
|
|
|
Callbacks that initialize and finish the compositing. |
| virtual void vtkCompositeManager::StartRender |
( |
|
) |
[virtual] |
|
|
|
Callbacks that initialize and finish the compositing. |
| virtual void vtkCompositeManager::EndRender |
( |
|
) |
[virtual] |
|
|
|
Callbacks that initialize and finish the compositing. |
| virtual void vtkCompositeManager::SatelliteStartRender |
( |
|
) |
[virtual] |
|
|
|
Callbacks that initialize and finish the compositing. |
| virtual void vtkCompositeManager::SatelliteEndRender |
( |
|
) |
[virtual] |
|
|
|
Callbacks that initialize and finish the compositing. |
| void vtkCompositeManager::RenderRMI |
( |
|
) |
|
|
|
|
Callbacks that initialize and finish the compositing. |
| void vtkCompositeManager::ResetCamera |
( |
vtkRenderer * |
ren |
) |
|
|
|
|
Callbacks that initialize and finish the compositing. |
| void vtkCompositeManager::ResetCameraClippingRange |
( |
vtkRenderer * |
ren |
) |
|
|
|
|
Callbacks that initialize and finish the compositing. |
| void vtkCompositeManager::ComputeVisiblePropBoundsRMI |
( |
|
) |
|
|
|
|
Callbacks that initialize and finish the compositing. |
| virtual void vtkCompositeManager::InitializeRMIs |
( |
|
) |
[virtual] |
|
|
|
If the user wants to handle the event loop, then they must call this method to initialize the RMIs. |
| void vtkCompositeManager::SetReductionFactor |
( |
int |
factor |
) |
|
|
|
|
The reduction facor makes the transfered images smaller to decrease the render time. The final image is pixel replicated to be the original size. This option can be used by an interactor style to help get desired frame rates. The factor only needs to be set on process 0. Call SetRenderWindow before calling SetReductionFactor. |
| virtual int vtkCompositeManager::GetReductionFactor |
( |
|
) |
[virtual] |
|
|
|
The reduction facor makes the transfered images smaller to decrease the render time. The final image is pixel replicated to be the original size. This option can be used by an interactor style to help get desired frame rates. The factor only needs to be set on process 0. Call SetRenderWindow before calling SetReductionFactor. |
| void vtkCompositeManager::SetUseChar |
( |
int |
useChar |
) |
|
|
|
|
This flag tells the compositer to use char values for pixel data rather than float. Default is float. I have seen some artifacts on some systems with char. |
| virtual int vtkCompositeManager::GetUseChar |
( |
|
) |
[virtual] |
|
|
|
This flag tells the compositer to use char values for pixel data rather than float. Default is float. I have seen some artifacts on some systems with char. |
| virtual void vtkCompositeManager::UseCharOn |
( |
|
) |
[virtual] |
|
|
|
This flag tells the compositer to use char values for pixel data rather than float. Default is float. I have seen some artifacts on some systems with char. |
| virtual void vtkCompositeManager::UseCharOff |
( |
|
) |
[virtual] |
|
|
|
This flag tells the compositer to use char values for pixel data rather than float. Default is float. I have seen some artifacts on some systems with char. |
| void vtkCompositeManager::SetUseRGB |
( |
int |
useRGB |
) |
|
|
|
|
This flag tells the compositier to get the color buffer as RGB instead of RGBA. We do not use the alpha value so it is not important to get. ATI Radeon cards / drivers do not properly get the color buffer as RGBA. This flag turns the UseChar flag on because VTK does not have methods to get the pixel data as RGB float. |
| virtual int vtkCompositeManager::GetUseRGB |
( |
|
) |
[virtual] |
|
|
|
This flag tells the compositier to get the color buffer as RGB instead of RGBA. We do not use the alpha value so it is not important to get. ATI Radeon cards / drivers do not properly get the color buffer as RGBA. This flag turns the UseChar flag on because VTK does not have methods to get the pixel data as RGB float. |
| virtual void vtkCompositeManager::UseRGBOn |
( |
|
) |
[virtual] |
|
|
|
This flag tells the compositier to get the color buffer as RGB instead of RGBA. We do not use the alpha value so it is not important to get. ATI Radeon cards / drivers do not properly get the color buffer as RGBA. This flag turns the UseChar flag on because VTK does not have methods to get the pixel data as RGB float. |
| virtual void vtkCompositeManager::UseRGBOff |
( |
|
) |
[virtual] |
|
|
|
This flag tells the compositier to get the color buffer as RGB instead of RGBA. We do not use the alpha value so it is not important to get. ATI Radeon cards / drivers do not properly get the color buffer as RGBA. This flag turns the UseChar flag on because VTK does not have methods to get the pixel data as RGB float. |
| virtual void vtkCompositeManager::SetUseCompositing |
( |
int |
|
) |
[virtual] |
|
|
|
This flag turns the compositer on or off. |
| virtual int vtkCompositeManager::GetUseCompositing |
( |
|
) |
[virtual] |
|
|
|
This flag turns the compositer on or off. |
| virtual void vtkCompositeManager::UseCompositingOn |
( |
|
) |
[virtual] |
|
|
|
This flag turns the compositer on or off. |
| virtual void vtkCompositeManager::UseCompositingOff |
( |
|
) |
[virtual] |
|
|
|
This flag turns the compositer on or off. |
| virtual double vtkCompositeManager::GetGetBuffersTime |
( |
|
) |
[virtual] |
|
|
|
Get the times to set/get the buffers, Composite, and the time it takes all processes to finish the rendering step. |
| virtual double vtkCompositeManager::GetSetBuffersTime |
( |
|
) |
[virtual] |
|
|
|
Get the times to set/get the buffers, Composite, and the time it takes all processes to finish the rendering step. |
| virtual double vtkCompositeManager::GetCompositeTime |
( |
|
) |
[virtual] |
|
|
|
Get the times to set/get the buffers, Composite, and the time it takes all processes to finish the rendering step. |
| virtual double vtkCompositeManager::GetMaxRenderTime |
( |
|
) |
[virtual] |
|
|
|
Get the times to set/get the buffers, Composite, and the time it takes all processes to finish the rendering step. |
| float vtkCompositeManager::GetZ |
( |
int |
x, |
|
|
int |
y |
|
) |
|
|
|
|
Get the value of the z buffer at a position. |
|
|
Set/Get the controller use in compositing (set to the global controller by default) If not using the default, this must be called before any other methods. |
|
|
Set/Get the controller use in compositing (set to the global controller by default) If not using the default, this must be called before any other methods. |
| virtual void vtkCompositeManager::CheckForAbortRender |
( |
|
) |
[inline, virtual] |
|
|
|
Used by call backs. Not intended to be called by the user. Empty methods that can be used by the subclass to interupt a parallel render.
Definition at line 180 of file vtkCompositeManager.h. |
| virtual int vtkCompositeManager::CheckForAbortComposite |
( |
|
) |
[inline, virtual] |
|
|
|
Used by call backs. Not intended to be called by the user. Empty methods that can be used by the subclass to interupt a parallel render.
Definition at line 181 of file vtkCompositeManager.h. |
| virtual void vtkCompositeManager::ComputeVisiblePropBounds |
( |
vtkRenderer * |
ren, |
|
|
float |
bounds[6] |
|
) |
[virtual] |
|
|
|
Calculate the bounds by gather information from all processes |
| virtual void vtkCompositeManager::SetManual |
( |
int |
|
) |
[virtual] |
|
|
|
This is for manually compositing. By default Manual is off. When manual compositing is on, then the user must call Render and Composite on each process. The start and end render are not setup in manual mode. |
| virtual int vtkCompositeManager::GetManual |
( |
|
) |
[virtual] |
|
|
|
This is for manually compositing. By default Manual is off. When manual compositing is on, then the user must call Render and Composite on each process. The start and end render are not setup in manual mode. |
| virtual void vtkCompositeManager::ManualOn |
( |
|
) |
[virtual] |
|
|
|
This is for manually compositing. By default Manual is off. When manual compositing is on, then the user must call Render and Composite on each process. The start and end render are not setup in manual mode. |
| virtual void vtkCompositeManager::ManualOff |
( |
|
) |
[virtual] |
|
|
|
This is for manually compositing. By default Manual is off. When manual compositing is on, then the user must call Render and Composite on each process. The start and end render are not setup in manual mode. |
| void vtkCompositeManager::Composite |
( |
|
) |
|
|
|
|
This is for manually compositing. By default Manual is off. When manual compositing is on, then the user must call Render and Composite on each process. The start and end render are not setup in manual mode. |
| virtual void vtkCompositeManager::SetCompositer |
( |
vtkCompositer * |
|
) |
[virtual] |
|
|
|
This methods allows the user to select different compositing algorithms. A vtkCompressCompositer is created as a default value. |
| virtual vtkCompositer* vtkCompositeManager::GetCompositer |
( |
|
) |
[virtual] |
|
|
|
This methods allows the user to select different compositing algorithms. A vtkCompressCompositer is created as a default value. |
| void vtkCompositeManager::DeleteArray |
( |
vtkDataArray * |
da |
) |
[static] |
|
|
|
Methods that allocate and delete memory with special MPIPro calls. |
|
|
Methods that allocate and delete memory with special MPIPro calls. |
|
|
Methods that allocate and delete memory with special MPIPro calls. |
| void vtkCompositeManager::SetNumberOfProcesses |
( |
int |
numProcs |
) |
|
|
|
|
This is here as a temporary hack until I can get sub-worlds (communicators) working. It restricts compositing to occur on the first N processes. |
| virtual int vtkCompositeManager::GetNumberOfProcesses |
( |
|
) |
[virtual] |
|
|
|
This is here as a temporary hack until I can get sub-worlds (communicators) working. It restricts compositing to occur on the first N processes. |
| void vtkCompositeManager::SetRendererSize |
( |
int |
x, |
|
|
int |
y |
|
) |
[protected] |
|
| void vtkCompositeManager::MagnifyBuffer |
( |
vtkDataArray * |
localPdata, |
|
|
vtkDataArray * |
magPdata, |
|
|
int |
windowSize[2] |
|
) |
[protected] |
|
| void vtkCompositeManager::ReallocPDataArrays |
( |
|
) |
[protected] |
|
Member Data Documentation
unsigned long vtkCompositeManager::StartInteractorTag [protected]
|
|
unsigned long vtkCompositeManager::EndInteractorTag [protected]
|
|
unsigned long vtkCompositeManager::StartTag [protected]
|
|
unsigned long vtkCompositeManager::EndTag [protected]
|
|
unsigned long vtkCompositeManager::ResetCameraTag [protected]
|
|
unsigned long vtkCompositeManager::ResetCameraClippingRangeTag [protected]
|
|
int vtkCompositeManager::UseChar [protected]
|
|
int vtkCompositeManager::UseRGB [protected]
|
|
int vtkCompositeManager::UseCompositing [protected]
|
|
int vtkCompositeManager::NumberOfProcesses [protected]
|
|
int vtkCompositeManager::RendererSize[2] [protected]
|
|
int vtkCompositeManager::ReductionFactor [protected]
|
|
int vtkCompositeManager::Lock [protected]
|
|
double vtkCompositeManager::GetBuffersTime [protected]
|
|
double vtkCompositeManager::SetBuffersTime [protected]
|
|
double vtkCompositeManager::CompositeTime [protected]
|
|
double vtkCompositeManager::MaxRenderTime [protected]
|
|
int vtkCompositeManager::Manual [protected]
|
|
int vtkCompositeManager::FirstRender [protected]
|
|
The documentation for this class was generated from the following file:
