vtkCutMaterial Class Reference
#include <vtkCutMaterial.h>

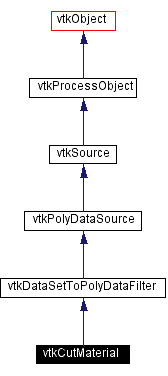

Inheritance diagram for vtkCutMaterial:
[legend]Collaboration diagram for vtkCutMaterial:
[legend]List of all members.
Detailed Description
Automatically computes the cut plane for a material array pair.
- Date:
-
2002/05/17 01:50:34
- Revision:
-
1.9
vtkCutMaterial computes a cut plane based on an up vector, center of the bounding box and the location of the maximum variable value. These computed values are available so that they can be used to set the camera for the best view of the plane.
- Created by:
-
- CVS contributions (if > 5%):
-
- Law, Charles (84%)
- Cedilnik, Andy (7%)
- CVS logs (CVSweb):
-
- .
cxx (/Parallel/vtkCutMaterial.cxx) - .
h (/Parallel/vtkCutMaterial.h)
- Tests:
-
vtkCutMaterial (Tests)
Definition at line 49 of file vtkCutMaterial.h.
|
Public Types |
| typedef vtkDataSetToPolyDataFilter | Superclass |
Public Methods |
| void | PrintSelf (ostream &os, vtkIndent indent) |
| virtual const char * | GetClassName () |
| virtual int | IsA (const char *type) |
|
| virtual void | SetMaterialArrayName (const char *) |
| virtual char * | GetMaterialArrayName () |
|
| virtual void | SetMaterial (int) |
| virtual int | GetMaterial () |
|
| virtual void | SetArrayName (const char *) |
| virtual char * | GetArrayName () |
|
| virtual void | SetUpVector (float, float, float) |
| virtual void | SetUpVector (float[3]) |
| virtual float * | GetUpVector () |
| virtual void | GetUpVector (float &, float &, float &) |
| virtual void | GetUpVector (float[3]) |
|
| virtual float * | GetMaximumPoint () |
| virtual void | GetMaximumPoint (float &, float &, float &) |
| virtual void | GetMaximumPoint (float[3]) |
| virtual float * | GetCenterPoint () |
| virtual void | GetCenterPoint (float &, float &, float &) |
| virtual void | GetCenterPoint (float[3]) |
| virtual float * | GetNormal () |
| virtual void | GetNormal (float &, float &, float &) |
| virtual void | GetNormal (float[3]) |
Static Public Methods |
| int | IsTypeOf (const char *type) |
| vtkCutMaterial * | SafeDownCast (vtkObject *o) |
| vtkCutMaterial * | New () |
Protected Methods |
| | vtkCutMaterial () |
| | ~vtkCutMaterial () |
| void | Execute () |
| void | ComputeMaximumPoint (vtkDataSet *input) |
| void | ComputeNormal () |
Protected Attributes |
| char * | MaterialArrayName |
| int | Material |
| char * | ArrayName |
| float | UpVector [3] |
| float | MaximumPoint [3] |
| float | CenterPoint [3] |
| float | Normal [3] |
| vtkPlane * | PlaneFunction |
Member Typedef Documentation
Constructor & Destructor Documentation
| vtkCutMaterial::vtkCutMaterial |
( |
|
) |
[protected] |
|
| vtkCutMaterial::~vtkCutMaterial |
( |
|
) |
[protected] |
|
Member Function Documentation
| void vtkCutMaterial::PrintSelf |
( |
ostream & |
os, |
|
|
vtkIndent |
indent |
|
) |
[virtual] |
|
|
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkDataSetToPolyDataFilter. |
| virtual const char* vtkCutMaterial::GetClassName |
( |
|
) |
[virtual] |
|
| int vtkCutMaterial::IsTypeOf |
( |
const char * |
type |
) |
[static] |
|
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkDataSetToPolyDataFilter. |
| virtual int vtkCutMaterial::IsA |
( |
const char * |
type |
) |
[virtual] |
|
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkDataSetToPolyDataFilter. |
| vtkCutMaterial* vtkCutMaterial::SafeDownCast |
( |
vtkObject * |
o |
) |
[static] |
|
| vtkCutMaterial* vtkCutMaterial::New |
( |
|
) |
[static] |
|
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject. |
| virtual void vtkCutMaterial::SetMaterialArrayName |
( |
const char * |
|
) |
[virtual] |
|
|
|
Cell array that contains the material values. |
| virtual char* vtkCutMaterial::GetMaterialArrayName |
( |
|
) |
[virtual] |
|
|
|
Cell array that contains the material values. |
| virtual void vtkCutMaterial::SetMaterial |
( |
int |
|
) |
[virtual] |
|
| virtual int vtkCutMaterial::GetMaterial |
( |
|
) |
[virtual] |
|
| virtual void vtkCutMaterial::SetArrayName |
( |
const char * |
|
) |
[virtual] |
|
|
|
For now, we just use the cell values. The array name to cut. |
| virtual char* vtkCutMaterial::GetArrayName |
( |
|
) |
[virtual] |
|
|
|
For now, we just use the cell values. The array name to cut. |
| virtual void vtkCutMaterial::SetUpVector |
( |
float |
, |
|
|
float |
, |
|
|
float |
|
|
) |
[virtual] |
|
|
|
The last piece of information that specifies the plane. |
| virtual void vtkCutMaterial::SetUpVector |
( |
float |
[3] |
) |
[virtual] |
|
|
|
The last piece of information that specifies the plane. |
| virtual float* vtkCutMaterial::GetUpVector |
( |
|
) |
[virtual] |
|
|
|
The last piece of information that specifies the plane. |
| virtual void vtkCutMaterial::GetUpVector |
( |
float & |
, |
|
|
float & |
, |
|
|
float & |
|
|
) |
[virtual] |
|
|
|
The last piece of information that specifies the plane. |
| virtual void vtkCutMaterial::GetUpVector |
( |
float |
[3] |
) |
[virtual] |
|
|
|
The last piece of information that specifies the plane. |
| virtual float* vtkCutMaterial::GetMaximumPoint |
( |
|
) |
[virtual] |
|
|
|
Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane. |
| virtual void vtkCutMaterial::GetMaximumPoint |
( |
float & |
, |
|
|
float & |
, |
|
|
float & |
|
|
) |
[virtual] |
|
|
|
Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane. |
| virtual void vtkCutMaterial::GetMaximumPoint |
( |
float |
[3] |
) |
[virtual] |
|
|
|
Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane. |
| virtual float* vtkCutMaterial::GetCenterPoint |
( |
|
) |
[virtual] |
|
|
|
Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane. |
| virtual void vtkCutMaterial::GetCenterPoint |
( |
float & |
, |
|
|
float & |
, |
|
|
float & |
|
|
) |
[virtual] |
|
|
|
Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane. |
| virtual void vtkCutMaterial::GetCenterPoint |
( |
float |
[3] |
) |
[virtual] |
|
|
|
Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane. |
| virtual float* vtkCutMaterial::GetNormal |
( |
|
) |
[virtual] |
|
|
|
Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane. |
| virtual void vtkCutMaterial::GetNormal |
( |
float & |
, |
|
|
float & |
, |
|
|
float & |
|
|
) |
[virtual] |
|
|
|
Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane. |
| virtual void vtkCutMaterial::GetNormal |
( |
float |
[3] |
) |
[virtual] |
|
|
|
Accesses to the values computed during the execute method. They could be used to get a good camera view for the resulting plane. |
| void vtkCutMaterial::Execute |
( |
|
) |
[protected, virtual] |
|
|
|
This method is the old style execute method
Reimplemented from vtkSource. |
| void vtkCutMaterial::ComputeMaximumPoint |
( |
vtkDataSet * |
input |
) |
[protected] |
|
| void vtkCutMaterial::ComputeNormal |
( |
|
) |
[protected] |
|
Member Data Documentation
char* vtkCutMaterial::MaterialArrayName [protected]
|
|
int vtkCutMaterial::Material [protected]
|
|
char* vtkCutMaterial::ArrayName [protected]
|
|
float vtkCutMaterial::UpVector[3] [protected]
|
|
float vtkCutMaterial::MaximumPoint[3] [protected]
|
|
float vtkCutMaterial::CenterPoint[3] [protected]
|
|
float vtkCutMaterial::Normal[3] [protected]
|
|
vtkPlane* vtkCutMaterial::PlaneFunction [protected]
|
|
The documentation for this class was generated from the following file:
