vtkDataObjectToDataSetFilter Class Reference

#include <vtkDataObjectToDataSetFilter.h>

Inheritance diagram for vtkDataObjectToDataSetFilter:

Inheritance graph
[legend]

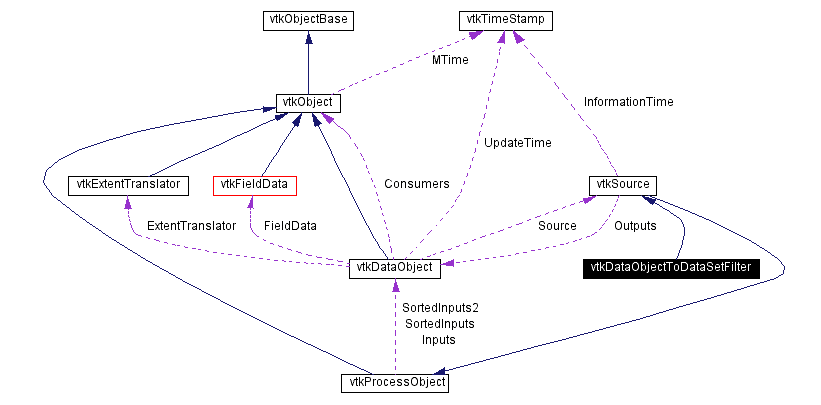

Collaboration diagram for vtkDataObjectToDataSetFilter:

Collaboration graph
[legend]
List of all members.

Detailed Description

map field data to concrete dataset

Date:
2002/11/03 22:51:55
Revision:
1.26

vtkDataObjectToDataSetFilter is an class that maps a data object (i.e., a field) into a concrete dataset, i.e., gives structure to the field by defining a geometry and topology.

To use this filter you associate components in the input field data with portions of the output dataset. (A component is an array of values from the field.) For example, you would specify x-y-z points by assigning components from the field for the x, then y, then z values of the points. You may also have to specify component ranges (for each z-y-z) to make sure that the number of x, y, and z values is the same. Also, you may want to normalize the components which helps distribute the data uniformly. Once you've setup the filter to combine all the pieces of data into a specified dataset (the geometry, topology, point and cell data attributes), the various output methods (e.g., GetPolyData()) are used to retrieve the final product.

This filter is often used in conjunction with vtkFieldDataToAttributeDataFilter. vtkFieldDataToAttributeDataFilter takes field data and transforms it into attribute data (e.g., point and cell data attributes such as scalars and vectors). To do this, use this filter which constructs a concrete dataset and passes the input data object field data to its output. and then use vtkFieldDataToAttributeDataFilter to generate the attribute data associated with the dataset.

Warning:
Make sure that the data you extract is consistent. That is, if you have N points, extract N x, y, and z components. Also, all the information necessary to define a dataset must be given. For example, vtkPolyData requires points at a minimum; vtkStructuredPoints requires setting the dimensions; vtkStructuredGrid requires defining points and dimensions; vtkUnstructuredGrid requires setting points; and vtkRectilinearGrid requires that you define the x, y, and z-coordinate arrays (by specifying points) as well as the dimensions.
Warning:
If you wish to create a dataset of just points (i.e., unstructured points dataset), create vtkPolyData consisting of points. There will be no cells in such a dataset.
See also:
vtkDataObject vtkFieldData vtkDataSet vtkPolyData vtkStructuredPoints vtkStructuredGrid vtkUnstructuredGrid vtkRectilinearGrid vtkDataSetAttributes vtkDataArray
Created by:
  • Schroeder, Will
CVS contributions (if > 5%):
  • Schroeder, Will (71%)
  • Cedilnik, Andy (9%)
  • Martin, Ken (6%)
  • Lorensen, Bill (5%)
CVS logs (CVSweb):
  • .h (/Graphics/vtkDataObjectToDataSetFilter.h)
  • .cxx (/Graphics/vtkDataObjectToDataSetFilter.cxx)
Examples:
vtkDataObjectToDataSetFilter (Examples)
Tests:
vtkDataObjectToDataSetFilter (Tests)

Definition at line 102 of file vtkDataObjectToDataSetFilter.h.

Public Types

typedef vtkSource Superclass

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetInput (vtkDataObject *input)
vtkDataObjectGetInput ()
void SetDataSetType (int)
virtual int GetDataSetType ()
void SetDataSetTypeToPolyData ()
void SetDataSetTypeToStructuredPoints ()
void SetDataSetTypeToStructuredGrid ()
void SetDataSetTypeToRectilinearGrid ()
void SetDataSetTypeToUnstructuredGrid ()
vtkDataSetGetOutput ()
vtkDataSetGetOutput (int idx)
vtkPolyDataGetPolyDataOutput ()
vtkStructuredPointsGetStructuredPointsOutput ()
vtkStructuredGridGetStructuredGridOutput ()
vtkUnstructuredGridGetUnstructuredGridOutput ()
vtkRectilinearGridGetRectilinearGridOutput ()
void SetPointComponent (int comp, char *arrayName, int arrayComp, int min, int max, int normalize)
void SetPointComponent (int comp, char *arrayName, int arrayComp)
const char * GetPointComponentArrayName (int comp)
int GetPointComponentArrayComponent (int comp)
int GetPointComponentMinRange (int comp)
int GetPointComponentMaxRange (int comp)
int GetPointComponentNormailzeFlag (int comp)
void SetVertsComponent (char *arrayName, int arrayComp, int min, int max)
void SetVertsComponent (char *arrayName, int arrayComp)
const char * GetVertsComponentArrayName ()
int GetVertsComponentArrayComponent ()
int GetVertsComponentMinRange ()
int GetVertsComponentMaxRange ()
void SetLinesComponent (char *arrayName, int arrayComp, int min, int max)
void SetLinesComponent (char *arrayName, int arrayComp)
const char * GetLinesComponentArrayName ()
int GetLinesComponentArrayComponent ()
int GetLinesComponentMinRange ()
int GetLinesComponentMaxRange ()
void SetPolysComponent (char *arrayName, int arrayComp, int min, int max)
void SetPolysComponent (char *arrayName, int arrayComp)
const char * GetPolysComponentArrayName ()
int GetPolysComponentArrayComponent ()
int GetPolysComponentMinRange ()
int GetPolysComponentMaxRange ()
void SetStripsComponent (char *arrayName, int arrayComp, int min, int max)
void SetStripsComponent (char *arrayName, int arrayComp)
const char * GetStripsComponentArrayName ()
int GetStripsComponentArrayComponent ()
int GetStripsComponentMinRange ()
int GetStripsComponentMaxRange ()
void SetCellTypeComponent (char *arrayName, int arrayComp, int min, int max)
void SetCellTypeComponent (char *arrayName, int arrayComp)
const char * GetCellTypeComponentArrayName ()
int GetCellTypeComponentArrayComponent ()
int GetCellTypeComponentMinRange ()
int GetCellTypeComponentMaxRange ()
void SetCellConnectivityComponent (char *arrayName, int arrayComp, int min, int max)
void SetCellConnectivityComponent (char *arrayName, int arrayComp)
const char * GetCellConnectivityComponentArrayName ()
int GetCellConnectivityComponentArrayComponent ()
int GetCellConnectivityComponentMinRange ()
int GetCellConnectivityComponentMaxRange ()
virtual void SetDefaultNormalize (int)
virtual int GetDefaultNormalize ()
virtual void DefaultNormalizeOn ()
virtual void DefaultNormalizeOff ()
virtual void SetDimensions (int, int, int)
virtual void SetDimensions (int[3])
virtual int * GetDimensions ()
virtual void GetDimensions (int data[3])
virtual void SetOrigin (float, float, float)
virtual void SetOrigin (float[3])
virtual float * GetOrigin ()
virtual void GetOrigin (float data[3])
virtual void SetSpacing (float, float, float)
virtual void SetSpacing (float[3])
virtual float * GetSpacing ()
virtual void GetSpacing (float data[3])
void SetDimensionsComponent (char *arrayName, int arrayComp, int min, int max)
void SetDimensionsComponent (char *arrayName, int arrayComp)
void SetSpacingComponent (char *arrayName, int arrayComp, int min, int max)
void SetSpacingComponent (char *arrayName, int arrayComp)
void SetOriginComponent (char *arrayName, int arrayComp, int min, int max)
void SetOriginComponent (char *arrayName, int arrayComp)

Static Public Methods

vtkDataObjectToDataSetFilter * New ()
int IsTypeOf (const char *type)
vtkDataObjectToDataSetFilter * SafeDownCast (vtkObject *o)

Protected Methods

 vtkDataObjectToDataSetFilter ()
 ~vtkDataObjectToDataSetFilter ()
void Execute ()
void ExecuteInformation ()
void ComputeInputUpdateExtents (vtkDataObject *output)
void SetArrayName (char *&name, char *newName)
vtkIdType ConstructPoints (vtkPointSet *ps)
vtkIdType ConstructPoints (vtkRectilinearGrid *rg)
int ConstructCells (vtkPolyData *pd)
int ConstructCells (vtkUnstructuredGrid *ug)
vtkCellArrayConstructCellArray (vtkDataArray *da, int comp, vtkIdType compRange[2])
void ConstructDimensions ()
void ConstructSpacing ()
void ConstructOrigin ()

Protected Attributes

char Updating
int DataSetType
char * PointArrays [3]
int PointArrayComponents [3]
vtkIdType PointComponentRange [3][2]
int PointNormalize [3]
char * VertsArray
int VertsArrayComponent
vtkIdType VertsComponentRange [2]
char * LinesArray
int LinesArrayComponent
vtkIdType LinesComponentRange [2]
char * PolysArray
int PolysArrayComponent
vtkIdType PolysComponentRange [2]
char * StripsArray
int StripsArrayComponent
vtkIdType StripsComponentRange [2]
char * CellTypeArray
int CellTypeArrayComponent
vtkIdType CellTypeComponentRange [2]
char * CellConnectivityArray
int CellConnectivityArrayComponent
vtkIdType CellConnectivityComponentRange [2]
int DefaultNormalize
int Dimensions [3]
float Origin [3]
float Spacing [3]
char * DimensionsArray
int DimensionsArrayComponent
vtkIdType DimensionsComponentRange [2]
char * OriginArray
int OriginArrayComponent
vtkIdType OriginComponentRange [2]
char * SpacingArray
int SpacingArrayComponent
vtkIdType SpacingComponentRange [2]


Member Typedef Documentation

typedef vtkSource vtkDataObjectToDataSetFilter::Superclass


Reimplemented from vtkSource.

Definition at line 106 of file vtkDataObjectToDataSetFilter.h.


Constructor & Destructor Documentation

vtkDataObjectToDataSetFilter::vtkDataObjectToDataSetFilter   [protected]


vtkDataObjectToDataSetFilter::~vtkDataObjectToDataSetFilter   [protected]



Member Function Documentation

vtkDataObjectToDataSetFilter* vtkDataObjectToDataSetFilter::New   [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkDataObjectToDataSetFilter::GetClassName   [virtual]


Reimplemented from vtkSource.

int vtkDataObjectToDataSetFilter::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

virtual int vtkDataObjectToDataSetFilter::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkSource.

vtkDataObjectToDataSetFilter* vtkDataObjectToDataSetFilter::SafeDownCast vtkObject   o [static]


Reimplemented from vtkSource.

void vtkDataObjectToDataSetFilter::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkSource.

void vtkDataObjectToDataSetFilter::SetInput vtkDataObject   input


Set the input to the filter.

vtkDataObject* vtkDataObjectToDataSetFilter::GetInput


Set the input to the filter.

void vtkDataObjectToDataSetFilter::SetDataSetType int


Control what type of data is generated for output.

virtual int vtkDataObjectToDataSetFilter::GetDataSetType   [virtual]


Control what type of data is generated for output.

void vtkDataObjectToDataSetFilter::SetDataSetTypeToPolyData   [inline]


Control what type of data is generated for output.

Definition at line 119 of file vtkDataObjectToDataSetFilter.h.

References VTK_POLY_DATA.

void vtkDataObjectToDataSetFilter::SetDataSetTypeToStructuredPoints   [inline]


Control what type of data is generated for output.

Definition at line 121 of file vtkDataObjectToDataSetFilter.h.

References VTK_STRUCTURED_POINTS.

void vtkDataObjectToDataSetFilter::SetDataSetTypeToStructuredGrid   [inline]


Control what type of data is generated for output.

Definition at line 123 of file vtkDataObjectToDataSetFilter.h.

References VTK_STRUCTURED_GRID.

void vtkDataObjectToDataSetFilter::SetDataSetTypeToRectilinearGrid   [inline]


Control what type of data is generated for output.

Definition at line 125 of file vtkDataObjectToDataSetFilter.h.

References VTK_RECTILINEAR_GRID.

void vtkDataObjectToDataSetFilter::SetDataSetTypeToUnstructuredGrid   [inline]


Control what type of data is generated for output.

Definition at line 127 of file vtkDataObjectToDataSetFilter.h.

References VTK_UNSTRUCTURED_GRID.

vtkDataSet* vtkDataObjectToDataSetFilter::GetOutput


Get the output in different forms. The particular method invoked should be consistent with the SetDataSetType() method. (Note: GetOutput() will always return a type consistent with SetDataSetType(). Also, GetOutput() will return NULL if the filter aborted due to inconsistent data.)

vtkDataSet* vtkDataObjectToDataSetFilter::GetOutput int    idx


Get the output in different forms. The particular method invoked should be consistent with the SetDataSetType() method. (Note: GetOutput() will always return a type consistent with SetDataSetType(). Also, GetOutput() will return NULL if the filter aborted due to inconsistent data.)

Reimplemented from vtkSource.

vtkPolyData* vtkDataObjectToDataSetFilter::GetPolyDataOutput


Get the output in different forms. The particular method invoked should be consistent with the SetDataSetType() method. (Note: GetOutput() will always return a type consistent with SetDataSetType(). Also, GetOutput() will return NULL if the filter aborted due to inconsistent data.)

vtkStructuredPoints* vtkDataObjectToDataSetFilter::GetStructuredPointsOutput


Get the output in different forms. The particular method invoked should be consistent with the SetDataSetType() method. (Note: GetOutput() will always return a type consistent with SetDataSetType(). Also, GetOutput() will return NULL if the filter aborted due to inconsistent data.)

vtkStructuredGrid* vtkDataObjectToDataSetFilter::GetStructuredGridOutput


Get the output in different forms. The particular method invoked should be consistent with the SetDataSetType() method. (Note: GetOutput() will always return a type consistent with SetDataSetType(). Also, GetOutput() will return NULL if the filter aborted due to inconsistent data.)

vtkUnstructuredGrid* vtkDataObjectToDataSetFilter::GetUnstructuredGridOutput


Get the output in different forms. The particular method invoked should be consistent with the SetDataSetType() method. (Note: GetOutput() will always return a type consistent with SetDataSetType(). Also, GetOutput() will return NULL if the filter aborted due to inconsistent data.)

vtkRectilinearGrid* vtkDataObjectToDataSetFilter::GetRectilinearGridOutput


Get the output in different forms. The particular method invoked should be consistent with the SetDataSetType() method. (Note: GetOutput() will always return a type consistent with SetDataSetType(). Also, GetOutput() will return NULL if the filter aborted due to inconsistent data.)

void vtkDataObjectToDataSetFilter::SetPointComponent int    comp,
char *    arrayName,
int    arrayComp,
int    min,
int    max,
int    normalize


Define the component of the field to be used for the x, y, and z values of the points. Note that the parameter comp must lie between (0,2) and refers to the x-y-z (i.e., 0,1,2) components of the points. To define the field component to use you can specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract. (This method should be used for vtkPolyData, vtkUnstructuredGrid, vtkStructuredGrid, and vtkRectilinearGrid.) A convenience method, SetPointComponent(),is also provided which does not require setting the (min,max) component range or the normalize flag (normalize is set to DefaulatNormalize value).

void vtkDataObjectToDataSetFilter::SetPointComponent int    comp,
char *    arrayName,
int    arrayComp
[inline]


Define the component of the field to be used for the x, y, and z values of the points. Note that the parameter comp must lie between (0,2) and refers to the x-y-z (i.e., 0,1,2) components of the points. To define the field component to use you can specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract. (This method should be used for vtkPolyData, vtkUnstructuredGrid, vtkStructuredGrid, and vtkRectilinearGrid.) A convenience method, SetPointComponent(),is also provided which does not require setting the (min,max) component range or the normalize flag (normalize is set to DefaulatNormalize value).

Definition at line 160 of file vtkDataObjectToDataSetFilter.h.

const char* vtkDataObjectToDataSetFilter::GetPointComponentArrayName int    comp


Define the component of the field to be used for the x, y, and z values of the points. Note that the parameter comp must lie between (0,2) and refers to the x-y-z (i.e., 0,1,2) components of the points. To define the field component to use you can specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract. (This method should be used for vtkPolyData, vtkUnstructuredGrid, vtkStructuredGrid, and vtkRectilinearGrid.) A convenience method, SetPointComponent(),is also provided which does not require setting the (min,max) component range or the normalize flag (normalize is set to DefaulatNormalize value).

int vtkDataObjectToDataSetFilter::GetPointComponentArrayComponent int    comp


Define the component of the field to be used for the x, y, and z values of the points. Note that the parameter comp must lie between (0,2) and refers to the x-y-z (i.e., 0,1,2) components of the points. To define the field component to use you can specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract. (This method should be used for vtkPolyData, vtkUnstructuredGrid, vtkStructuredGrid, and vtkRectilinearGrid.) A convenience method, SetPointComponent(),is also provided which does not require setting the (min,max) component range or the normalize flag (normalize is set to DefaulatNormalize value).

int vtkDataObjectToDataSetFilter::GetPointComponentMinRange int    comp


Define the component of the field to be used for the x, y, and z values of the points. Note that the parameter comp must lie between (0,2) and refers to the x-y-z (i.e., 0,1,2) components of the points. To define the field component to use you can specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract. (This method should be used for vtkPolyData, vtkUnstructuredGrid, vtkStructuredGrid, and vtkRectilinearGrid.) A convenience method, SetPointComponent(),is also provided which does not require setting the (min,max) component range or the normalize flag (normalize is set to DefaulatNormalize value).

int vtkDataObjectToDataSetFilter::GetPointComponentMaxRange int    comp


Define the component of the field to be used for the x, y, and z values of the points. Note that the parameter comp must lie between (0,2) and refers to the x-y-z (i.e., 0,1,2) components of the points. To define the field component to use you can specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract. (This method should be used for vtkPolyData, vtkUnstructuredGrid, vtkStructuredGrid, and vtkRectilinearGrid.) A convenience method, SetPointComponent(),is also provided which does not require setting the (min,max) component range or the normalize flag (normalize is set to DefaulatNormalize value).

int vtkDataObjectToDataSetFilter::GetPointComponentNormailzeFlag int    comp


Define the component of the field to be used for the x, y, and z values of the points. Note that the parameter comp must lie between (0,2) and refers to the x-y-z (i.e., 0,1,2) components of the points. To define the field component to use you can specify an array name and the component in that array. The (min,max) values are the range of data in the component you wish to extract. (This method should be used for vtkPolyData, vtkUnstructuredGrid, vtkStructuredGrid, and vtkRectilinearGrid.) A convenience method, SetPointComponent(),is also provided which does not require setting the (min,max) component range or the normalize flag (normalize is set to DefaulatNormalize value).

void vtkDataObjectToDataSetFilter::SetVertsComponent char *    arrayName,
int    arrayComp,
int    min,
int    max


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

void vtkDataObjectToDataSetFilter::SetVertsComponent char *    arrayName,
int    arrayComp
[inline]


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

Definition at line 178 of file vtkDataObjectToDataSetFilter.h.

const char* vtkDataObjectToDataSetFilter::GetVertsComponentArrayName


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetVertsComponentArrayComponent


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetVertsComponentMinRange


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetVertsComponentMaxRange


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

void vtkDataObjectToDataSetFilter::SetLinesComponent char *    arrayName,
int    arrayComp,
int    min,
int    max


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

void vtkDataObjectToDataSetFilter::SetLinesComponent char *    arrayName,
int    arrayComp
[inline]


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

Definition at line 185 of file vtkDataObjectToDataSetFilter.h.

const char* vtkDataObjectToDataSetFilter::GetLinesComponentArrayName


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetLinesComponentArrayComponent


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetLinesComponentMinRange


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetLinesComponentMaxRange


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

void vtkDataObjectToDataSetFilter::SetPolysComponent char *    arrayName,
int    arrayComp,
int    min,
int    max


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

void vtkDataObjectToDataSetFilter::SetPolysComponent char *    arrayName,
int    arrayComp
[inline]


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

Definition at line 192 of file vtkDataObjectToDataSetFilter.h.

const char* vtkDataObjectToDataSetFilter::GetPolysComponentArrayName


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetPolysComponentArrayComponent


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetPolysComponentMinRange


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetPolysComponentMaxRange


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

void vtkDataObjectToDataSetFilter::SetStripsComponent char *    arrayName,
int    arrayComp,
int    min,
int    max


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

void vtkDataObjectToDataSetFilter::SetStripsComponent char *    arrayName,
int    arrayComp
[inline]


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

Definition at line 199 of file vtkDataObjectToDataSetFilter.h.

const char* vtkDataObjectToDataSetFilter::GetStripsComponentArrayName


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetStripsComponentArrayComponent


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetStripsComponentMinRange


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetStripsComponentMaxRange


Define cell connectivity when creating vtkPolyData. You can define vertices, lines, polygons, and/or triangle strips via these methods. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of values that (for each cell) includes the number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

void vtkDataObjectToDataSetFilter::SetCellTypeComponent char *    arrayName,
int    arrayComp,
int    min,
int    max


Define cell types and cell connectivity when creating unstructured grid data. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of cell types (an integer value per cell), and another array consisting (for each cell) of a number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

void vtkDataObjectToDataSetFilter::SetCellTypeComponent char *    arrayName,
int    arrayComp
[inline]


Define cell types and cell connectivity when creating unstructured grid data. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of cell types (an integer value per cell), and another array consisting (for each cell) of a number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

Definition at line 217 of file vtkDataObjectToDataSetFilter.h.

const char* vtkDataObjectToDataSetFilter::GetCellTypeComponentArrayName


Define cell types and cell connectivity when creating unstructured grid data. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of cell types (an integer value per cell), and another array consisting (for each cell) of a number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetCellTypeComponentArrayComponent


Define cell types and cell connectivity when creating unstructured grid data. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of cell types (an integer value per cell), and another array consisting (for each cell) of a number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetCellTypeComponentMinRange


Define cell types and cell connectivity when creating unstructured grid data. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of cell types (an integer value per cell), and another array consisting (for each cell) of a number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetCellTypeComponentMaxRange


Define cell types and cell connectivity when creating unstructured grid data. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of cell types (an integer value per cell), and another array consisting (for each cell) of a number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

void vtkDataObjectToDataSetFilter::SetCellConnectivityComponent char *    arrayName,
int    arrayComp,
int    min,
int    max


Define cell types and cell connectivity when creating unstructured grid data. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of cell types (an integer value per cell), and another array consisting (for each cell) of a number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

void vtkDataObjectToDataSetFilter::SetCellConnectivityComponent char *    arrayName,
int    arrayComp
[inline]


Define cell types and cell connectivity when creating unstructured grid data. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of cell types (an integer value per cell), and another array consisting (for each cell) of a number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

Definition at line 225 of file vtkDataObjectToDataSetFilter.h.

const char* vtkDataObjectToDataSetFilter::GetCellConnectivityComponentArrayName


Define cell types and cell connectivity when creating unstructured grid data. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of cell types (an integer value per cell), and another array consisting (for each cell) of a number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetCellConnectivityComponentArrayComponent


Define cell types and cell connectivity when creating unstructured grid data. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of cell types (an integer value per cell), and another array consisting (for each cell) of a number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetCellConnectivityComponentMinRange


Define cell types and cell connectivity when creating unstructured grid data. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of cell types (an integer value per cell), and another array consisting (for each cell) of a number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

int vtkDataObjectToDataSetFilter::GetCellConnectivityComponentMaxRange


Define cell types and cell connectivity when creating unstructured grid data. These methods are similar to those for defining points, except that no normalization of the data is possible. Basically, you need to define an array of cell types (an integer value per cell), and another array consisting (for each cell) of a number of points per cell, and then the cell connectivity. (This is the vtk file format described in in the textbook or User's Guide.)

virtual void vtkDataObjectToDataSetFilter::SetDefaultNormalize int    [virtual]


Set the default Normalize() flag for those methods setting a default Normalize value (e.g., SetPointComponent).

virtual int vtkDataObjectToDataSetFilter::GetDefaultNormalize   [virtual]


Set the default Normalize() flag for those methods setting a default Normalize value (e.g., SetPointComponent).

virtual void vtkDataObjectToDataSetFilter::DefaultNormalizeOn   [virtual]


Set the default Normalize() flag for those methods setting a default Normalize value (e.g., SetPointComponent).

virtual void vtkDataObjectToDataSetFilter::DefaultNormalizeOff   [virtual]


Set the default Normalize() flag for those methods setting a default Normalize value (e.g., SetPointComponent).

virtual void vtkDataObjectToDataSetFilter::SetDimensions int   ,
int   ,
int
[virtual]


Specify the dimensions to use if generating a dataset that requires dimensions specification (vtkStructuredPoints, vtkStructuredGrid, vtkRectilinearGrid).

virtual void vtkDataObjectToDataSetFilter::SetDimensions int   [3] [virtual]


Specify the dimensions to use if generating a dataset that requires dimensions specification (vtkStructuredPoints, vtkStructuredGrid, vtkRectilinearGrid).

virtual int* vtkDataObjectToDataSetFilter::GetDimensions   [virtual]


Specify the dimensions to use if generating a dataset that requires dimensions specification (vtkStructuredPoints, vtkStructuredGrid, vtkRectilinearGrid).

virtual void vtkDataObjectToDataSetFilter::GetDimensions int    data[3] [virtual]


Specify the dimensions to use if generating a dataset that requires dimensions specification (vtkStructuredPoints, vtkStructuredGrid, vtkRectilinearGrid).

virtual void vtkDataObjectToDataSetFilter::SetOrigin float   ,
float   ,
float
[virtual]


Specify the origin to use if generating a dataset whose origin can be set (i.e., a vtkStructuredPoints dataset).

virtual void vtkDataObjectToDataSetFilter::SetOrigin float   [3] [virtual]


Specify the origin to use if generating a dataset whose origin can be set (i.e., a vtkStructuredPoints dataset).

virtual float* vtkDataObjectToDataSetFilter::GetOrigin   [virtual]


Specify the origin to use if generating a dataset whose origin can be set (i.e., a vtkStructuredPoints dataset).

virtual void vtkDataObjectToDataSetFilter::GetOrigin float    data[3] [virtual]


Specify the origin to use if generating a dataset whose origin can be set (i.e., a vtkStructuredPoints dataset).

virtual void vtkDataObjectToDataSetFilter::SetSpacing float   ,
float   ,
float
[virtual]


Specify the spacing to use if generating a dataset whose spacing can be set (i.e., a vtkStructuredPoints dataset).

virtual void vtkDataObjectToDataSetFilter::SetSpacing float   [3] [virtual]


Specify the spacing to use if generating a dataset whose spacing can be set (i.e., a vtkStructuredPoints dataset).

virtual float* vtkDataObjectToDataSetFilter::GetSpacing   [virtual]


Specify the spacing to use if generating a dataset whose spacing can be set (i.e., a vtkStructuredPoints dataset).

virtual void vtkDataObjectToDataSetFilter::GetSpacing float    data[3] [virtual]


Specify the spacing to use if generating a dataset whose spacing can be set (i.e., a vtkStructuredPoints dataset).

void vtkDataObjectToDataSetFilter::SetDimensionsComponent char *    arrayName,
int    arrayComp,
int    min,
int    max


Alternative methods to specify the dimensions, spacing, and origin for those datasets requiring this information. You need to specify the name of an array; the component of the array, and the range of the array (min,max). These methods will override the information given by the previous methods.

void vtkDataObjectToDataSetFilter::SetDimensionsComponent char *    arrayName,
int    arrayComp
[inline]


Alternative methods to specify the dimensions, spacing, and origin for those datasets requiring this information. You need to specify the name of an array; the component of the array, and the range of the array (min,max). These methods will override the information given by the previous methods.

Definition at line 270 of file vtkDataObjectToDataSetFilter.h.

void vtkDataObjectToDataSetFilter::SetSpacingComponent char *    arrayName,
int    arrayComp,
int    min,
int    max


Alternative methods to specify the dimensions, spacing, and origin for those datasets requiring this information. You need to specify the name of an array; the component of the array, and the range of the array (min,max). These methods will override the information given by the previous methods.

void vtkDataObjectToDataSetFilter::SetSpacingComponent char *    arrayName,
int    arrayComp
[inline]


Alternative methods to specify the dimensions, spacing, and origin for those datasets requiring this information. You need to specify the name of an array; the component of the array, and the range of the array (min,max). These methods will override the information given by the previous methods.

Definition at line 273 of file vtkDataObjectToDataSetFilter.h.

void vtkDataObjectToDataSetFilter::SetOriginComponent char *    arrayName,
int    arrayComp,
int    min,
int    max


Alternative methods to specify the dimensions, spacing, and origin for those datasets requiring this information. You need to specify the name of an array; the component of the array, and the range of the array (min,max). These methods will override the information given by the previous methods.

void vtkDataObjectToDataSetFilter::SetOriginComponent char *    arrayName,
int    arrayComp
[inline]


Alternative methods to specify the dimensions, spacing, and origin for those datasets requiring this information. You need to specify the name of an array; the component of the array, and the range of the array (min,max). These methods will override the information given by the previous methods.

Definition at line 276 of file vtkDataObjectToDataSetFilter.h.

void vtkDataObjectToDataSetFilter::Execute   [protected, virtual]


This method is the old style execute method

Reimplemented from vtkSource.

void vtkDataObjectToDataSetFilter::ExecuteInformation   [protected, virtual]


Reimplemented from vtkSource.

void vtkDataObjectToDataSetFilter::ComputeInputUpdateExtents vtkDataObject   output [protected, virtual]


What is the input update extent that is required to produce the desired output? By default, the whole input is always required but this is overridden in many subclasses.

Reimplemented from vtkSource.

void vtkDataObjectToDataSetFilter::SetArrayName char *&    name,
char *    newName
[protected]


vtkIdType vtkDataObjectToDataSetFilter::ConstructPoints vtkPointSet   ps [protected]


vtkIdType vtkDataObjectToDataSetFilter::ConstructPoints vtkRectilinearGrid   rg [protected]


int vtkDataObjectToDataSetFilter::ConstructCells vtkPolyData   pd [protected]


int vtkDataObjectToDataSetFilter::ConstructCells vtkUnstructuredGrid   ug [protected]


vtkCellArray* vtkDataObjectToDataSetFilter::ConstructCellArray vtkDataArray   da,
int    comp,
vtkIdType    compRange[2]
[protected]


void vtkDataObjectToDataSetFilter::ConstructDimensions   [protected]


void vtkDataObjectToDataSetFilter::ConstructSpacing   [protected]


void vtkDataObjectToDataSetFilter::ConstructOrigin   [protected]



Member Data Documentation

char vtkDataObjectToDataSetFilter::Updating [protected]


Reimplemented from vtkSource.

Definition at line 288 of file vtkDataObjectToDataSetFilter.h.

int vtkDataObjectToDataSetFilter::DataSetType [protected]


Definition at line 291 of file vtkDataObjectToDataSetFilter.h.

char* vtkDataObjectToDataSetFilter::PointArrays[3] [protected]


Definition at line 294 of file vtkDataObjectToDataSetFilter.h.

int vtkDataObjectToDataSetFilter::PointArrayComponents[3] [protected]


Definition at line 295 of file vtkDataObjectToDataSetFilter.h.

vtkIdType vtkDataObjectToDataSetFilter::PointComponentRange[3][2] [protected]


Definition at line 296 of file vtkDataObjectToDataSetFilter.h.

int vtkDataObjectToDataSetFilter::PointNormalize[3] [protected]


Definition at line 297 of file vtkDataObjectToDataSetFilter.h.

char* vtkDataObjectToDataSetFilter::VertsArray [protected]


Definition at line 300 of file vtkDataObjectToDataSetFilter.h.

int vtkDataObjectToDataSetFilter::VertsArrayComponent [protected]


Definition at line 301 of file vtkDataObjectToDataSetFilter.h.

vtkIdType vtkDataObjectToDataSetFilter::VertsComponentRange[2] [protected]


Definition at line 302 of file vtkDataObjectToDataSetFilter.h.

char* vtkDataObjectToDataSetFilter::LinesArray [protected]


Definition at line 304 of file vtkDataObjectToDataSetFilter.h.

int vtkDataObjectToDataSetFilter::LinesArrayComponent [protected]


Definition at line 305 of file vtkDataObjectToDataSetFilter.h.

vtkIdType vtkDataObjectToDataSetFilter::LinesComponentRange[2] [protected]


Definition at line 306 of file vtkDataObjectToDataSetFilter.h.

char* vtkDataObjectToDataSetFilter::PolysArray [protected]


Definition at line 308 of file vtkDataObjectToDataSetFilter.h.

int vtkDataObjectToDataSetFilter::PolysArrayComponent [protected]


Definition at line 309 of file vtkDataObjectToDataSetFilter.h.

vtkIdType vtkDataObjectToDataSetFilter::PolysComponentRange[2] [protected]


Definition at line 310 of file vtkDataObjectToDataSetFilter.h.

char* vtkDataObjectToDataSetFilter::StripsArray [protected]


Definition at line 312 of file vtkDataObjectToDataSetFilter.h.

int vtkDataObjectToDataSetFilter::StripsArrayComponent [protected]


Definition at line 313 of file vtkDataObjectToDataSetFilter.h.

vtkIdType vtkDataObjectToDataSetFilter::StripsComponentRange[2] [protected]


Definition at line 314 of file vtkDataObjectToDataSetFilter.h.

char* vtkDataObjectToDataSetFilter::CellTypeArray [protected]


Definition at line 317 of file vtkDataObjectToDataSetFilter.h.

int vtkDataObjectToDataSetFilter::CellTypeArrayComponent [protected]


Definition at line 318 of file vtkDataObjectToDataSetFilter.h.

vtkIdType vtkDataObjectToDataSetFilter::CellTypeComponentRange[2] [protected]


Definition at line 319 of file vtkDataObjectToDataSetFilter.h.

char* vtkDataObjectToDataSetFilter::CellConnectivityArray [protected]


Definition at line 321 of file vtkDataObjectToDataSetFilter.h.

int vtkDataObjectToDataSetFilter::CellConnectivityArrayComponent [protected]


Definition at line 322 of file vtkDataObjectToDataSetFilter.h.

vtkIdType vtkDataObjectToDataSetFilter::CellConnectivityComponentRange[2] [protected]


Definition at line 323 of file vtkDataObjectToDataSetFilter.h.

int vtkDataObjectToDataSetFilter::DefaultNormalize [protected]


Definition at line 335 of file vtkDataObjectToDataSetFilter.h.

int vtkDataObjectToDataSetFilter::Dimensions[3] [protected]


Definition at line 338 of file vtkDataObjectToDataSetFilter.h.

float vtkDataObjectToDataSetFilter::Origin[3] [protected]


Definition at line 339 of file vtkDataObjectToDataSetFilter.h.

float vtkDataObjectToDataSetFilter::Spacing[3] [protected]


Definition at line 340 of file vtkDataObjectToDataSetFilter.h.

char* vtkDataObjectToDataSetFilter::DimensionsArray [protected]


Definition at line 342 of file vtkDataObjectToDataSetFilter.h.

int vtkDataObjectToDataSetFilter::DimensionsArrayComponent [protected]


Definition at line 343 of file vtkDataObjectToDataSetFilter.h.

vtkIdType vtkDataObjectToDataSetFilter::DimensionsComponentRange[2] [protected]


Definition at line 344 of file vtkDataObjectToDataSetFilter.h.

char* vtkDataObjectToDataSetFilter::OriginArray [protected]


Definition at line 346 of file vtkDataObjectToDataSetFilter.h.

int vtkDataObjectToDataSetFilter::OriginArrayComponent [protected]


Definition at line 347 of file vtkDataObjectToDataSetFilter.h.

vtkIdType vtkDataObjectToDataSetFilter::OriginComponentRange[2] [protected]


Definition at line 348 of file vtkDataObjectToDataSetFilter.h.

char* vtkDataObjectToDataSetFilter::SpacingArray [protected]


Definition at line 350 of file vtkDataObjectToDataSetFilter.h.

int vtkDataObjectToDataSetFilter::SpacingArrayComponent [protected]


Definition at line 351 of file vtkDataObjectToDataSetFilter.h.

vtkIdType vtkDataObjectToDataSetFilter::SpacingComponentRange[2] [protected]


Definition at line 352 of file vtkDataObjectToDataSetFilter.h.


The documentation for this class was generated from the following file:
