vtkDataSetMapper Class Reference

#include <vtkDataSetMapper.h>

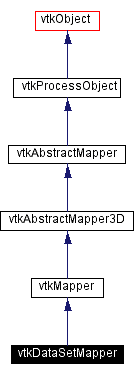

Inheritance diagram for vtkDataSetMapper:

Inheritance graph
[legend]
Collaboration diagram for vtkDataSetMapper:

Collaboration graph
[legend]
List of all members.

Detailed Description

map vtkDataSet and derived classes to graphics primitives

Date:
2002/05/28 03:33:50
Revision:
1.54

vtkDataSetMapper is a mapper to map data sets (i.e., vtkDataSet and all derived classes) to graphics primitives. The mapping procedure is as follows: all 0D, 1D, and 2D cells are converted into points, lines, and polygons/triangle strips and then mapped to the graphics system. The 2D faces of 3D cells are mapped only if they are used by only one cell, i.e., on the boundary of the data set.

Created by:
  • Schroeder, Will
CVS contributions (if > 5%):
  • Schroeder, Will (61%)
  • Martin, Ken (11%)
  • Law, Charles (7%)
  • Avila, Lisa (5%)
CVS logs (CVSweb):
  • .cxx (/Rendering/vtkDataSetMapper.cxx)
  • .h (/Rendering/vtkDataSetMapper.h)
Examples:
vtkDataSetMapper (Examples)
Tests:
vtkDataSetMapper (Tests)

Definition at line 57 of file vtkDataSetMapper.h.

Public Types

typedef vtkMapper Superclass

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void Render (vtkRenderer *ren, vtkActor *act)
void ReleaseGraphicsResources (vtkWindow *)
unsigned long GetMTime ()
virtual vtkPolyDataMapperGetPolyDataMapper ()
void SetInput (vtkDataSet *input)
vtkDataSetGetInput ()

Static Public Methods

vtkDataSetMapper * New ()
int IsTypeOf (const char *type)
vtkDataSetMapper * SafeDownCast (vtkObject *o)

Protected Methods

 vtkDataSetMapper ()
 ~vtkDataSetMapper ()

Protected Attributes

vtkDataSetSurfaceFilterGeometryExtractor
vtkPolyDataMapperPolyDataMapper


Member Typedef Documentation

typedef vtkMapper vtkDataSetMapper::Superclass


Reimplemented from vtkMapper.

Definition at line 61 of file vtkDataSetMapper.h.


Constructor & Destructor Documentation

vtkDataSetMapper::vtkDataSetMapper   [protected]


vtkDataSetMapper::~vtkDataSetMapper   [protected]



Member Function Documentation

vtkDataSetMapper* vtkDataSetMapper::New   [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkDataSetMapper::GetClassName   [virtual]


Reimplemented from vtkMapper.

int vtkDataSetMapper::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMapper.

virtual int vtkDataSetMapper::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkMapper.

vtkDataSetMapper* vtkDataSetMapper::SafeDownCast vtkObject   o [static]


Reimplemented from vtkMapper.

void vtkDataSetMapper::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkMapper.

void vtkDataSetMapper::Render vtkRenderer   ren,
vtkActor   act
[virtual]


Method initiates the mapping process. Generally sent by the actor as each frame is rendered.

Implements vtkMapper.

virtual vtkPolyDataMapper* vtkDataSetMapper::GetPolyDataMapper   [virtual]


Get the internal poly data mapper used to map data set to graphics system.

void vtkDataSetMapper::ReleaseGraphicsResources vtkWindow   [virtual]


Release any graphics resources that are being consumed by this mapper. The parameter window could be used to determine which graphic resources to release.

Reimplemented from vtkMapper.

unsigned long vtkDataSetMapper::GetMTime   [virtual]


Get the mtime also considering the lookup table.

Reimplemented from vtkMapper.

void vtkDataSetMapper::SetInput vtkDataSet   input


Set the Input of this mapper.

vtkDataSet* vtkDataSetMapper::GetInput


Set the Input of this mapper.

Reimplemented from vtkMapper.


Member Data Documentation

vtkDataSetSurfaceFilter* vtkDataSetMapper::GeometryExtractor [protected]


Definition at line 89 of file vtkDataSetMapper.h.

vtkPolyDataMapper* vtkDataSetMapper::PolyDataMapper [protected]


Definition at line 90 of file vtkDataSetMapper.h.


The documentation for this class was generated from the following file:
