vtkGLUTesselatorTriangleFilter Class Reference
#include <vtkGLUTesselatorTriangleFilter.h>

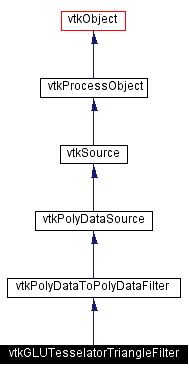

Inheritance diagram for vtkGLUTesselatorTriangleFilter:

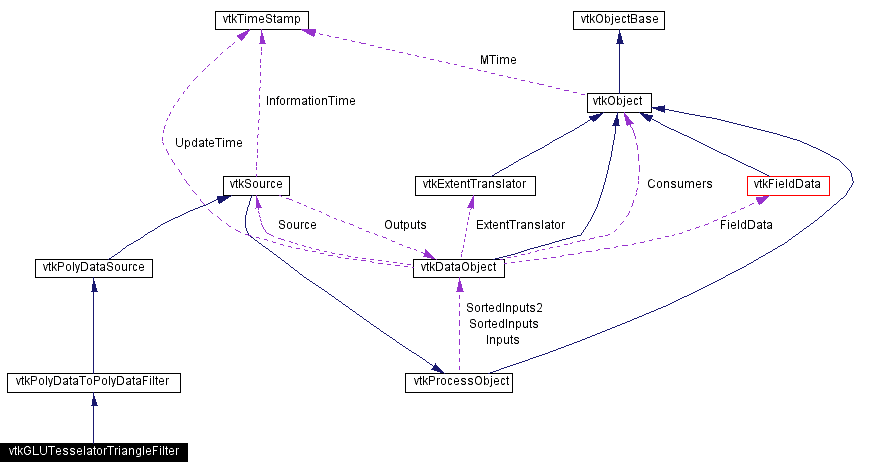

[legend]Collaboration diagram for vtkGLUTesselatorTriangleFilter:
[legend]List of all members.
Detailed Description
create triangle polygons from input polygons and triangle strips
- Date:
-
2002/08/07 23:12:10
- Revision:
-
1.7
vtkGLUTesselatorTriangleFilter generates triangles from input polygons and triangle strips. The filter also will pass through vertices and lines, if requested.
This filter is a specialized version of vtkTriangleFilter. It uses glu code to perform the tessellation. To use this filter, you will have to link against a GLU library.
- See also:
-
vtkTriangleFilter
- Created by:
-
- CVS contributions (if > 5%):
-
- CVS logs (CVSweb):
-
- .
cxx (/Hybrid/vtkGLUTesselatorTriangleFilter.cxx) - .
h (/Hybrid/vtkGLUTesselatorTriangleFilter.h)
Definition at line 50 of file vtkGLUTesselatorTriangleFilter.h.
Member Typedef Documentation
Constructor & Destructor Documentation
| vtkGLUTesselatorTriangleFilter::vtkGLUTesselatorTriangleFilter |
( |
|
) |
[protected] |
|
| vtkGLUTesselatorTriangleFilter::~vtkGLUTesselatorTriangleFilter |
( |
|
) |
[protected] |
|
Member Function Documentation
| vtkGLUTesselatorTriangleFilter* vtkGLUTesselatorTriangleFilter::New |
( |
|
) |
[static] |
|
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject. |
| virtual const char* vtkGLUTesselatorTriangleFilter::GetClassName |
( |
|
) |
[virtual] |
|
| int vtkGLUTesselatorTriangleFilter::IsTypeOf |
( |
const char * |
type |
) |
[static] |
|
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkPolyDataToPolyDataFilter. |
| virtual int vtkGLUTesselatorTriangleFilter::IsA |
( |
const char * |
type |
) |
[virtual] |
|
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkPolyDataToPolyDataFilter. |
| vtkGLUTesselatorTriangleFilter* vtkGLUTesselatorTriangleFilter::SafeDownCast |
( |
vtkObject * |
o |
) |
[static] |
|
| void vtkGLUTesselatorTriangleFilter::PrintSelf |
( |
ostream & |
os, |
|
|
vtkIndent |
indent |
|
) |
[virtual] |
|
|
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkPolyDataToPolyDataFilter. |
| virtual void vtkGLUTesselatorTriangleFilter::PassVertsOn |
( |
|
) |
[virtual] |
|
|
|
Turn on/off passing vertices through filter. |
| virtual void vtkGLUTesselatorTriangleFilter::PassVertsOff |
( |
|
) |
[virtual] |
|
|
|
Turn on/off passing vertices through filter. |
| virtual void vtkGLUTesselatorTriangleFilter::SetPassVerts |
( |
int |
|
) |
[virtual] |
|
|
|
Turn on/off passing vertices through filter. |
| virtual int vtkGLUTesselatorTriangleFilter::GetPassVerts |
( |
|
) |
[virtual] |
|
|
|
Turn on/off passing vertices through filter. |
| virtual void vtkGLUTesselatorTriangleFilter::PassLinesOn |
( |
|
) |
[virtual] |
|
|
|
Turn on/off passing lines through filter. |
| virtual void vtkGLUTesselatorTriangleFilter::PassLinesOff |
( |
|
) |
[virtual] |
|
|
|
Turn on/off passing lines through filter. |
| virtual void vtkGLUTesselatorTriangleFilter::SetPassLines |
( |
int |
|
) |
[virtual] |
|
|
|
Turn on/off passing lines through filter. |
| virtual int vtkGLUTesselatorTriangleFilter::GetPassLines |
( |
|
) |
[virtual] |
|
|
|
Turn on/off passing lines through filter. |
| void vtkGLUTesselatorTriangleFilter::Execute |
( |
|
) |
[protected, virtual] |
|
|
|
This method is the old style execute method
Reimplemented from vtkSource. |
Member Data Documentation
int vtkGLUTesselatorTriangleFilter::PassVerts [protected]
|
|
int vtkGLUTesselatorTriangleFilter::PassLines [protected]
|
|
GLUtesselator* vtkGLUTesselatorTriangleFilter::GLUTesselator [protected]
|
|
The documentation for this class was generated from the following file:
