vtkImageCorrelation Class Reference
#include <vtkImageCorrelation.h>

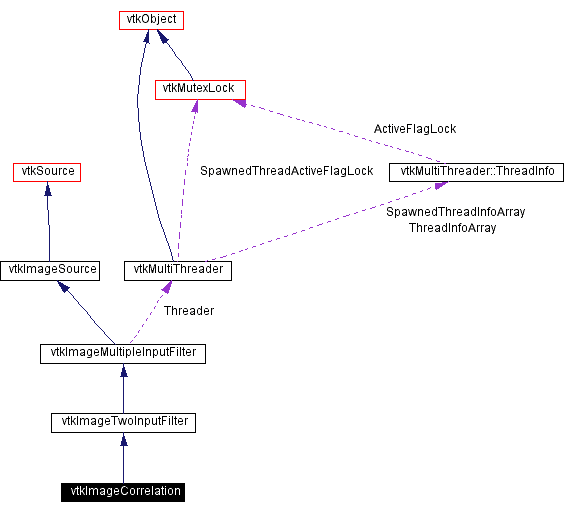

Inheritance diagram for vtkImageCorrelation:
Detailed Description
Correlation imageof the two inputs.
- Date:
- 2002/01/22 15:32:13
- Revision:
- 1.24
vtkImageCorrelation finds the correlation between two data sets. SetDimensionality determines whether the Correlation will be 3D, 2D or 1D. The default is a 2D Correlation. The Output type will be float. The output size will match the size of the first input. The second input is considered the correlation kernel.
- Created by:
-
- Law, Charles
- CVS contributions (if > 5%):
-
- Martin, Ken (46%)
- Law, Charles (39%)
- Tests:
- vtkImageCorrelation (Tests)
Definition at line 51 of file vtkImageCorrelation.h.
Public Types | |
| typedef vtkImageTwoInputFilter | Superclass |
Public Methods | |
| virtual const char * | GetClassName () |
| virtual int | IsA (const char *type) |
| void | PrintSelf (ostream &os, vtkIndent indent) |
| virtual void | SetDimensionality (int) |
| virtual int | GetDimensionality () |
Static Public Methods | |
| vtkImageCorrelation * | New () |
| int | IsTypeOf (const char *type) |
| vtkImageCorrelation * | SafeDownCast (vtkObject *o) |
Protected Methods | |
| vtkImageCorrelation () | |
| ~vtkImageCorrelation () | |
| void | ExecuteInformation (vtkImageData **inDatas, vtkImageData *outData) |
| virtual void | ComputeInputUpdateExtent (int inExt[6], int outExt[6], int whichInput) |
| void | ExecuteInformation () |
| void | ThreadedExecute (vtkImageData **inDatas, vtkImageData *outData, int extent[6], int id) |
Protected Attributes | |
| int | Dimensionality |
Member Typedef Documentation
|
|
Reimplemented from vtkImageTwoInputFilter. Definition at line 55 of file vtkImageCorrelation.h. |
Constructor & Destructor Documentation
|
|
|
|
|
Definition at line 66 of file vtkImageCorrelation.h. |
Member Function Documentation
|
|
Create an object with Debug turned off, modified time initialized to zero, and reference counting on. Reimplemented from vtkObject. |
|
|
Reimplemented from vtkImageTwoInputFilter. |
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageTwoInputFilter. |
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h. Reimplemented from vtkImageTwoInputFilter. |
|
|
Reimplemented from vtkImageTwoInputFilter. |
|
||||||||||||
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes. Reimplemented from vtkImageTwoInputFilter. |
|
|
Determines how the input is interpreted (set of 2d slices ...) |
|
|
Determines how the input is interpreted (set of 2d slices ...) |
|
||||||||||||
|
Reimplemented from vtkImageMultipleInputFilter. |
|
||||||||||||||||
|
Reimplemented from vtkImageMultipleInputFilter. |
|
|
Reimplemented from vtkImageMultipleInputFilter. Definition at line 72 of file vtkImageCorrelation.h. References vtkImageMultipleInputFilter::ExecuteInformation(). |
|
||||||||||||||||||||
|
The execute method created by the subclass. This is kept public instead of protected since it is called from a non-member thread function. Reimplemented from vtkImageMultipleInputFilter. |
Member Data Documentation
|
|
Definition at line 68 of file vtkImageCorrelation.h. |
The documentation for this class was generated from the following file:
- Imaging/vtkImageCorrelation.h
