vtkImageDifference Class Reference

#include <vtkImageDifference.h>

Inheritance diagram for vtkImageDifference:

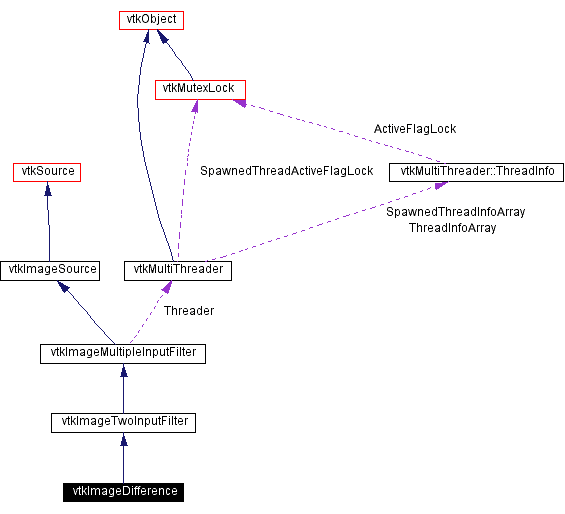

[legend]Collaboration diagram for vtkImageDifference:

[legend]List of all members.

Detailed Description

Compares images for regression tests.

Date:: 2002/01/22 15:32:19

Revision:: 1.27

vtkImageDifference takes two rgb unsigned char images and compares them. It allows the images to be slightly different. If AllowShift is on, then each pixel can be shifted by one pixel. Threshold is the allowable error for each pixel.

Created by:

Law, Charles

CVS contributions (if > 5%):

Law, Charles (52%)
Lorensen, Bill (17%)
Martin, Ken (15%)
Avila, Lisa (10%)

CVS logs (CVSweb):

.cxx (/Imaging/vtkImageDifference.cxx)
.h (/Imaging/vtkImageDifference.h)

Tests:: vtkImageDifference (Tests)

Definition at line 49 of file vtkImageDifference.h.

Public Types

typedef vtkImageTwoInputFilter Superclass

Public Methods

virtual const char * GetClassName ()

virtual int IsA (const char *type)

void PrintSelf (ostream &os, vtkIndent indent)

void SetImage (vtkImageData *image)

vtkImageData * GetImage ()

void SetInput (vtkImageData *input)

void SetInput (int num, vtkImageData *input)

float GetError (void)

void GetError (float *e)

float GetThresholdedError (void)

void GetThresholdedError (float *e)

virtual void SetThreshold (int)

virtual int GetThreshold ()

virtual void SetAllowShift (int)

virtual int GetAllowShift ()

virtual void AllowShiftOn ()

virtual void AllowShiftOff ()

virtual void SetAveraging (int)

virtual int GetAveraging ()

virtual void AveragingOn ()

virtual void AveragingOff ()

Static Public Methods

vtkImageDifference * New ()

int IsTypeOf (const char *type)

vtkImageDifference * SafeDownCast (vtkObject *o)

Protected Methods

vtkImageDifference ()

~vtkImageDifference ()

void ExecuteInformation (vtkImageData **inputs, vtkImageData *output)

void ComputeInputUpdateExtent (int inExt[6], int outExt[6], int whichInput)

void ExecuteInformation ()

void ThreadedExecute (vtkImageData **inDatas, vtkImageData *outData, int extent[6], int id)

Protected Attributes

float ErrorPerThread [VTK_MAX_THREADS]

float ThresholdedErrorPerThread [VTK_MAX_THREADS]

int AllowShift

int Threshold

int Averaging

Member Typedef Documentation

typedef vtkImageTwoInputFilter vtkImageDifference::Superclass

Reimplemented from vtkImageTwoInputFilter.
Definition at line 53 of file vtkImageDifference.h.

Constructor & Destructor Documentation

vtkImageDifference::vtkImageDifference ( ) [protected]

vtkImageDifference::~vtkImageDifference ( ) [inline, protected]

Definition at line 112 of file vtkImageDifference.h.

Member Function Documentation

vtkImageDifference* vtkImageDifference::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.
Reimplemented from vtkObject.

virtual const char* vtkImageDifference::GetClassName ( ) [virtual]

Reimplemented from vtkImageTwoInputFilter.

int vtkImageDifference::IsTypeOf ( const char * type ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkImageTwoInputFilter.

virtual int vtkImageDifference::IsA ( const char * type ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkImageTwoInputFilter.

vtkImageDifference* vtkImageDifference::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkImageTwoInputFilter.

void vtkImageDifference::PrintSelf ( ostream & os,

vtkIndent indent

) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkImageTwoInputFilter.

void vtkImageDifference::SetImage ( vtkImageData * image ) [inline]

Specify the Image to compare the input to.
Definition at line 58 of file vtkImageDifference.h.
References vtkImageTwoInputFilter::SetInput2().

vtkImageData* vtkImageDifference::GetImage ( ) [inline]

Specify the Image to compare the input to.
Definition at line 59 of file vtkImageDifference.h.
References vtkImageTwoInputFilter::GetInput2().

void vtkImageDifference::SetInput ( vtkImageData * input ) [inline]

Specify the Input for comparison.
Definition at line 64 of file vtkImageDifference.h.
References vtkImageTwoInputFilter::SetInput1().

void vtkImageDifference::SetInput ( int num,

vtkImageData * input

) [inline, virtual]

Specify the Input for comparison.
Reimplemented from vtkImageMultipleInputFilter.
Definition at line 65 of file vtkImageDifference.h.
References vtkImageMultipleInputFilter::SetInput().

float vtkImageDifference::GetError ( void )

Return the total error in comparing the two images.

void vtkImageDifference::GetError ( float * e ) [inline]

Return the total error in comparing the two images.
Definition at line 72 of file vtkImageDifference.h.

float vtkImageDifference::GetThresholdedError ( void )

Return the total thresholded error in comparing the two images. The thresholded error is the error for a given pixel minus the threshold and clamped at a minimum of zero.

void vtkImageDifference::GetThresholdedError ( float * e ) [inline]

Return the total thresholded error in comparing the two images. The thresholded error is the error for a given pixel minus the threshold and clamped at a minimum of zero.
Definition at line 80 of file vtkImageDifference.h.

virtual void vtkImageDifference::SetThreshold ( int ) [virtual]

Specify a threshold tolerance for pixel differences.

virtual int vtkImageDifference::GetThreshold ( ) [virtual]

Specify a threshold tolerance for pixel differences.

virtual void vtkImageDifference::SetAllowShift ( int ) [virtual]

Specify whether the comparison will allow a shift of one pixel between the images. If set, then the minimum difference between input images will be used to determine the difference. Otherwise, the difference is computed directly between pixels of identical row/column values.

virtual int vtkImageDifference::GetAllowShift ( ) [virtual]

Specify whether the comparison will allow a shift of one pixel between the images. If set, then the minimum difference between input images will be used to determine the difference. Otherwise, the difference is computed directly between pixels of identical row/column values.

virtual void vtkImageDifference::AllowShiftOn ( ) [virtual]

Specify whether the comparison will allow a shift of one pixel between the images. If set, then the minimum difference between input images will be used to determine the difference. Otherwise, the difference is computed directly between pixels of identical row/column values.

virtual void vtkImageDifference::AllowShiftOff ( ) [virtual]

Specify whether the comparison will allow a shift of one pixel between the images. If set, then the minimum difference between input images will be used to determine the difference. Otherwise, the difference is computed directly between pixels of identical row/column values.

virtual void vtkImageDifference::SetAveraging ( int ) [virtual]

Specify whether the comparison will include comparison of averaged 3x3 data between the images. For graphics renderings you normally would leave this on. For imaging operations it should be off.

virtual int vtkImageDifference::GetAveraging ( ) [virtual]

Specify whether the comparison will include comparison of averaged 3x3 data between the images. For graphics renderings you normally would leave this on. For imaging operations it should be off.

virtual void vtkImageDifference::AveragingOn ( ) [virtual]

Specify whether the comparison will include comparison of averaged 3x3 data between the images. For graphics renderings you normally would leave this on. For imaging operations it should be off.

virtual void vtkImageDifference::AveragingOff ( ) [virtual]

Specify whether the comparison will include comparison of averaged 3x3 data between the images. For graphics renderings you normally would leave this on. For imaging operations it should be off.

void vtkImageDifference::ExecuteInformation ( vtkImageData ** inputs,

vtkImageData * output

) [protected, virtual]

Reimplemented from vtkImageMultipleInputFilter.

void vtkImageDifference::ComputeInputUpdateExtent ( int inExt[6],

int outExt[6],

int whichInput

) [protected, virtual]

Reimplemented from vtkImageMultipleInputFilter.

void vtkImageDifference::ExecuteInformation ( ) [inline, protected, virtual]

Reimplemented from vtkImageMultipleInputFilter.
Definition at line 123 of file vtkImageDifference.h.
References vtkImageMultipleInputFilter::ExecuteInformation().

void vtkImageDifference::ThreadedExecute ( vtkImageData ** inDatas,

vtkImageData * outData,

int extent[6],

int id

) [protected, virtual]

The execute method created by the subclass. This is kept public instead of protected since it is called from a non-member thread function.
Reimplemented from vtkImageMultipleInputFilter.

Member Data Documentation

float vtkImageDifference::ErrorPerThread[VTK_MAX_THREADS] [protected]

Definition at line 114 of file vtkImageDifference.h.

float vtkImageDifference::ThresholdedErrorPerThread[VTK_MAX_THREADS] [protected]

Definition at line 115 of file vtkImageDifference.h.

int vtkImageDifference::AllowShift [protected]

Definition at line 116 of file vtkImageDifference.h.

int vtkImageDifference::Threshold [protected]

Definition at line 117 of file vtkImageDifference.h.

int vtkImageDifference::Averaging [protected]

Definition at line 118 of file vtkImageDifference.h.

The documentation for this class was generated from the following file:

Imaging/vtkImageDifference.h
