vtkImageSinusoidSource Class Reference

#include <vtkImageSinusoidSource.h>

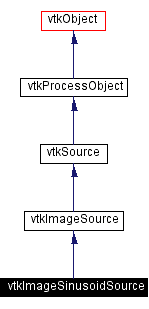

Inheritance diagram for vtkImageSinusoidSource:

Inheritance graph
[legend]

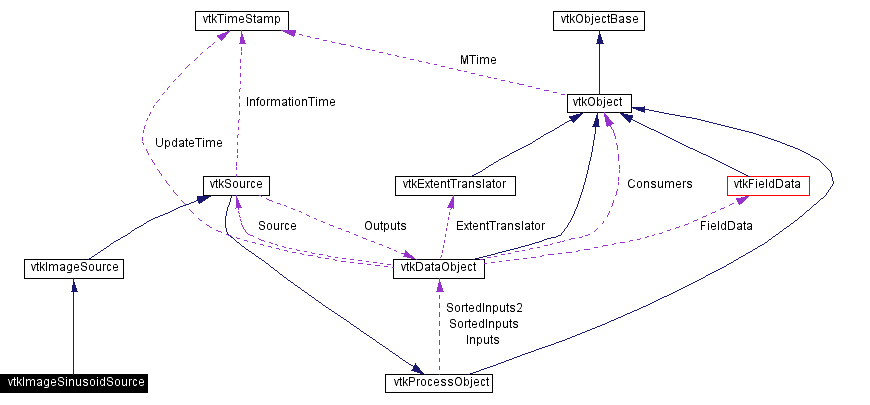

Collaboration diagram for vtkImageSinusoidSource:

Collaboration graph
[legend]
List of all members.

Detailed Description

Create an image with sinusoidal pixel values.

Date:
2002/01/22 15:33:28
Revision:
1.28

vtkImageSinusoidSource just produces images with pixel values determined by a sinusoid.

Created by:
  • Law, Charles
CVS contributions (if > 5%):
  • Law, Charles (60%)
  • Martin, Ken (31%)
CVS logs (CVSweb):
  • .cxx (/Imaging/vtkImageSinusoidSource.cxx)
  • .h (/Imaging/vtkImageSinusoidSource.h)
Tests:
vtkImageSinusoidSource (Tests)

Definition at line 45 of file vtkImageSinusoidSource.h.

Public Types

typedef vtkImageSource Superclass

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetWholeExtent (int xMinx, int xMax, int yMin, int yMax, int zMin, int zMax)
void SetDirection (float, float, float)
void SetDirection (float dir[3])
virtual float * GetDirection ()
virtual void GetDirection (float &, float &, float &)
virtual void GetDirection (float[3])
virtual void SetPeriod (float)
virtual float GetPeriod ()
virtual void SetPhase (float)
virtual float GetPhase ()
virtual void SetAmplitude (float)
virtual float GetAmplitude ()

Static Public Methods

vtkImageSinusoidSource * New ()
int IsTypeOf (const char *type)
vtkImageSinusoidSource * SafeDownCast (vtkObject *o)

Protected Methods

 vtkImageSinusoidSource ()
 ~vtkImageSinusoidSource ()
virtual void ExecuteInformation ()
virtual void ExecuteData (vtkDataObject *data)

Protected Attributes

int WholeExtent [6]
float Direction [3]
float Period
float Phase
float Amplitude


Member Typedef Documentation

typedef vtkImageSource vtkImageSinusoidSource::Superclass


Reimplemented from vtkImageSource.

Definition at line 49 of file vtkImageSinusoidSource.h.


Constructor & Destructor Documentation

vtkImageSinusoidSource::vtkImageSinusoidSource   [protected]


vtkImageSinusoidSource::~vtkImageSinusoidSource   [inline, protected]


Definition at line 86 of file vtkImageSinusoidSource.h.


Member Function Documentation

vtkImageSinusoidSource* vtkImageSinusoidSource::New   [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkImageSinusoidSource::GetClassName   [virtual]


Reimplemented from vtkImageSource.

int vtkImageSinusoidSource::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageSource.

virtual int vtkImageSinusoidSource::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageSource.

vtkImageSinusoidSource* vtkImageSinusoidSource::SafeDownCast vtkObject   o [static]


Reimplemented from vtkImageSource.

void vtkImageSinusoidSource::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageSource.

void vtkImageSinusoidSource::SetWholeExtent int    xMinx,
int    xMax,
int    yMin,
int    yMax,
int    zMin,
int    zMax


Set/Get the extent of the whole output image.

void vtkImageSinusoidSource::SetDirection float   ,
float   ,
float


Set/Get the direction vector which determines the sinusoidal orientation. The magnitude is ignored.

void vtkImageSinusoidSource::SetDirection float    dir[3]


Set/Get the direction vector which determines the sinusoidal orientation. The magnitude is ignored.

virtual float* vtkImageSinusoidSource::GetDirection   [virtual]


Set/Get the direction vector which determines the sinusoidal orientation. The magnitude is ignored.

virtual void vtkImageSinusoidSource::GetDirection float &   ,
float &   ,
float &
[virtual]


Set/Get the direction vector which determines the sinusoidal orientation. The magnitude is ignored.

virtual void vtkImageSinusoidSource::GetDirection float   [3] [virtual]


Set/Get the direction vector which determines the sinusoidal orientation. The magnitude is ignored.

virtual void vtkImageSinusoidSource::SetPeriod float    [virtual]


Set/Get the period of the sinusoid in pixels.

virtual float vtkImageSinusoidSource::GetPeriod   [virtual]


Set/Get the period of the sinusoid in pixels.

virtual void vtkImageSinusoidSource::SetPhase float    [virtual]


Set/Get the phase: 0->2Pi. 0 => Cosine, pi/2 => Sine.

virtual float vtkImageSinusoidSource::GetPhase   [virtual]


Set/Get the phase: 0->2Pi. 0 => Cosine, pi/2 => Sine.

virtual void vtkImageSinusoidSource::SetAmplitude float    [virtual]


Set/Get the magnitude of the sinusoid.

virtual float vtkImageSinusoidSource::GetAmplitude   [virtual]


Set/Get the magnitude of the sinusoid.

virtual void vtkImageSinusoidSource::ExecuteInformation   [protected, virtual]


Reimplemented from vtkSource.

virtual void vtkImageSinusoidSource::ExecuteData vtkDataObject   data [protected, virtual]



Member Data Documentation

int vtkImageSinusoidSource::WholeExtent[6] [protected]


Definition at line 88 of file vtkImageSinusoidSource.h.

float vtkImageSinusoidSource::Direction[3] [protected]


Definition at line 89 of file vtkImageSinusoidSource.h.

float vtkImageSinusoidSource::Period [protected]


Definition at line 90 of file vtkImageSinusoidSource.h.

float vtkImageSinusoidSource::Phase [protected]


Definition at line 91 of file vtkImageSinusoidSource.h.

float vtkImageSinusoidSource::Amplitude [protected]


Definition at line 92 of file vtkImageSinusoidSource.h.


The documentation for this class was generated from the following file:
