vtkImageToImageStencil Class Reference

#include <vtkImageToImageStencil.h>

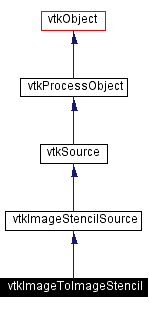

Inheritance diagram for vtkImageToImageStencil:

Inheritance graph
[legend]

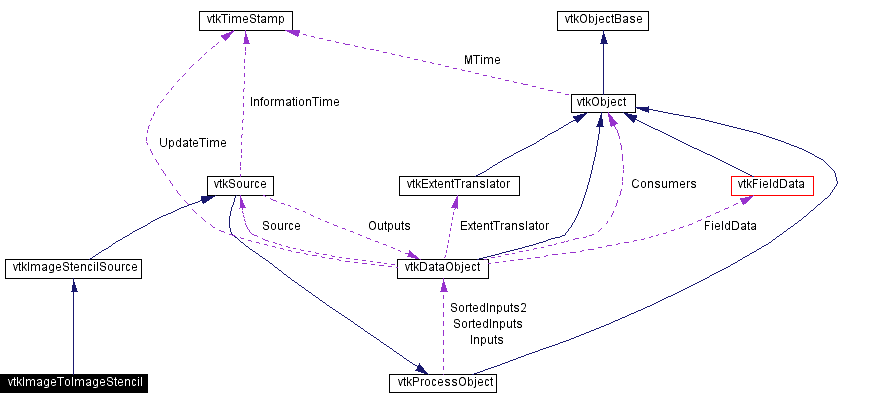

Collaboration diagram for vtkImageToImageStencil:

Collaboration graph
[legend]
List of all members.

Detailed Description

clip an image with a mask image

Date:
2002/12/11 14:26:22
Revision:
1.9

vtkImageToImageStencil will convert a vtkImageData into an stencil that can be used with vtkImageStecil or other vtk classes that apply a stencil to an image.

See also:
vtkImageStencil vtkImplicitFunctionToImageStencil vtkPolyDataToImageStencil
Created by:
  • Gobbi, David
CVS contributions (if > 5%):
  • Gobbi, David (83%)
  • Schroeder, Will (7%)
  • Cedilnik, Andy (5%)
CVS logs (CVSweb):
  • .h (/Imaging/vtkImageToImageStencil.h)
  • .cxx (/Imaging/vtkImageToImageStencil.cxx)
Tests:
vtkImageToImageStencil (Tests)

Definition at line 52 of file vtkImageToImageStencil.h.

Public Types

typedef vtkImageStencilSource Superclass

Public Methods

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void ThresholdByUpper (float thresh)
void ThresholdByLower (float thresh)
void ThresholdBetween (float lower, float upper)
void SetInput (vtkImageData *input)
vtkImageDataGetInput ()
virtual void SetUpperThreshold (float)
virtual float GetUpperThreshold ()
virtual void SetLowerThreshold (float)
virtual float GetLowerThreshold ()

Static Public Methods

vtkImageToImageStencil * New ()
int IsTypeOf (const char *type)
vtkImageToImageStencil * SafeDownCast (vtkObject *o)

Protected Methods

 vtkImageToImageStencil ()
 ~vtkImageToImageStencil ()
void ThreadedExecute (vtkImageStencilData *output, int extent[6], int threadId)

Protected Attributes

float UpperThreshold
float LowerThreshold
float Threshold


Member Typedef Documentation

typedef vtkImageStencilSource vtkImageToImageStencil::Superclass


Reimplemented from vtkImageStencilSource.

Definition at line 56 of file vtkImageToImageStencil.h.


Constructor & Destructor Documentation

vtkImageToImageStencil::vtkImageToImageStencil   [protected]


vtkImageToImageStencil::~vtkImageToImageStencil   [protected]



Member Function Documentation

vtkImageToImageStencil* vtkImageToImageStencil::New   [static]


Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkImageStencilSource.

virtual const char* vtkImageToImageStencil::GetClassName   [virtual]


Reimplemented from vtkImageStencilSource.

int vtkImageToImageStencil::IsTypeOf const char *    type [static]


Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageStencilSource.

virtual int vtkImageToImageStencil::IsA const char *    type [virtual]


Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.

Reimplemented from vtkImageStencilSource.

vtkImageToImageStencil* vtkImageToImageStencil::SafeDownCast vtkObject   o [static]


Reimplemented from vtkImageStencilSource.

void vtkImageToImageStencil::PrintSelf ostream &    os,
vtkIndent    indent
[virtual]


Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageStencilSource.

void vtkImageToImageStencil::SetInput vtkImageData   input


Specify the image data to convert into a stencil.

vtkImageData* vtkImageToImageStencil::GetInput


Specify the image data to convert into a stencil.

void vtkImageToImageStencil::ThresholdByUpper float    thresh


The values greater than or equal to the value match.

void vtkImageToImageStencil::ThresholdByLower float    thresh


The values less than or equal to the value match.

void vtkImageToImageStencil::ThresholdBetween float    lower,
float    upper


The values in a range (inclusive) match

virtual void vtkImageToImageStencil::SetUpperThreshold float    [virtual]


Get the Upper and Lower thresholds.

virtual float vtkImageToImageStencil::GetUpperThreshold   [virtual]


Get the Upper and Lower thresholds.

virtual void vtkImageToImageStencil::SetLowerThreshold float    [virtual]


Get the Upper and Lower thresholds.

virtual float vtkImageToImageStencil::GetLowerThreshold   [virtual]


Get the Upper and Lower thresholds.

void vtkImageToImageStencil::ThreadedExecute vtkImageStencilData   output,
int    extent[6],
int    threadId
[protected, virtual]


Override this method to support clipping with different kinds of objects. Eventually the extent could be split up and handled by multiple threads, but it isn't for now. But please ensure that all code inside this method is thread-safe.

Reimplemented from vtkImageStencilSource.


Member Data Documentation

float vtkImageToImageStencil::UpperThreshold [protected]


Definition at line 89 of file vtkImageToImageStencil.h.

float vtkImageToImageStencil::LowerThreshold [protected]


Definition at line 90 of file vtkImageToImageStencil.h.

float vtkImageToImageStencil::Threshold [protected]


Definition at line 91 of file vtkImageToImageStencil.h.


The documentation for this class was generated from the following file:
