vtkImplicitDataSet Class Reference
#include <vtkImplicitDataSet.h>
Inheritance diagram for vtkImplicitDataSet:

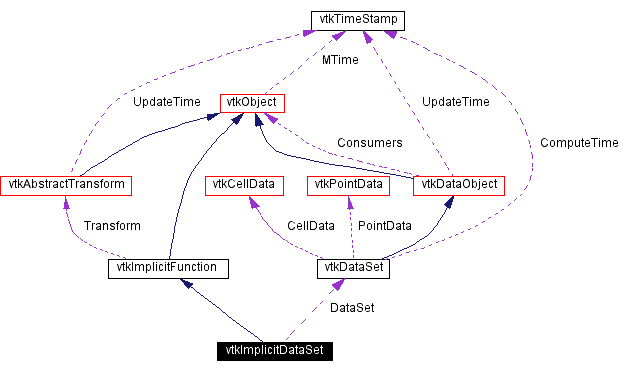

[legend]Collaboration diagram for vtkImplicitDataSet:
[legend]List of all members.
Detailed Description
treat a dataset as if it were an implicit function
- Date:
-
2002/10/04 20:43:44
- Revision:
-
1.26
vtkImplicitDataSet treats any type of dataset as if it were an implicit function. This means it computes a function value and gradient. vtkImplicitDataSet is a concrete implementation of vtkImplicitFunction.
vtkImplicitDataSet computes the function (at the point x) by performing cell interpolation. That is, it finds the cell containing x, and then uses the cell's interpolation functions to compute an interpolated scalar value at x. (A similar approach is used to find the gradient, if requested.) Points outside of the dataset are assigned the value of the ivar OutValue, and the gradient value OutGradient.
- Warning:
-
Any type of dataset can be used as an implicit function as long as it has scalar data associated with it.
- See also:
-
vtkImplicitFunction vtkImplicitVolume vtkClipPolyData vtkCutter vtkImplicitWindowFunction
- Created by:
-
- CVS contributions (if > 5%):
-
- Schroeder, Will (68%)
- Lorensen, Bill (6%)
- Cedilnik, Andy (5%)
- Martin, Ken (5%)
- CVS logs (CVSweb):
-
- .
cxx (/Filtering/vtkImplicitDataSet.cxx) - .
h (/Filtering/vtkImplicitDataSet.h)
- Tests:
-
vtkImplicitDataSet (Tests)
Definition at line 66 of file vtkImplicitDataSet.h.
Member Typedef Documentation
Constructor & Destructor Documentation
| vtkImplicitDataSet::vtkImplicitDataSet |
( |
|
) |
[protected] |
|
| vtkImplicitDataSet::~vtkImplicitDataSet |
( |
|
) |
[protected] |
|
Member Function Documentation
| virtual const char* vtkImplicitDataSet::GetClassName |
( |
|
) |
[virtual] |
|
| int vtkImplicitDataSet::IsTypeOf |
( |
const char * |
type |
) |
[static] |
|
|
|
Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkImplicitFunction. |
| virtual int vtkImplicitDataSet::IsA |
( |
const char * |
type |
) |
[virtual] |
|
|
|
Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeRevisionMacro found in vtkSetGet.h.
Reimplemented from vtkImplicitFunction. |
| vtkImplicitDataSet* vtkImplicitDataSet::SafeDownCast |
( |
vtkObject * |
o |
) |
[static] |
|
| void vtkImplicitDataSet::PrintSelf |
( |
ostream & |
os, |
|
|
vtkIndent |
indent |
|
) |
[virtual] |
|
|
|
Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.
Reimplemented from vtkImplicitFunction. |
| vtkImplicitDataSet* vtkImplicitDataSet::New |
( |
|
) |
[static] |
|
|
|
Construct an vtkImplicitDataSet with no initial dataset; the OutValue set to a large negative number; and the OutGradient set to (0,0,1).
Reimplemented from vtkObject. |
| unsigned long vtkImplicitDataSet::GetMTime |
( |
|
) |
[virtual] |
|
|
|
Return the MTime also considering the DataSet dependency.
Reimplemented from vtkImplicitFunction. |
| float vtkImplicitDataSet::EvaluateFunction |
( |
float |
x[3] |
) |
[virtual] |
|
|
|
Evaluate the implicit function. This returns the interpolated scalar value at x[3].
Implements vtkImplicitFunction. |
| float vtkImplicitDataSet::EvaluateFunction |
( |
float |
x, |
|
|
float |
y, |
|
|
float |
z |
|
) |
[inline] |
|
| void vtkImplicitDataSet::EvaluateGradient |
( |
float |
x[3], |
|
|
float |
n[3] |
|
) |
[virtual] |
|
| virtual void vtkImplicitDataSet::SetDataSet |
( |
vtkDataSet * |
|
) |
[virtual] |
|
|
|
Set / get the dataset used for the implicit function evaluation. |
| virtual vtkDataSet* vtkImplicitDataSet::GetDataSet |
( |
|
) |
[virtual] |
|
|
|
Set / get the dataset used for the implicit function evaluation. |
| virtual void vtkImplicitDataSet::SetOutValue |
( |
float |
|
) |
[virtual] |
|
|
|
Set / get the function value to use for points outside of the dataset. |
| virtual float vtkImplicitDataSet::GetOutValue |
( |
|
) |
[virtual] |
|
|
|
Set / get the function value to use for points outside of the dataset. |
| virtual void vtkImplicitDataSet::SetOutGradient |
( |
float |
, |
|
|
float |
, |
|
|
float |
|
|
) |
[virtual] |
|
|
|
Set / get the function gradient to use for points outside of the dataset. |
| virtual void vtkImplicitDataSet::SetOutGradient |
( |
float |
[3] |
) |
[virtual] |
|
|
|
Set / get the function gradient to use for points outside of the dataset. |
| virtual float* vtkImplicitDataSet::GetOutGradient |
( |
|
) |
[virtual] |
|
|
|
Set / get the function gradient to use for points outside of the dataset. |
| virtual void vtkImplicitDataSet::GetOutGradient |
( |
float & |
, |
|
|
float & |
, |
|
|
float & |
|
|
) |
[virtual] |
|
|
|
Set / get the function gradient to use for points outside of the dataset. |
| virtual void vtkImplicitDataSet::GetOutGradient |
( |
float |
[3] |
) |
[virtual] |
|
|
|
Set / get the function gradient to use for points outside of the dataset. |
Member Data Documentation
vtkDataSet* vtkImplicitDataSet::DataSet [protected]
|
|
float vtkImplicitDataSet::OutValue [protected]
|
|
float vtkImplicitDataSet::OutGradient[3] [protected]
|
|
float* vtkImplicitDataSet::Weights [protected]
|
|
int vtkImplicitDataSet::Size [protected]
|
|
The documentation for this class was generated from the following file:
